Description
Application
Decorative commercial service spaces, meeting rooms, amenity areas
Design Specifications
-
Extruded rectangular aluminium profile with an opal polycarbonate diffuser
-
Choice of white or black finish
-
High efficiency LED optics, CRI > 80
-
Selectable CCT 3000/4000/5700K, integral 1-10V dimmable LED driver
-
Surface mount or suspended, suspension kit (2 off 1800mm drops) incl.
-

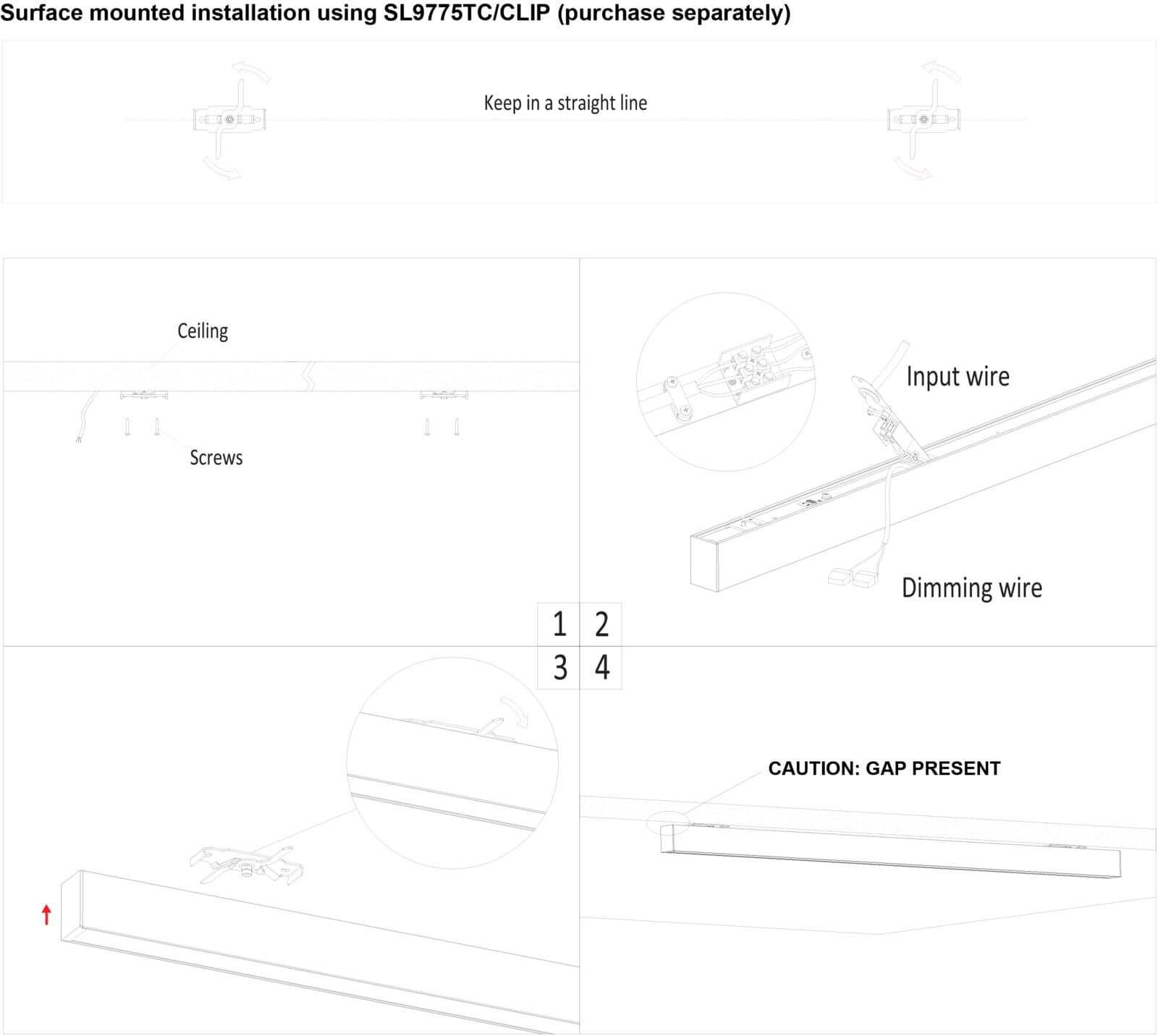

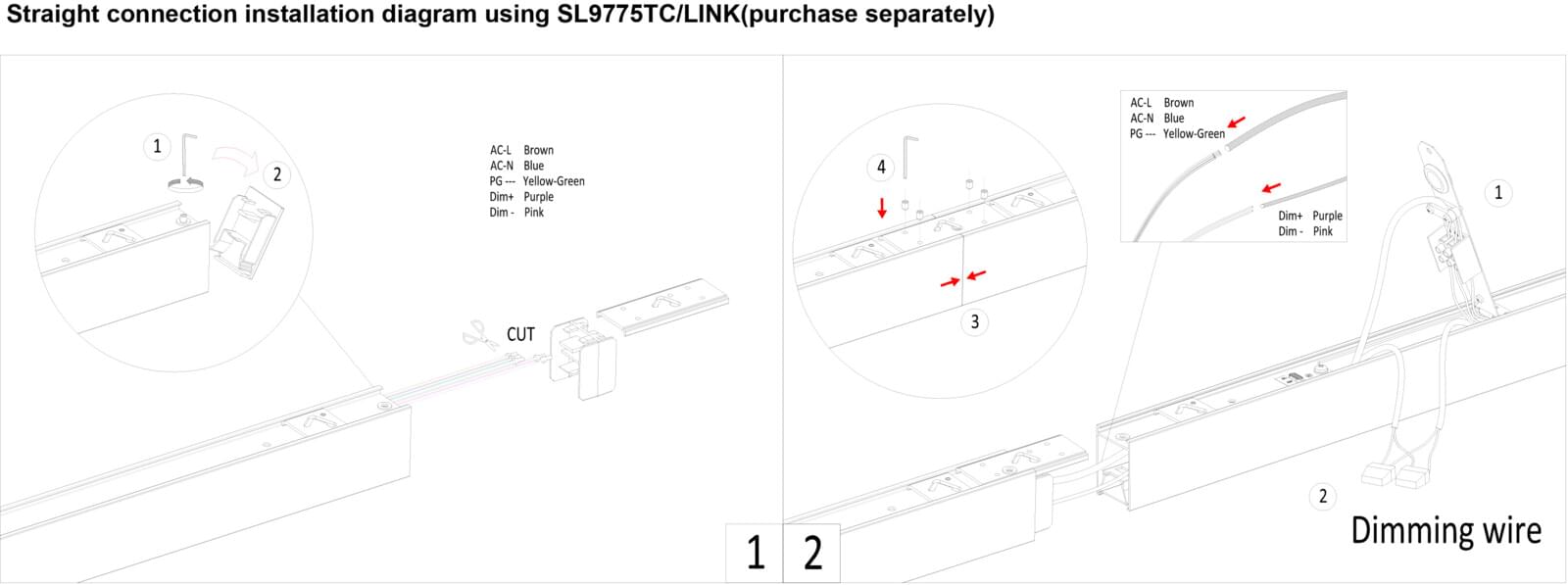

Optional surface mount, accessories to order (SL9775TC/CLIP - pack of two), max connected units 15 off, optional straight joiner required (SL9775TC/LINK - pack of one), continuous 5m diffuser roll (SL9775TC/DF5)
-
Dimmer 1-10V YES
Performance
- Dimmable - YES
- Dimmer Type - 1-10V
| Model No. | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimmable | Dim | Body Colour |
|---|---|---|---|---|---|---|---|---|---|
| SL9775TC/WH | 240 | 30 | 3100/3300/3300 | 3000/4000/5700 | 80 | 105 | YES | 1129(L) x 35(W) x 50(H) | WHITE |
| SL9775TC/BK | 240 | 30 | 3100/3300/3300 | 3000/4000/5700 | 80 | 105 | YES | 1129(L) x 35(W) x 50(H) | BLACK |

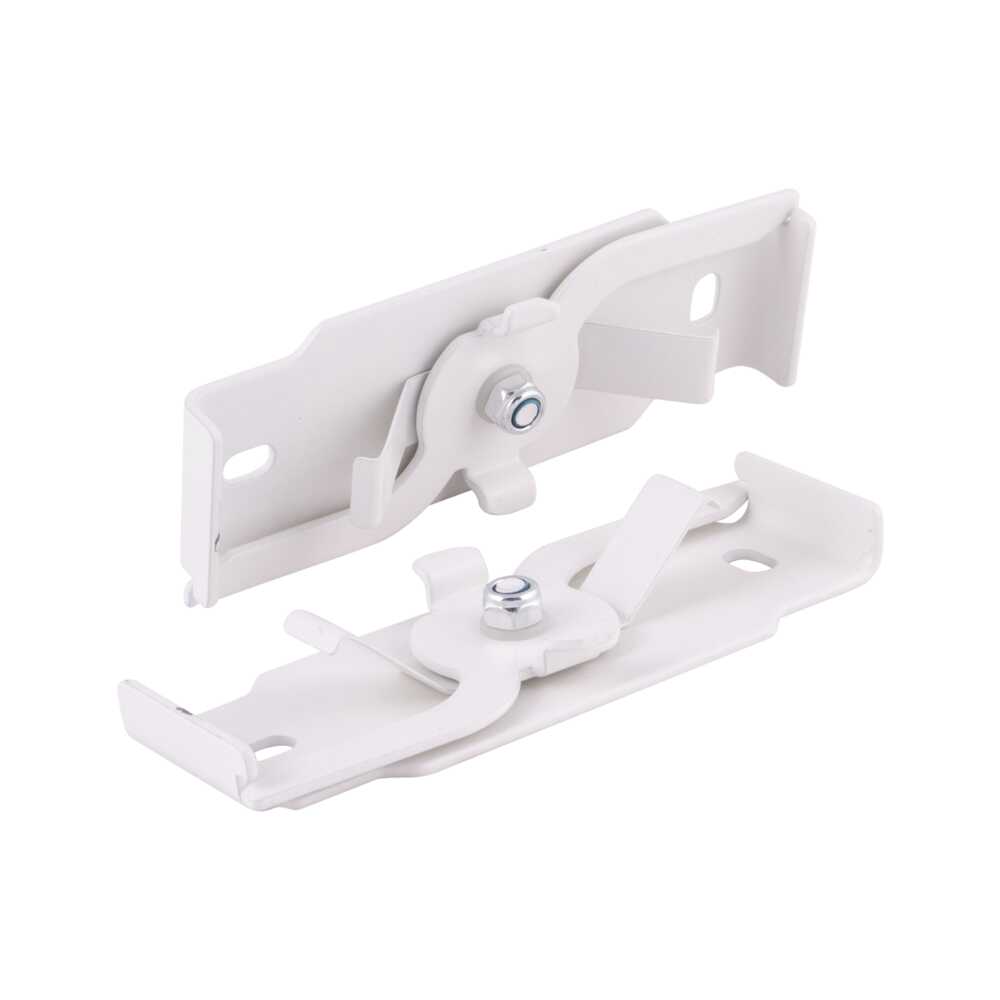

| SL9775TC/CLIP | WHITE | ||||||||

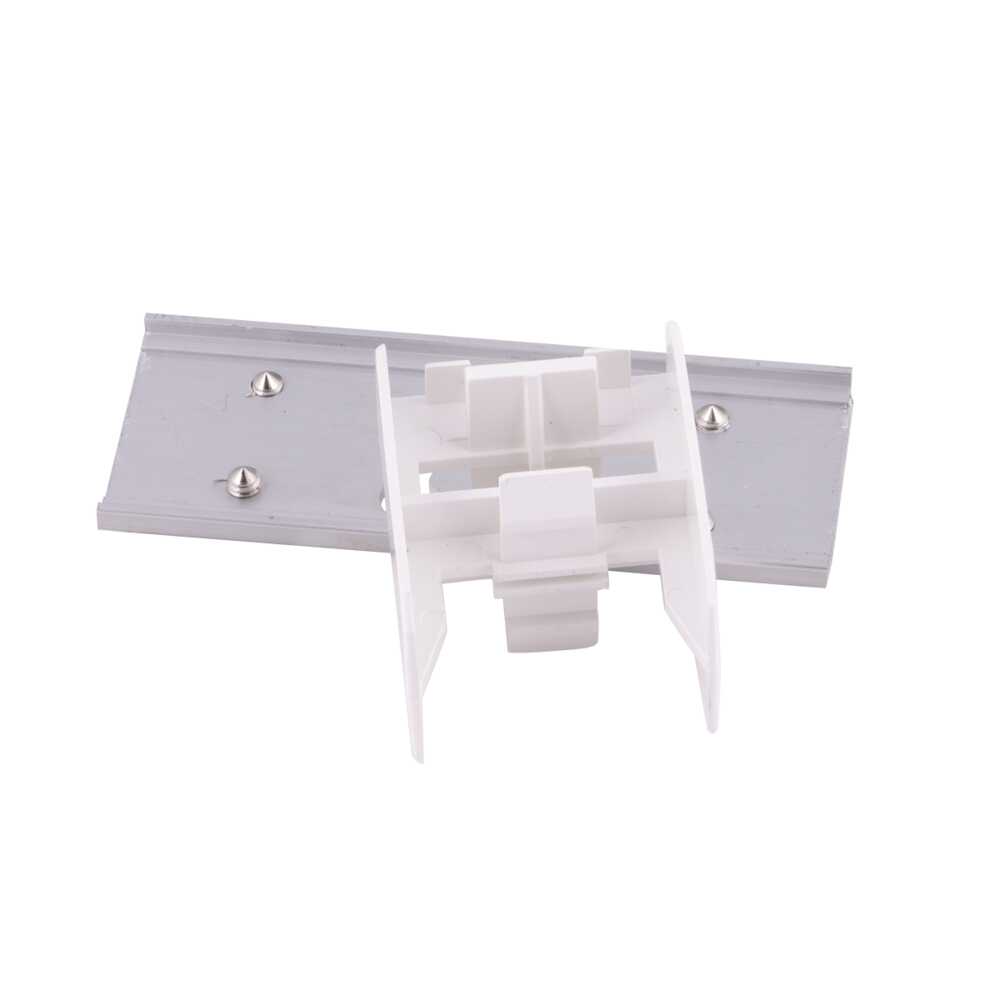

| SL9775TC/LINK | WHITE | ||||||||

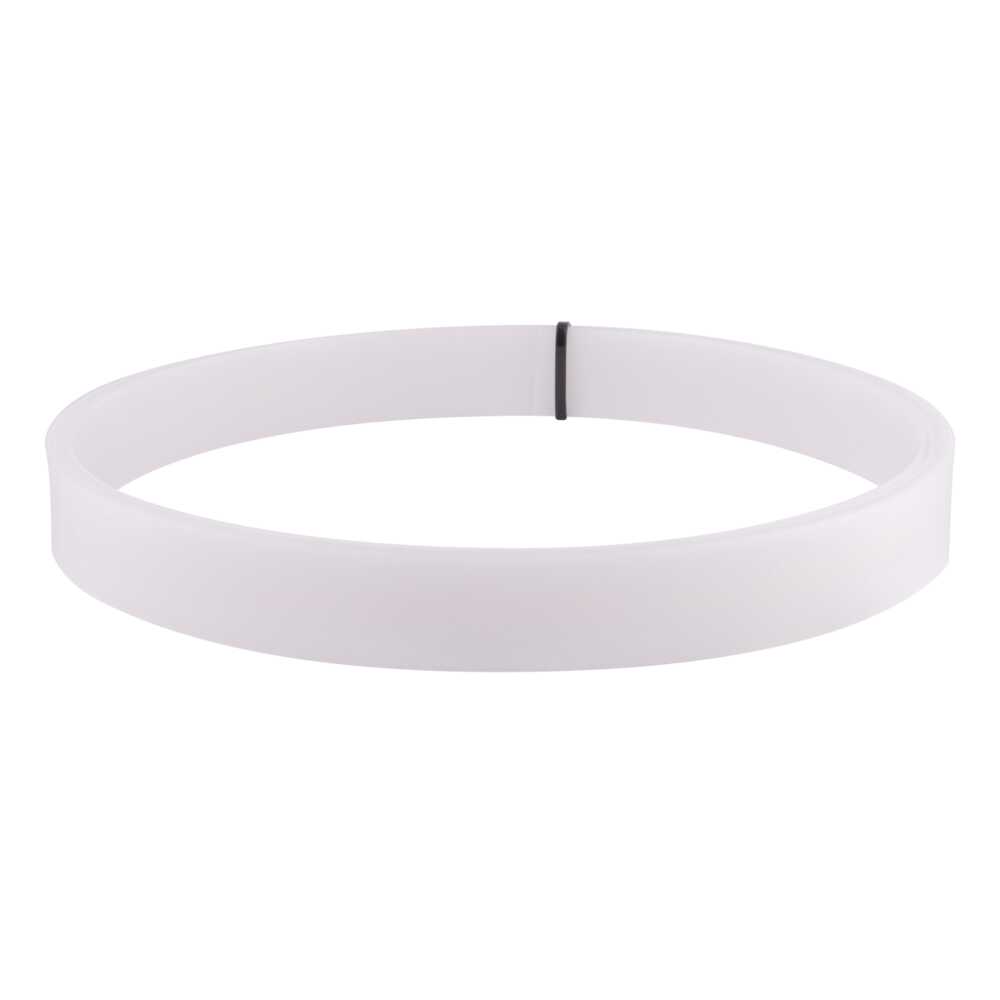

| SL9775TC/DF5 | 5000(L) | OPAL WHITE |
