Description
IP66 LED SOLAR area luminaire - 6000 / 12000 lumens, remote solar panel with sensor functions
Application
A sustainable area luminaire solution for commerical exterior spaces
Design Specifications
-

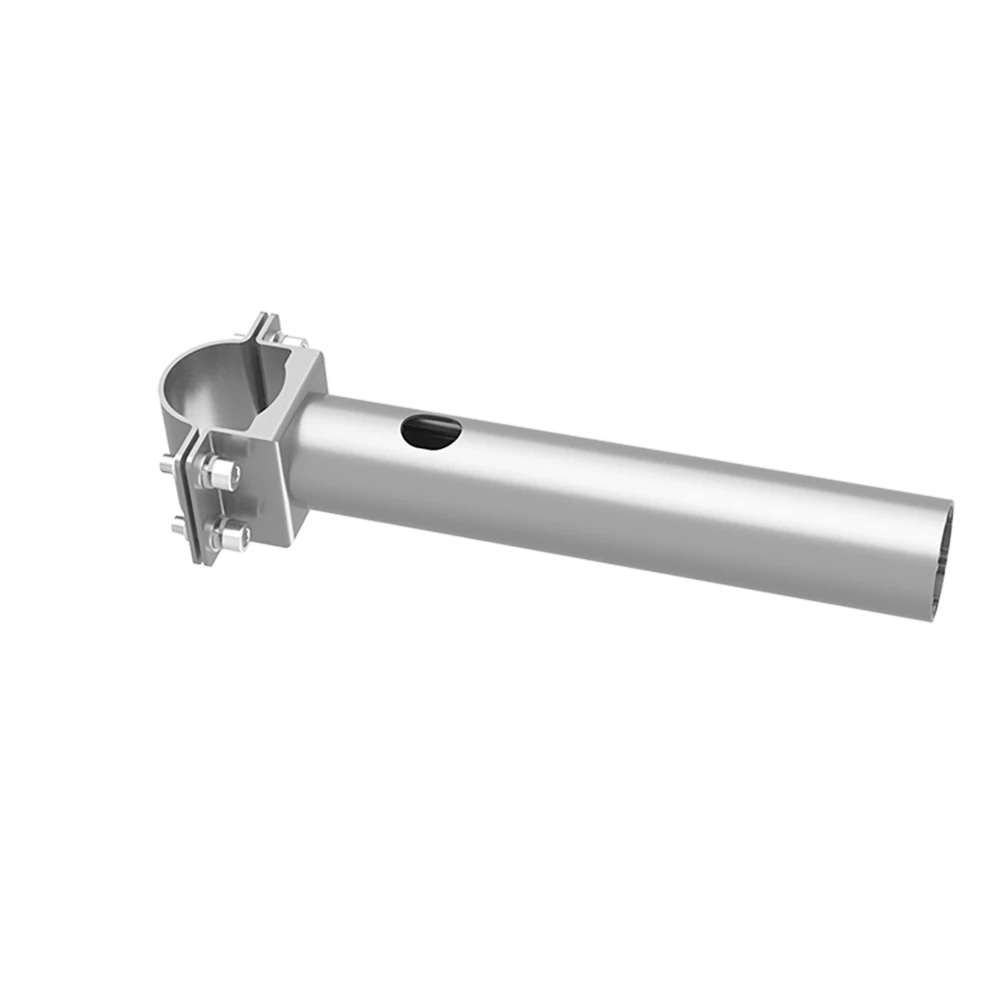

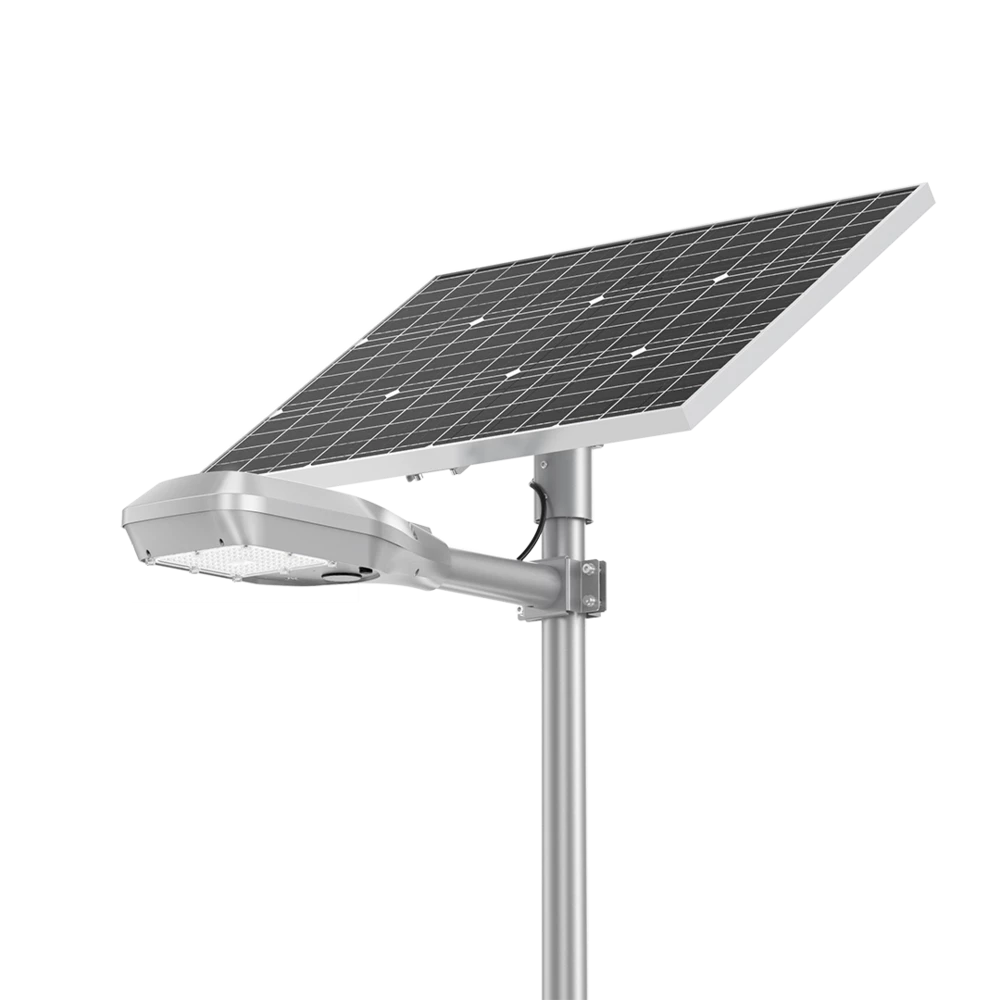

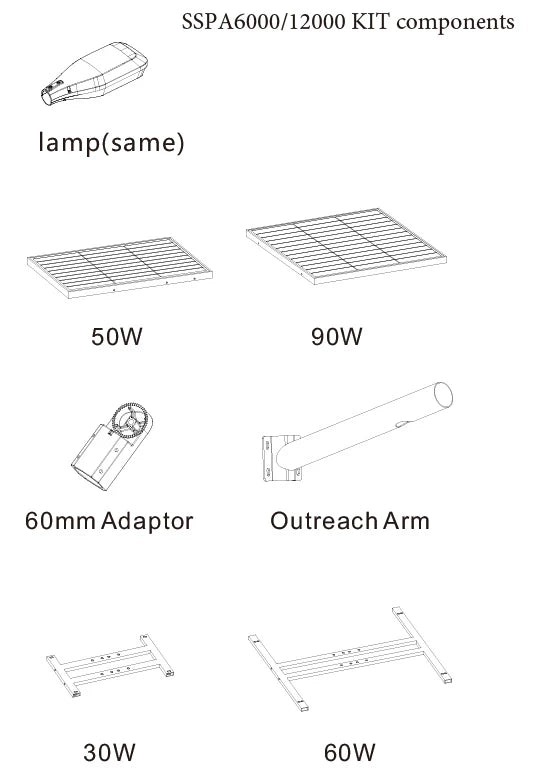

Supplied as a buildable kit including a solar charging panel and column mount bracket system, LiFePO4 technology battery, remote control for mode selections, cable array, luminaire with integral gear and out-reach arm. (column sourced separately).
-

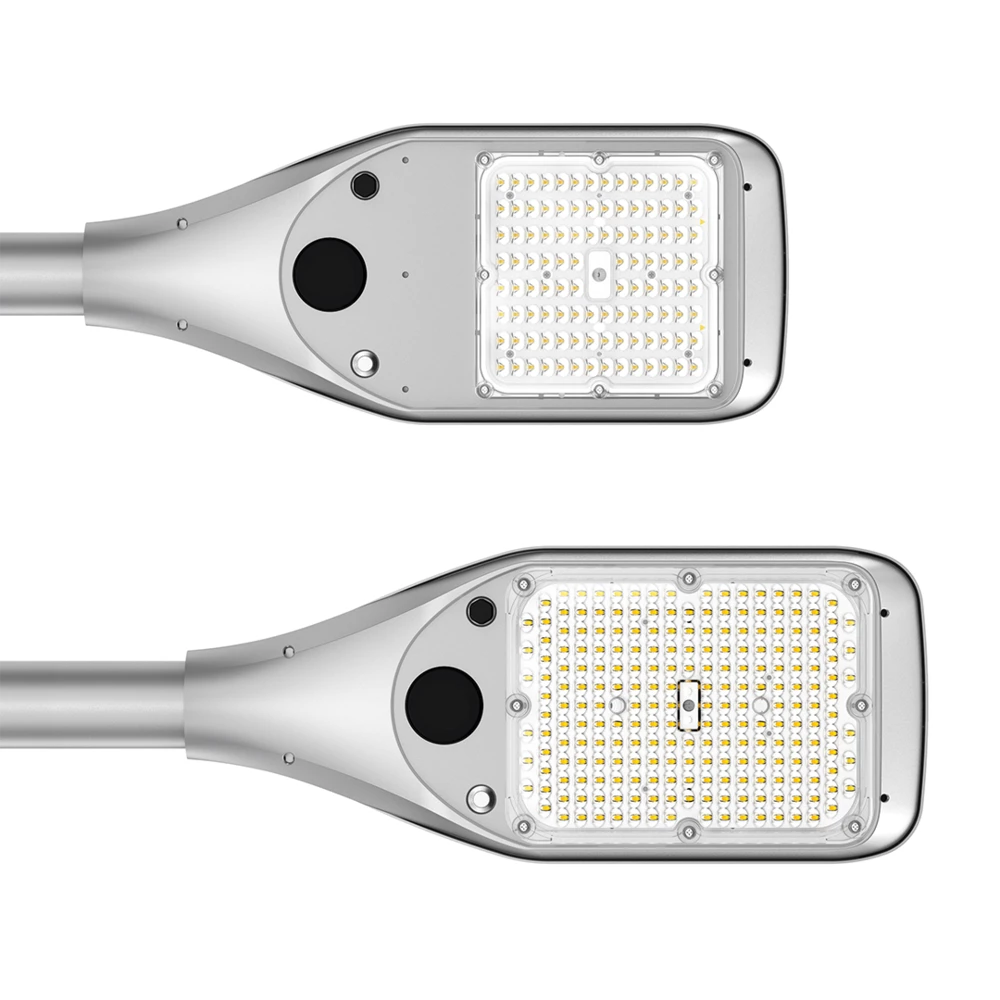

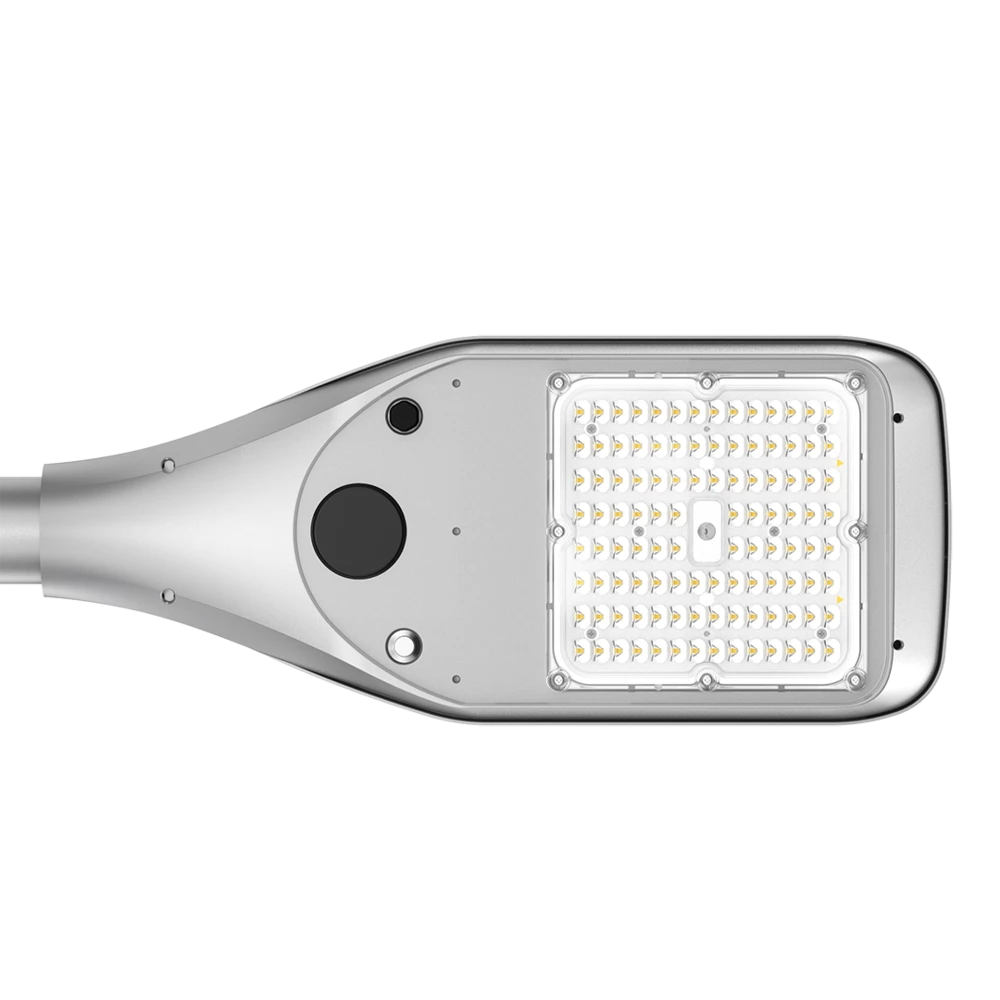

High efficiency LED optics, choice of 6000 or 12000 lm systems, CRI >80, CCT 4000K, non-dimmable integral driver, beam distribution type II.
-
Lithium battery technology, with overcharge, over-discharge and load short circuit protection, with selectable sensor and dusk to dawn modes.
-
Charge time 4 hours full sun (1000W/m²)
-

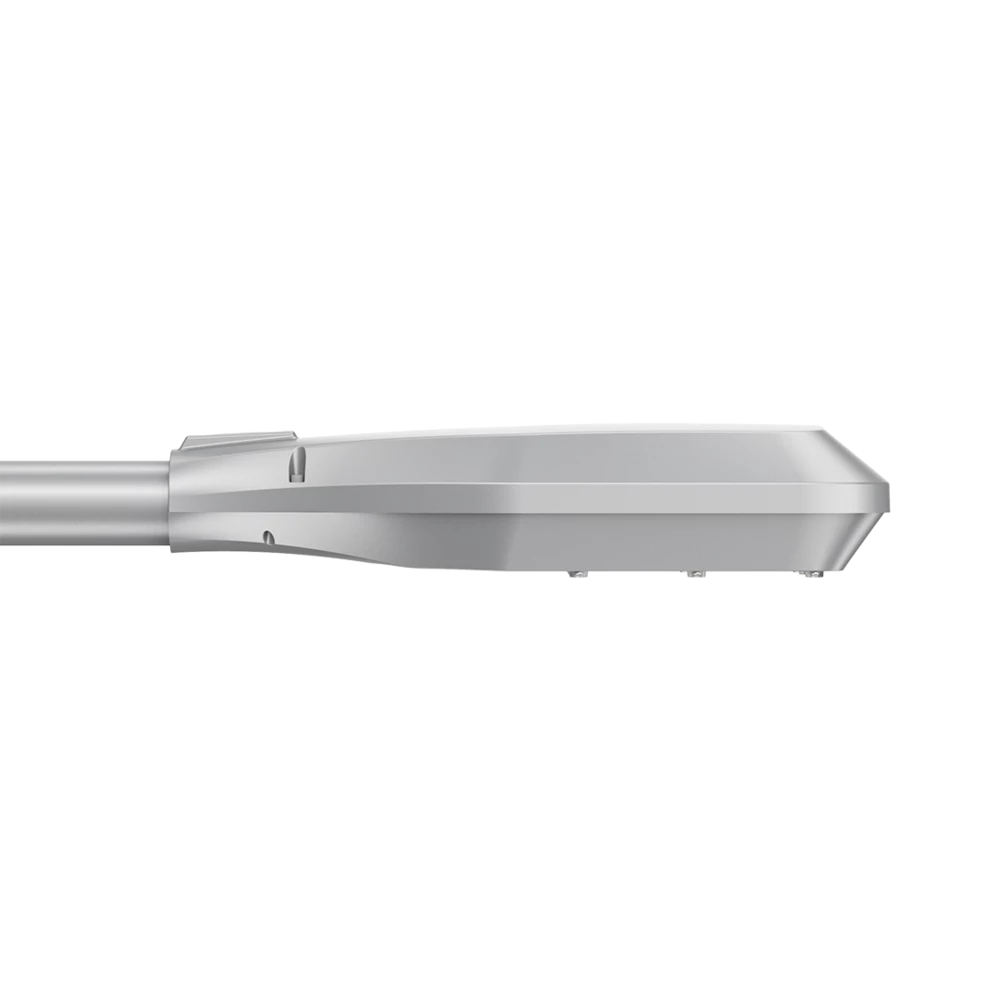

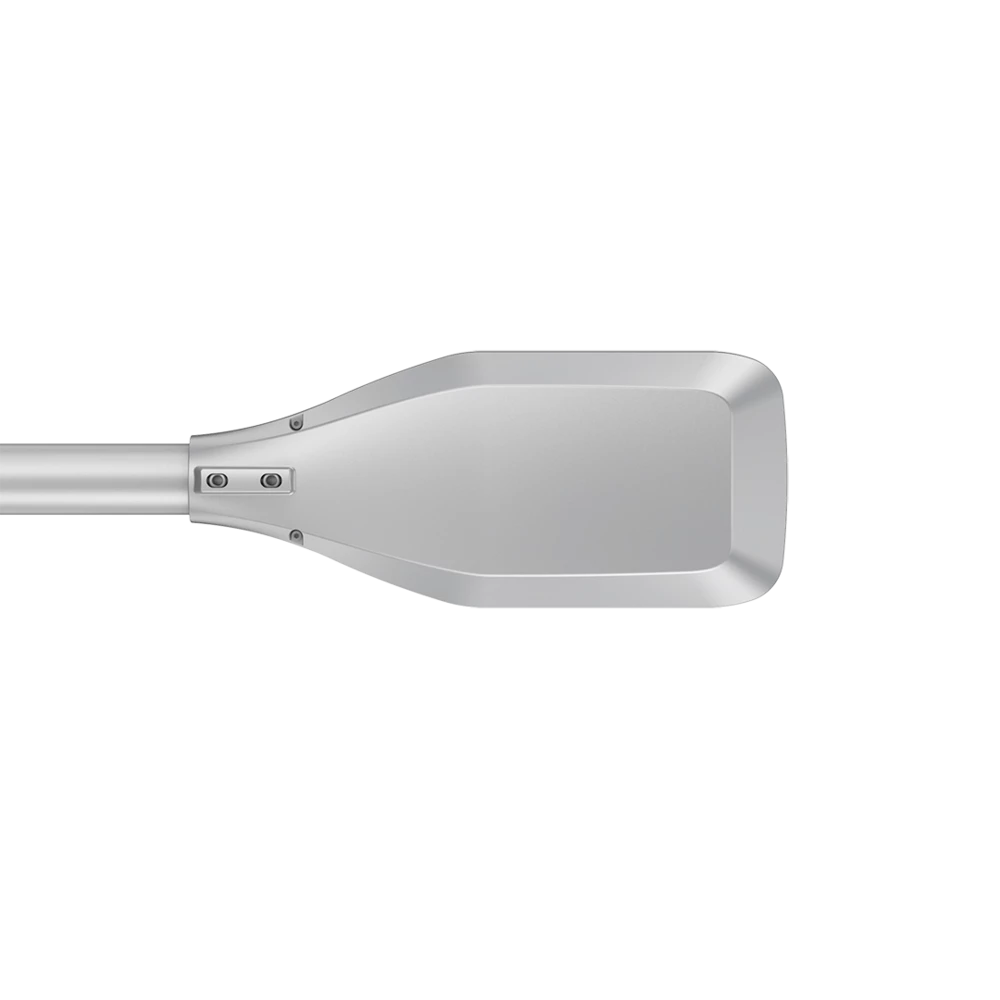

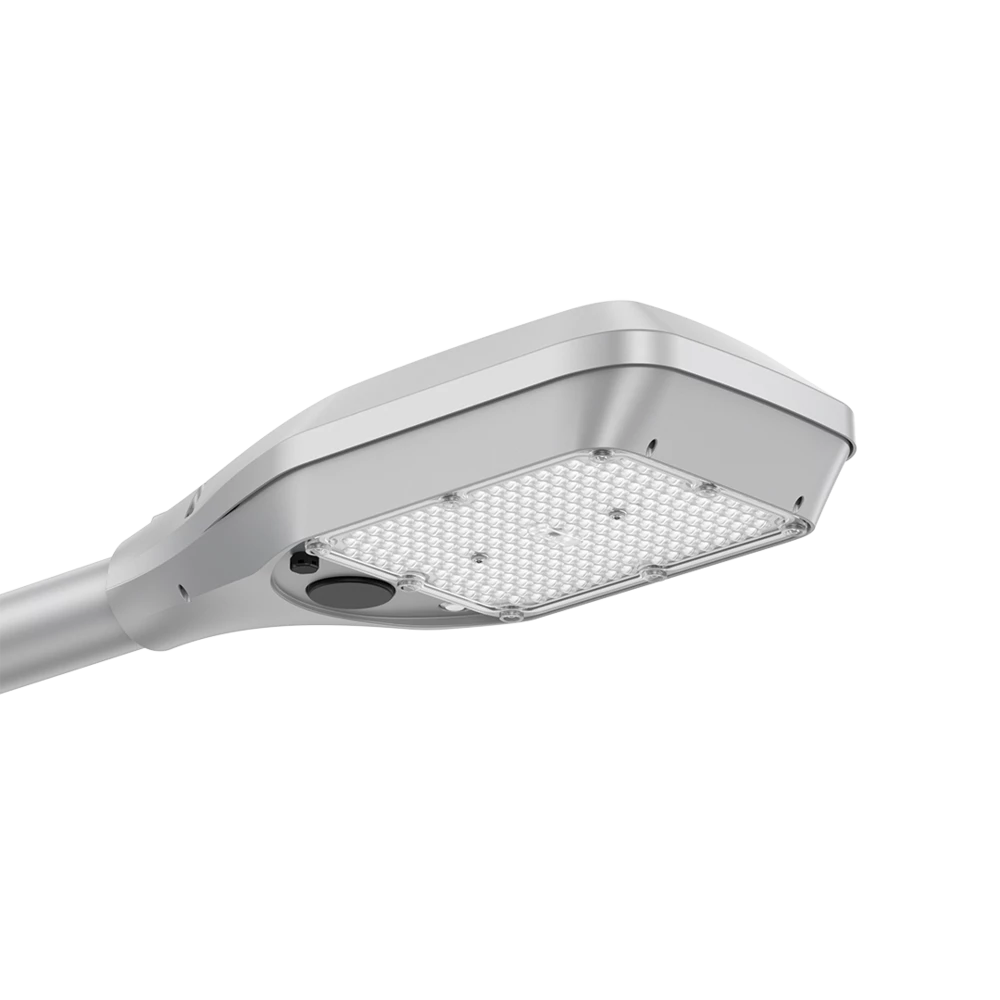

Luminaire is a robust aluminium design, finished in silver powercoat
-
Remote control included with multi-function modes and dusk to dawn control - refer installation instructions for settings.
Performance
- In Built Sensor - YES
| Model No. | Power | Lumens | CCT | CRI | Body Colour | Mass | Length | Width | Height |
|---|---|---|---|---|---|---|---|---|---|

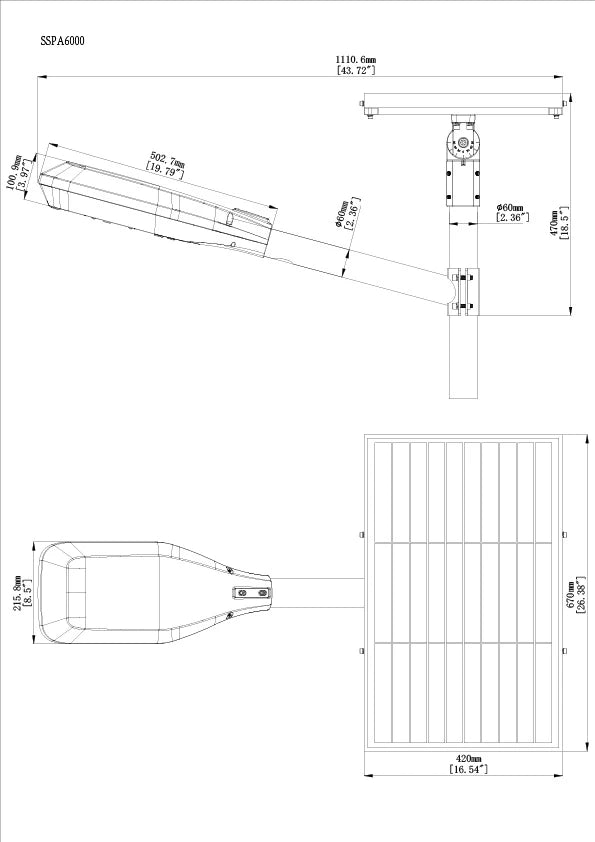

| SSPA6000 | 30 | 6000 | 4000 | 80 | SILVER | 4 | 502 | 216 | 106 |

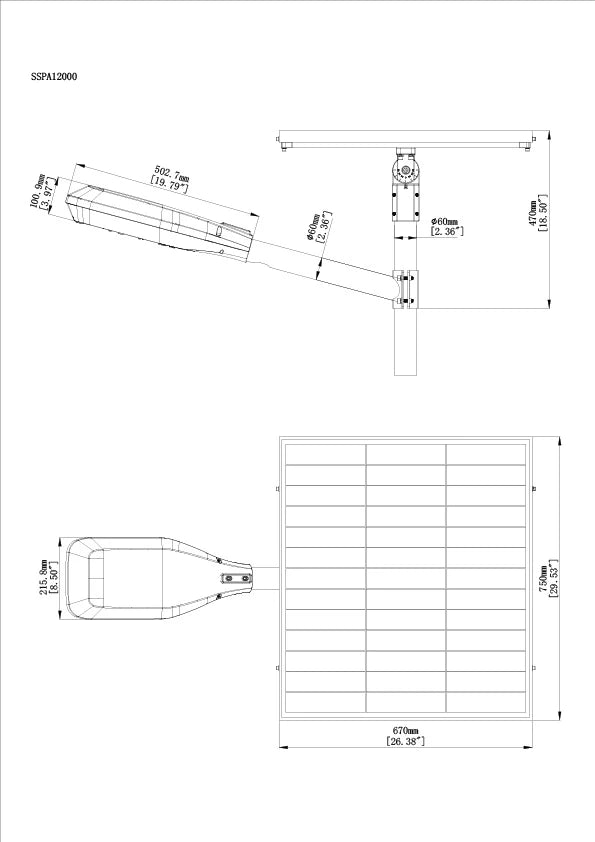

| SSPA12000 | 60 | 12000 | 4000 | 80 | SILVER | 5.2 | 502 | 216 | 106 |
| SSPA/RC | 80 | REMOTE CONTROL | 0.2 |
