Description
Application
A perfect choice for strata or commercial spaces
Design Specifications
-

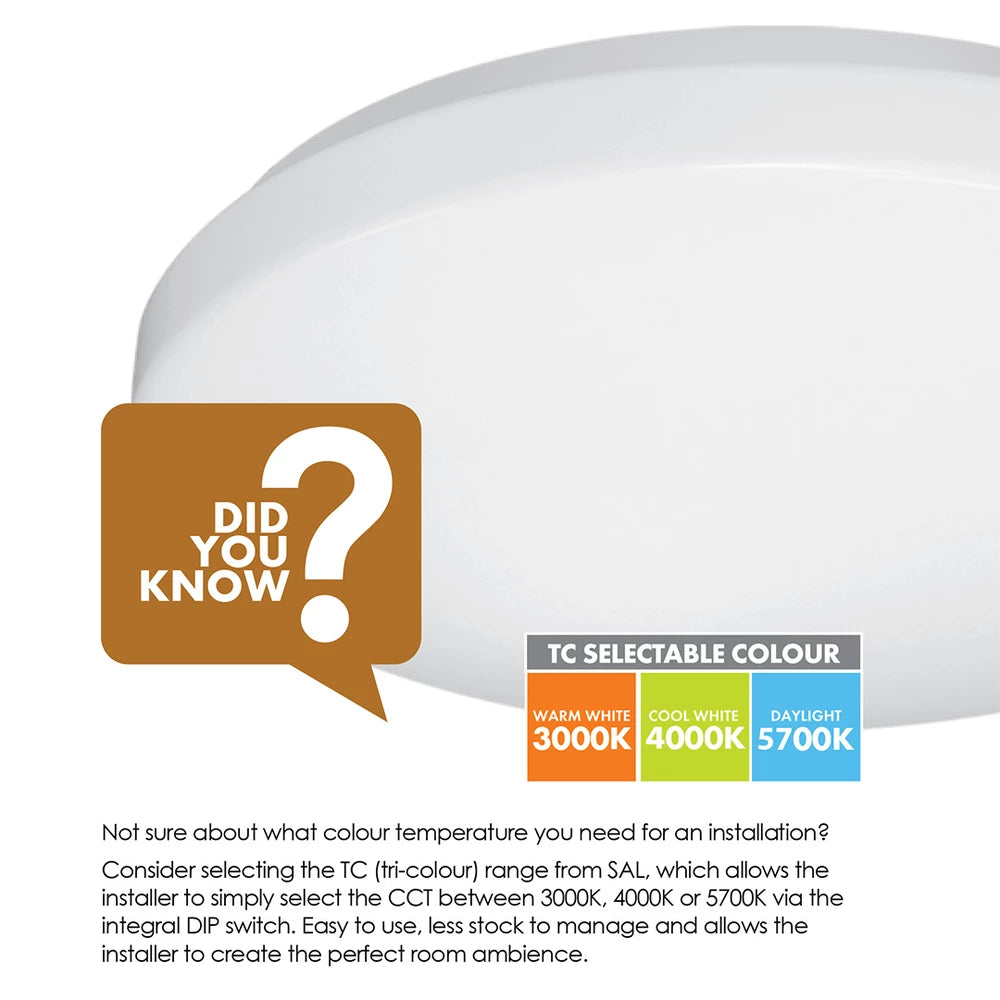

Selectable CCT 3000K / 4000K / 6000K and power
-
Durable powder coated steel body profile with a high performance opal PMMA diffuser
-
High efficiency LED optics, CRI > 90
-
Integral flickerCONTROL non-dimmable LED driver, with selectable 18/22/26/30W options
-
corridorSTANDBY and emergency models available, designed for both maintained and non-maintained systems
-
Lumens displayed are at the maximum power selection
Performance
- Dimmable - NO
- In Built Sensor - YES
- Sensor Type - MICROWAVE
| Model No. | Input Voltage | Multiple Wattage | Power | Lumens | CCT | CRI | Dimmable | Beam Angle | Body Colour | Diameter | Dim | Mass |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SO3700MPF40TC2EM | 240 | 18/22/26/30 | 30 | 2050/2350/2050 | 3000/4000/6000 | 90 | NO | 120 | White | 390 | 112(H) | |
| SO3700MPF40TC2EMC | 240 | 18/22/26/30 | 30 | 2050/2350/2050 | 3000/4000/6000 | 90 | NO | 120 | White | 390 | 112(H) | 1.1 |
| SO3700MPF40TC2C | 240 | 18/22/26/30 | 30 | 2050/2350/2050 | 3000/4000/6000 | 90 | NO | 120 | White | 390 | 112(H) |
