Description
Application

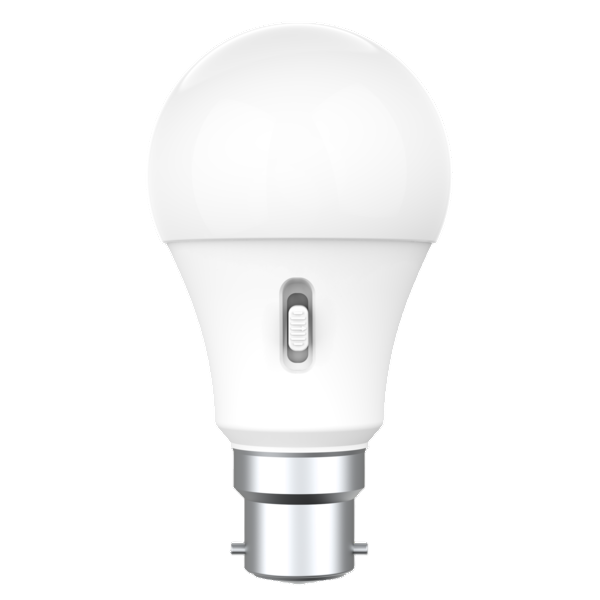

Energy efficient LED lamp solutions
Design Specifications
- Opal polycarbonate diffuser, beam distribution 200°
- Poly covered aluminium body, B22 and E27 lamp bases
- High efficiency LED optics, CRI>80
- Integral non-dimmable LED driver
- CCT selectable 2700K / 4000K / 6000K
- 1:1 size to traditional GLS / A60 lamp,
suits most GLS / A60 lamp fittings
Performance
- Dimmable - NO
| Model No. | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimmable | Diameter | Length | Base Type |
|---|---|---|---|---|---|---|---|---|---|---|
| LGS8TC/B22 | 240 | 8 | 700/750/700 | 2700/4000/6000 | 80 | 200 | NO | 60 | 112 | B22 |
| LGS8TC/E27 | 240 | 8 | 700/750/700 | 2700/4000/6000 | 80 | 200 | NO | 60 | 112 | E27 |
