Description

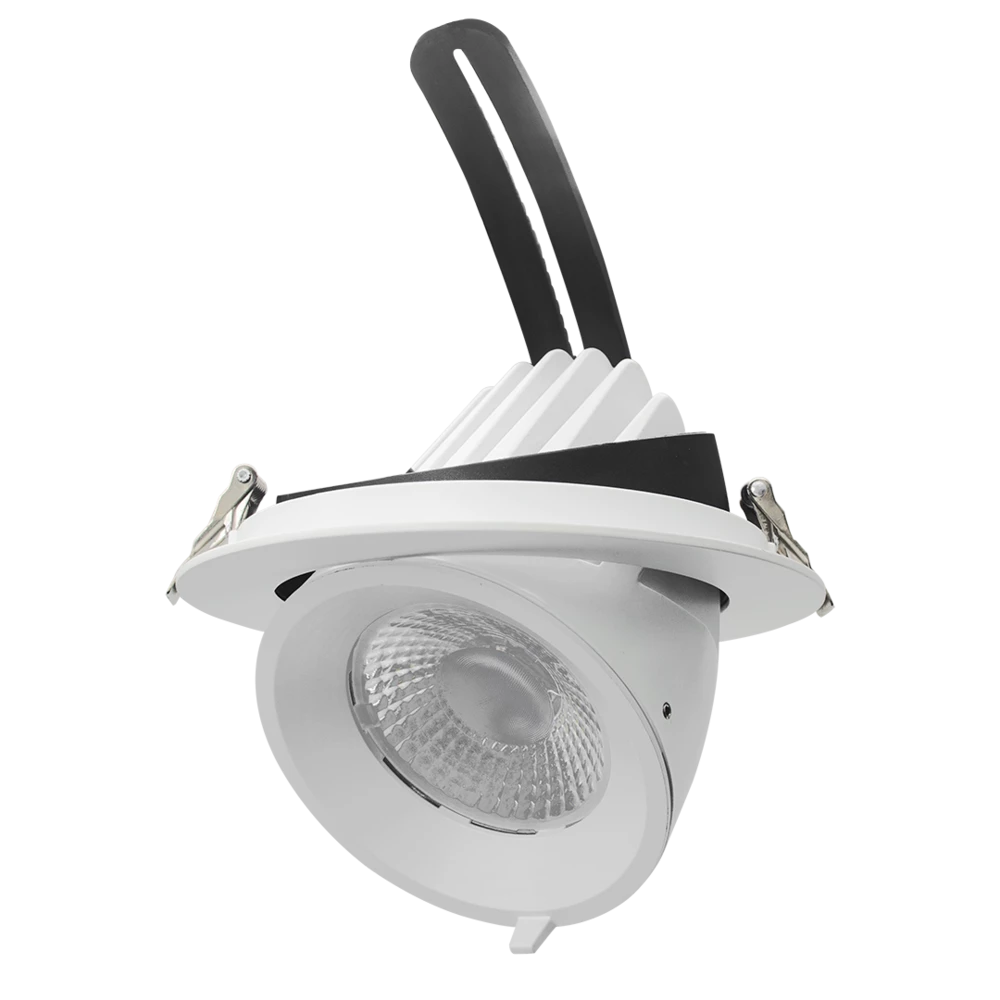

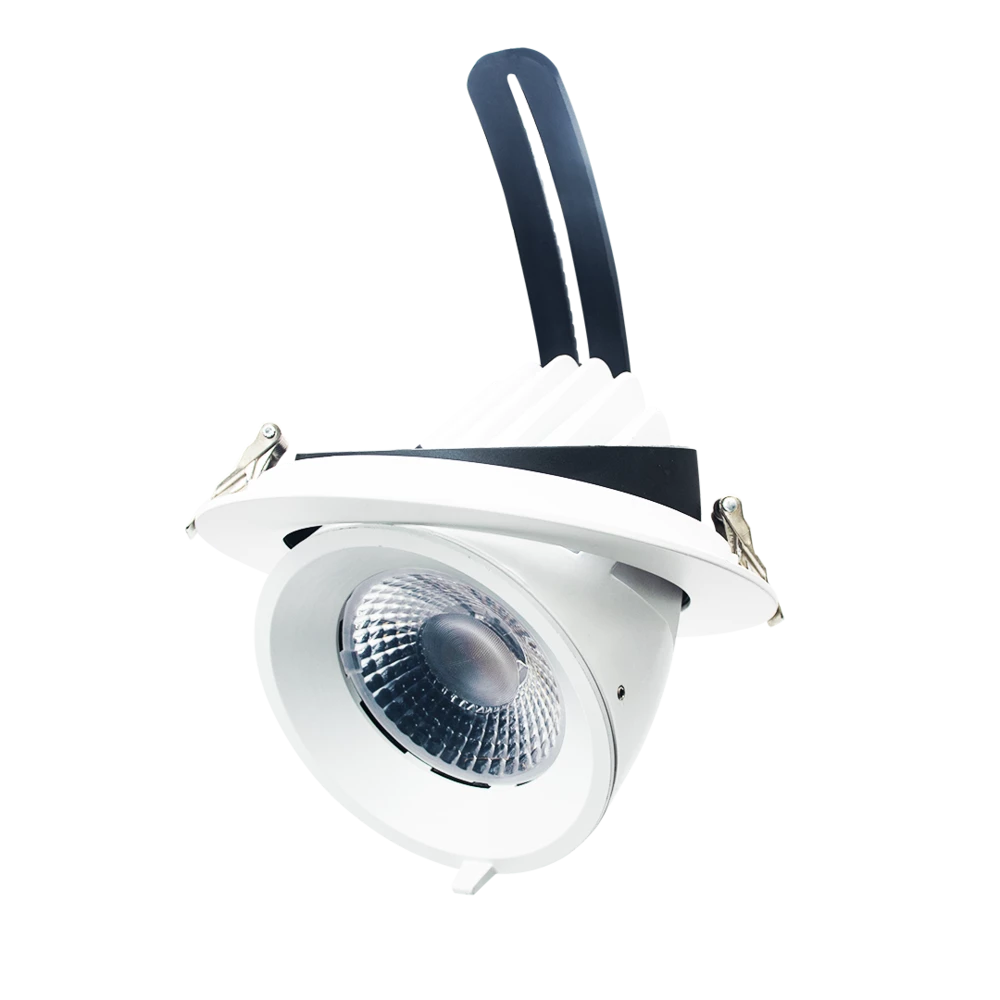

Retractable & rotatable LED Shoplight, with selectable CCT, selectable power and dimming options
Application

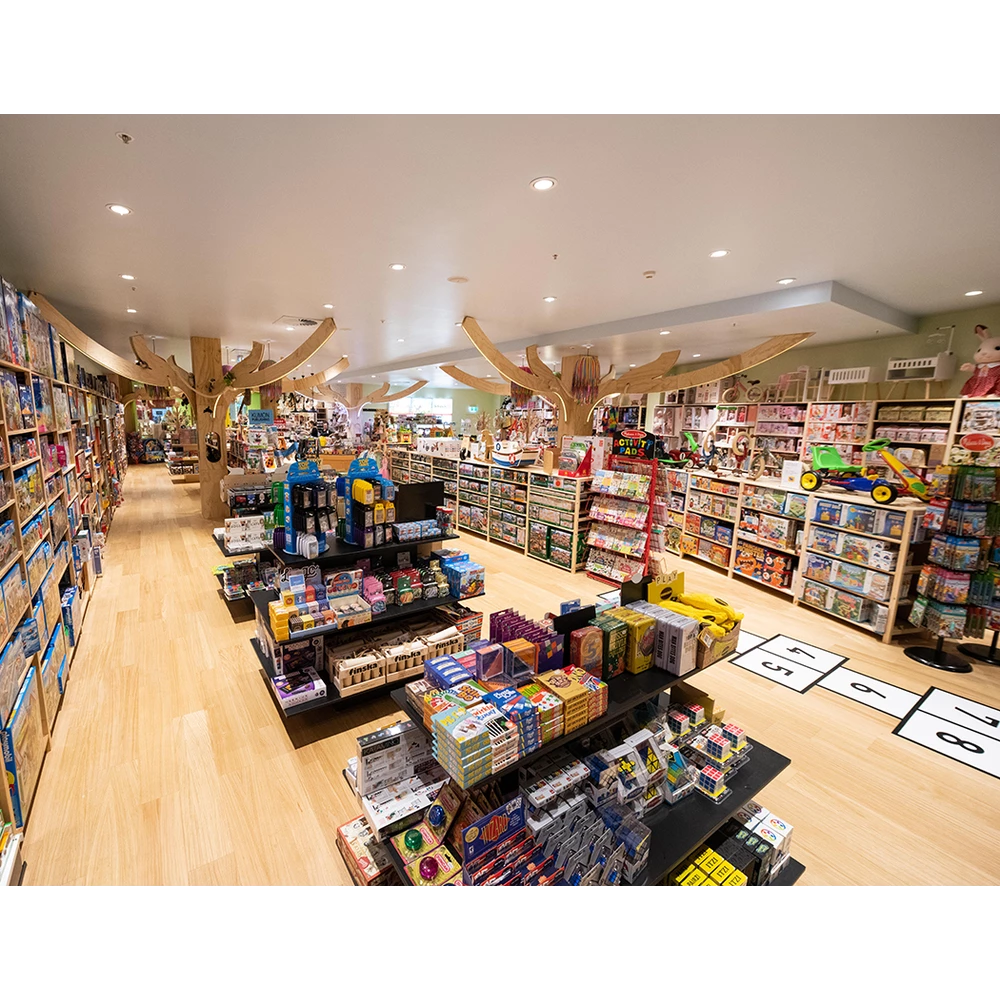

Ideal for any retail or commercial interior space
Design Specifications
-

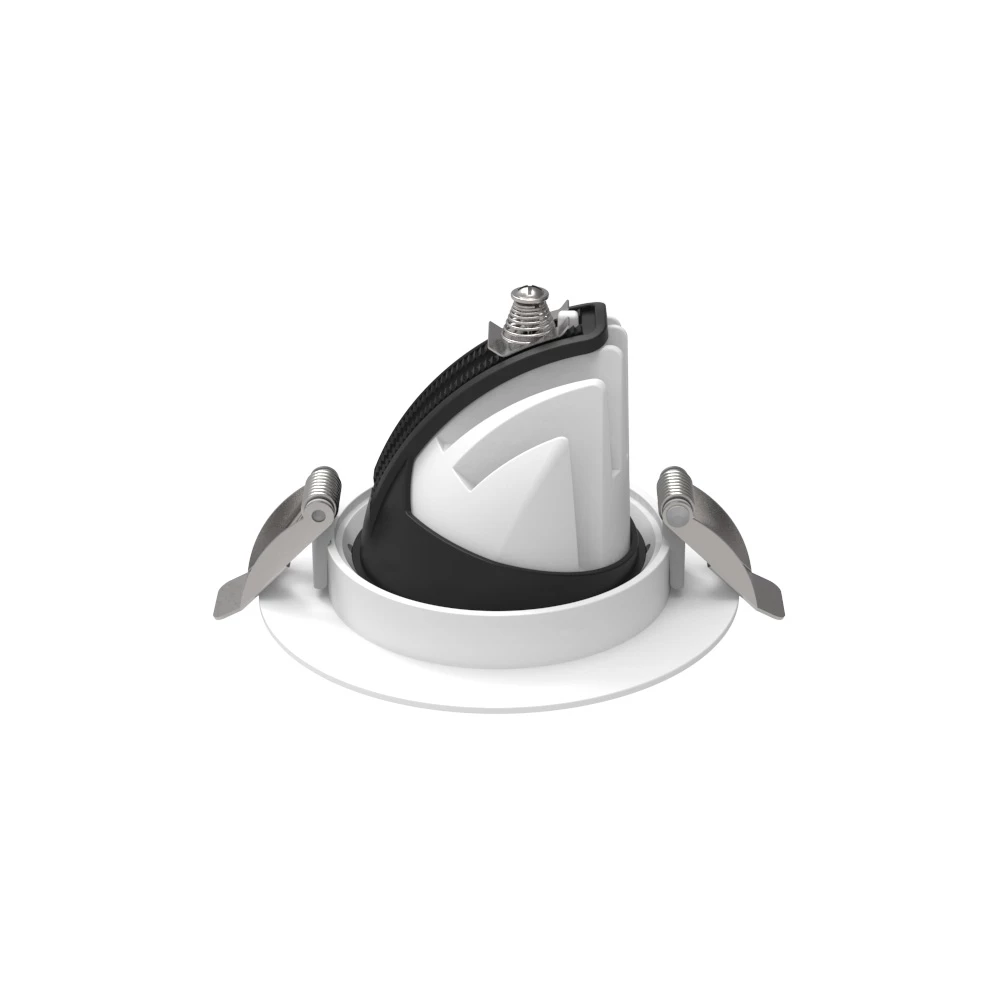

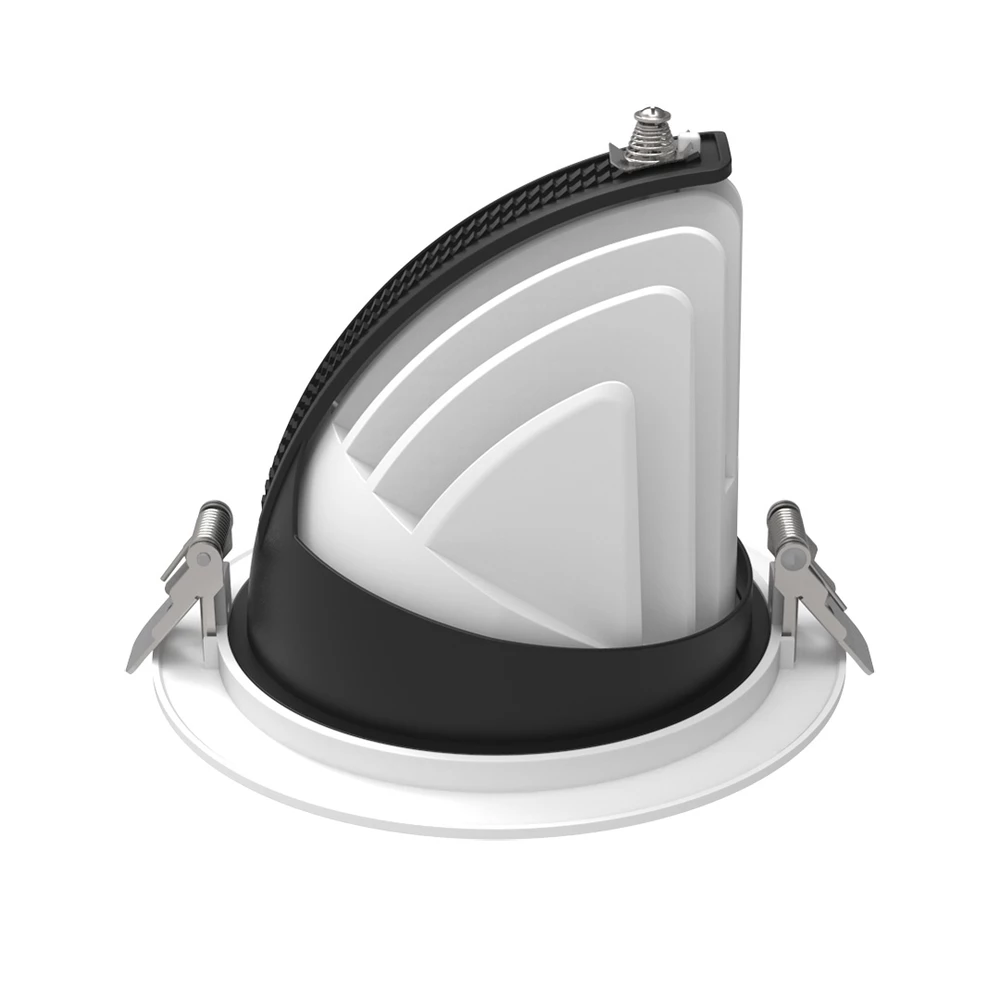

Durable die-cast aluminium body profile in three convenient sizes
-
Stylish white powder coat finish
-
Optimum tilting function 340° horizontal plane, 60° vertical plane
-
High output LED optics, 36° beam distribution with a multi-faceted reflector system
-
Selectable CCT 2700/4000/6000K
-
Remote, flickerCONTROLLED LED driver with flex and plug and optional dimming and selectable power functions - 12 watt dimmable only or 15/20/25 watt or 25/30/35 watt with non-dimmable and selectable power functions.
Performance
- Dimmable - OPTIONAL
- Dimmer Type - Trailing edge, 1-10V, DALI / DSI
| Model No. | Input Voltage | Multiple Wattage | Lumens | CCT | Beam Angle | Dimmable | CRI | Body Colour | Cut Out | Diameter | Dim |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S9525/92TC/WH | 240 | 12 | 1150/1400/1350 | 2700/4000/6000 | 36 | YES | 90 | WHITE | 92 | 105 | 72(H) |
| S9525MP125TC/WH | 240 | 15/20/25 | 2300/2650/2650 | 2700/4000/6000 | 36 | NO | 90 | WHITE | 125 | 140 | 115(H) |
| S9525MP145TC/WH | 240 | 25/30/35 | 3350/3700/3750 | 2700/4000/6000 | 36 | NO | 90 | WHITE | 145 | 163 | 130(H) |
