Description
Application
Ideal for residential or apartment exterior pathways
Design Specifications
-
Die-cast aluminium body, flat profile design,
base plate mounting, rag bolts included -
Durable BLACK powder coated finish
-
Clear polycarbonate lens, pathway optical distribution 70°
-
Integral LED control gear 10 watt
-
IP65, IK08 performance
-

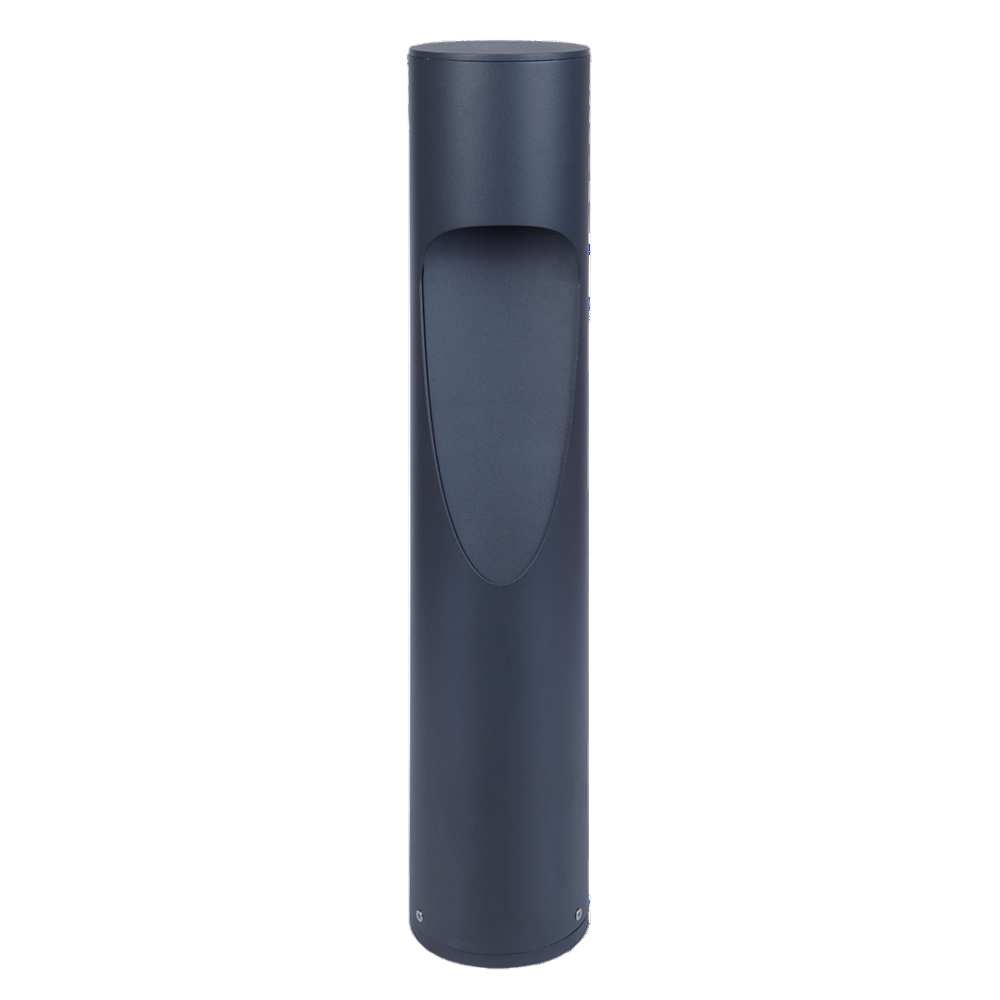

SL7015L65TC/BK - 120mm Ø, 650mm height
SL7015100TC/BK - 120mm Ø, 1000mm height
Performance
- Dimmable - NO
| Model No. | Input Voltage | Power | Lumens | CCT | Beam Angle | Mass | Diameter | Dim | Body Colour |
|---|---|---|---|---|---|---|---|---|---|
| SL7015L65TC/BK | 240 | 10 | 300/340/375 | 3000/4000/5000 | 70 | 2.8 | 120 | 650(H) | BLACK |
| SL7015L100TC/BK | 240 | 10 | 300/340/375 | 3000/4000/5000 | 70 | 3.7 | 120 | 1000(H) | BLACK |
DOWNLOADS
