Description
Application
A very flexible solution for residential and commercial interior spaces
Design Specifications
-
High efficiency LED optics, luminous efficacy up to 430lm/m, beam distribution 120°
-
Maximum run length 10m, cuttable every 50 mm, 400mm tail
-
Single bin with smooth colour uniformity
-
CCT 3000K, CRI >80
-

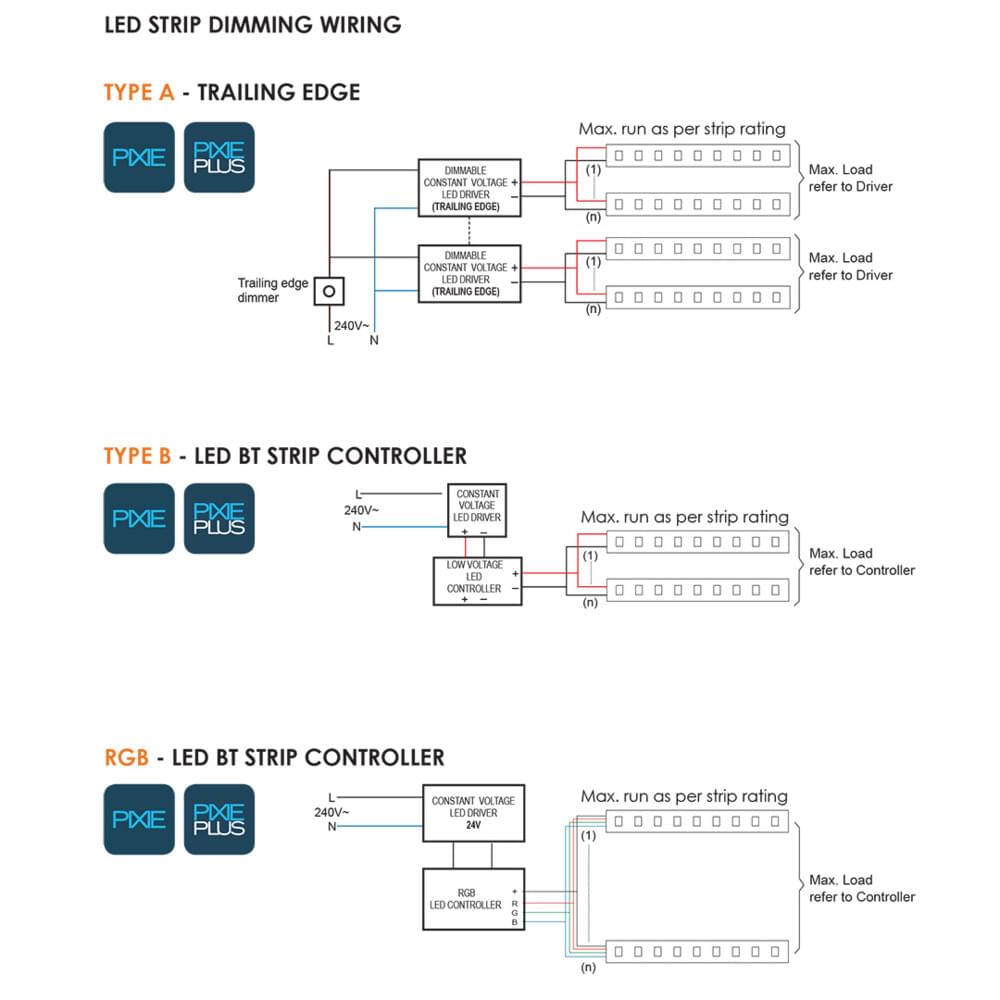

Dimming options: (quick link)
Type A - Trailing edge dimming,
Type B - LED strip controller LT8915DIM/BT
with LT8914DIM/RP if required,
Type C - Analogue 1-10V
Type D - DALI 2 control -
Power supply ordered separately, 10 W/m, termination accessories available, codes listed are per metre, 10M roll packs to order
Performance
- Dimmable - OPTIONAL
- Dimmer Type - refer driver specification
| Model No. | Input Voltage | Watts per metre | Beam Angle | CRI | Luminous Flux Per Meter | LEDs Per Metre | Cutting Interval | Colour Temp. | Dim |
|---|---|---|---|---|---|---|---|---|---|
| FLN2410WW1312T | 24 | 10 | 120 | 80 | 430 | 120 | 50 | 3000 | 12(W) x 12(H) |
DOWNLOADS
