Description
Design Specifications
-
High efficiency LED optics, 12W/m, beam distribution 120°, R: 620~630 G: 520~530 B: 460~470
-
Cuttable every 50mm at scissors, 400mm tail, maximum run length 5m
-
Power supply ordered separately, 12W/m
-

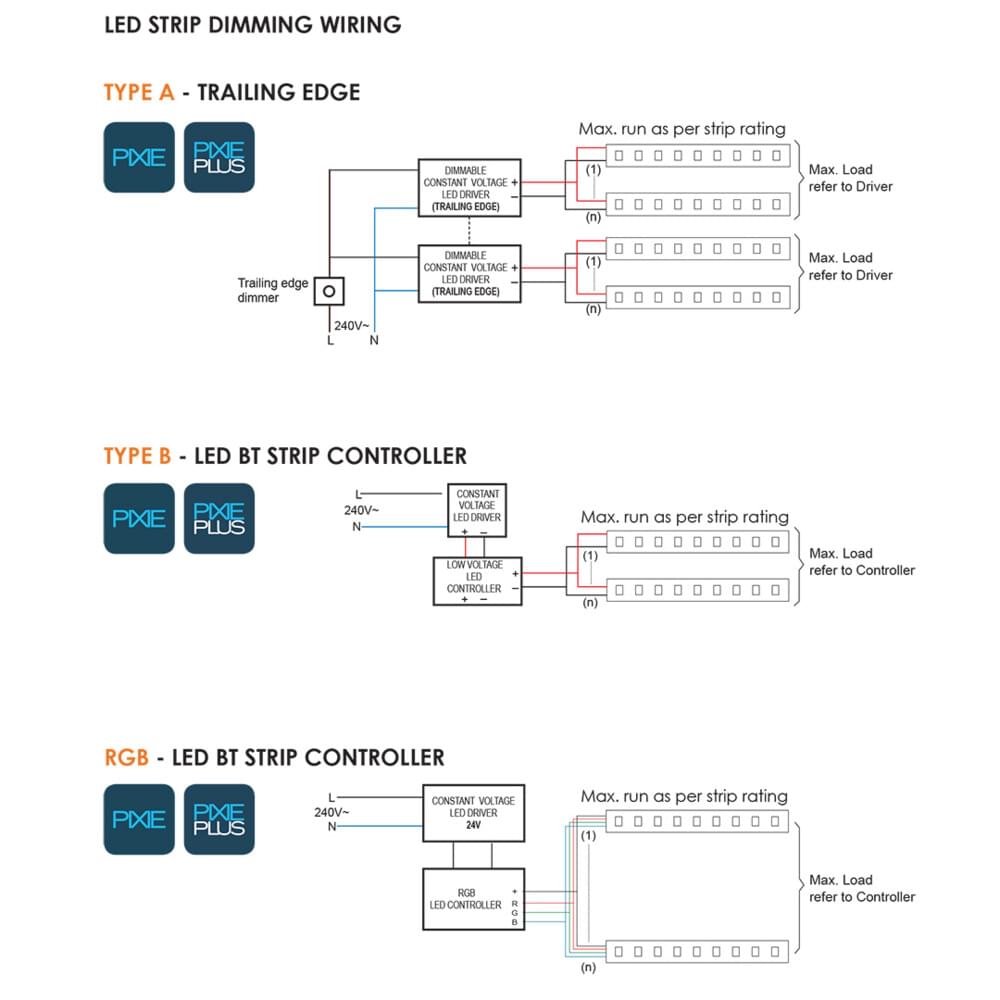

Dimming options: (quick link)
Type A - Trailing edge dimming,
Type B - LED strip controller LT8915DIM/BT
with LT8914DIM/RP if required,
Type C - Analogue 1-10V
Type D - DALI 2 control -
Codes listed are per metre, 5M roll packs to order
-
Termination accessories connectors are available
Performance
- Dimmable - OPTIONAL
- Dimmer Type - refer driver specification
| Model No. | Input Voltage | Watts per metre | Beam Angle | LEDs Per Metre | Cutting Interval | Dim |
|---|---|---|---|---|---|---|
| FLN2412RGB1220 | 24 | 12 | 120 | 120 | 50 | 12(W) x 20(H) |
