Description
Application
A very flexible solution for residential and commercial interior or exterior spaces
Design Specifications
-
High efficiency optics, 6W/m
-
Cuttable at any interval
-
Maximum run length 5m
-
Power supply ordered separately, 6W/m, 24V DC
-

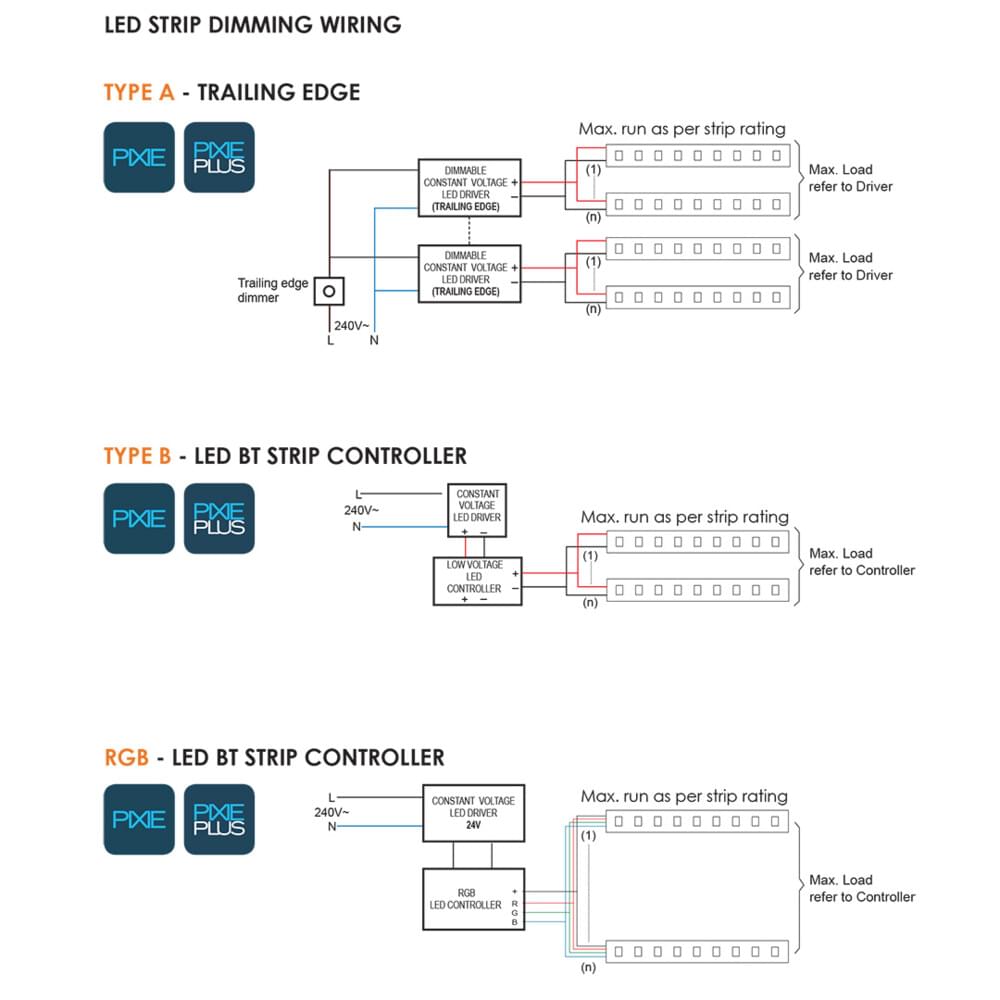

Dimming options: (quick link)
Type A - Trailing edge dimming,
Type B - LED strip controller LT8915DIM/BT
with LT8914DIM/RP if required,
Type C - Analogue 1-10V
Type D - DALI 2 control -

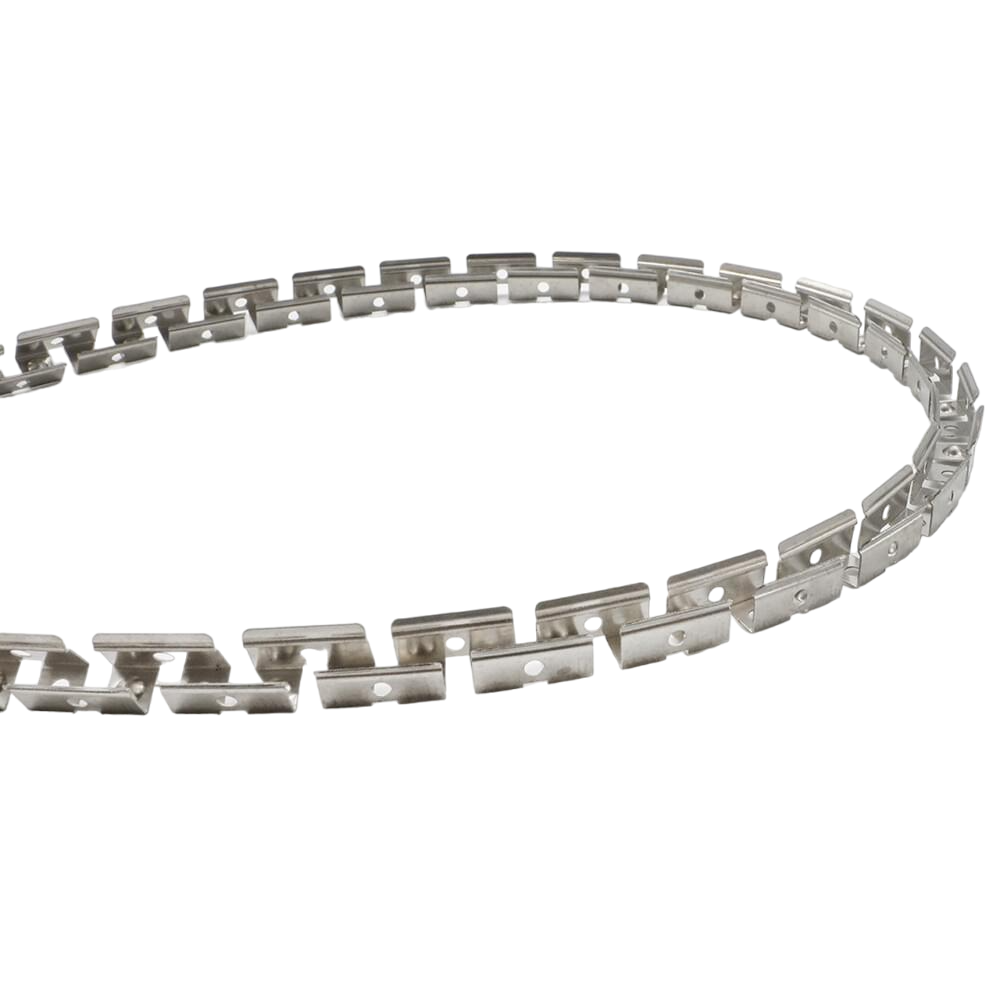

Codes listed are per metre, 5M roll packs to order, optional, flexible channels available (FLN0808FLEX)
LED channel options (quick link) Heat sink required for system performance
Performance
- Dimmable - OPTIONAL
- Dimmer Type - Refer dimming options
| Model No. | Input Voltage | Watts per metre | Beam Angle | CRI | Luminous Flux Per Meter | LEDs Per Metre | Colour Temp. | Dim |
|---|---|---|---|---|---|---|---|---|
| FLN2406WW0808TS | 24 | 6 | 120 | 90 | 350 | 238 | 3000 | 8(W) x 8(H) |
| FLN0808FLEX | 1000(L) |
DOWNLOADS
