Description

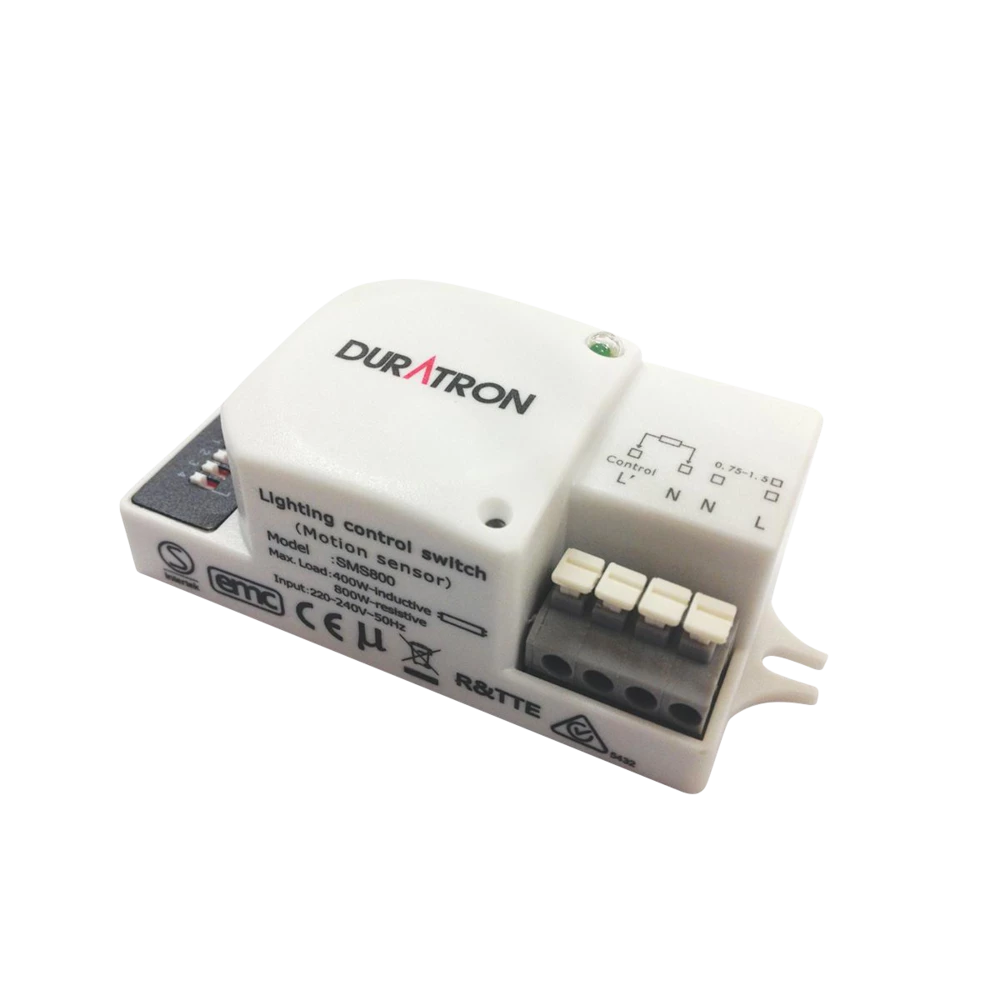

Microwave motion sensor IP20
Application
SAL factory fitted sensor option for approved products only, not for individual sale.
Design Specifications
- Switched power 1000W incandescent, 300W, Fluorescent, 200W LED
- Standby power <1W
-

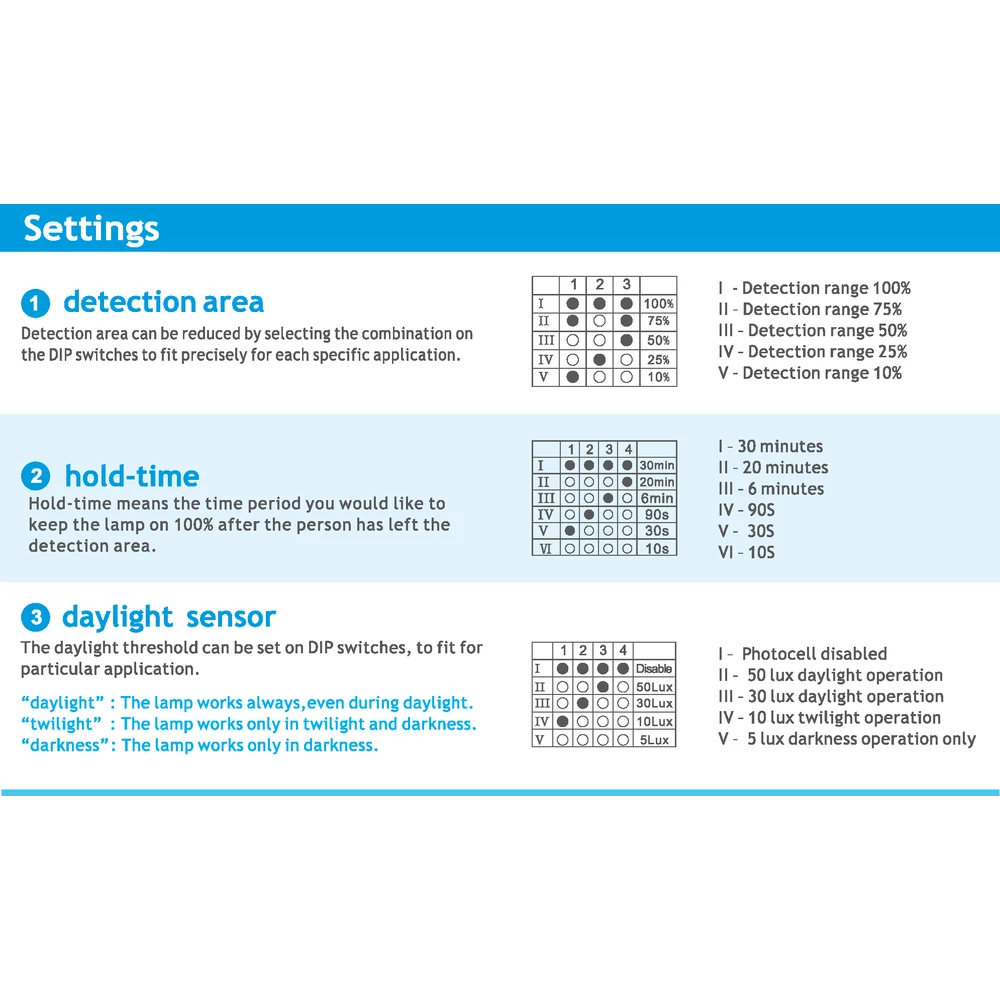

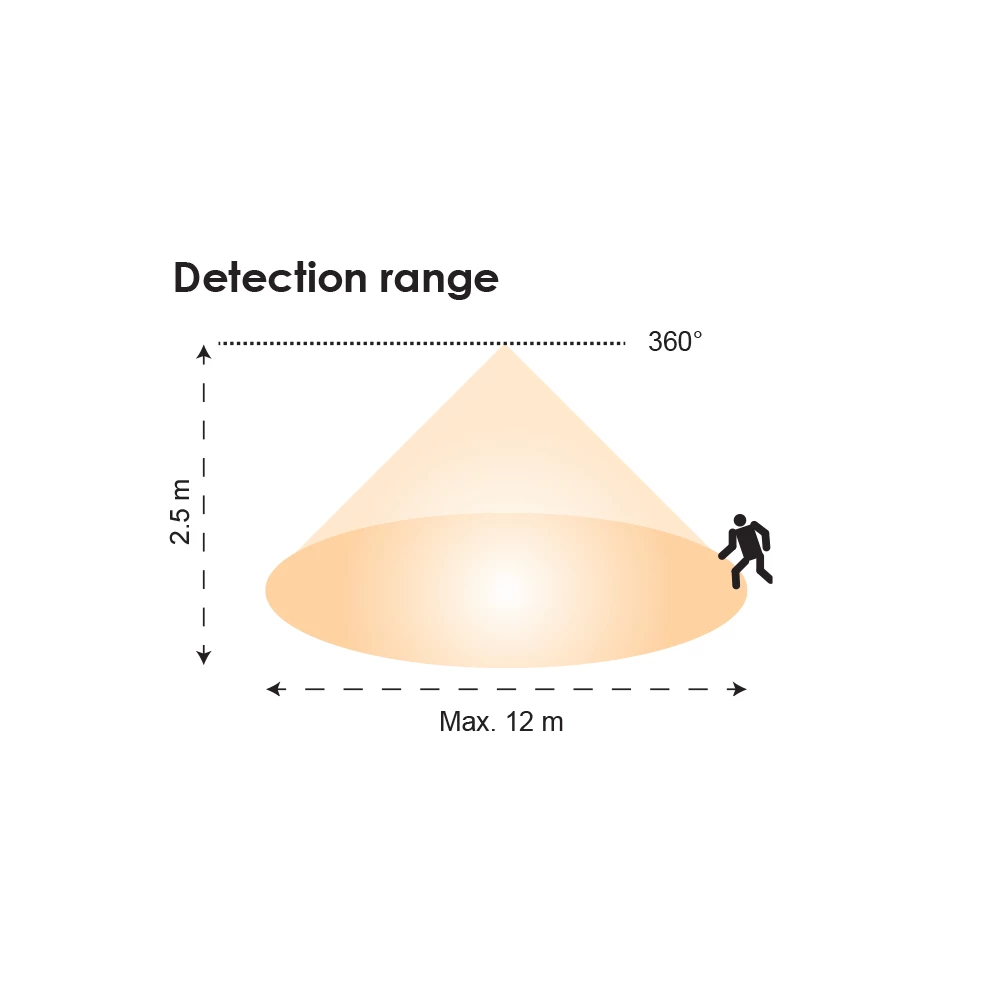

Detection distance Max. 12 m in diameter, detection range 25/50/75/100% adjustable
-
Detection angle 360°, Duration Time 10sec/10min adjustable.
-
Lux threshold Disable / 2lux / 5lux / 10lux / 30lux / 50lux adjustable
Performance
- Dimmable - NO
- In Built Sensor - YES
- Sensor Type - MICROWAVE
| Model No. | Input Voltage | Body Colour |
|---|---|---|
| SMS800 | 240 | WHITE |
