Description
Application
Home theatre, commercial spaces and decorative feature lighting designs, which require smart RGB control
Design Specifications
-
Designed for RGB colour brightness control, smooth 0 - 100% dimming
-
Input voltage range: 12-24V DC
-
Each controller provides three output channels with a maximum current of 6A for each channel, 432W maximum power output at 24V
-
Supports momentary switch (bell press) control on any wall plates, control button for easy commissioning
-
Four flashing modes, optional memory function
-

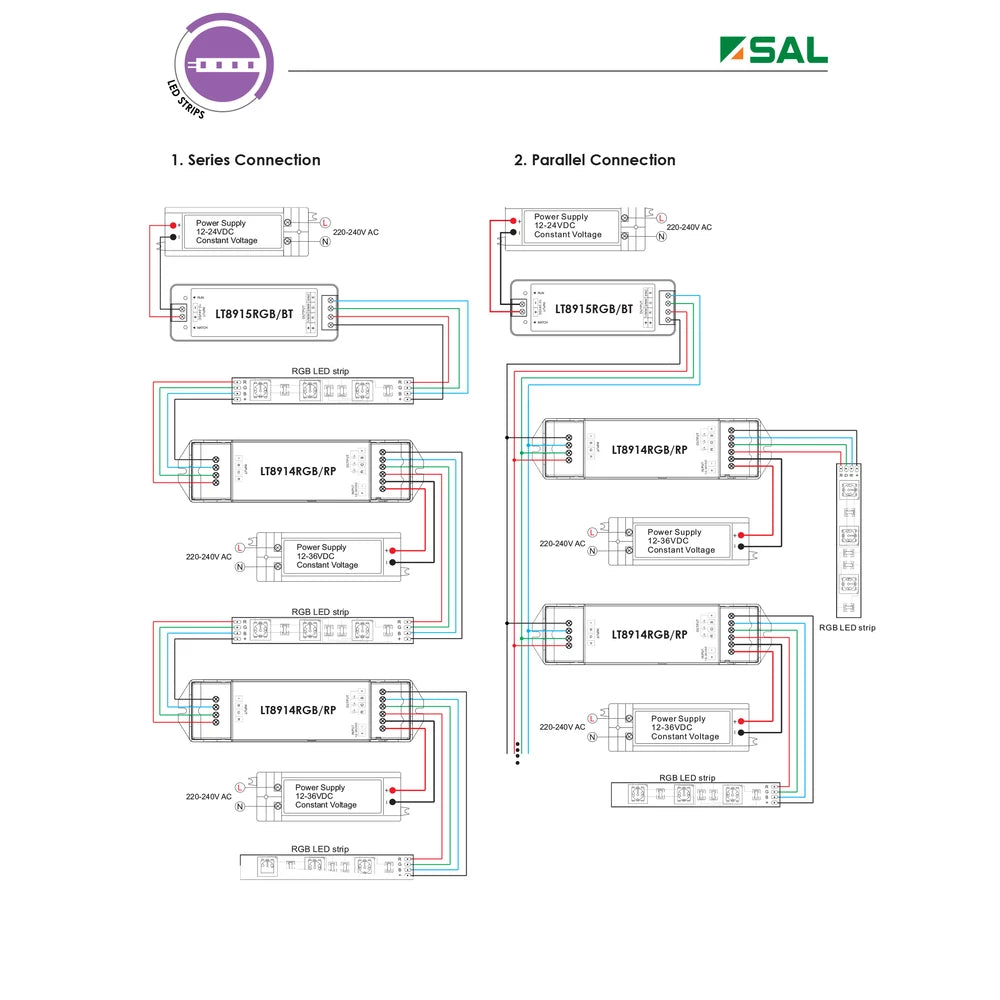

Supports both wireless and wired group control
Performance
Dimmable - YES
Dimmer Type - PIXIE Bluetooth control

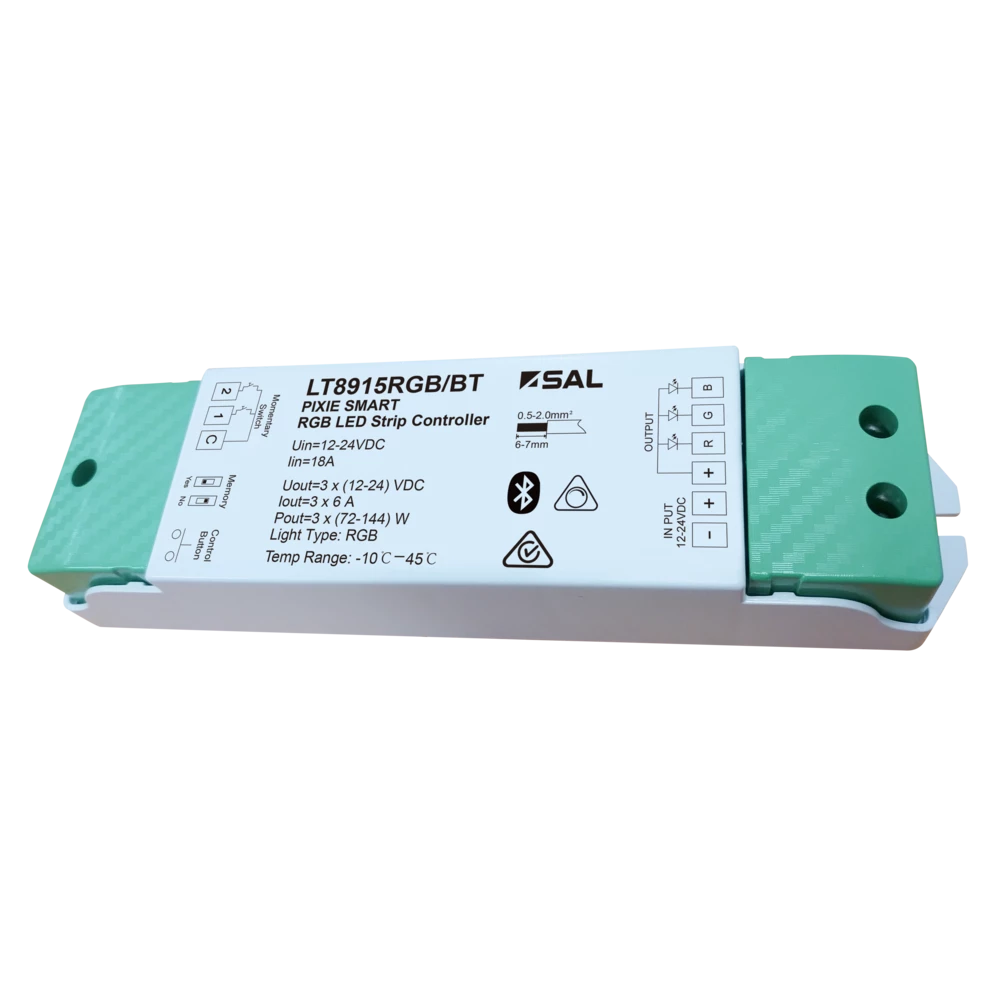

| Model No. | Description | Input Voltage | Power | Body Colour | Dimensions |
|---|---|---|---|---|---|
| LT8915RGB | LED STRIP CIRCUIT & REMOTE CONTROL | 36 | 648 | WHITE | 175(L) x 45(W) x 27(H) |
