Description
Application

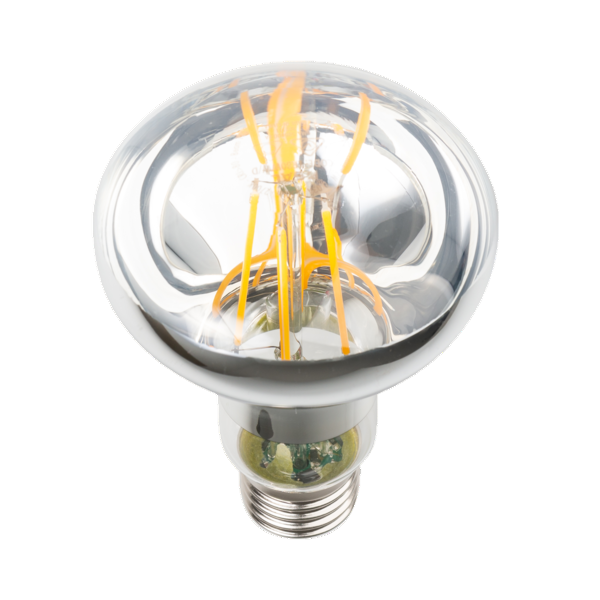

Energy efficient LED lamp solutions, E27 lamp base
Design Specifications
-
120 degree beam distribution
-
Mirror reflector, glass body profile
-
High efficiency filament LED
-
Integral dimmable LED driver
-
CCT choice of 2700K / 6000K, CRI > 80
-
1:1 size to traditional R lamp, suits most R lamp fittings, double insulation
Performance
- Dimmable - YES
- Dimmer Type - Trailing Edge
| Model No. | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimmable | Diameter | Height | Base Type |
|---|---|---|---|---|---|---|---|---|---|---|
| LR80WW/D | 240 | 7 | 650 | 2700 | 80 | 120 | YES | 80 | 115 | E27 |
| LR80DL/D | 240 | 7 | 800 | 6000 | 80 | 120 | YES | 80 | 115 | E27 |
