Description
Application
Energy efficient LED lamp solutions

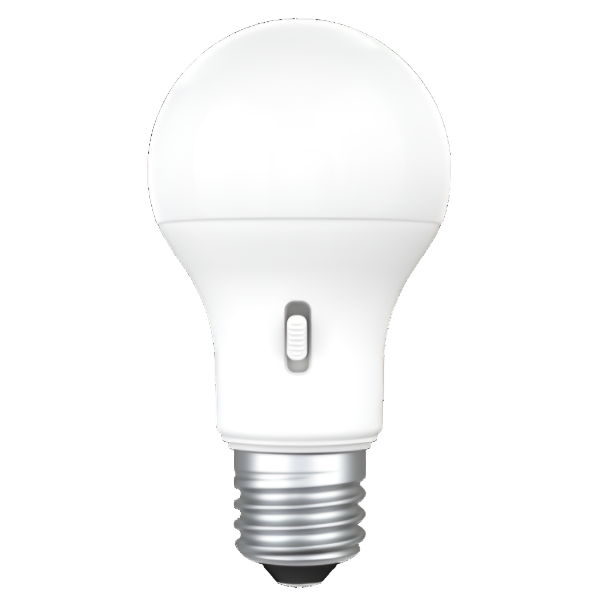

Design Specifications
-
Opal polycarbonate diffuser, beam distribution 200 degree
-
Poly covered aluminium body, B22 and E27 lamp bases
-
High efficiency SMD LED chips, CRI > 80
-
Integral trailing edge dimmable LED driver
-
Colour temperature selectable 2700K / 4000K / 6000K
-
1:1 size to traditional GLS / A60 lamp, dimmable, suits most
GLS / A60 lamp fittings, double insulation
Performance
Dimmable - YES
Dimmer Type - TRAILING EDGE
| Model No. | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimmable | Diameter | Length | Base Type |
|---|---|---|---|---|---|---|---|---|---|---|
| LGS14TC/B22D | 240 | 12 | 1300/1400/1350 | 2700/4000/6000 | 80 | 200 | YES | 60 | 112 | B22 |
| LGS14TC/E27D | 240 | 12 | 1300/1400/1350 | 2700/4000/6000 | 80 | 200 | YES | 60 | 112 | E27 |
