Description

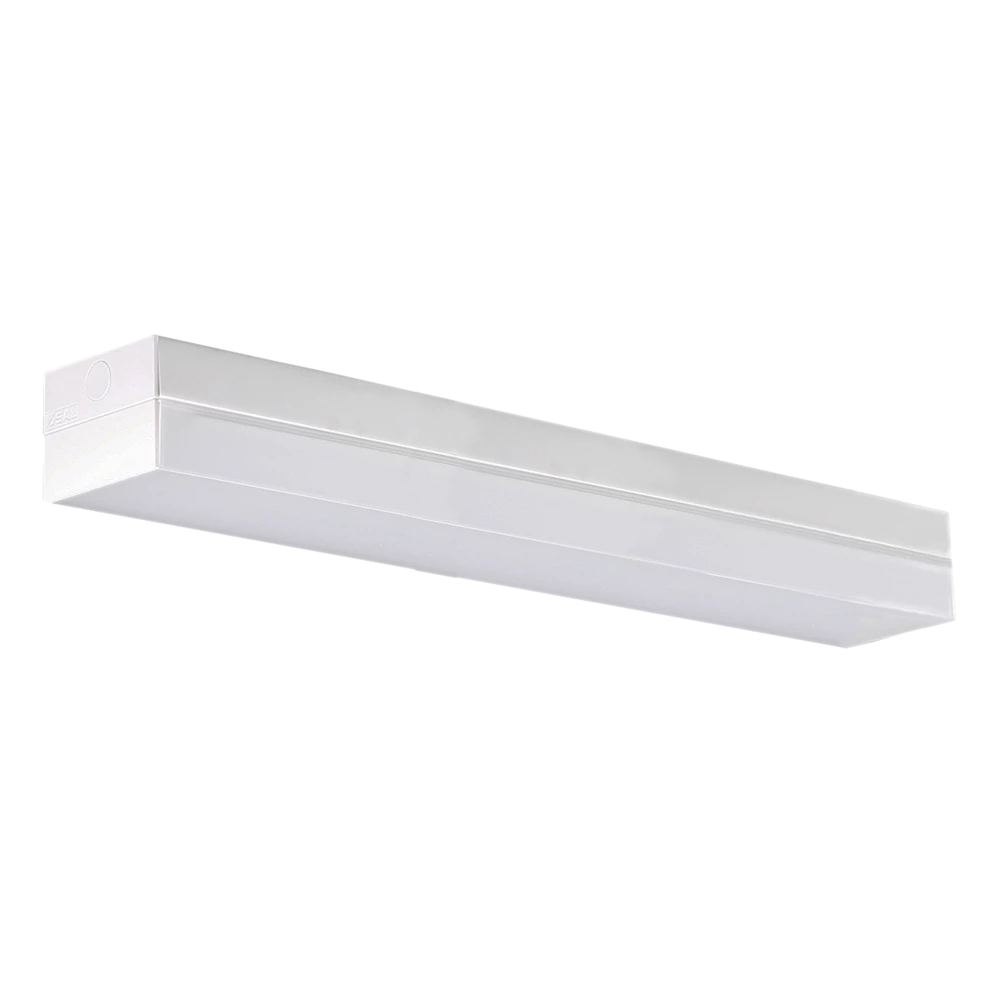

LED diffused batten 40 watt with selectable power and CCT
Application
Conventional LED linear surface mount batten for commercial service spaces
Design Specifications
-
Robust, pressed steel body profile
-
White powder coat finish with an opal PMMA diffuser
-
High efficiency LED optics, CRI > 80
-
Integral flickerCONTROLLED non-dimmable LED driver 40 watt as standard, optional dimming, emergency and sensor functions available.
-
Default (maximum) current selection is 1000mA, refer installation sheet for optional range selections
-
Unique diffuser design allows end to end installation and large terminal block for easy installation
Performance
- Dimmable - OPTIONAL
- Dimmer Type - Trailing edge, 1-10V, DALI / DSI
- In Built Sensor - OPTIONAL
- Sensor Type - MICROWAVE
| Model No. | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimmable | Dim | Body Colour |
|---|---|---|---|---|---|---|---|---|---|

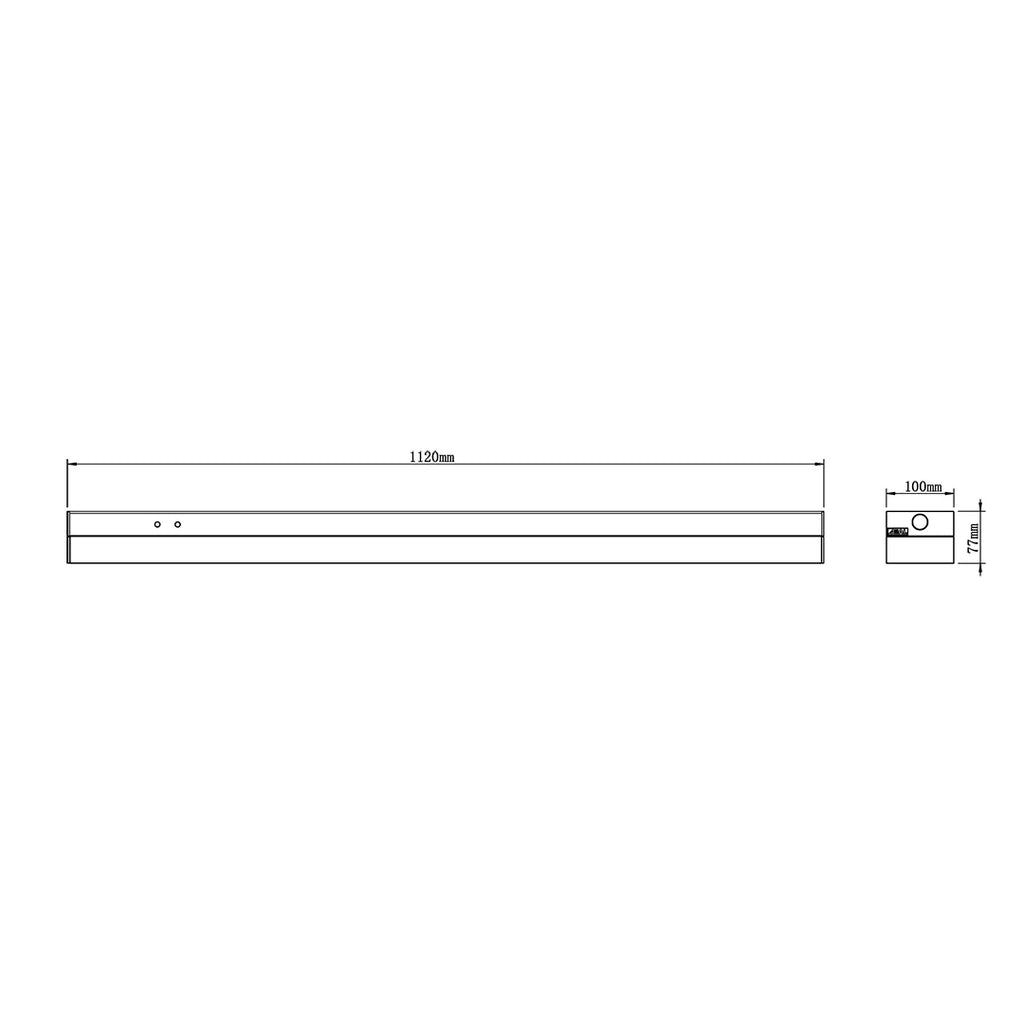

| SLD4000TC/MP | 240 | 40 | 4500/4800/4600 | 3000/4000/5700 | 80 | 110 | OPTIONAL | 1120(L) x 100(W) x 77(H) | WHITE |
