Description

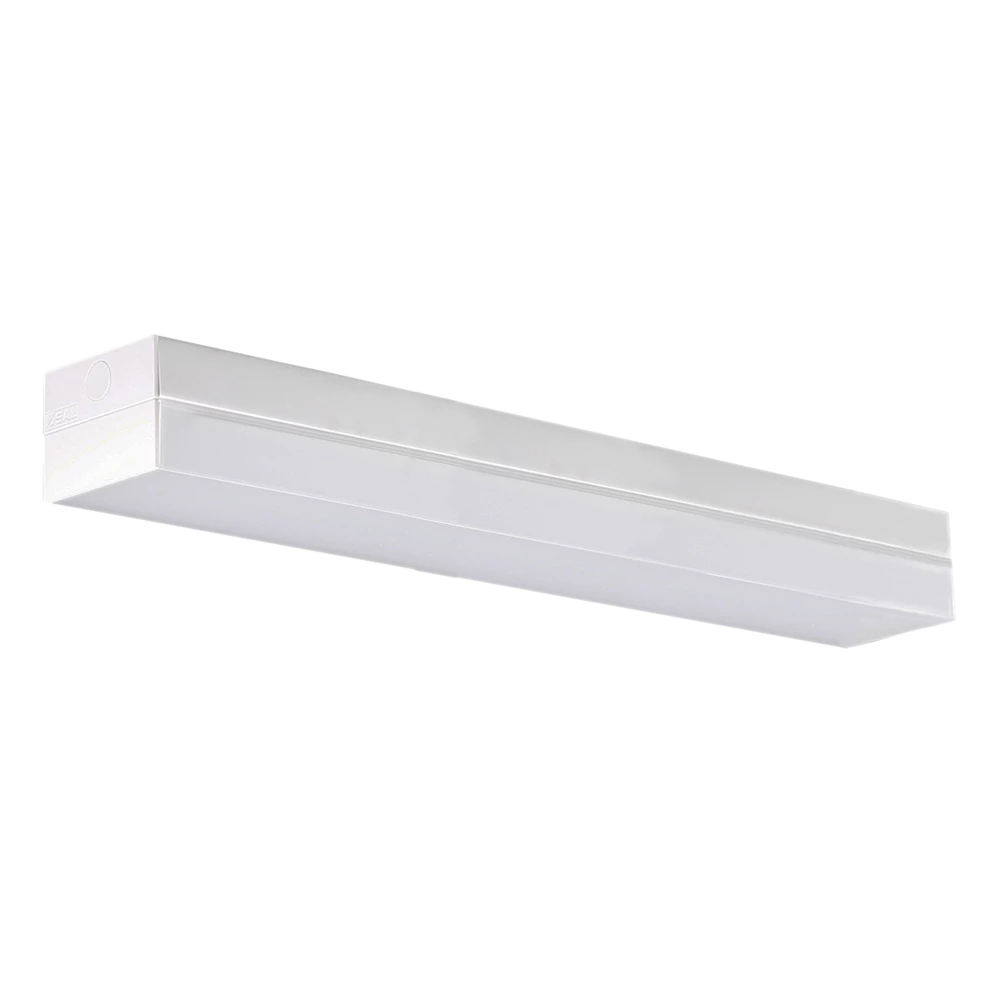

LED diffused batten 20 watt with selectable power and CCT
Application
Conventional LED linear surface mount batten for commercial service spaces
Design Specifications
-
Robust, pressed steel body profile
-
White powder coat finish with an opal PMMA diffuser
-
High efficiency LED optics, CRI > 80
-
Integral flickerCONTROLLED non-dimmable LED driver 20 watt as standard, optional dimming, emergency and sensor functions available.
-
Default (maximum) current selection is 500mA, refer installation sheet for optional range selections
-
Unique diffuser design allows end to end installation and large terminal block for easy installation
Performance
- Dimmable - OPTIONAL
- Dimmer Type - Trailing edge, 1-10V, DALI / DSI
- In Built Sensor - OPTIONAL
- Sensor Type - MICROWAVE
