Description

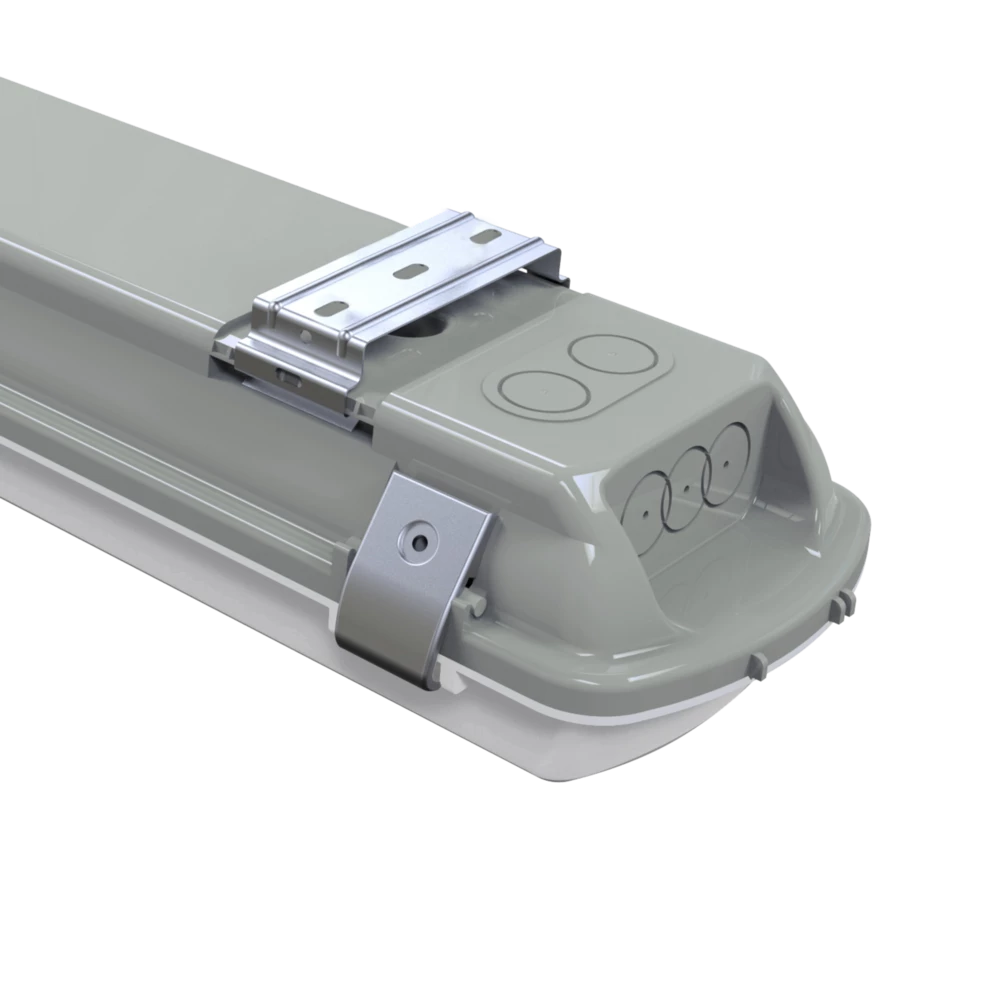

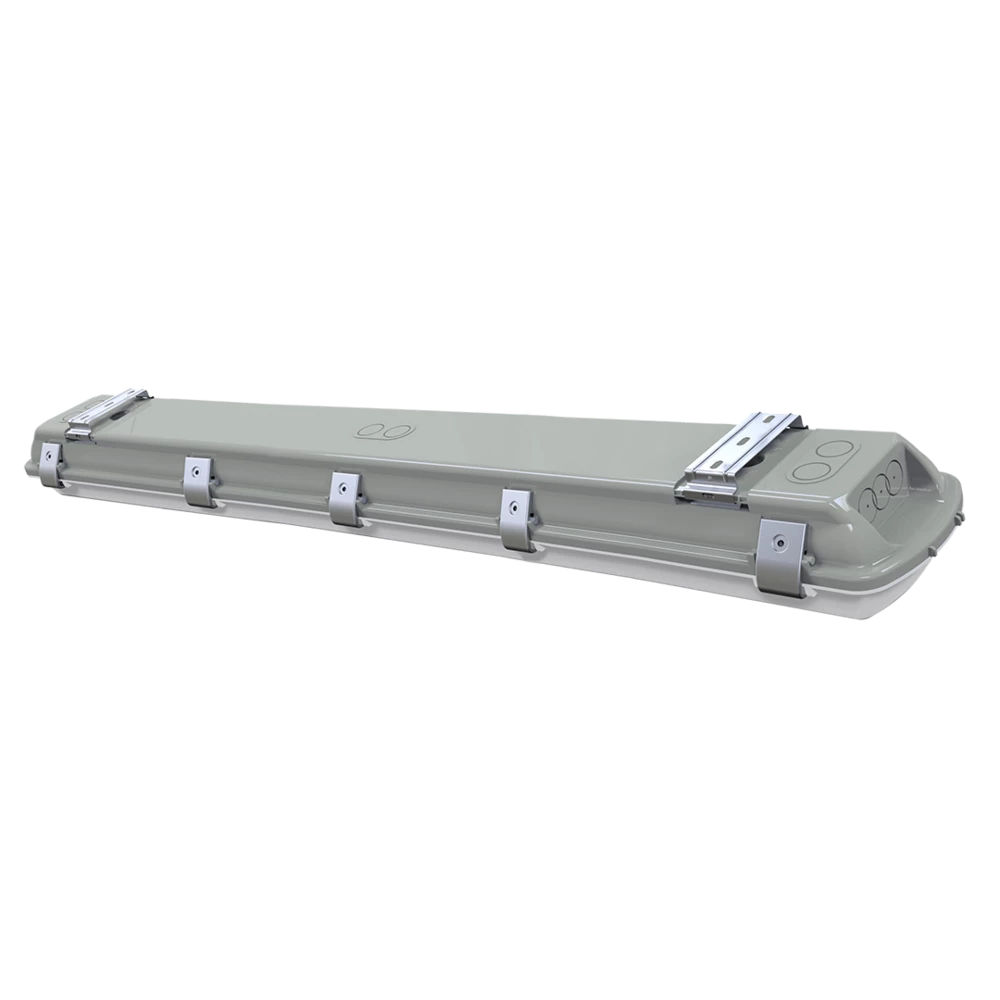

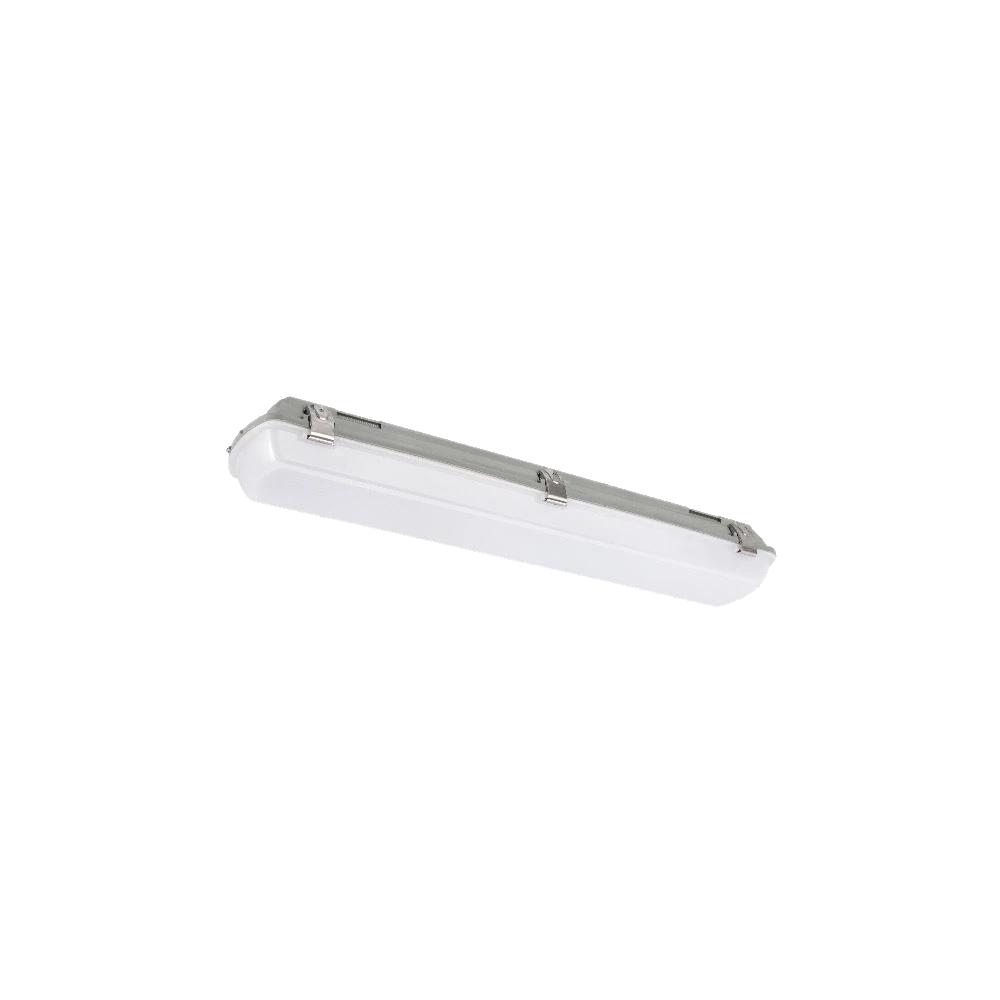

IP65 LED weatherproof batten 20/40 watt with selectable power and CCT
Application
Multi-purpose ceiling mount or suspended, commercial or industrial applications
Design Specifications
-
Vandal resistant design, robust polycarbonate body and UV stabilized polycarbonate diffuser
-

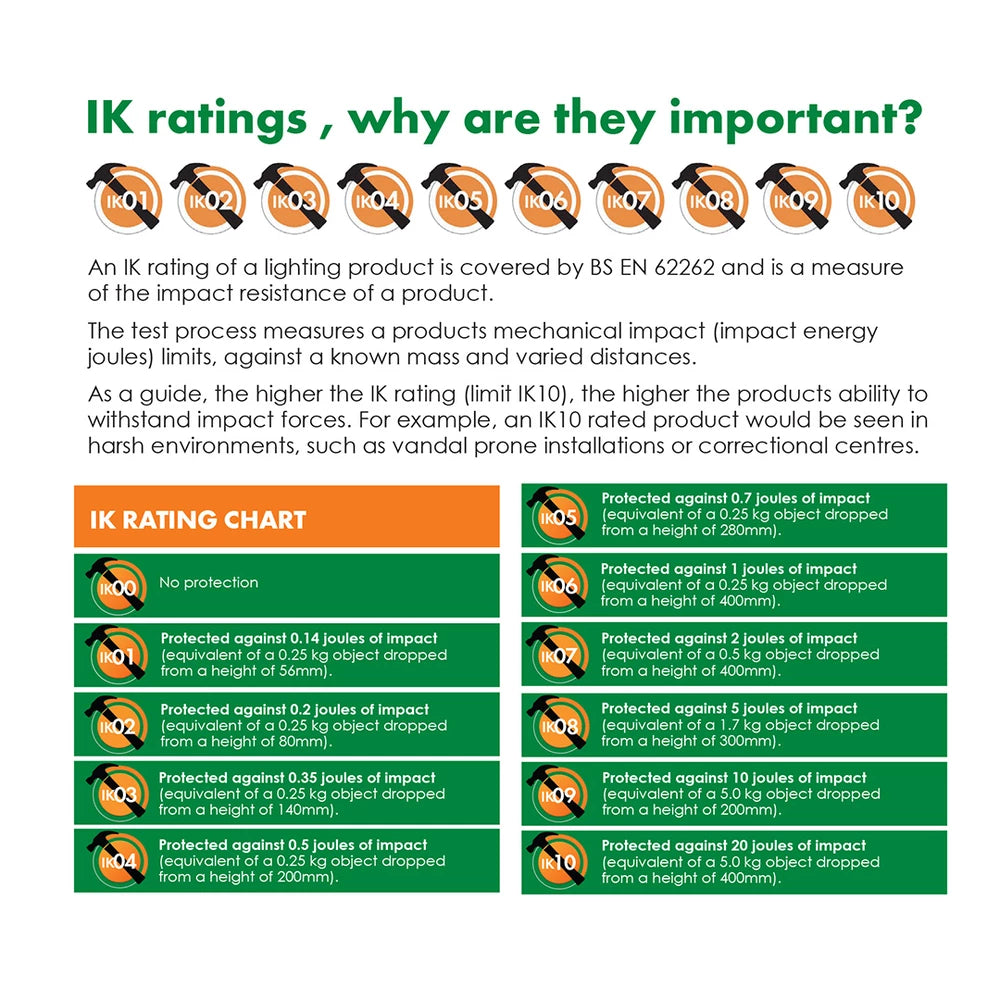

301 Stainless steel clips & screws, IP65, IK08, sensor and emergency options
-
Operating temperature -20°C to +40°C
-
Integral, non-dimmable flickerCONTROLLED LED driver
-
Selectable power choices; 20W - 11/14/17/20 and 40W - 22/28/34/40
-
Optional corridorSTANDBY functions available
Product selections compliant to AS/NZS2293 Emergency Lighting & Exit Signs are located in the interior and exterior emergency sections of this web catalogue
Performance
- In Built Sensor - OPTIONAL
- Sensor Type - MICROWAVE
| Model No. | Input Voltage | Power | Multiple Wattage | Lumens | CRI | CCT | Beam Angle | Body Colour | Dim |
|---|---|---|---|---|---|---|---|---|---|
| SL9721/20TC/MP | 240 | 20 | 11/14/17/20 | 2550/2550/2500 | 90 | 3000/4000/5700 | 120 | GREY | 618(L) x 116(W) x 74(H) |
| SL9721/40TC/MP | 240 | 40 | 22/28/34/40 | 5050/5250/5400 | 80 | 3000/4000/5700 | 120 | GREY | 1215(L) x 116(W) x 74(H) |
