Description

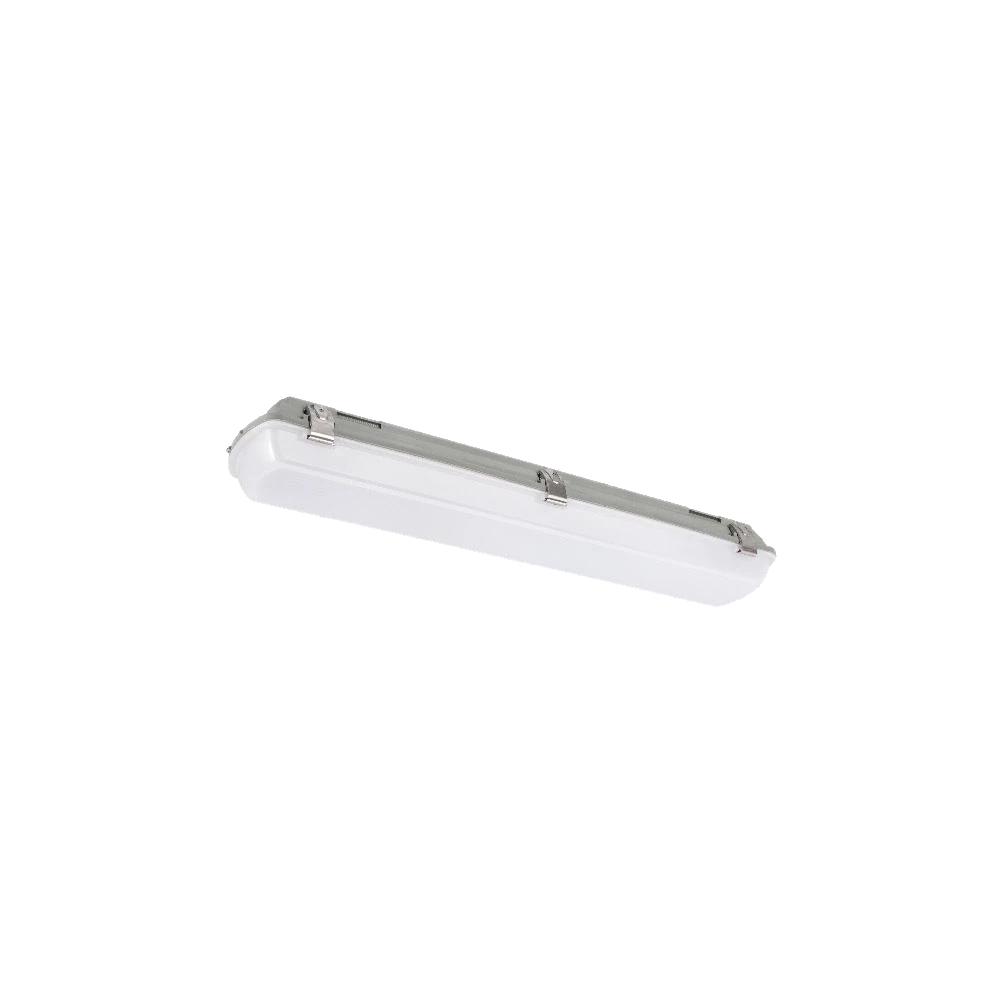

MAINTAINED OR NON-MAINTAINED, LED emergency weatherproof batten, IP65 LED 20/40 watt with selectable power and CCT
Application
Multi-purpose ceiling mount or suspended, commercial or industrial applications
Design Specifications
-
Vandal resistant design, robust polycarbonate body and UV stabilized polycarbonate diffuser
-

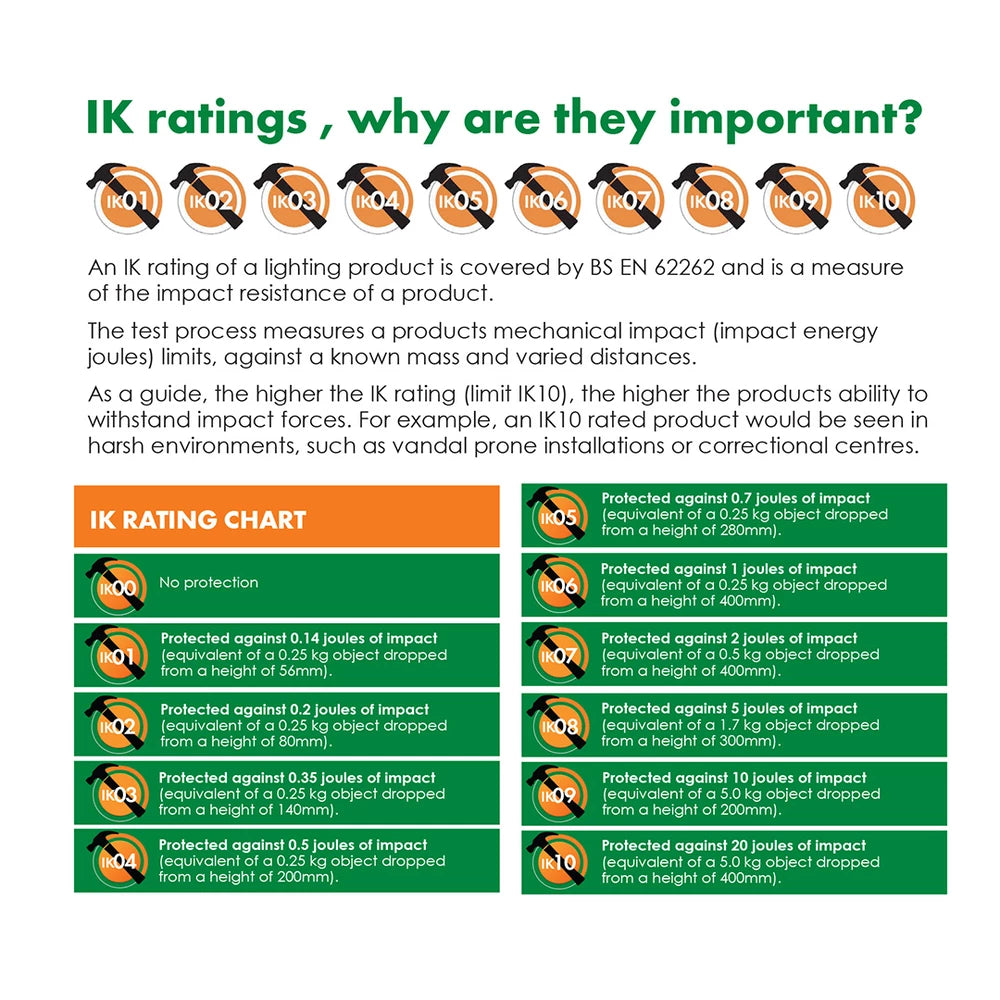

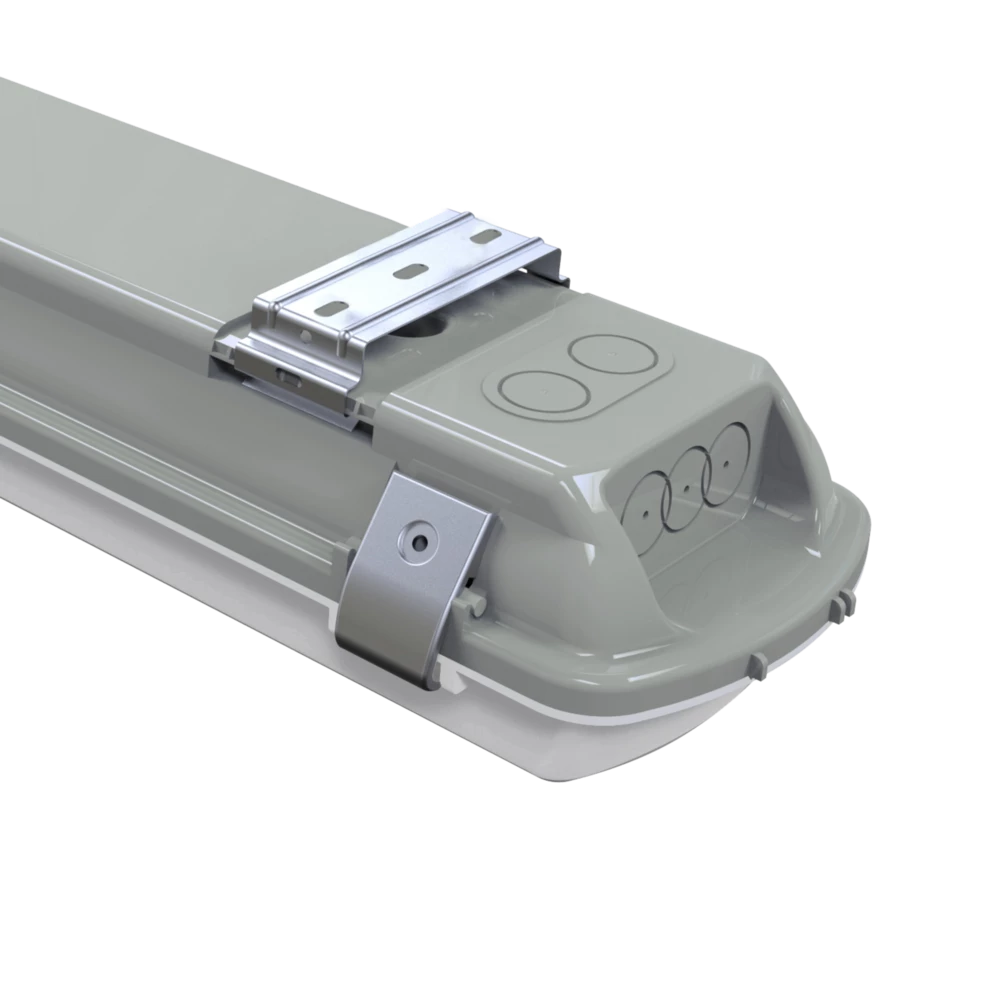

301 Stainless steel clips & screws, IP65, IK08, sensor and emergency options
-
Operating temperature 0°C to +40°C
-
Compliant to AS/NZS2293 Emergency Lighting & Exit Signs, guaranteed minimum 90 minutes emergency mode function with LiFePO4 battery technology
Integral, non-dimmable flickerCONTROLLED LED driver -
Selectable power choices; 20W - 11/14/17/20 and 40W - 22/28/34/40
-
Emergency spacing classification -
(SL9721/20EM) D63@C0, D40@C90,
(SL9721/35EM) D63@C0, D40@C90.
Performance
- In Built Sensor - OPTIONAL
- Sensor Type - MICROWAVE
| Model No. | Input Voltage | Power | CCT | Lumens | Multiple Wattage | Body Colour | Dim |
|---|---|---|---|---|---|---|---|
| SL9721/20TC/MP/EM | 240 | 20 | 3000/4000/5700 | 2550/2550/2500 | 11/14/17/20 | GREY | 618(L) x 116(W) x 74(H) |
| SL9721/40TC/MP/EM | 240 | 40 | 3000/4000/5700 | 5050/5250/5400 | 22/28/34/40 | GREY | 1215(L) x 116(W) x 74(H) |
