Description
Application
IP20 surface mount sensor designed for residential and commercial spaces
Design Specifications
-
Switched power 1600W incandescent, 500W, fluorescent, 200W LED
- Standby power <1W

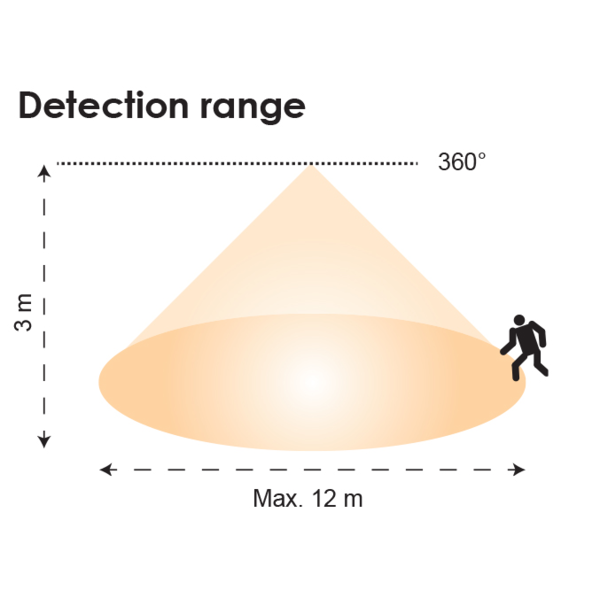

- Detection distance Max. 12 m in diameter
- Detection angle 360° , Duration Time / 10sec / 4min adjustable
-
Dawn to dusk adjustable, mounting height max. 3m
-
Manual override mode: When the lamp(s) is switched on, turn the lamp(s) off/on twice within 3 seconds, the sensor will go to an 8 hour override mode, during which the lamp(s) will stay on. The sensor will then return to normal detection mode During override mode, turn the lamp(s) on/off twice within 3 seconds or turn off the lamp(s) for over 10 seconds, the sensor will return to normal detection mode
Performance
- Dimmable - NO
- In Built Sensor - YES
- Sensor Type - PIR
| Model No. | Input Voltage | Body Colour |
|---|---|---|
| SMS805CS | 240 | WHITE |
DOWNLOADS
