Description
Inrush current limiter, 2-wire electrical accessory
Application
The SAL Inrush current limiter is a 2-wire electrical accessory, that is designed to reduce the high starting current caused by capacitive load or inductive load (typically but not limited to LED luminaires with in-built drivers, constant voltage drivers, transformers etc), so as to protect the switching device in the circuit (typically a switch, a relay, a sensor with relay, etc) from being damaged by the excessive inrush current.
Design Specifications
-
Sleek low profile form factor
-
2-wire design for easy installation
-
2 loop terminals
-
Reduce high inrush current caused by poor loads
-
Current rating - 80A for 2ms, 200A for 100μs
-
Max load 300VA
| Model No. | Input Voltage | voltAmp | Body Colour | Dim |
|---|---|---|---|---|

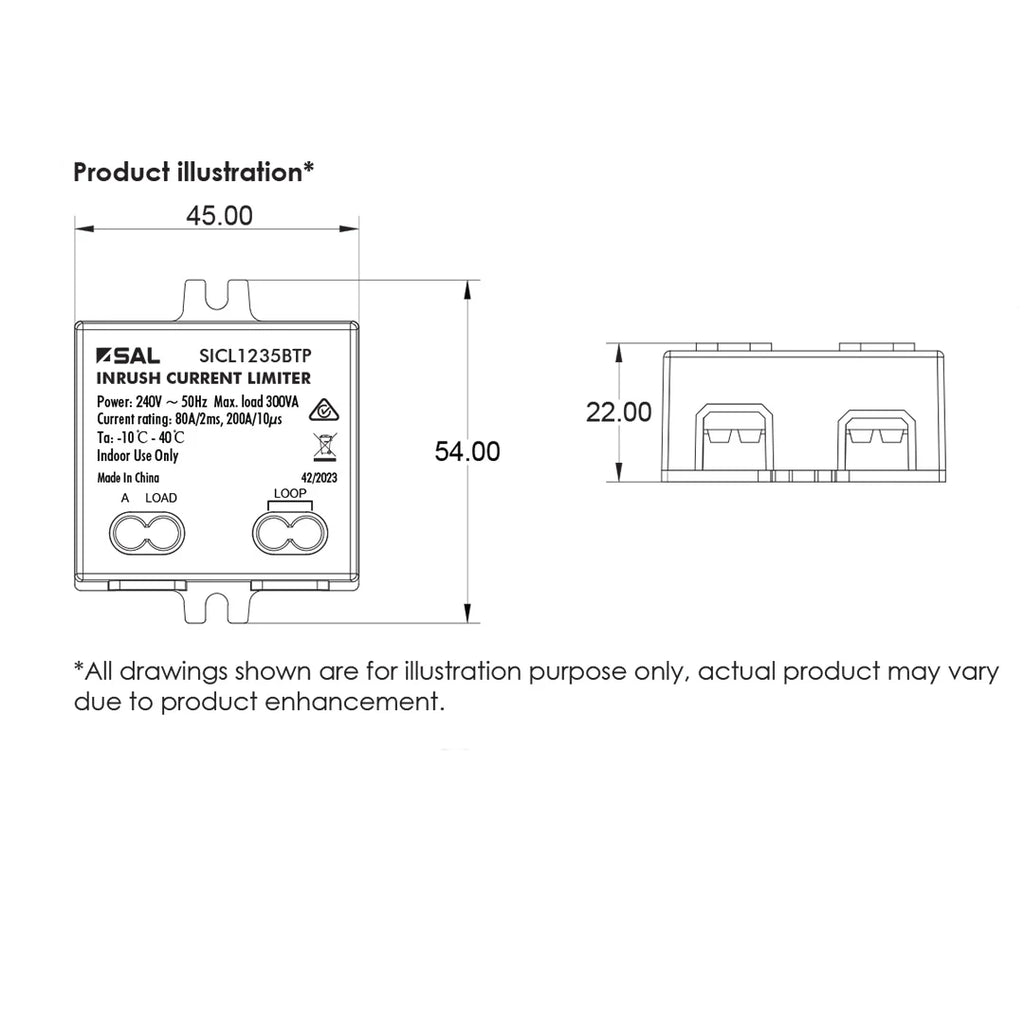

| SICL1235BTP | 240 | 300 | WHITE | 54(L) x 45(W) x 22(H) |
