Description
48" (1252mm) 30W DC Ceiling fan, three blades, with six speed wall and remote control and a 22w dimmable LED with selectable CCT
Application
Residential interior or weather protected exterior spaces
Design Specifications
-

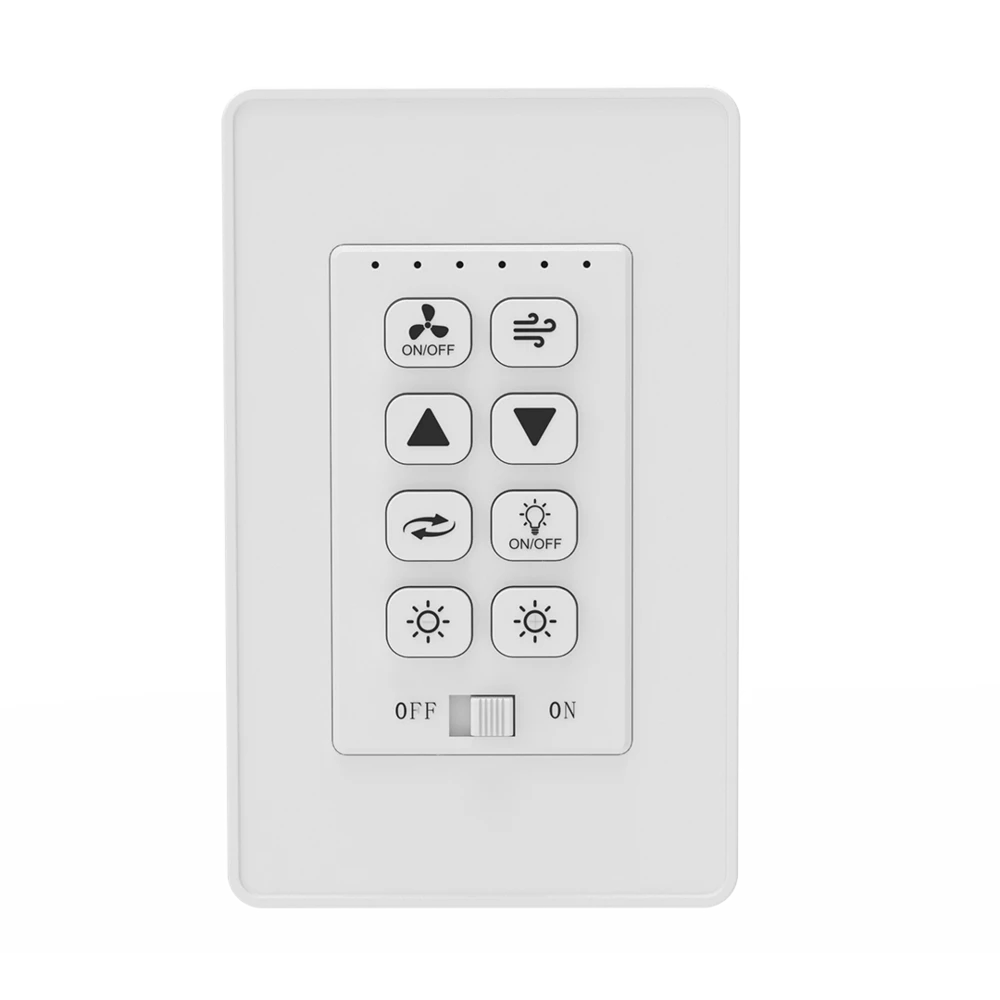

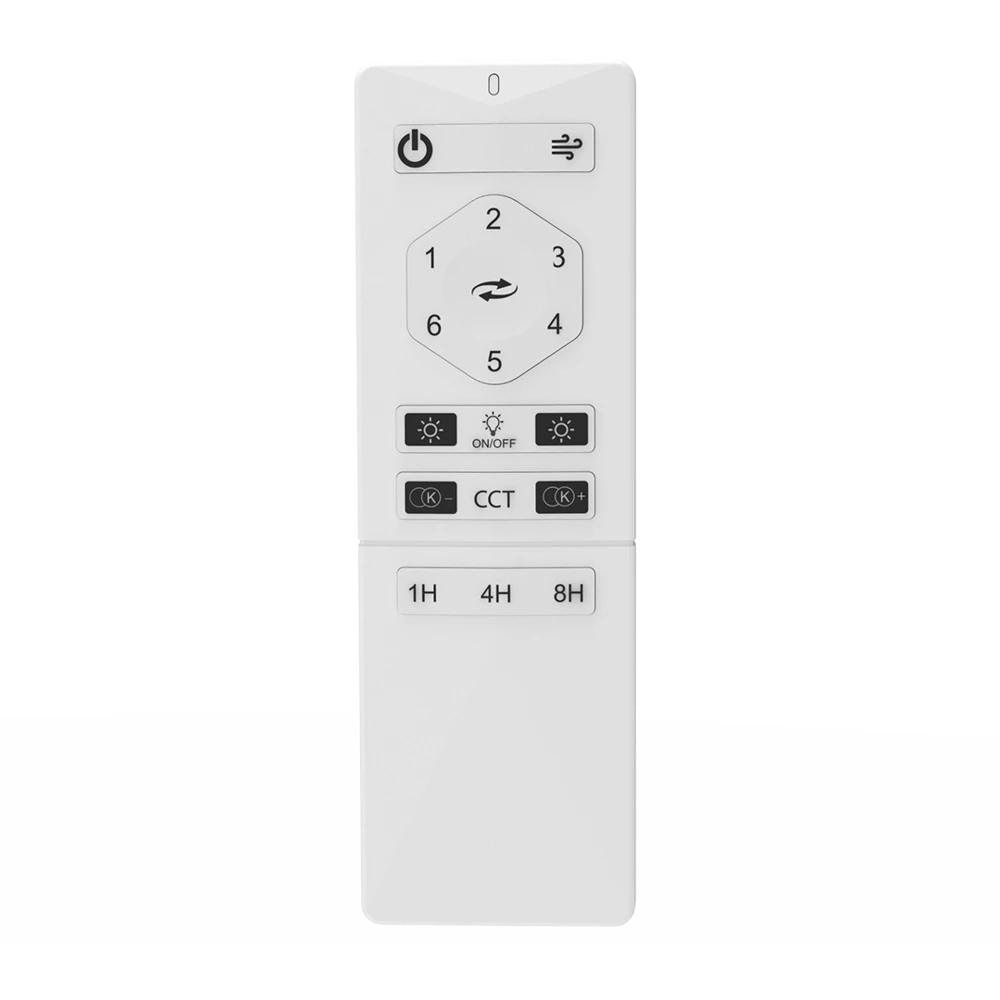

Six speed wall control and remote control included
-
Super quiet 30W DC motor with fan timer and breeze mode control and dimmable 22W LED with selectable CCT via the wall plate or remote control.
-
Powerful airflow 11,080 m3/h, with summer and winter fan control.
-
Durable ABS blade design, ideal for indoor or covered and protected outdoor environments, standard 250mm extension rod included.
-

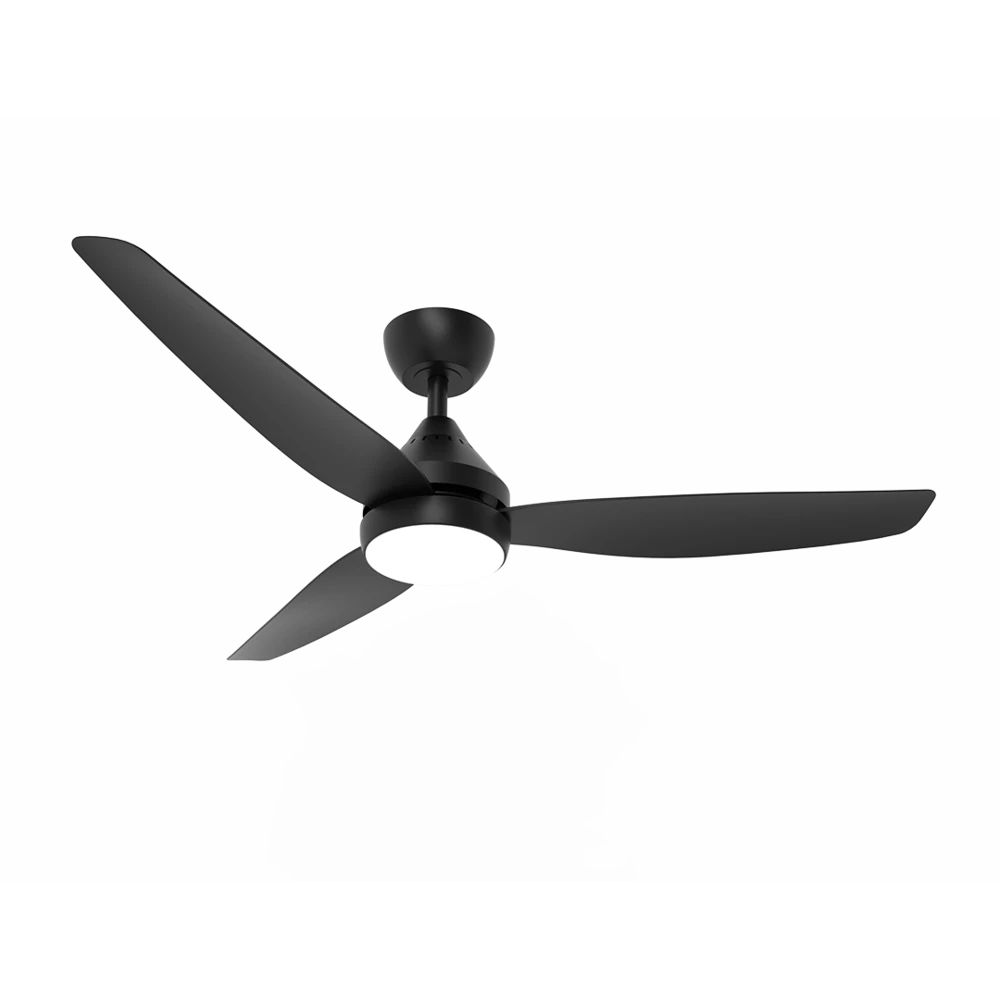

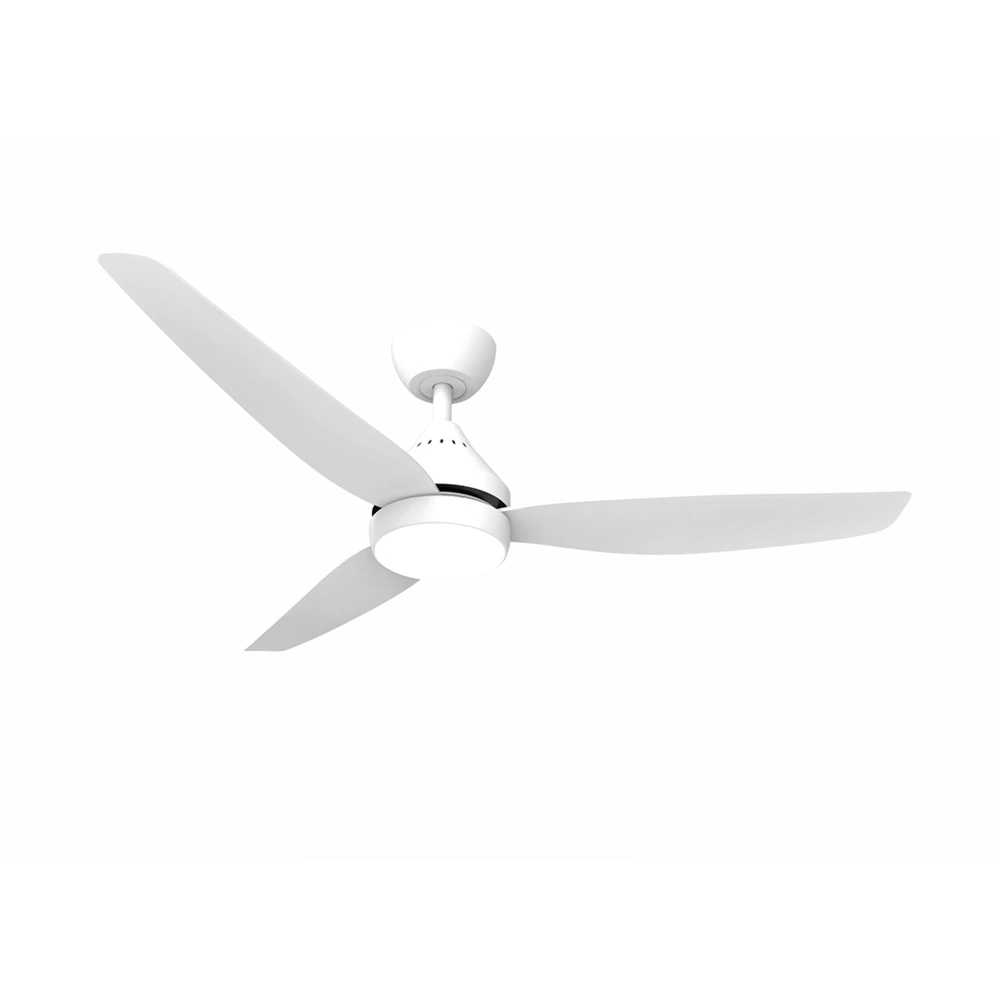

Choice of BLACK or WHITE models.
-
Minimum blade clearance from the floor in accordance with AS 4226 – 2008, Clause 12.5.3 is 2100mm.
Performance
- Dimmable - YES
- Dimmer Type - WALL OR REMOTE CONTROL

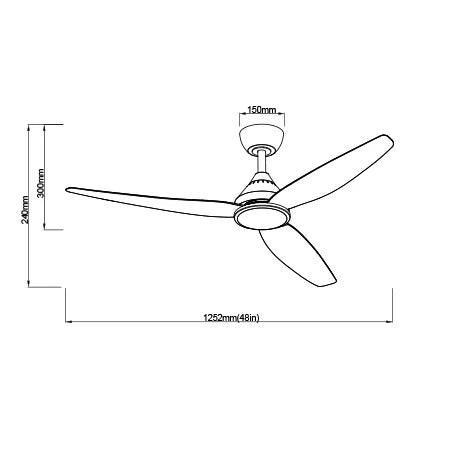

| Model No. | Body Colour | Input Voltage | Power | Motor Type | Blades | Hang-sure angle | Airflow | Summer & Winter Control | Light Wattage | Dimmable | Lumens | Height | Ceiling drop | Diameter | Mass |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SDCF11/48/3WH/L | WHITE | 240 | 30 | DC | 3 | 15 | 11080 | YES | 22 | YES | 2860 | 325 | 240 | 1252 | 4.67 |
| SDCF11/48/3BK/L | BLACK | 240 | 30 | DC | 3 | 15 | 11080 | YES | 22 | YES | 2860 | 325 | 240 | 1252 | 4.67 |
