Description

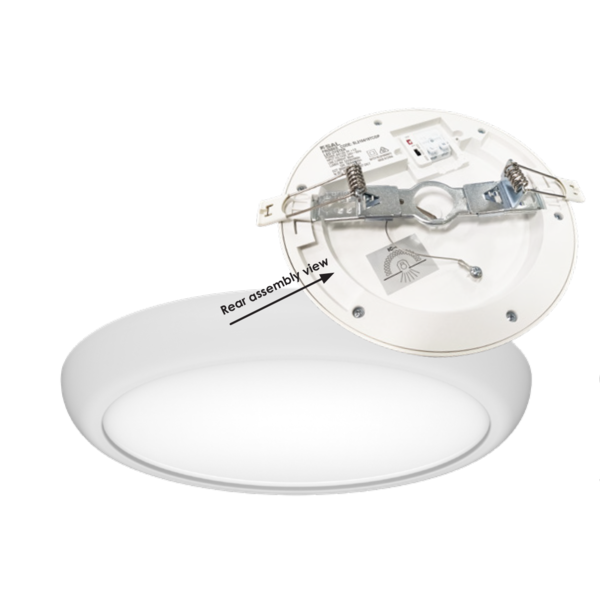

Low profile, recessed or surface mount oyster with selectable CCT and dual power, IP44.
Application
A creative design for residential or commercial spaces
Design Specifications
-
Low profile design, ceiling mount
-
Durable white polyamide body profile with an opal polycarbonate diffuser
-
High efficiency LED optics, with selectable CCT 3000K/4000K/6000K
-
Integral non-dimmable driver with a choice of selectable power 8/12W, 12/18W, 18/25W
-
Flexible cut-out sizes to suit retrofit recessed applications - SL2104/18TC 80-100mm, SL2104/22TC 120-200mm, SL2104/30TC 150-270mm
-
Double insulated
| Model No. | Input Voltage | Multiple Wattage | Lumens | CCT | CRI | Beam Angle | Body Colour | Diameter | Dim | Mass |
|---|---|---|---|---|---|---|---|---|---|---|
| SL2104/18TC/DP | 240 | 8/12 | 780/840/840 | 3000/4000/6000 | 80 | 110 | WHITE | 180 | 21(H) | 0.26 |
| SL2104/22TC/DP | 240 | 12/18 | 1260/1350/1350 | 3000/4000/6000 | 80 | 110 | WHITE | 220 | 21(H) | 0.35 |
| SL2104/30TC/DP | 240 | 18/25 | 1875/2000/2000 | 3000/4000/6000 | 80 | 110 | WHITE | 300 | 25(H) | 0.68 |
