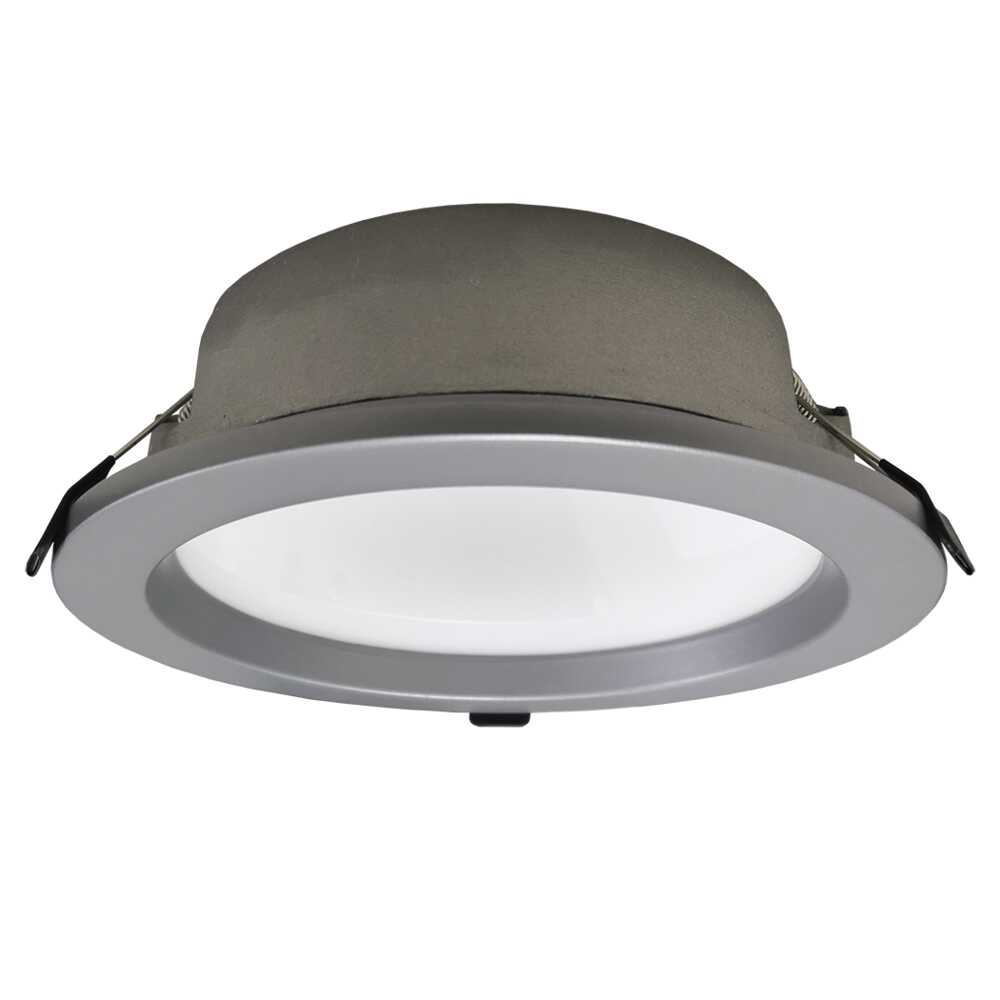

Description
Application
Ideal for any residential or commercial interior space
Design Specifications
-
Selectable CCT 3000K / 4000K / 5500K
-
Selectable power 28W/40W
-
Durable die-cast aluminium body profile, with white or silver trim
-
Remote, non-dimmable LED driver, with flex and plug
-
High efficiency LED optics with an opal polycarbonate diffuser
-
IC - 4 rated, double insulated, IP20 surface mount options available 160hm x Ø 240mm (S9523SM/TC/WH)
Performance
- Dimmable - OPTIONAL
- Dimmer Type - Trailing edge, 1-10V, DALI / DSI
| Model No. | Input Voltage | Multiple Wattage | Lumens | CCT | Beam Angle | Dimmable | CRI | Body Colour | Cut Out | Diameter | Dim | IPART | REES |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S9523TC WH | 240 | 28/40 | 2800/3800 | 3000/4000/5500 | 105 | OPTIONAL | 80 | WHITE | 195 | 225 | 65(H) | YES | YES |
| S9523TC SL | 240 | 28/40 | 2800/3800 | 3000/4000/5500 | 105 | OPTIONAL | 80 | SILVER | 195 | 225 | 65(H) | YES | YES |
| S9523SM/TC/WH | 240 | 28/40 | 2800/3800 | 3000/4000/5500 | 105 | OPTIONAL | 80 | WHITE | 240 | 160(H) | YES | YES |
