Description
Application

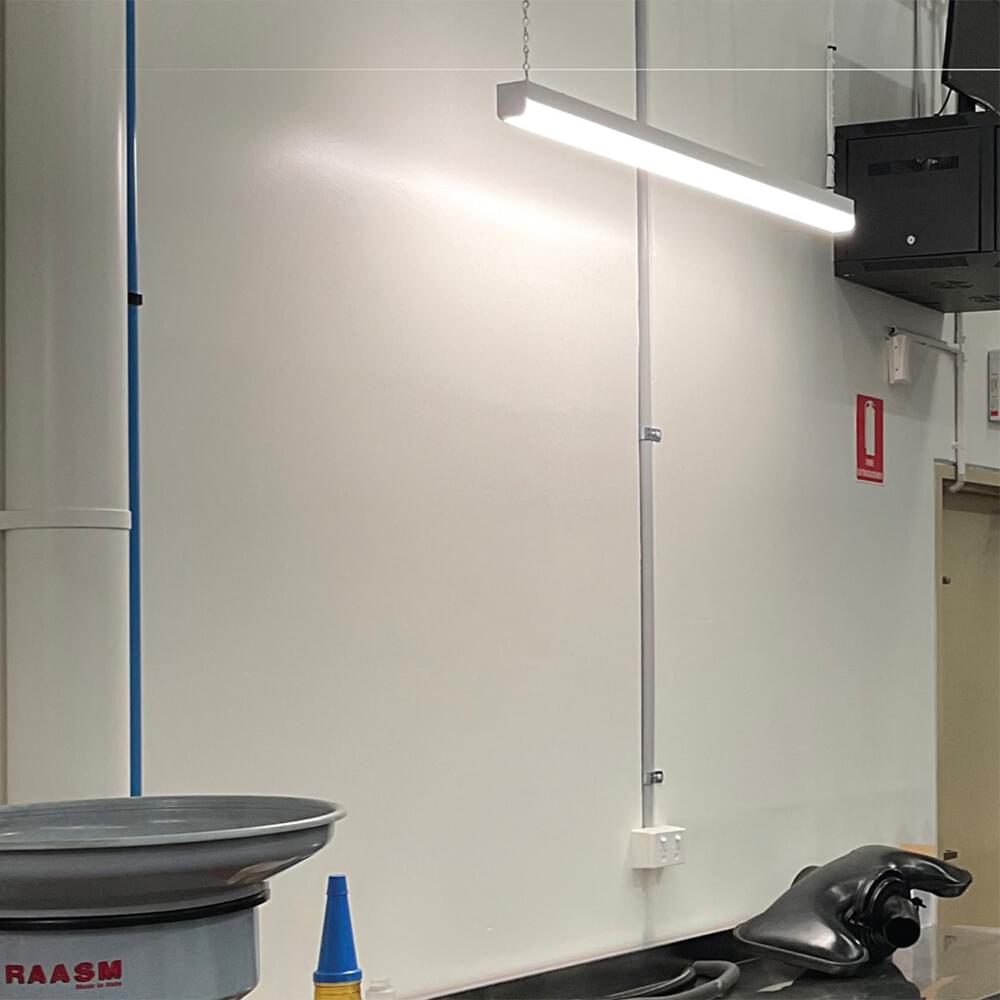

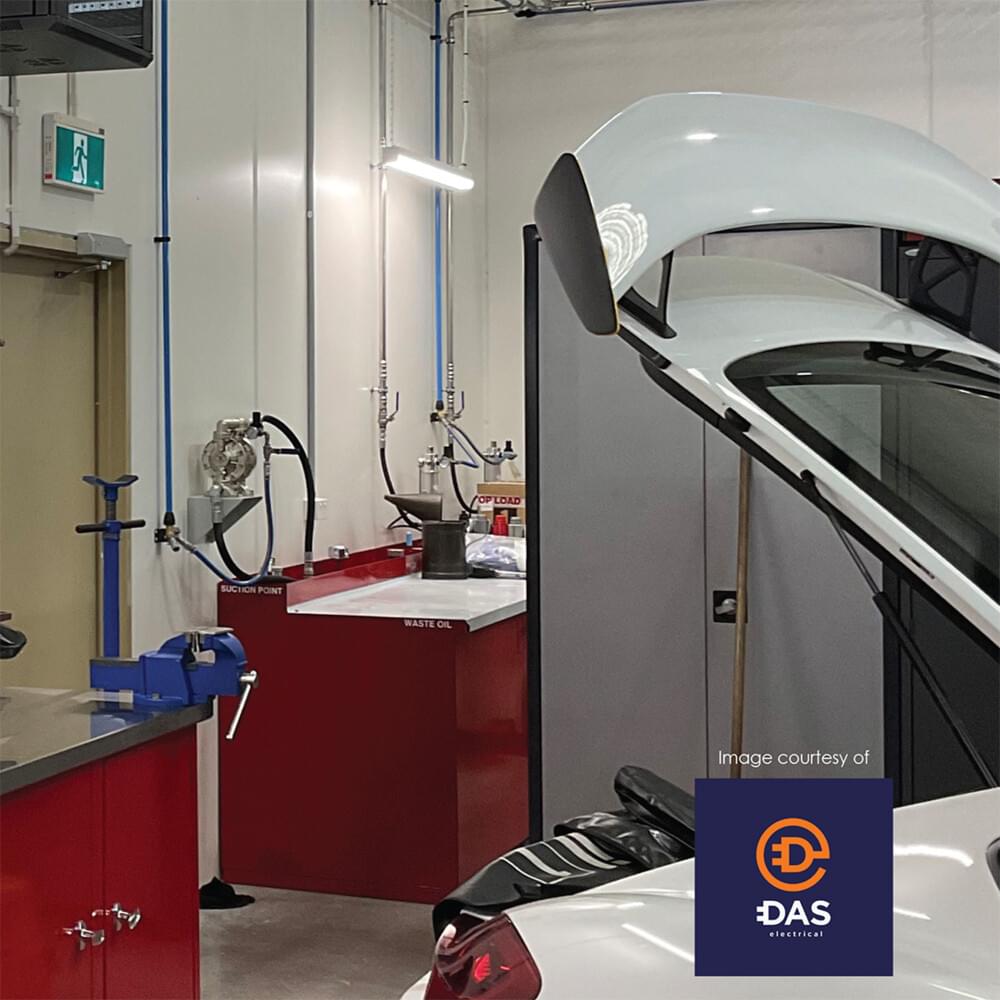

Conventional linear LED batten products for commercial service spaces
Design Specifications
- 65 mm narrow steel body
- White powder coat finish with a robust polycarbonate diffuser
- Large terminal block, easy installation
- Selectable CCT 3000K/4000K/5700K
- High efficiency LED optics, CRI >80, 120° beam distribution
- Integral LED driver with selectable power, Emergency options available and Non-dimmable corridorSTANDBY options available
Performance
- Dimmable - OPTIONAL
- Dimmer Type - refer model no, Trailing edge, 1-10V, DALI / DSI
- In Built Sensor - OPTIONAL
- Sensor Type - MICROWAVE
| Model No. | Input Voltage | Power | Multiple Wattage | Lumens | CCT | CRI | Beam Angle | Dimmable | Dim | Body Colour | IPART | VEET |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SL9732/20TC/DP3 | 240 | 10/20 | 2370/2600/2460 | 3000/4000/5700 | 80 | 120 | NO | 600(L) x 65(W) x 65(H) | WHITE | |||
| SL9732/20TC/DP3S | 240 | 10/20 | 2370/2600/2460 | 3000/4000/5700 | 80 | 120 | NO | 600(L) x 65(W) x 65(H) | WHITE | |||
| SL9732/20TC3DIM | 240 | 20 | 2400/2500/2450 | 3000/4000/5700 | 80 | 120 | YES | 600(L) x 65(W) x 65(H) | WHITE | |||
| SL9732/40TC/DP3 | 240 | 20/40 | 4600/5100/4860 | 3000/4000/5700 | 80 | 120 | NO | 1135(L) x 65(W) x 65(H) | WHITE | |||
| SL9732/40TC/DP3S | 240 | 20/40 | 4600/5100/4860 | 3000/4000/5700 | 80 | 120 | NO | 1135(L) x 65(W) x 65(H) | WHITE | |||
| SL9732/40TC3DIM | 240 | 40 | 4650/4900/4700 | 3000/4000/5700 | 80 | 120 | YES | 1135(L) x 65(W) x 65(H) | WHITE | |||
| SL9732/50TC/DP3 | 240 | 25/50 | 6100/6700/6300 | 3000/4000/5700 | 80 | 120 | NO | 1455(L) x 65(W) x 65(H) | WHITE | |||
| SL9732/40TC/DP3/EM | 240 | 24/40 | 4880/5340/5070 | 3000/4000/5700 | 80 | 120 | NO | 1135(L) x 65(W) x 65(H) | WHITE | N/A | N/A |
