Description
Dimmable 10 watt LED downlight, with selectable CCT, IP44.
Application
Ideal for any residential or commercial interior space
Design Specifications
-
Selectable CCT 3000K / 4200K / 5700K
-
Durable Polyamide, reinforced aluminium body profile, white trim
-
Trailing edge dimmable LED driver, with flex and plug
-
High efficiency LED optics with an opal polycarbonate diffuser
-

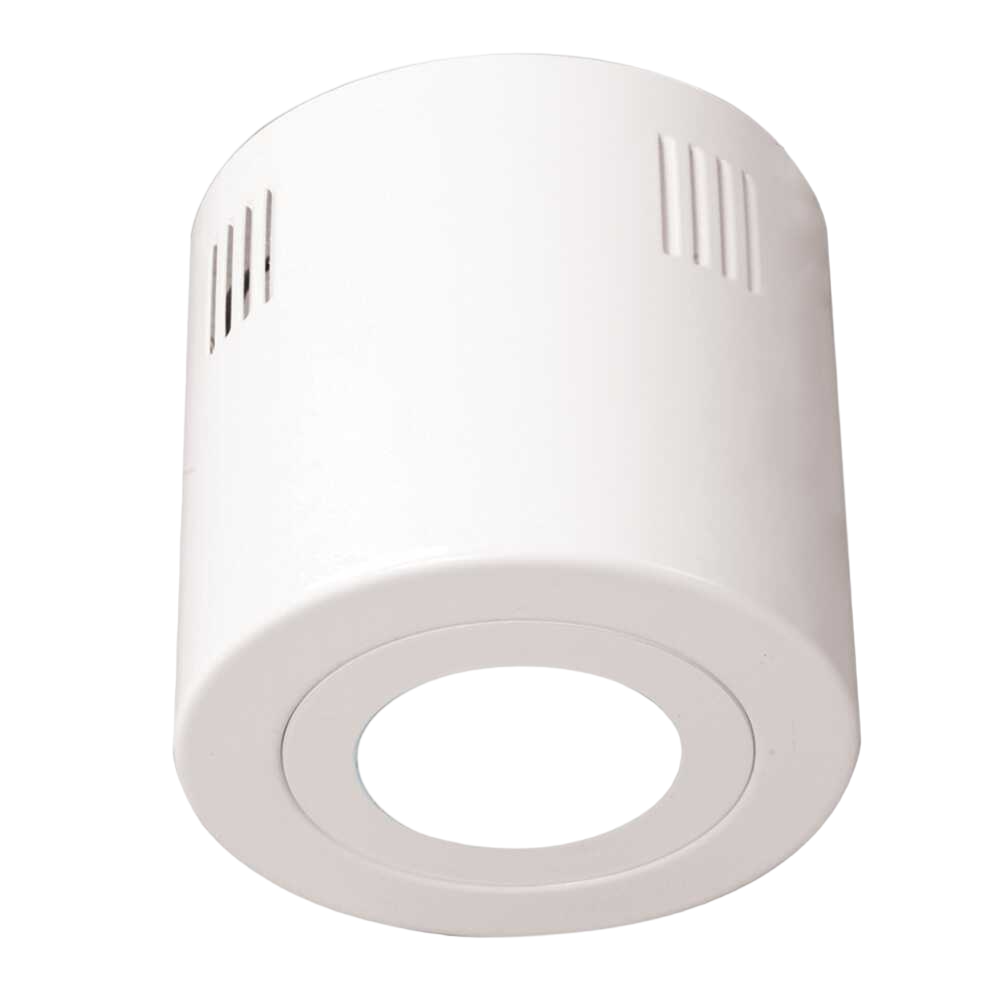

White surface mount options available, 145hm, x Ø152mm (S9041SM/TC2WH)
-

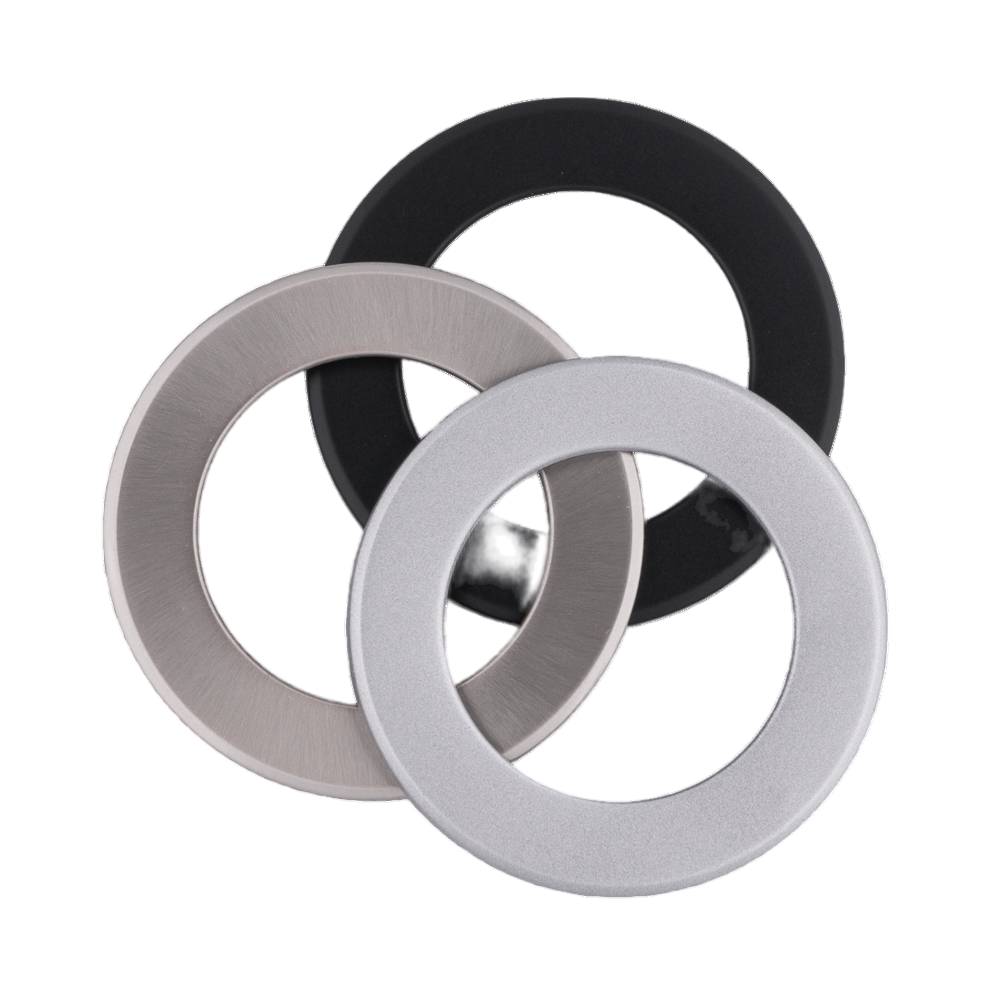

Colour trim options: Black (S9041 BK RING), Silver (S9041 SL RING), Satin Nickel (S9041 SN RING), IC - 4 rated, double insulated
-
Colour 1 Black (S9041 BK RING) Colour 2 Satin Nickel (S9041 SN RING) Colour 3 Silver (S9041 SL RING)
Performance
- Dimmable - YES
- Dimmer Type - Trailing edge
| Model No. | Input Voltage | Power | Lumens | CCT | Beam Angle | Dimmable | CRI | Body Colour | Cut Out | Diameter | Dim | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| S9041TC2WH | 240 | 10 | 850/1000/900 | 3000/4200/5700 | 90 | YES | 80 | WHITE | 92 | 103 | 41(H) | ||
| S9041SM/TC2WH | 240 | 10 | 850/1000/900 | 3000/4200/5700 | 90 | YES | 80 | WHITE |
