Description
Application

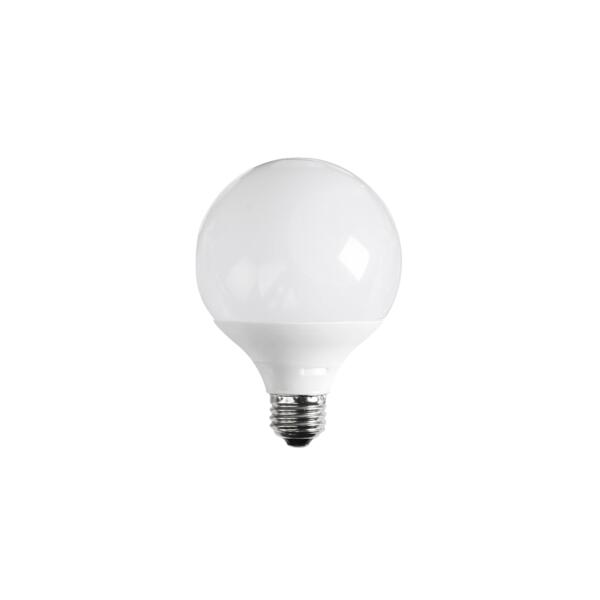

Energy efficient LED lamp solutions, with B22 or E27 bases
Design Specifications
- Opal polycarbonate diffuser
- Poly covered aluminium body, B22 or E27 lamp bases
- High efficiency LED optics, beam distribution 240°
- Integral trailing edge dimmable LED driver
- CCT choice of 3000K / 6000K, CRI >80
- 1:1 size to traditional spherical lamp, dimmable, suits most spherical lamp fittings
Performance
- Dimmable - YES
- Dimmer Type - Trailing edge

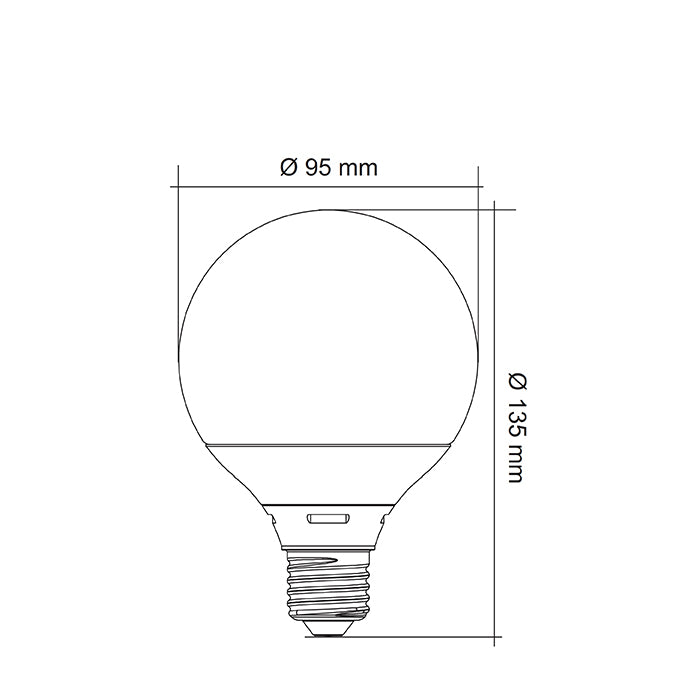

| Model No. | Description | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimmable | Dimensions | Base Type |
| LG95/830B22 | LED SPH. 10W 95mm BC 3K DIM. | 240 | 10 | 900 | 3000 | 80 | 240 | YES | 135(L) x 95(W) | B22 |
| LG95/860B22 | LED SPH. 10W 95mm BC 6K DIM. | 240 | 10 | 950 | 6000 | 80 | 240 | YES | 135(L) x 95(W) | B22 |
| LG95/830E27 | LED SPH. 10W 95mm ES 3K DIM. | 240 | 10 | 900 | 3000 | 80 | 240 | YES | 135(L) x 95(W) | E27 |
| LG95/860E27 | LED SPH. 10W 95mm ES 6K DIM. | 240 | 10 | 950 | 6000 | 80 | 240 | YES | 135(L) x 95(W) | E27 |
