Description
Application
Energy efficient LED lamp solutions, 8 watt models
Design Specifications
- Opal glass diffuser, BC or E27 lamp bases
- High efficiency LED filament, CRI > 80
- Integral trailing edge dimmable LED driver
- 320° beam distribution
- CCT choice of 2700K / 5000K

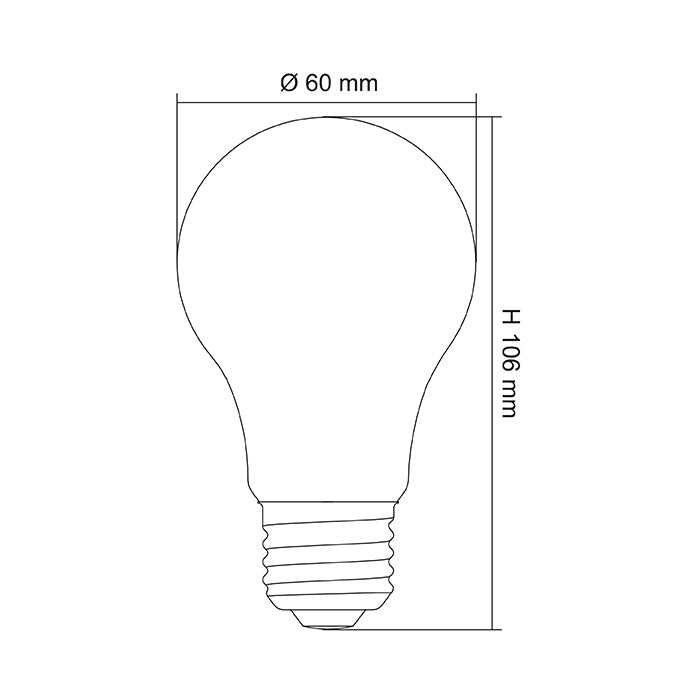

- 1:1 size to traditional GLS lamps,
suits most GLS lamp fittings
Performance
- Dimmable - YES
- Dimmer Type - Trailing edge
| Model No. | Description | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimmable | Dimensions | Base Type |
| LG9/27B22D | LED LAMP 8W BC WW 900lm DIM. | 240 | 8 | 900 | 2700 | 80 | 320 | YES | 105(L) x 60(W) | B22 |
| LG9/27E27D | LED LAMP 8W ES WW 900lm DIM. | 240 | 8 | 900 | 2700 | 80 | 320 | YES | 106(L) x 60(W) | E27 |
| LG9/50B22D | LED LAMP 8W BC NDL 950lm DIM. | 240 | 8 | 950 | 5000 | 80 | 320 | YES | 105(L) x 60(W) | B22 |
| LG9/50E27D | LED LAMP 8W ES NDL 950lm DIM. | 240 | 8 | 950 | 5000 | 80 | 320 | YES | 106(L) x 60(W) | E27 |
