Description
Application
Energy efficient LED lamp solutions
Design Specifications
-
Opal polycarbonate diffuser, ES or BC base
-
High efficiency LED filament, CRI > 80
-
Integral trailing edge dimmable LED driver
-
320° beam distribution
-
CCT choice of 2700K / 5000K
-
1:1 size to traditional GLS lamps,
suits most GLS lamp fittings
Performance
- Dimmable - YES
- Dimmer Type - Trailing edge

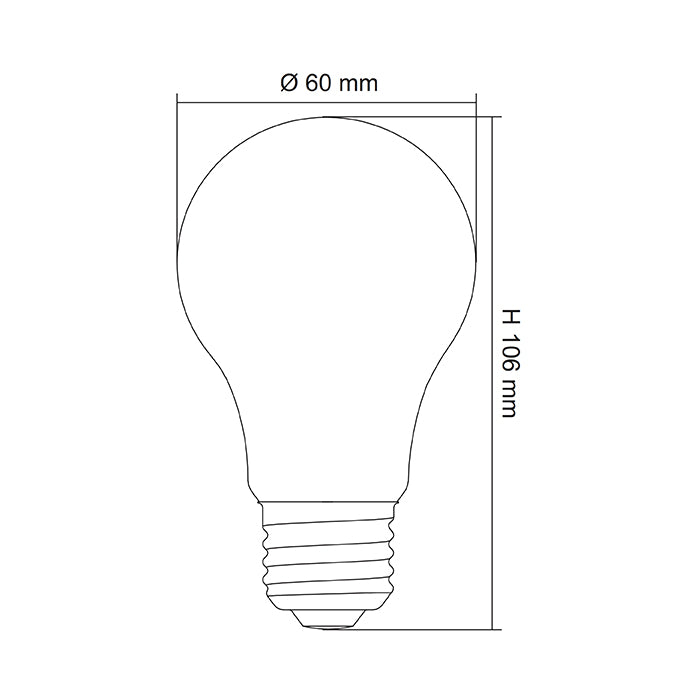

| Model No. | Description | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimmable | Dimensions | Base Type |
| LG5/27B22D | LED LAMP 4W BC WW 450lm DIM. | 240 | 4 | 450 | 2700 | 80 | 320 | YES | 105(L) x 60(W) | B22 |
| LG5/27E27D | LED LAMP 4W ES WW 450lm DIM. | 240 | 4 | 450 | 2700 | 80 | 320 | YES | 106(L) x 60(W) | E27 |
| LG5/50B22D | LED LAMP 4W BC NDL 500lm DIM. | 240 | 4 | 500 | 5000 | 80 | 320 | YES | 105(L) x 60(W) | B22 |
| LG5/50E27D | LED LAMP 4W ES NDL 500lm DIM. | 240 | 4 | 500 | 5000 | 80 | 320 | YES | 106(L) x 60(W) | E27 |
