Description
Application
Energy efficient LED lamp solutions
Design Specifications
-
Opal glass diffuser, SES, SBC, ES or BC base
-
High efficiency LED filament and colour rendering, CRI >80
-
Integral trailing edge dimmable LED driver
-
320° beam distribution
-
CCT choice of 2700K / 5000K
-
1:1 size to traditional candle lamp, dimmable,
suits most candle lamp fittings
Performance
- Dimmable - YES
- Dimmer Type - Trailing edge
| Model No. | Description | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimmable | Dimensions | Base Type |
| LCA27B15D | LED CANDLE 4W B15 WW OPAL DIM | 240 | 4 | 400 | 2700 | 80 | 320 | YES | 95(L) x 37(W) | B15 |

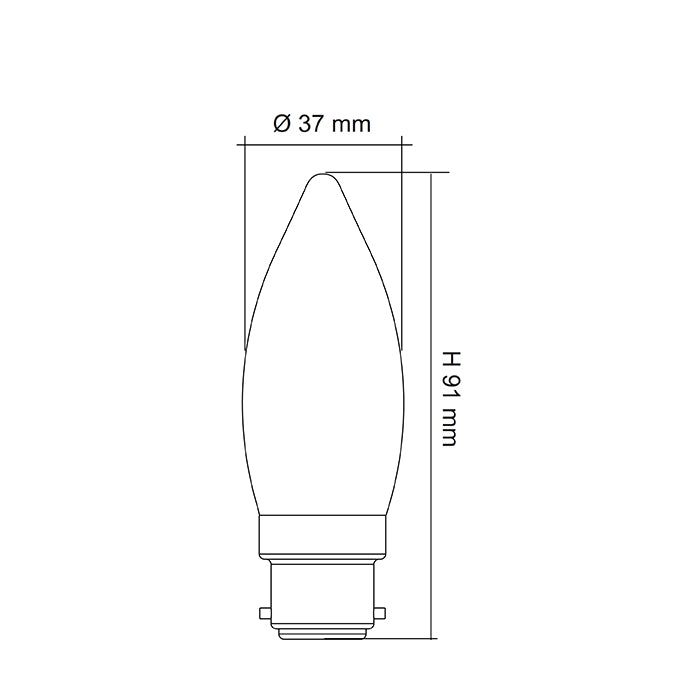

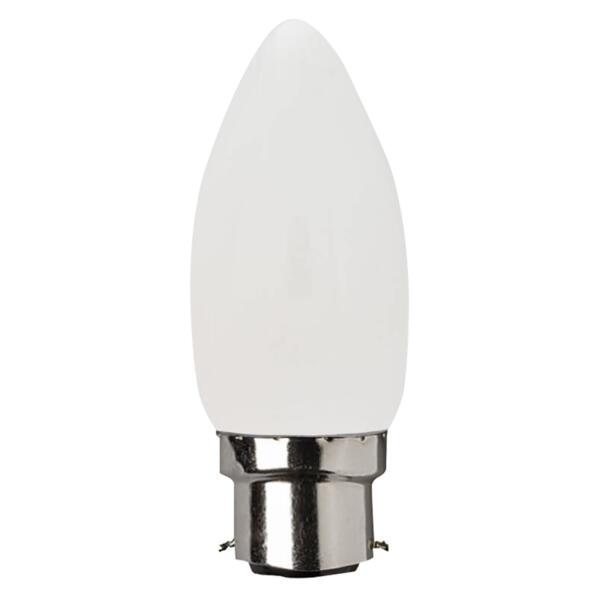

| LCA27B22D | LED CANDLE 4W B22 WW OPAL DIM | 240 | 4 | 400 | 2700 | 80 | 320 | YES | 91(L) x 37(W) | B22 |

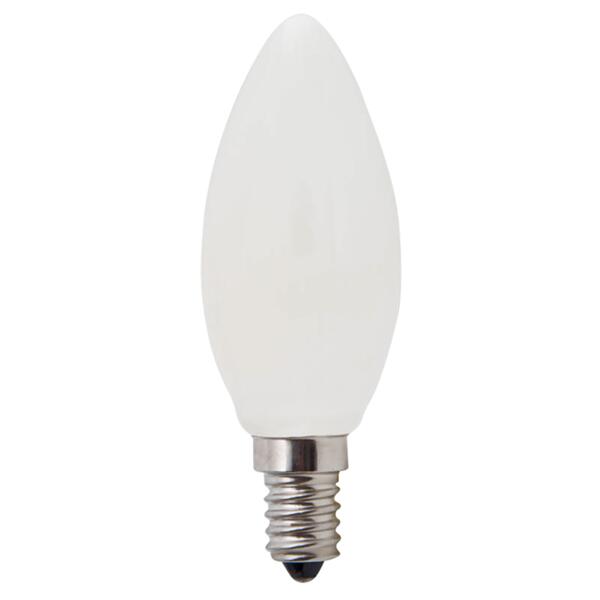

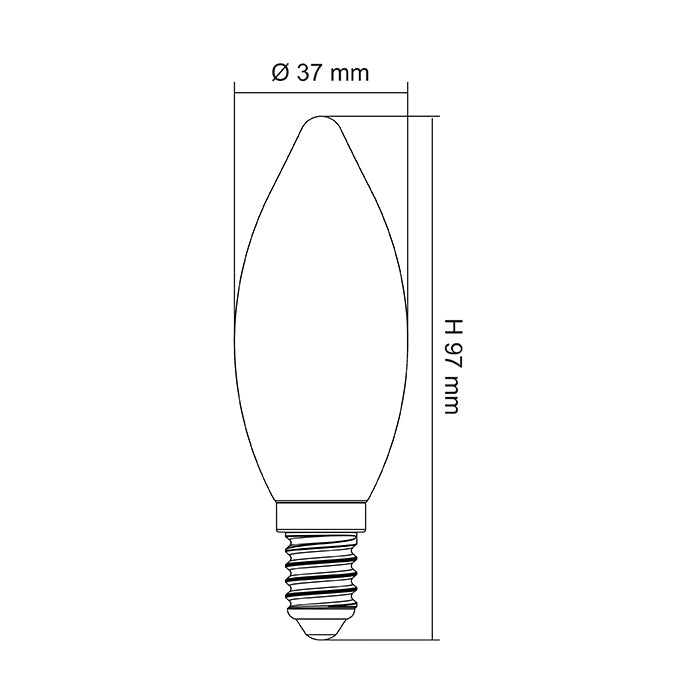

| LCA27E14D | LED CANDLE 4W E14 WW OPAL DIM | 240 | 4 | 400 | 2700 | 80 | 320 | YES | 97(L) x 37(W) | E14 |

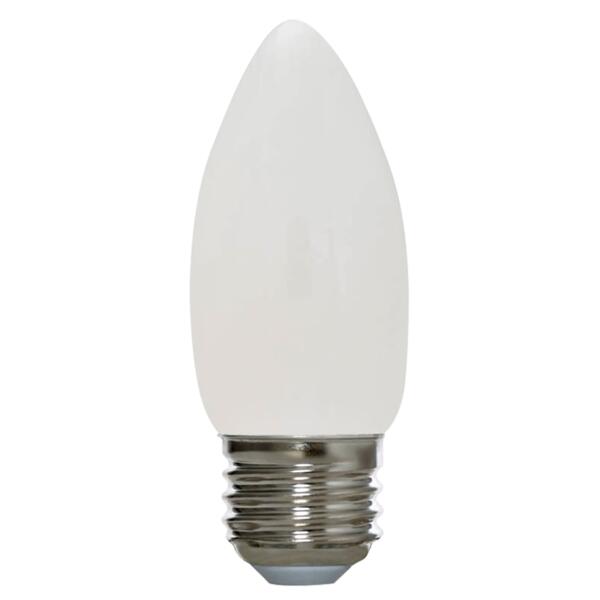

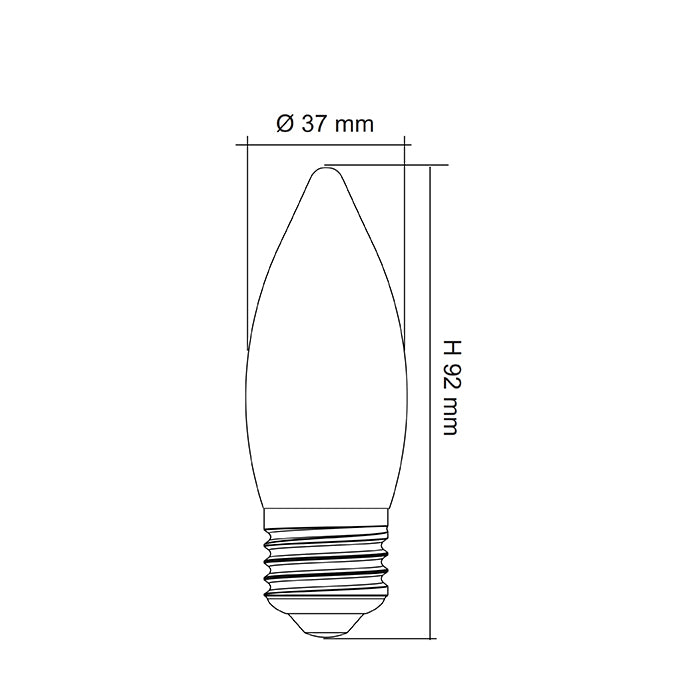

| LCA27E27D | LED CANDLE 4W E27 WW OPAL DIM | 240 | 4 | 400 | 2700 | 80 | 320 | YES | 92(L) x 37(W) | E27 |
| LCA50B15D | LED CANDLE 4W B15 DL OPAL DIM | 240 | 4 | 400 | 5000 | 80 | 320 | YES | 95(L) x 37(W) | B15 |
| LCA50B22D | LED CANDLE 4W B22 DL OPAL DIM | 240 | 4 | 400 | 5000 | 80 | 320 | YES | 91(L) x 37(W) | B22 |
| LCA50E14D | LED CANDLE 4W E14 DL OPAL DIM | 240 | 4 | 400 | 5000 | 80 | 320 | YES | 97(L) x 37(W) | E14 |
| LCA50E27D | LED CANDLE 4W E27 DL OPAL DIM | 240 | 4 | 400 | 5000 | 80 | 320 | YES | 92(L) x 37(W) | E27 |
