Description

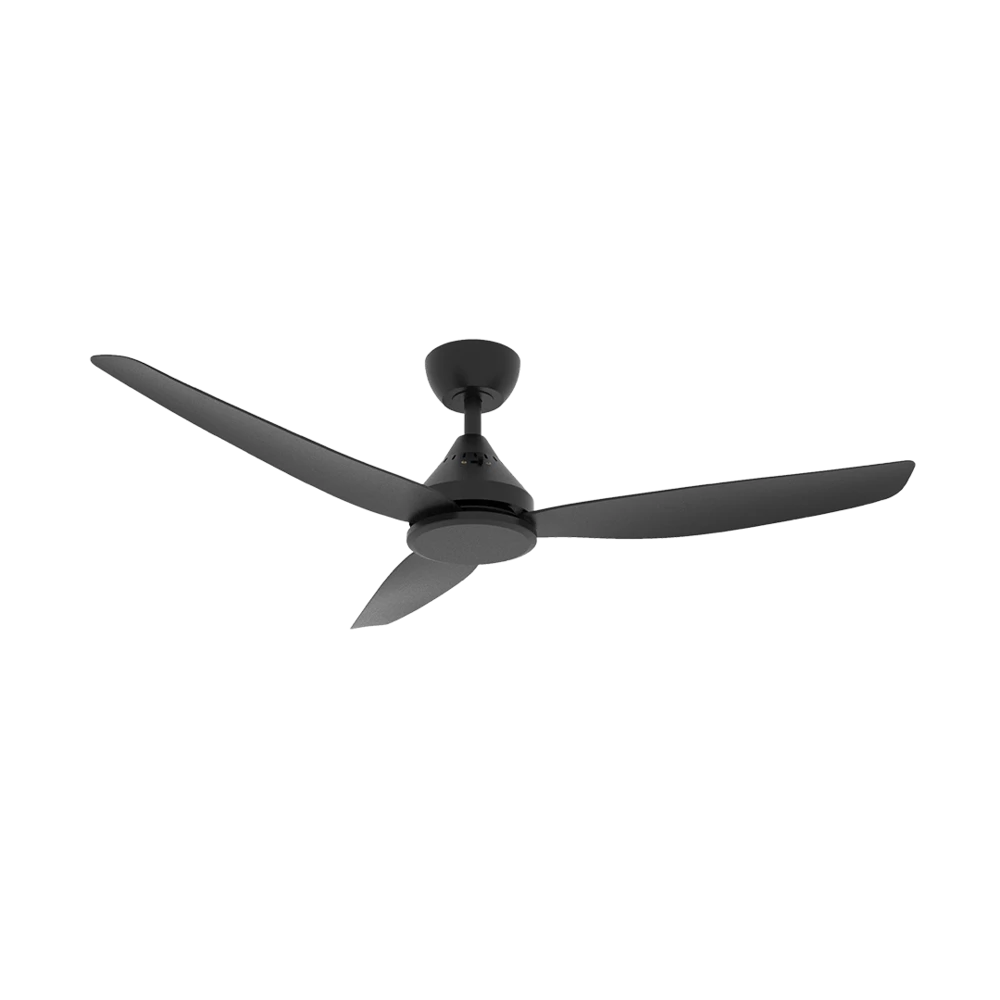

48" (1252mm) 48W AC Ceiling fan, three blades, with selectable CCT 20W LED
Application
Residential interior or weather protected exterior spaces
Design Specifications
-

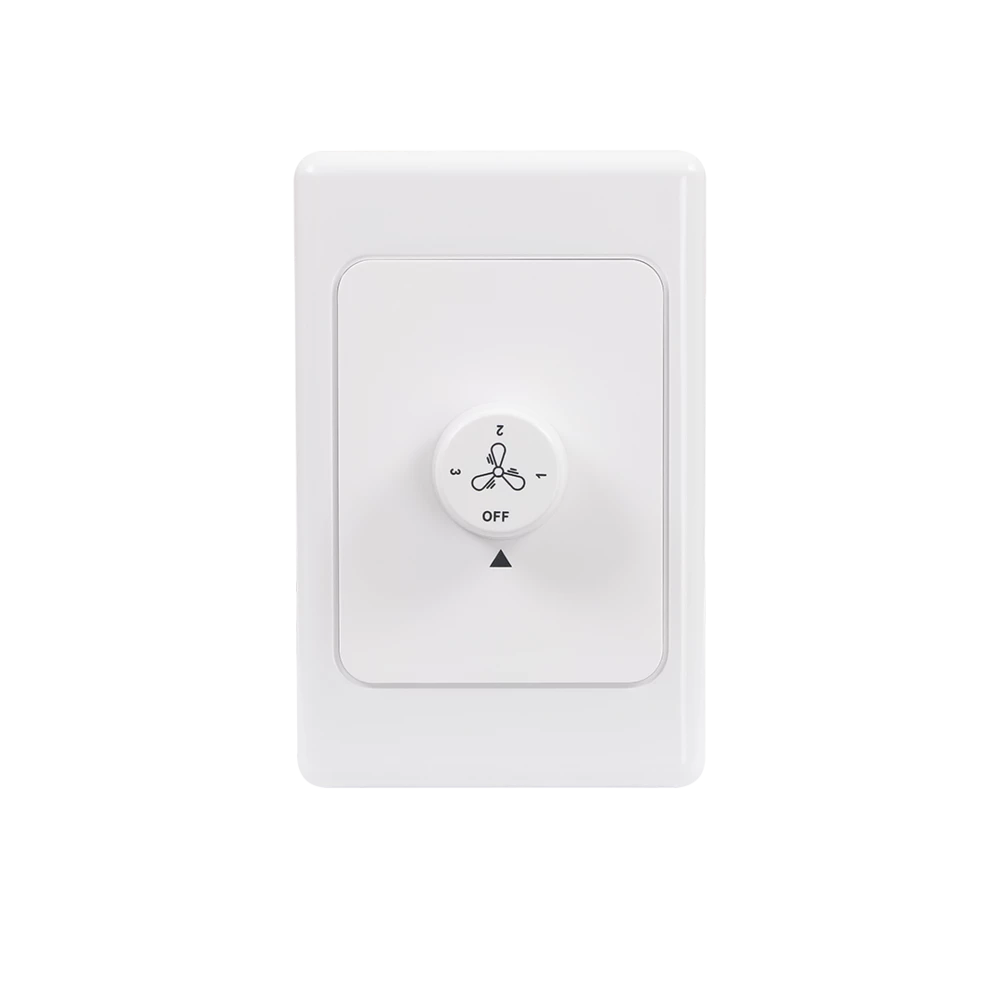

Three speed wall control included, perfect for traditional retrofit AC installations
-

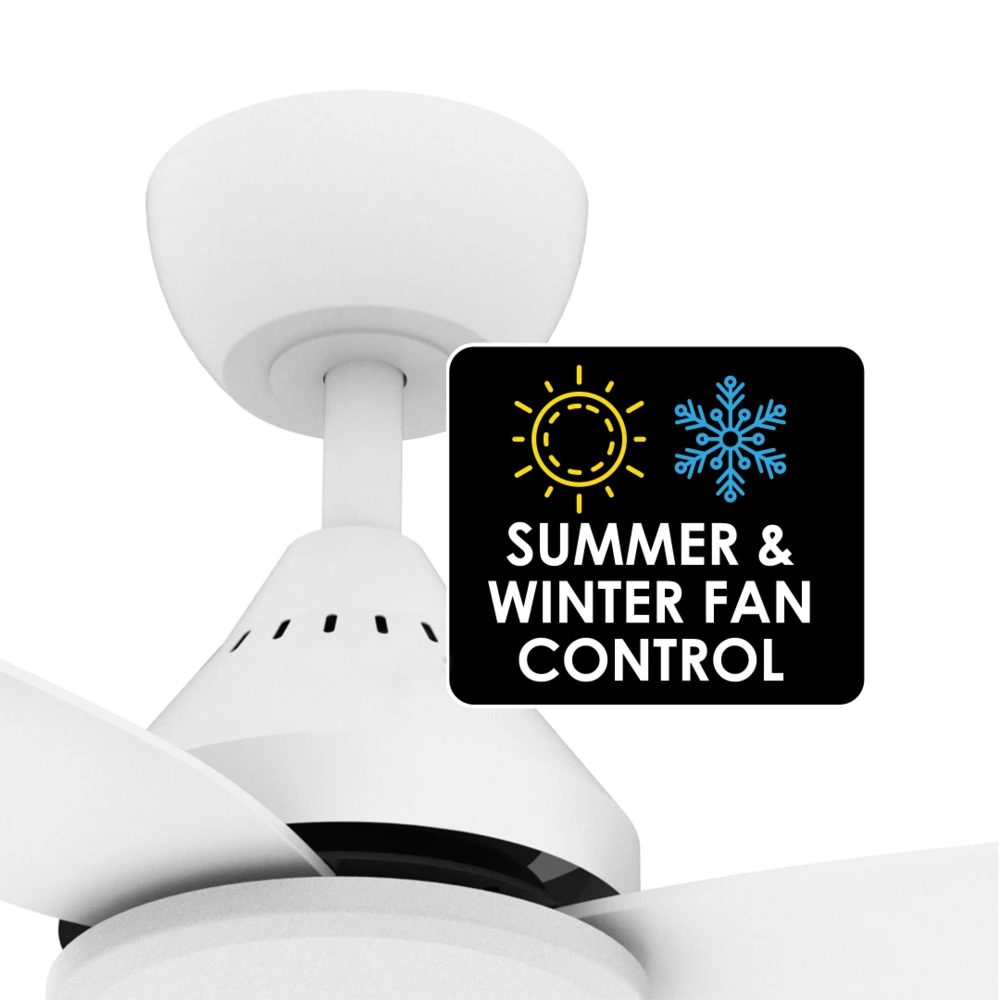

High performance 48W AC motor, summer and winter fan control functions, with selectable CCT 20W LED via the wall plate toggle action.
-
Powerful airflow 10,820 m3/h.
-
Durable ABS blade design, ideal for indoor or covered and protected outdoor environments, standard 250mm extension rod included.
-
Choice of BLACK or WHITE models.
-
Minimum blade clearance from the floor in accordance with AS 4226 – 2008, Clause 12.5.3 is 2100mm.
Performance
- Dimmable - NO
| Model No. | Body Colour | Input Voltage | Power | Motor Type | Blades | Hang-sure angle | Airflow | Summer & Winter Control | Light Wattage | Lumens | Height | Ceiling drop | Diameter | Mass |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SACF11/48/3WH/L | WHITE | 240 | 48 | AC | 3 | 15 | 10820 | YES | 20 | 2200 | 325 | 240 | 1250 | 5.32 |
| SACF11/48/3BK/L | BLACK | 240 | 48 | AC | 3 | 15 | 10820 | YES | 20 | 2200 | 325 | 240 | 1250 | 5.32 |
