Description
Application
Ideal for residential or commercial interior applications
Design Specifications
- 9 watt integral flickerCONTROLLED dimmable driver, complete with flex & plug for easy installation
- High efficiency LED optics, multi-faceted optical system

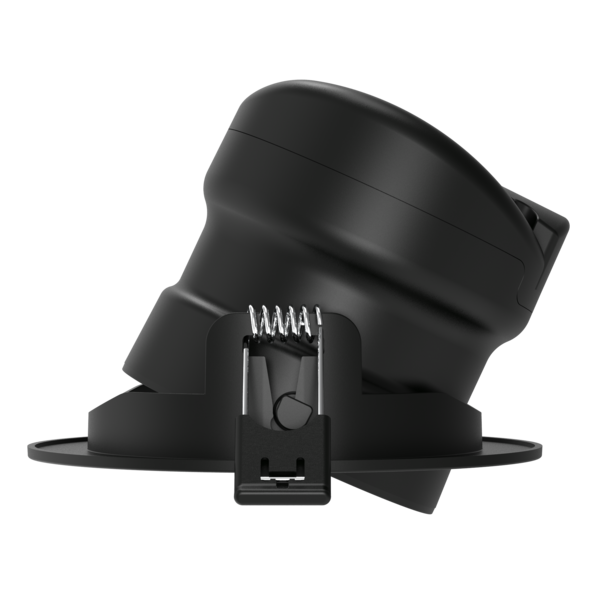

- Selectable CCT 3000K / 4000K / 5700K, CRI > 90, 40° beam distribution, 30° tilt

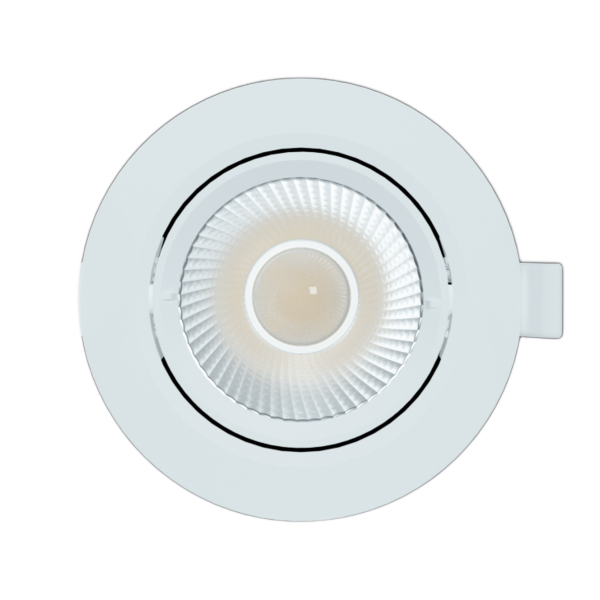

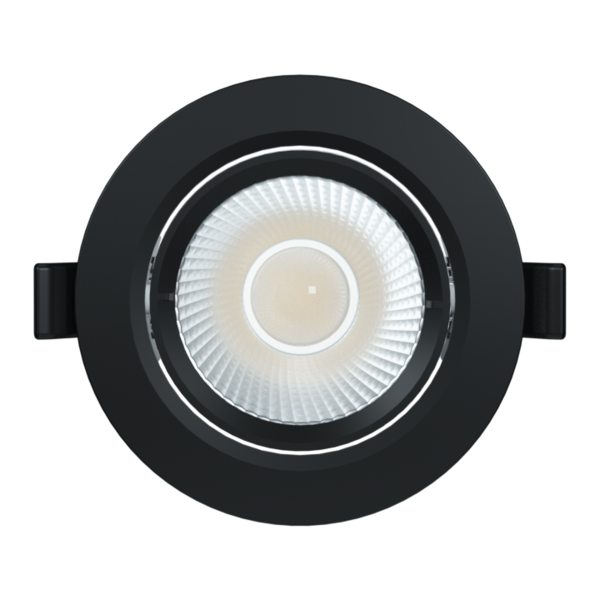

- Polyamide trim and body in white or black
- IC - 4 rated, double insulated
Performance
- Dimmable - YES
- Dimmer Type - Trailing edge
| Model No. | Input Voltage | Power | Lumens | CCT | Beam Angle | Dimmable | CRI | Body Colour | Cut Out | Diameter | Dim |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S9168TC/WH | 240 | 9 | 750/830/810 | 3000/4000/5700 | 40 | YES | 80 | WHITE | 92 | 105 | 105(W) x 71(H) |
| S9168TC/BK | 240 | 9 | 750/830/810 | 3000/4000/5700 | 40 | YES | 80 | BLACK | 92 | 105 | 105(W) x 71(H) |
