Description
Application
Ideal for residential or commercial interior applications
Design Specifications
- 6 watt integral flickerCONTROLLED dimmable driver, complete with flex & plug for easy installation
- High efficiency LED optics, multi-faceted optical system

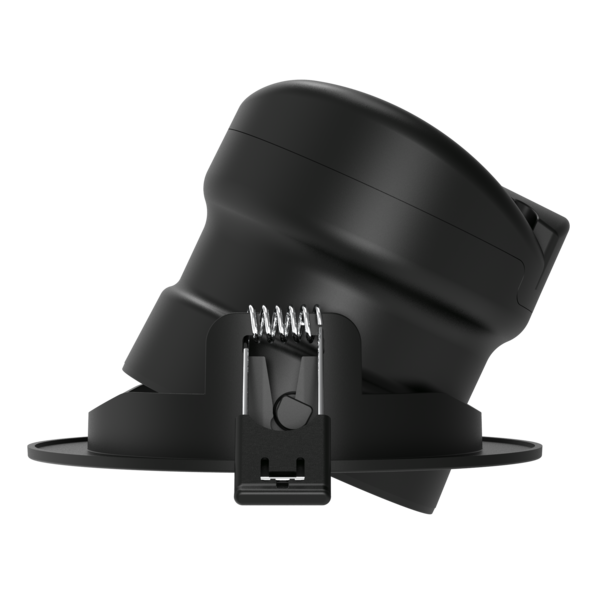

- Selectable CCT 3000K / 4000K / 5700K, CRI > 90, 40° beam distribution, 30° tilt

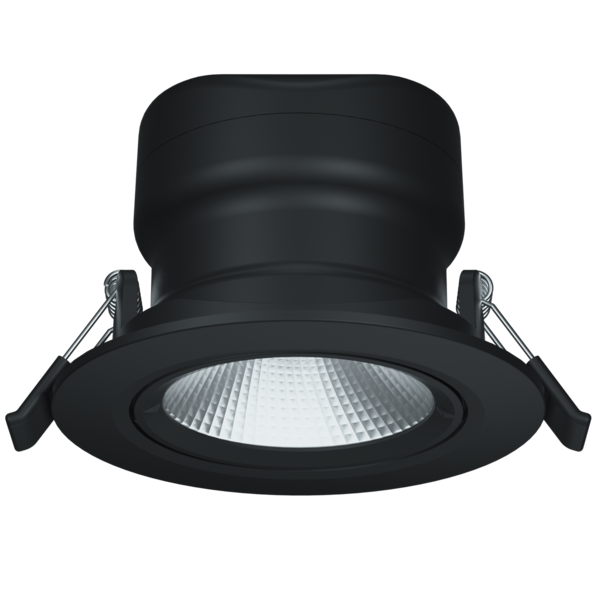

- Polyamide trim and body in white or black
- IC - 4 rated, double insulated
Performance
- Dimmable - YES
- Dimmer Type - TRAILING EDGE
| Model No. | Input Voltage | Power | Lumens | CCT | Beam Angle | Dimmable | CRI | Body Colour | Cut Out | Diameter | Dim |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S9167TC/WH | 240 | 6 | 500/560/540 | 3000/4000/5700 | 40 | YES | 80 | WHITE | 72 | 90 | 61(H) |
| S9167TC/BK | 240 | 6 | 500/560/540 | 3000/4000/5700 | 40 | YES | 80 | BLACK | 72 | 90 | 61(H) |
