Description

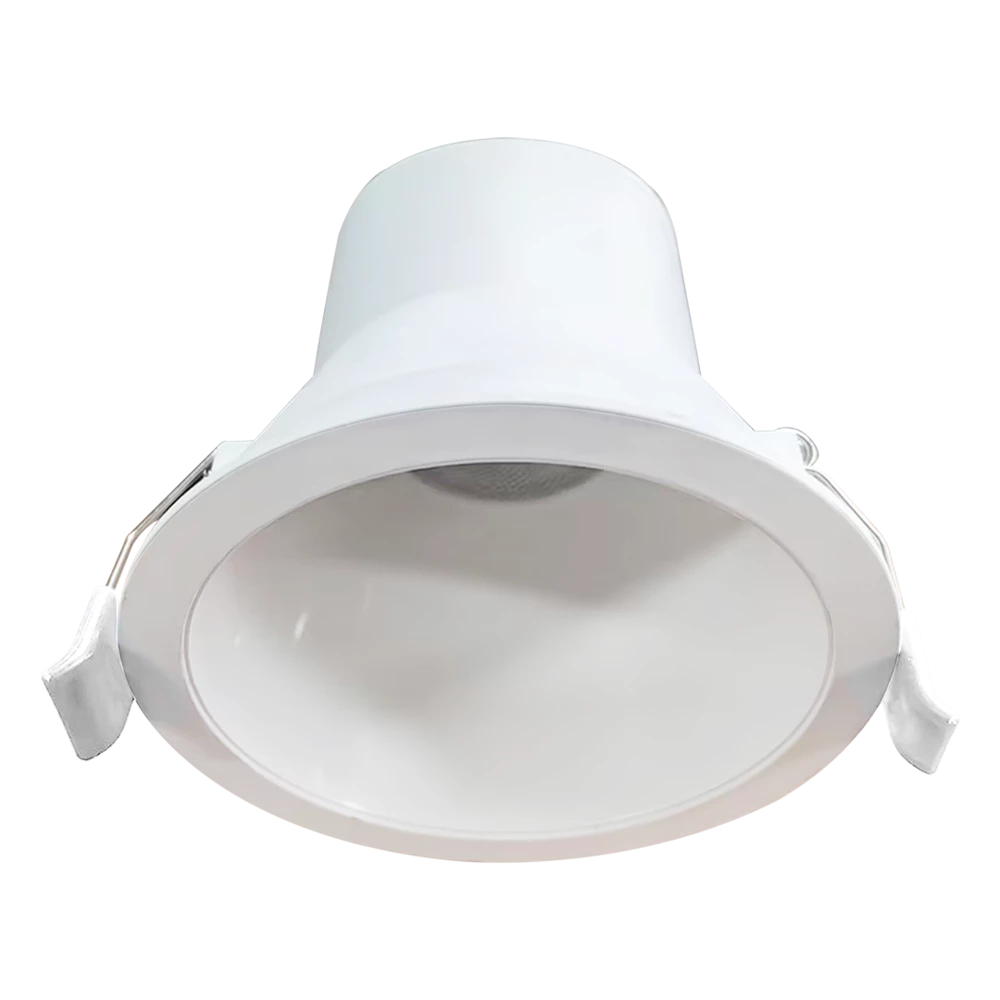

9 watt dimmable LED downlight, UGR<19, with tunable WHITE and rippleSHIELD
Application
Ideal for any residential or commercial interior space, experiencing nuisance ripple induced flicker
Design Specifications
-
Combined with the SAL SDD400RS/BTAM dimmer, the rippleSHIELD Coolum eliminates ALL nuisance non-visible and visible flicker caused by ripple injection
-
Integral 9 watt rippleSHIELD dimmable LED driver, with smooth dimming performance down to 1.0% of light output, designed with flex and plug for easy installation.
-
Tunable WHITE from 3000K to 6500K
-

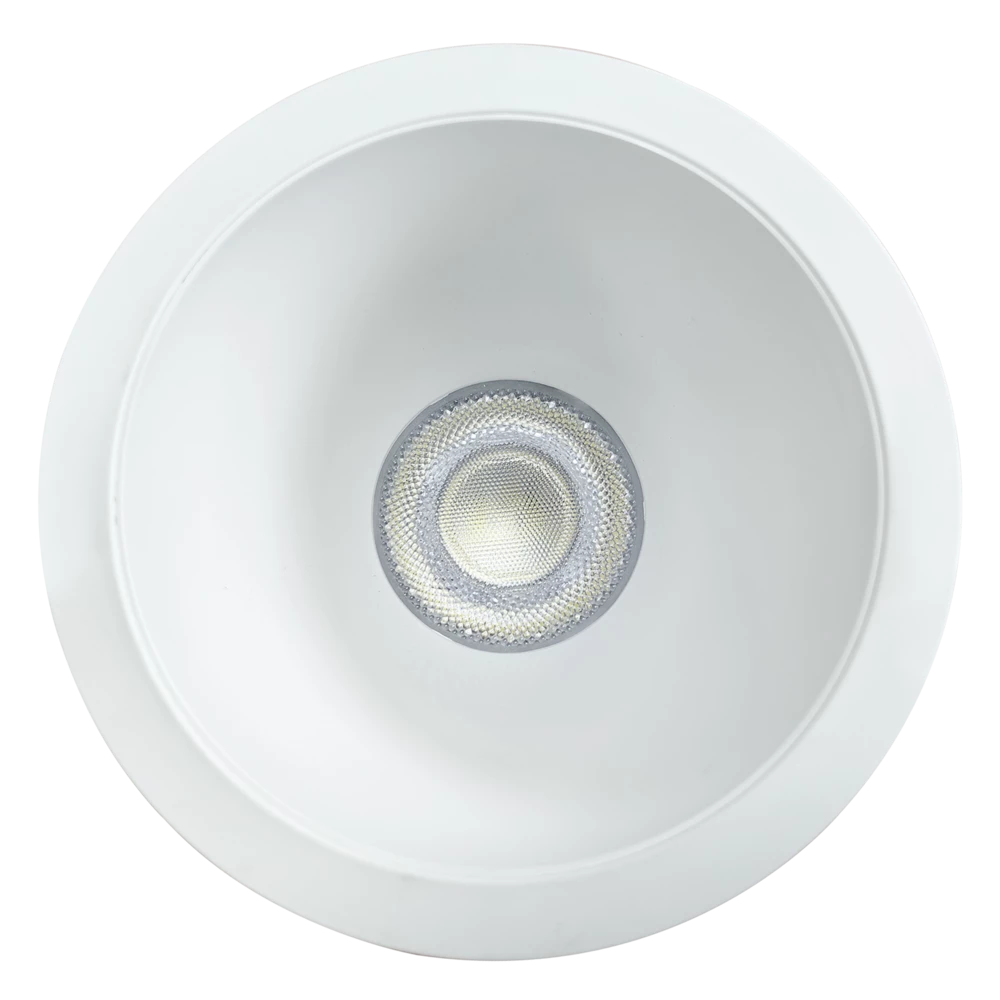

High efficiency LED optics, multi-faceted optical system, 60° beam distribution, UGR<19, CRI>90
-
Polyamide trim and body, choice of white or black
-
CA-90 rated, double insulated, Dimmable, only with SDD400RS/BTAM rippleSHIELD dimmer
Performance
- Dimmable - YES
- Dimmer Type - SDD400RS/BTAM ONLY

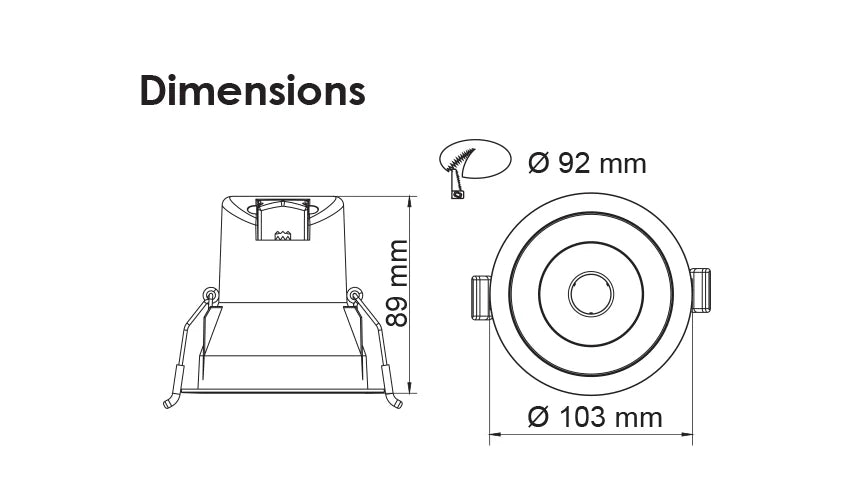

| Model No. | Input Voltage | Power | Lumens | CCT | Beam Angle | Dimmable | CRI | Body Colour | Cut Out | Diameter | Dim |
|---|---|---|---|---|---|---|---|---|---|---|---|
| S9068TW35WH/RS | 240 | 9 | 800/830/810 | 3000/4000/6500 | 60 | YES | 90 | WHITE | 92 | 103 | 89(H) |

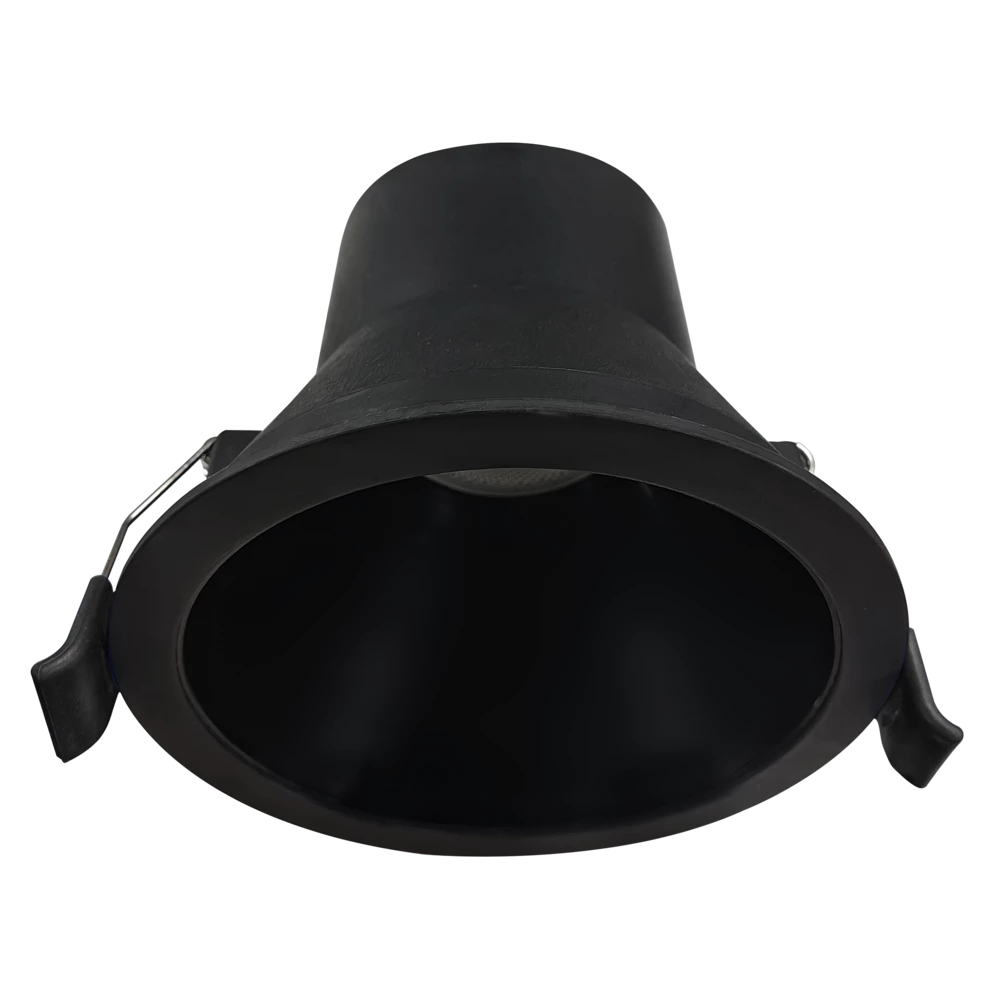

| S9068TW35BK/RS | 240 | 9 | 630 | 3000/4000/6500 | 60 | YES | 90 | BLACK | 92 | 103 | 89(H) |
| SDD400RS/BTAM/BP | 240 | YES | GREY | 42(L) x 24(W) x 24(H) | |||||||
| SDD400RS/BTAM | 240 | YES | GREY | 42(L) x 24(W) x 24(H) |
