Description
SAL COOGEE offers down-only lighting in SE7241L/TC and SE7243L/TC models, and up/down lighting in SE7242L/TC and SE7244L/TC models. Die-cast aluminium body with a durable black powder coat finish or choice of silver.
Key Features
- Die-cast aluminium body with a durable black powder coat finish or choice of silver
- Clear tempered glass cover
- High efficiency LED optics, CRI>80, selectable CCT 3000/4000/5000K
- High performance optical system, standard beam distribution 38° - DOWN or UP/DOWN design options
- Integral non-dimmable LED flickerCONTROLLED gear, with a choice of 10 watt, 2 x 10 watt, 20 watt or 2 x 20 watt models
- Large rectangular mounting base for easy installation
- Dimmable - NO
Product Overview
| Specification | Detail |
|---|---|
| Range | COOGEE |
| Total fitting power | 10W / 20W / 40W |
| Input voltage | 240V |
| IP rating | IP65 |
| Colour temperature | Tri-Colour / 3000K / 4000K / 5000K |
| Light source | Integrated LED |
| Mounting | Wall Mounted |
| Finishes | Black, Silver |
Model Specifications

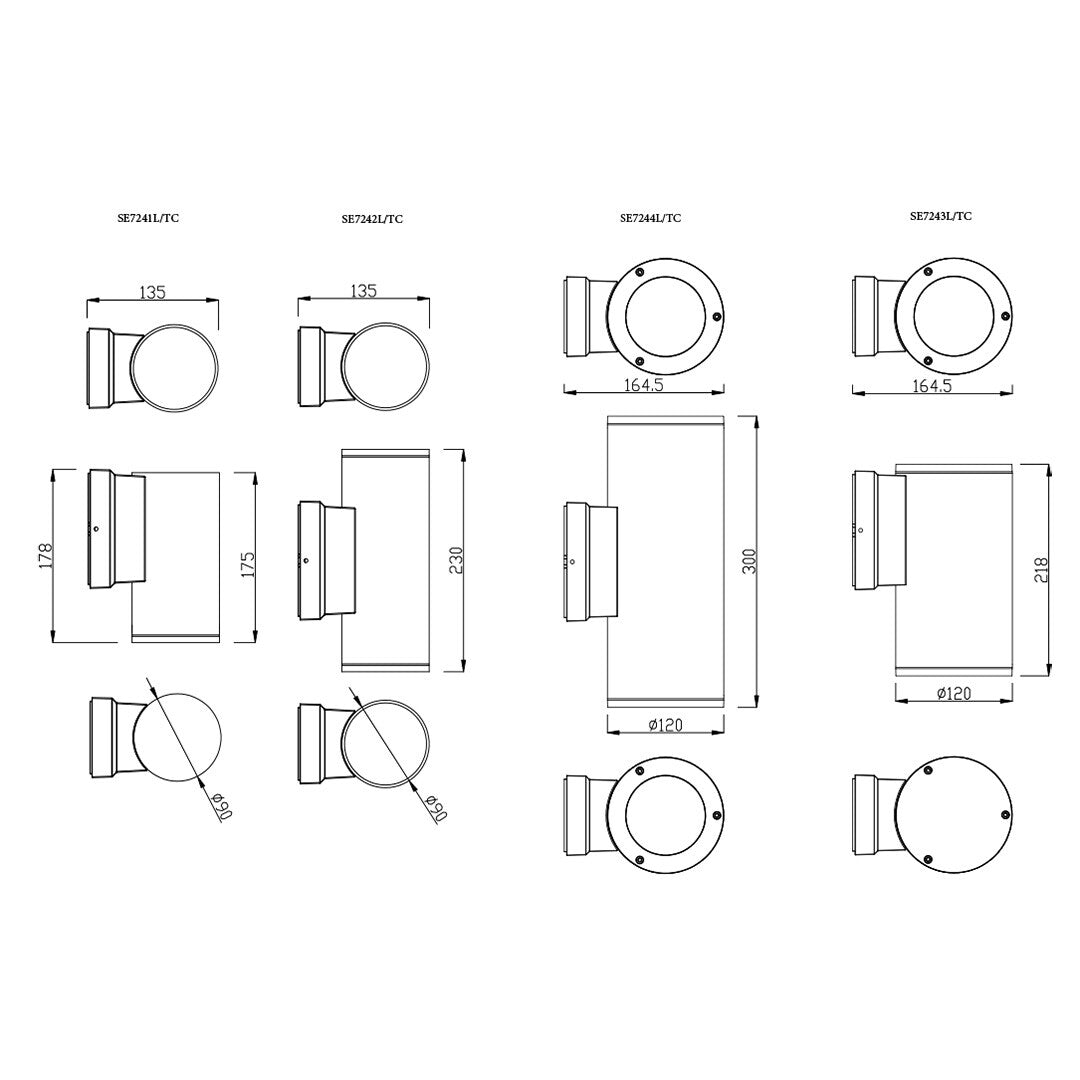

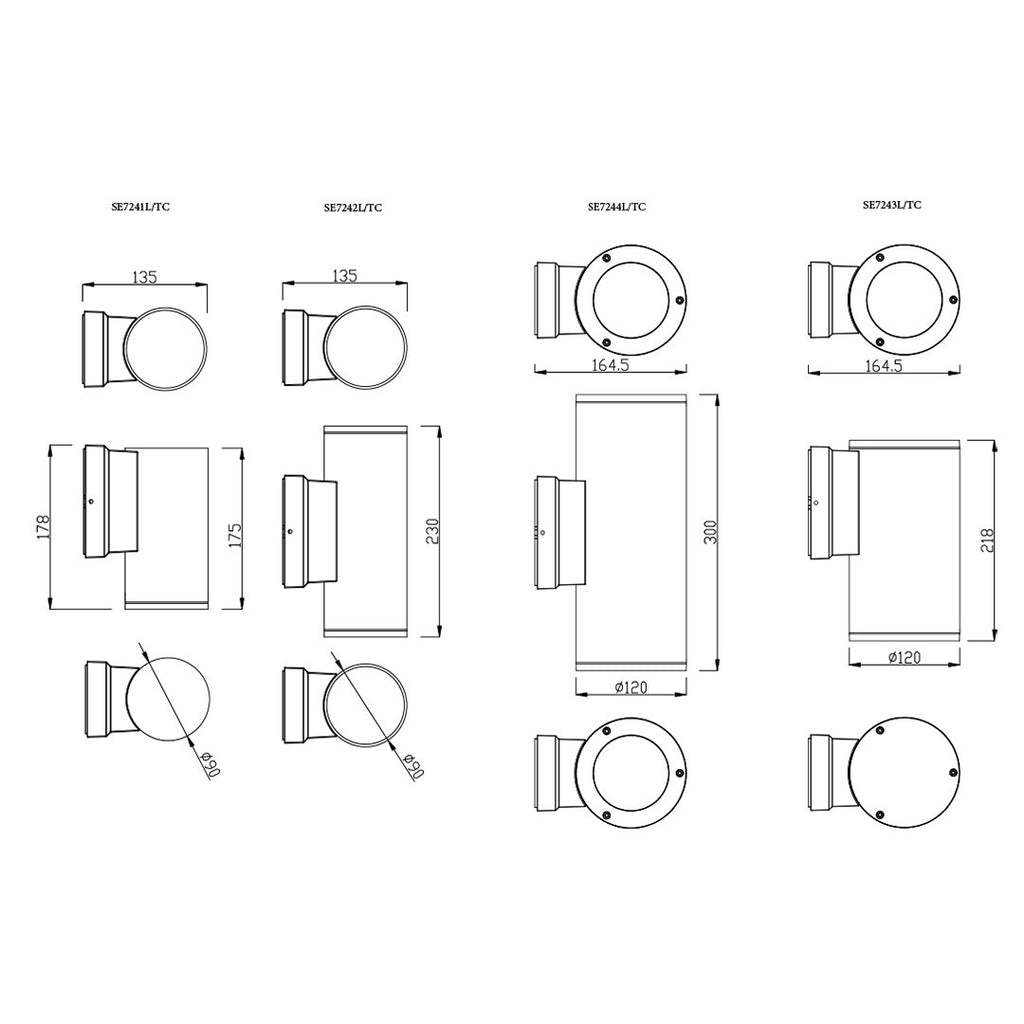

SE7241L/TC: one 10W downlight head. SE7242L/TC: two 10W heads, 20W total, up/down. SE7243L/TC: one 20W downlight head. SE7244L/TC: two 20W heads, 40W total, up/down. Lumen figures are per optical head. For the Ø120 mm models, SAL’s drawing specifies 164.5 mm projection, rounded to 165 mm in the table.
| Model No. | Input Voltage | Total Power (W) | Lumens per optical head | CCT | CRI | Beam Angle | Mass | Diameter | Dim | Body Colour |
|---|---|---|---|---|---|---|---|---|---|---|
| SE7241L/TC/BK | 240 | 10 | 1000/1050/1050 | 3000/4000/5000 | 80 | 38 | 0.82 | 90 | 175 mm body height; 178 mm overall mounting envelope; 135 mm projection | BLACK |
| SE7242L/TC/BK | 240 | 20 | 1000/1050/1050 | 3000/4000/5000 | 80 | 38 | 1.09 | 90 | 230(H) x 135(D) | BLACK |
| SE7241L/TC/SL | 240 | 10 | 1000/1050/1050 | 3000/4000/5000 | 80 | 38 | 0.82 | 90 | 175 mm body height; 178 mm overall mounting envelope; 135 mm projection | SILVER |
| SE7242L/TC/SL | 240 | 20 | 1000/1050/1050 | 3000/4000/5000 | 80 | 38 | 1.09 | 90 | 230(H) x 135(D) | SILVER |
| SE7243L/TC/BK | 240 | 20 | 1950/2050/1850 | 3000/4000/5000 | 80 | 38 | 1.22 | 120 | 218(H) x 165(D) | BLACK |
| SE7244L/TC/BK | 240 | 40 | 1950/2050/1850 | 3000/4000/5000 | 80 | 38 | 1.83 | 120 | 300(H) x 165(D) | BLACK |
| SE7243L/TC/SL | 240 | 20 | 1950/2050/1850 | 3000/4000/5000 | 80 | 38 | 1.22 | 120 | 218(H) x 165(D) | SILVER |
| SE7244L/TC/SL | 240 | 40 | 1950/2050/1850 | 3000/4000/5000 | 80 | 38 | 1.83 | 120 | 300(H) x 165(D) | SILVER |
Available Options
| Available option | Product code |
|---|---|
| Black / 10W / 90mm | SE7241L/TC/BK |
| Black / 20W / 90mm | SE7242L/TC/BK |
| SIlver / 10W / 90mm | SE7241L/TC/SL |
| SIlver / 20W / 90mm | SE7242L/TC/SL |
| Black / 20W / 120mm | SE7243L/TC/BK |
| Black / 40W / 120mm | SE7244L/TC/BK |
| SIlver / 20W / 120mm | SE7243L/TC/SL |
| SIlver / 40W / 120mm | SE7244L/TC/SL |
