Description
Application
Designed for cleanroom commercial interior spaces
Design Specifications
-
Fully enclosed design suitable for plaster troffer frames
-
Adjustable flip-out mounting brackets for easy installation and sealing integrity
-
Pressed steel frame, with a quality white powder coated finish
-
Precision (magnetic) sealed shockproof clear polycarbonate lens, 110 degree beam distribution, UGR<19, CCT 4000K
-
Integral control gear with flex and 3 pin plug fitted for faster installation
-
Three convenient model sizes to select, in two versatile wattages - 34 or 53 watts.
| Model No. | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Body Colour | Dim |
|---|---|---|---|---|---|---|---|---|

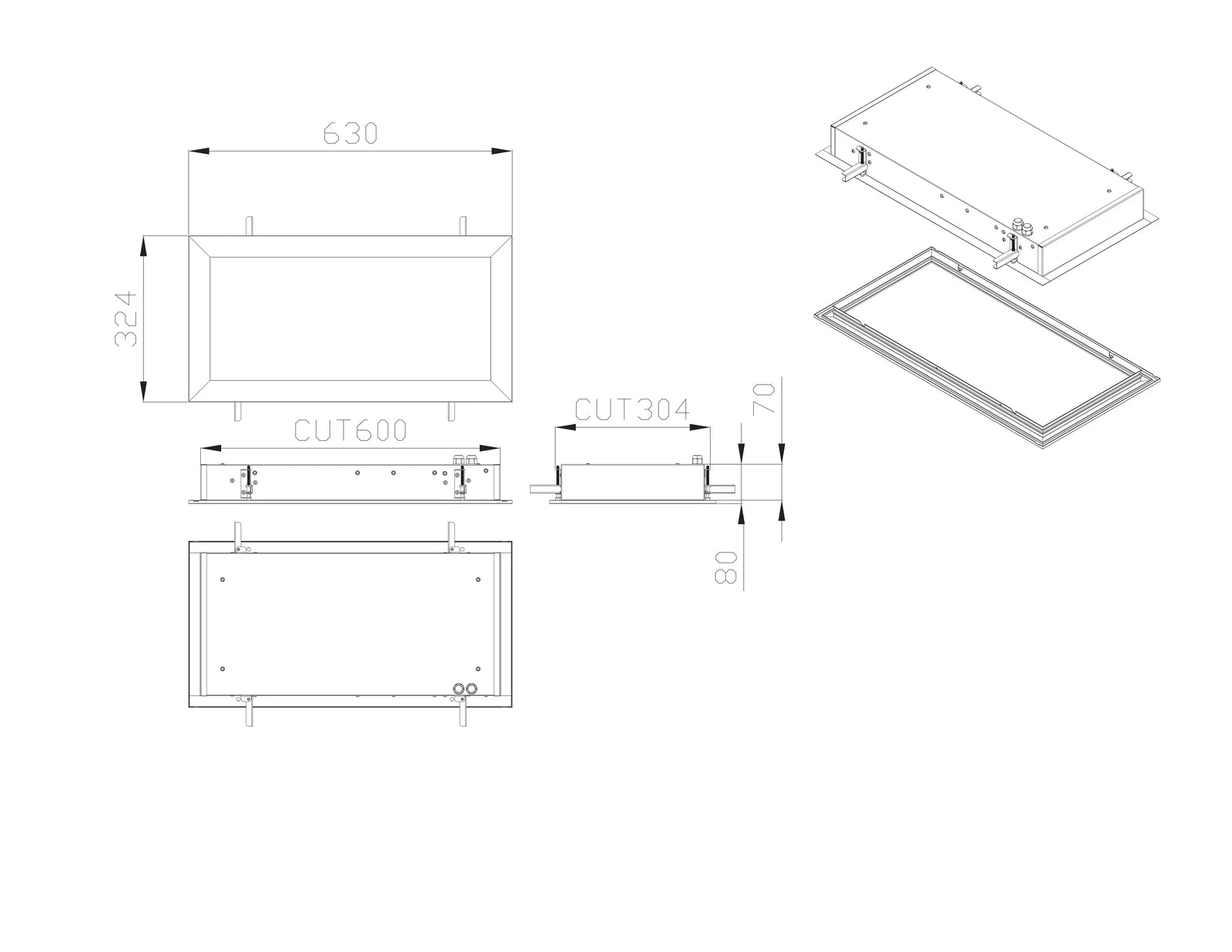

| S9794/306CW | 240 | 34 | 3100 | 4000 | 80 | 110 | WHITE | 630(L) x 324(W) x 80(H) |

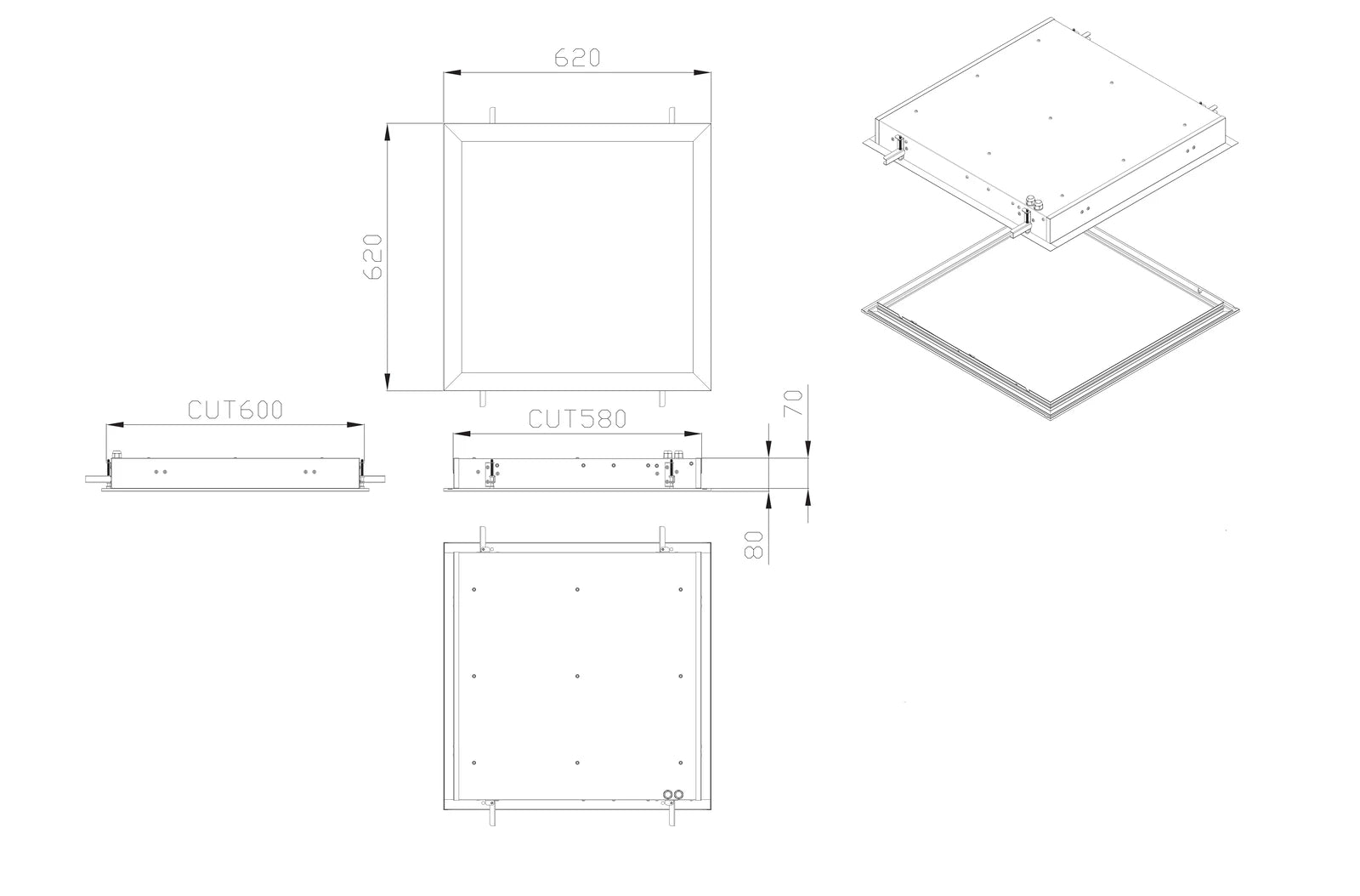

| S9794/606CW | 240 | 53 | 5300 | 4000 | 80 | 110 | WHITE | 620(L) x 620(W) x 80(H) |

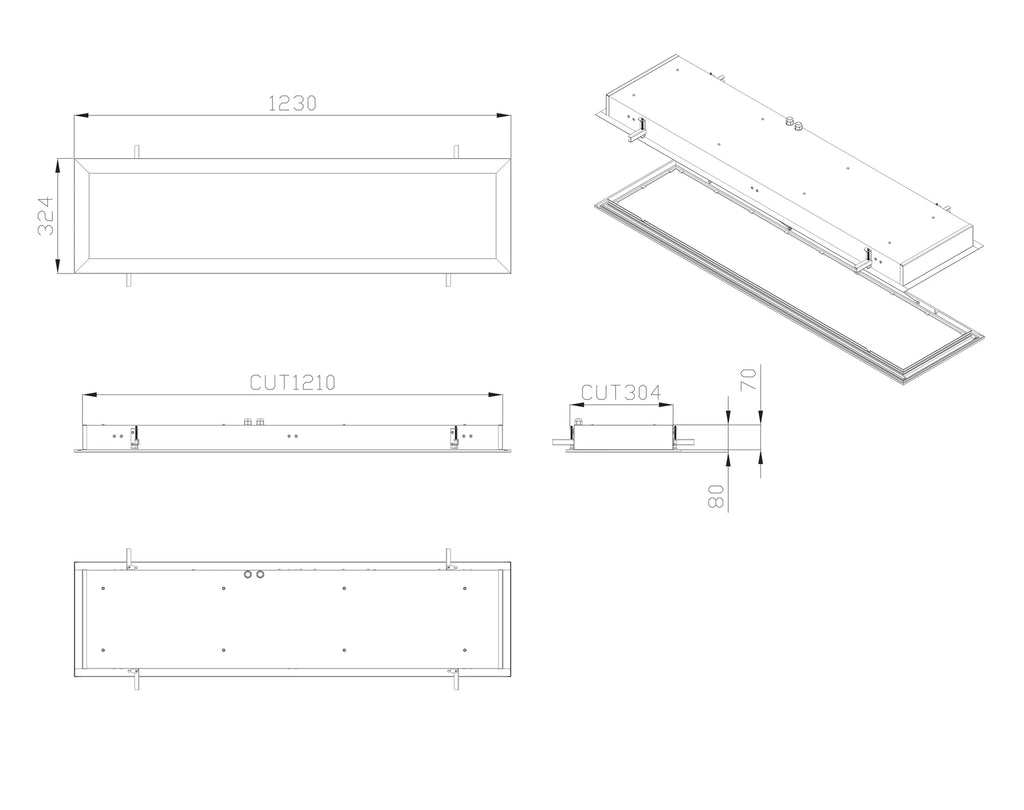

| S9794/312CW | 240 | 53 | 5000 | 4000 | 80 | 110 | WHITE | 1230(L) x 324(W) x 80(H) |
