Description
The SAL BARRACUDA emergency batten combines an aluminium body, polycarbonate diffuser and stainless steel fasteners for demanding commercial spaces. IP66 weather protection and IK10 impact resistance accompany selectable wattage and tri-colour output. Both lengths provide 90 minutes of emergency operation.
Design Specifications
- Selectable 12/15/18/21W or 24/30/35/40W output
- Tri Colour: 3000K / 4000K / 5700K
- IP66 weather protection and IK10 impact resistance

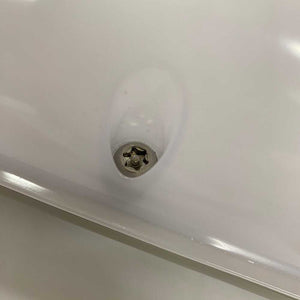

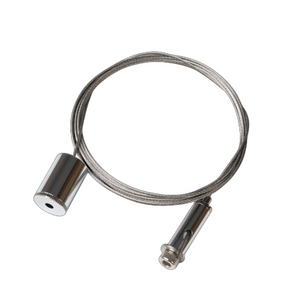

- Suspension requires 2 × SSY1512 drops; optional SL9723TP/SCREW security screws
Performance
| Specification | Detail |
|---|---|
| Available product codes | SL9723/20TC/MP/EM, SL9723/40TC/MP/EM |
| Input voltage | 240V AC |
| IP rating | IP66 |
| Finish | Grey |
| Mounting | Ceiling Mount |
| Colour temperature | Selectable 3000K / 4000K / 5700K |
| Impact rating | IK10 |

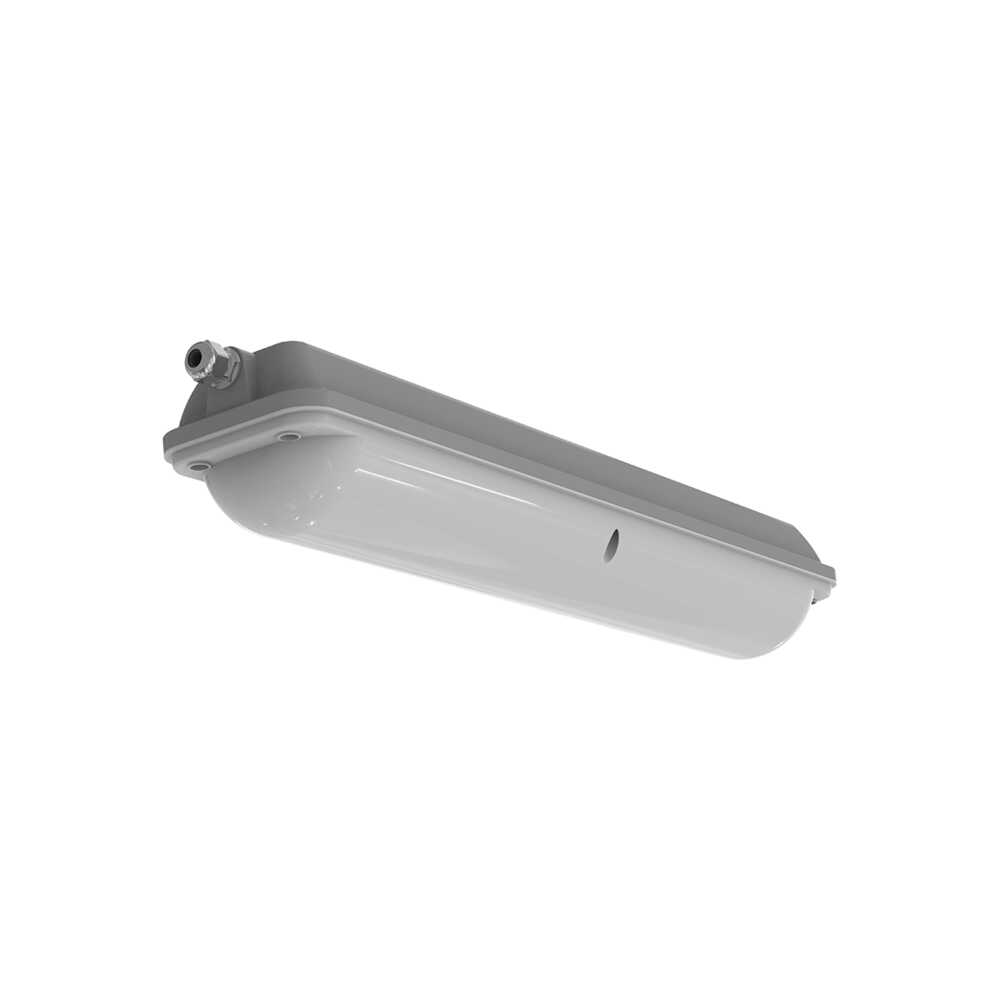

| SL9723/20TC/MP/EM | 12/15/18/21W selectable; 2300/2500/2400 lm at full maintained power; 698(L) x 137(W) x 115(H)mm |

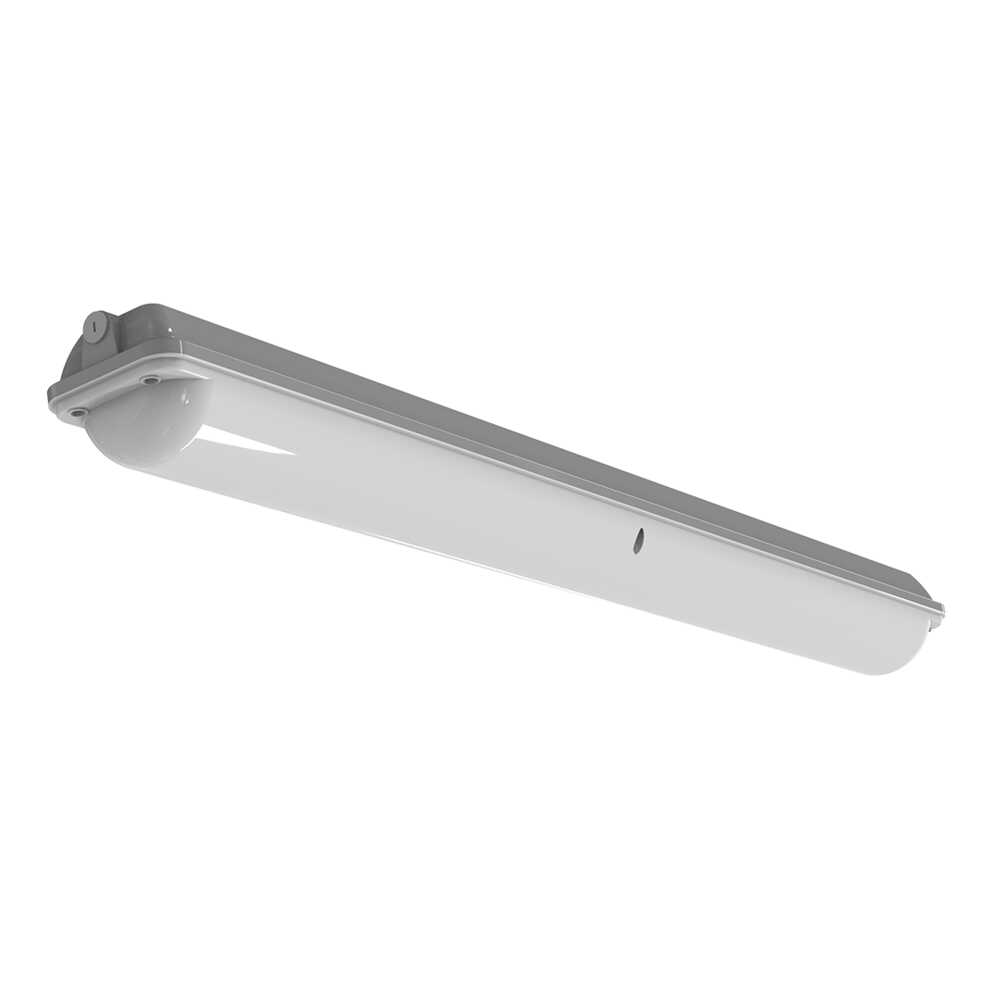

| SL9723/40TC/MP/EM | 24/30/35/40W selectable; 4600/5000/4800 lm at full maintained power; 1306(L) x 137(W) x 115(H)mm |
| Operating mode | Maintained or non-maintained |
| Emergency duration | 90 minutes |
| Battery | LiFePO4 |
| Warranty | 5-year residential / 3-year commercial product warranty |
