Description
52" (1320mm) 30W DC Ceiling fan, four blades with a 22W dimmable LED and selectable CCT
Application
Residential interior or weather protected exterior spaces
Design Specifications
-

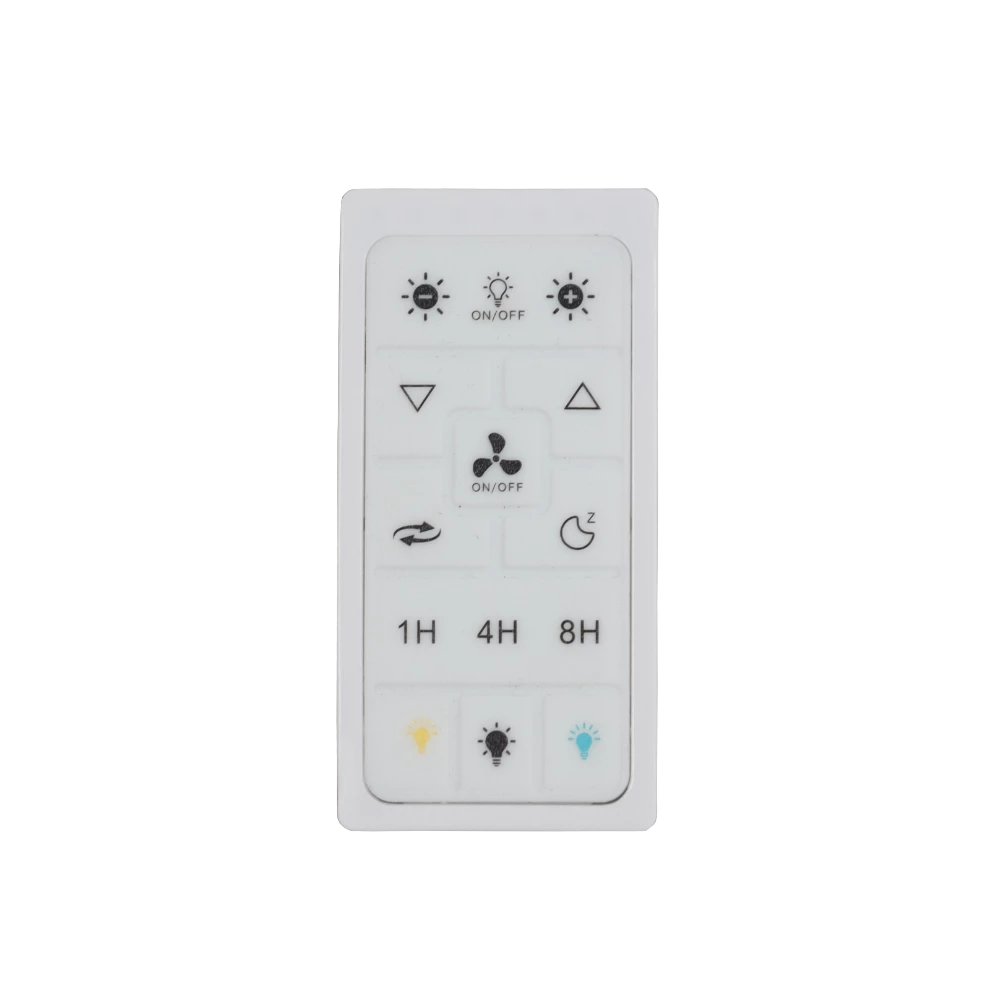

Six speed wall control included, perfect for traditional retrofit AC installations
-
Super quiet 30W DC motor, fan timer, sleep mode control and dimmable 22W LED with selectable CCT via the wall plate control.
-

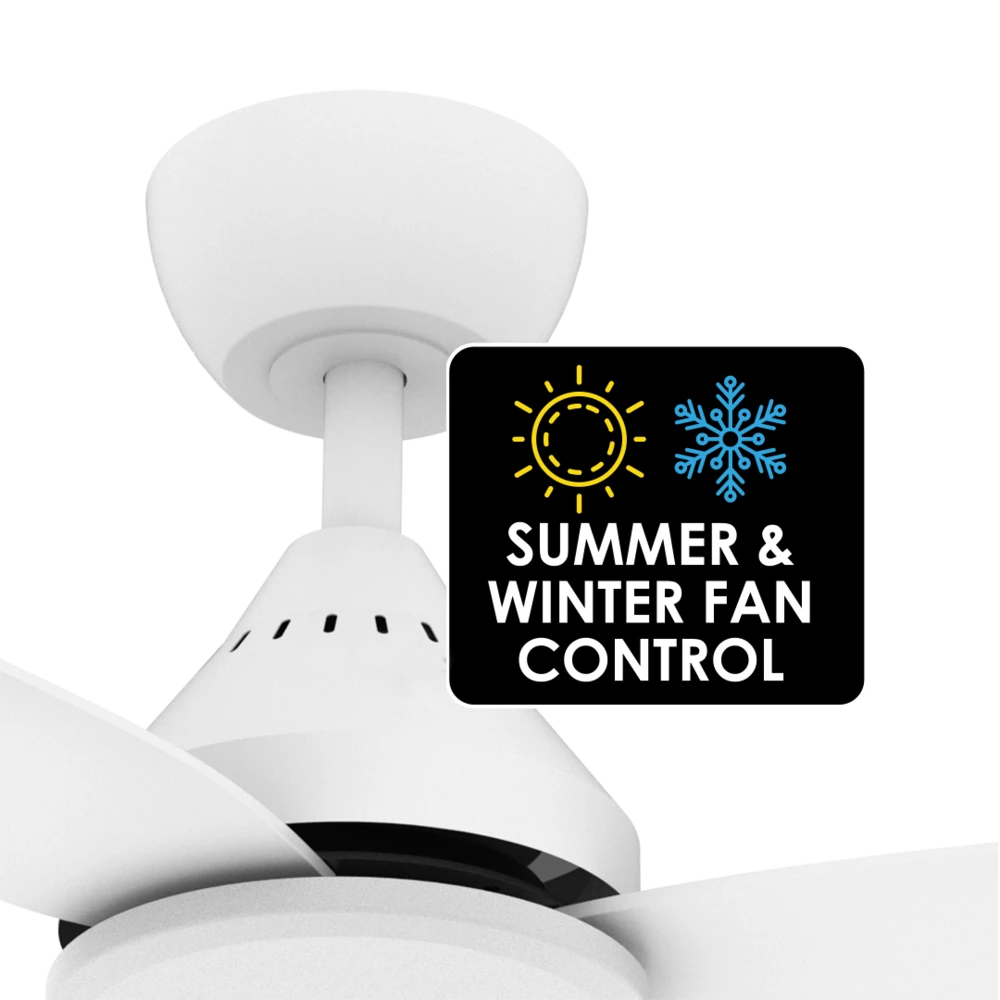

Powerful airflow 10,160 m3/h, with summer and winter fan control.
-
Durable ABS blade design, ideal for indoor or covered and protected outdoor environments, standard 250mm extension rod included.
-

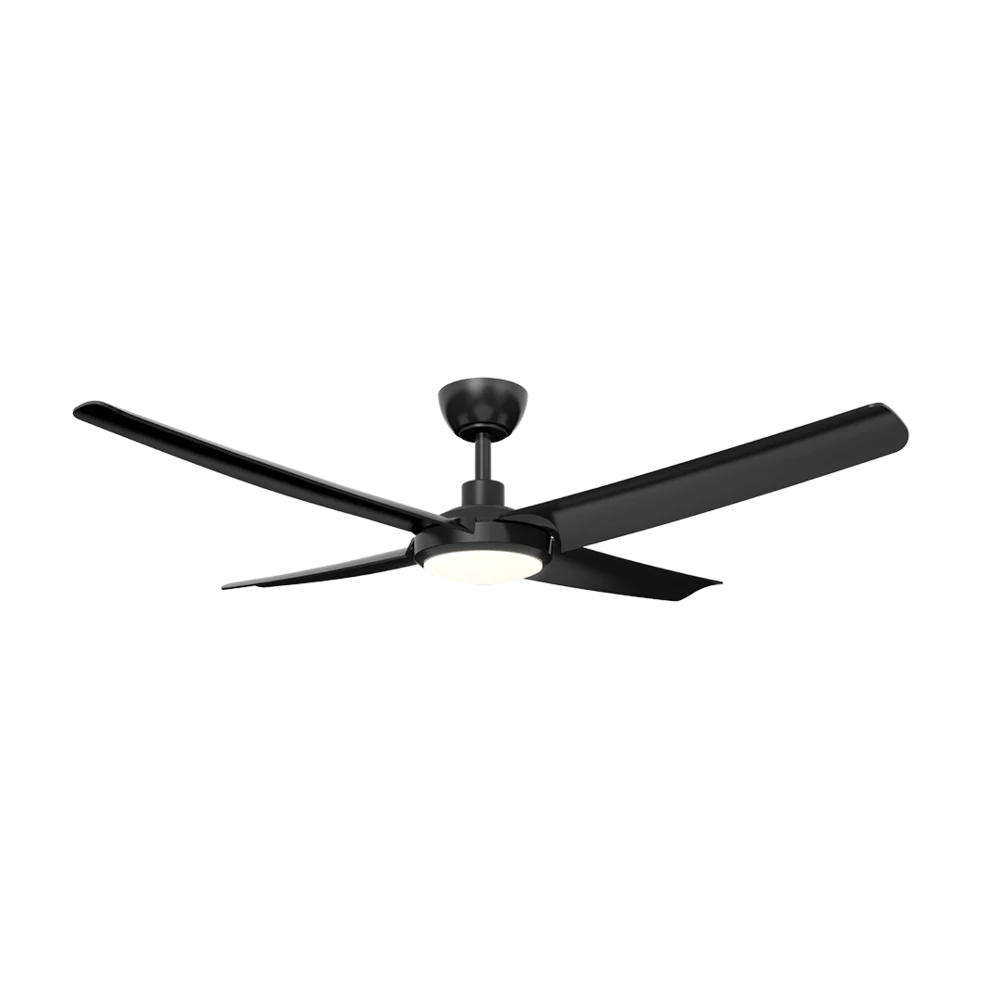

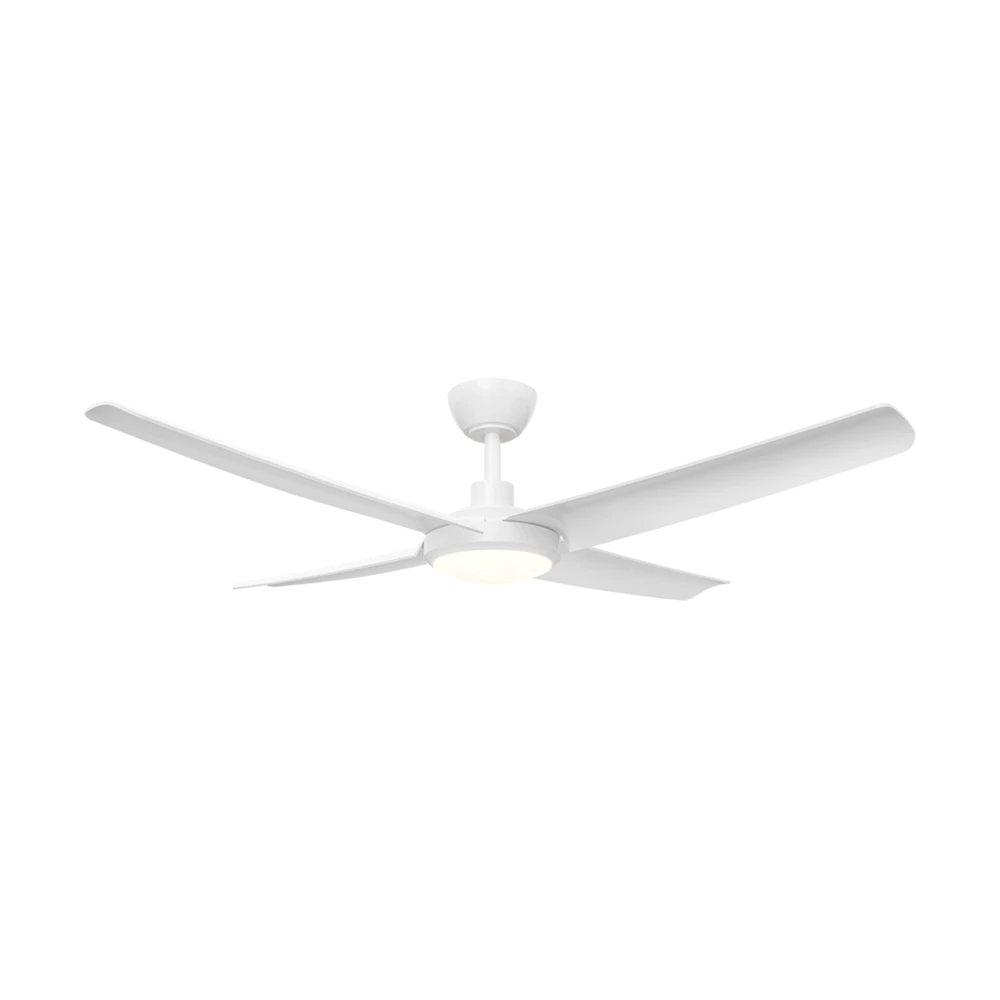

Choice of BLACK or WHITE models.
-
Minimum blade clearance from the floor in accordance with AS 4226 – 2008, Clause 12.5.3 is 2100mm.
Performance
- Dimmable - YES
- Dimmer Type - WALL CONTROLLER
| Model No. | Body Colour | Input Voltage | Power | Motor Type | Blades | Hang-sure angle | Airflow | Summer & Winter Control | Light Wattage | Dimmable | Lumens | Height | Ceiling drop | Diameter | Mass |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| SDCF21/52/4WH/L | WHITE | 240 | 30 | DC | 4 | 15 | 10160 | YES | 22 | YES | 2860 | 265 | 190 | 1320 | 5.17 |
| SDCF21/52/4BK/L | BLACK | 240 | 30 | DC | 4 | 15 | 10160 | YES | 22 | YES | 2860 | 265 | 190 | 1320 | 5.17 |
