Description
Application
Ideal for any residential or commercial interior space
Design Specifications

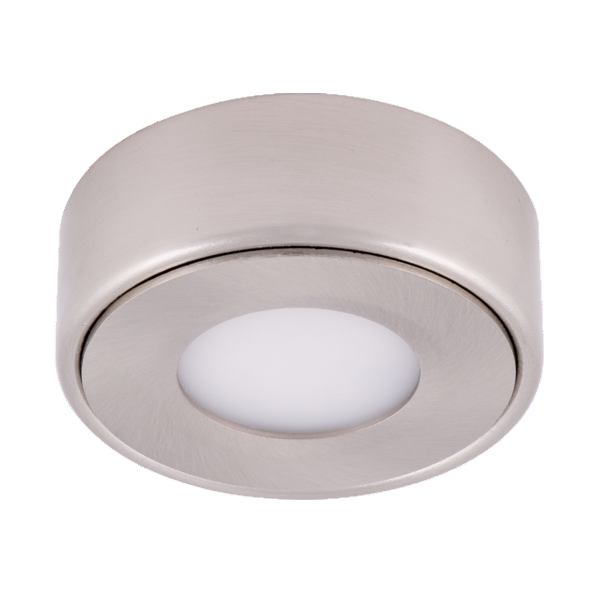

- Durable die-cast aluminium body profile
-
White powder coat or satin nickel plated finish
-
High efficiency LED optics
-
CCT choice of 3000K / 4000K / 6000K
-
12V DC LED driver required, suitable drivers - PLUTO EGL12V/6W, PLUTO 15DV, 40DV, 60DV
Performance
- Dimmable - NO
12V DC driver required
Suitable drivers - PLUTO EGL 12V/6W, PLUTO 15DV, PLUTO 30DV, PLUTO 50DV
| Model No. | Description | Input Voltage | Power | Lumens | CCT | CRI | Beam Angle | Dimmable | Dimensions | Body Colour |
| S9105WW SR/WH | LED CABINET LIGHT 12V 3K WH | 12 | 4 | 280 | 3000 | 80 | 90 | NO | 27(H) | WHITE |
| S9105DL SR/WH | LED CABINET LIGHT 12V 6K WH | 12 | 4 | 280 | 6000 | 80 | 90 | NO | 27(H) | WHITE |
| S9105WW SR/SN | LED CABINET LIGHT 12V 3K SN | 12 | 4 | 280 | 3000 | 80 | 90 | NO | 27(H) | SATIN NICKEL |
| S9105DL SR/SN | LED CABINET LIGHT 12V 6K SN | 12 | 4 | 280 | 6000 | 80 | 90 | NO | 27(H) | SATIN NICKEL |
