Description
The Havit HV9783 LED Strip provides 4600 lumens per metre of 5500K daylight white light. This 46W/m 24V DC IP20 strip measures 39mm wide and uses 252 × 2835 SMD LED chips per metre, making it suitable for dry indoor linear lighting. The supplier's 5m roll is a supply length only; maximum continuous powered length is 3m.
Key Features
- 46W per metre integrated LED strip
- 252 × 2835 SMD LED chips per metre
- 5500K daylight white — 4600 lumens per metre
- 24V DC constant-voltage operation
- IP20 rated for dry indoor applications
- 39mm (W) × 2mm (H)
- 83mm cutting increments
- Maximum powered strip length: 3m per run
- Available per metre or as a 5m supply roll
- 3-year replacement warranty
Installation note: Havit requires this LED strip to be installed on a suitable aluminium heat-dissipating surface, such as a compatible aluminium LED channel or profile, for warranty compliance. Each powered run must not exceed 3m. The 5m roll is supplied for separate powered runs and does not permit one continuous 5m powered installation.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Havit Lighting |
| Range | Havit HV9783 LED Strip |
| Model | HV9783-IP20-252-5K |
| Light source | 252 × 2835 SMD LEDs per metre |
| Wattage | 46W per metre |
| Input voltage | 24V DC |
| Colour temperature | 5500K |
| Light output | 4600lm per metre |

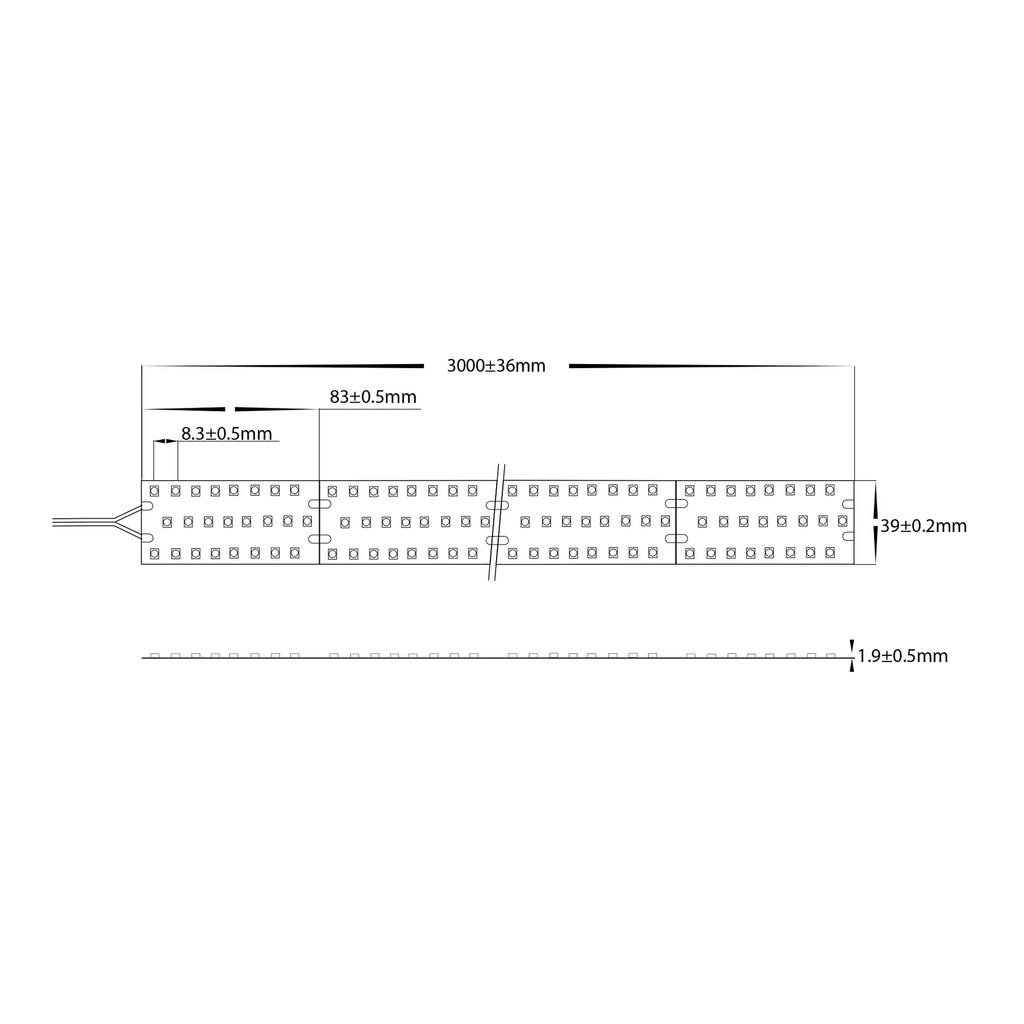

| Dimensions | 39mm (W) × 2mm (H) |
| Cutting increment | 83mm |
| Maximum powered run | 3m |
| IP rating | IP20 |
| Dimming | With a suitable compatible dimming driver/control system |
| Mounting | Aluminium heat-dissipating profile or suitable aluminium surface required |
| Supply options | Custom cut per metre or 5m supply roll |
| Warranty | 3-year replacement warranty |
