Description

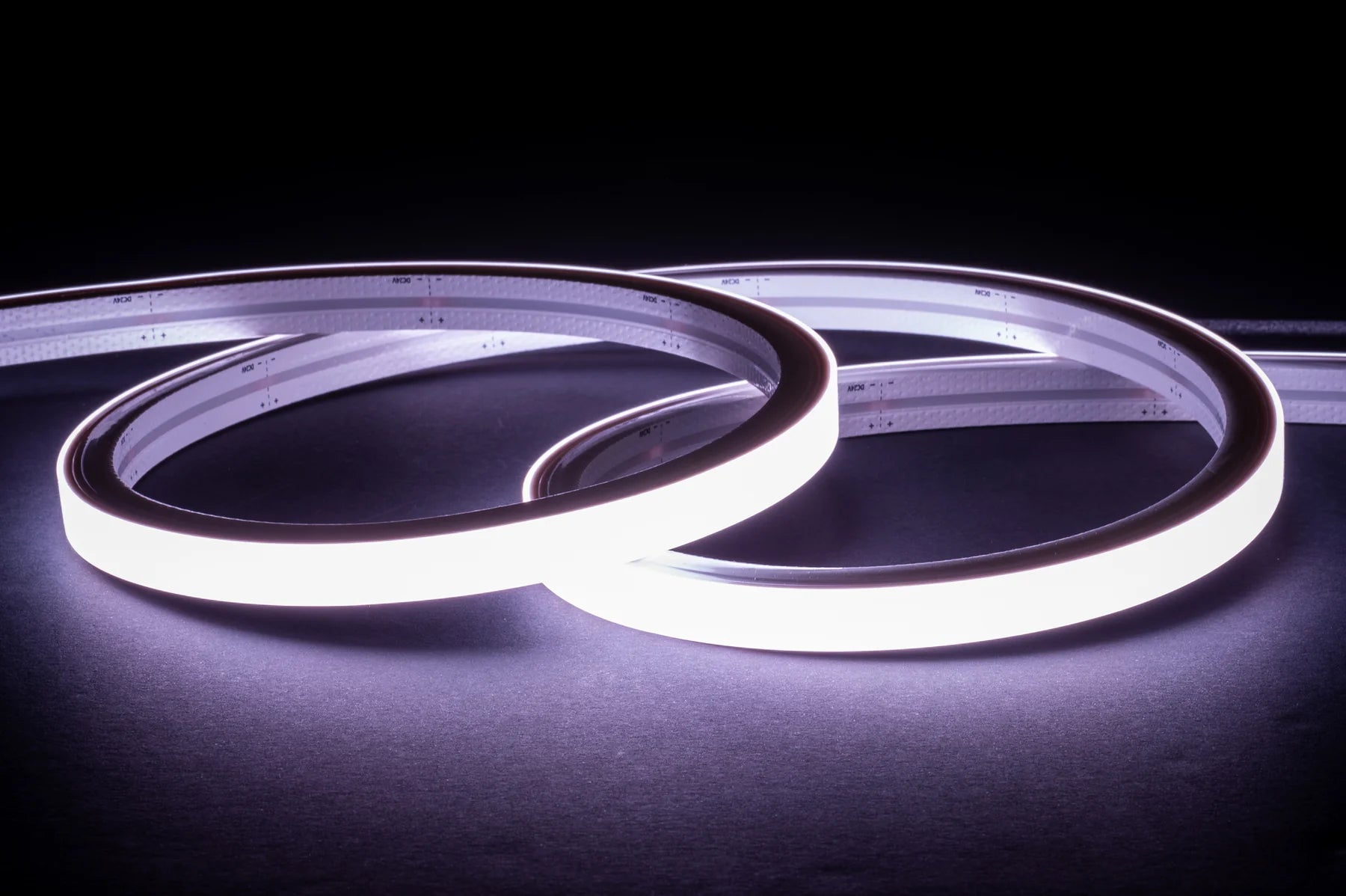

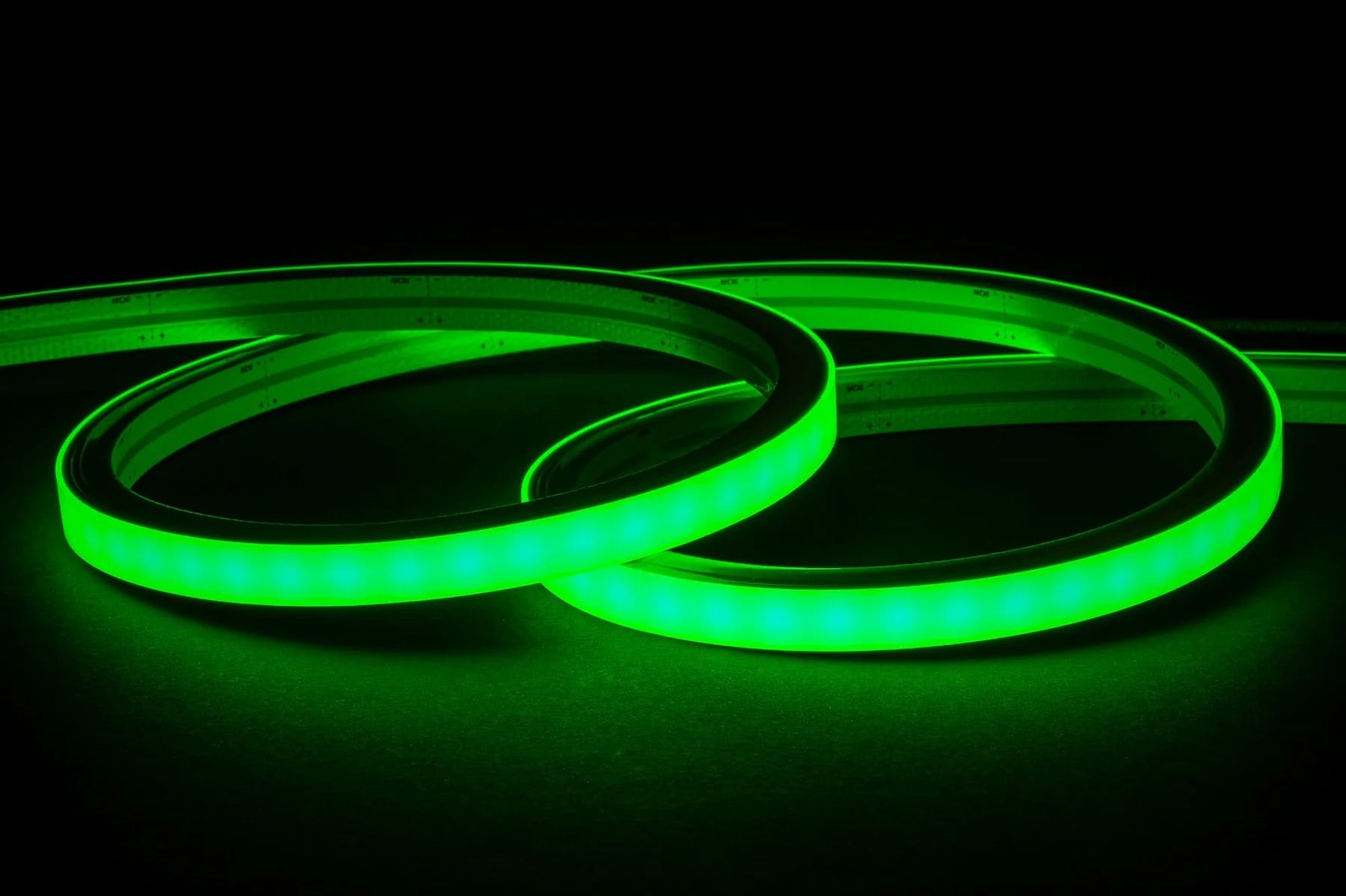

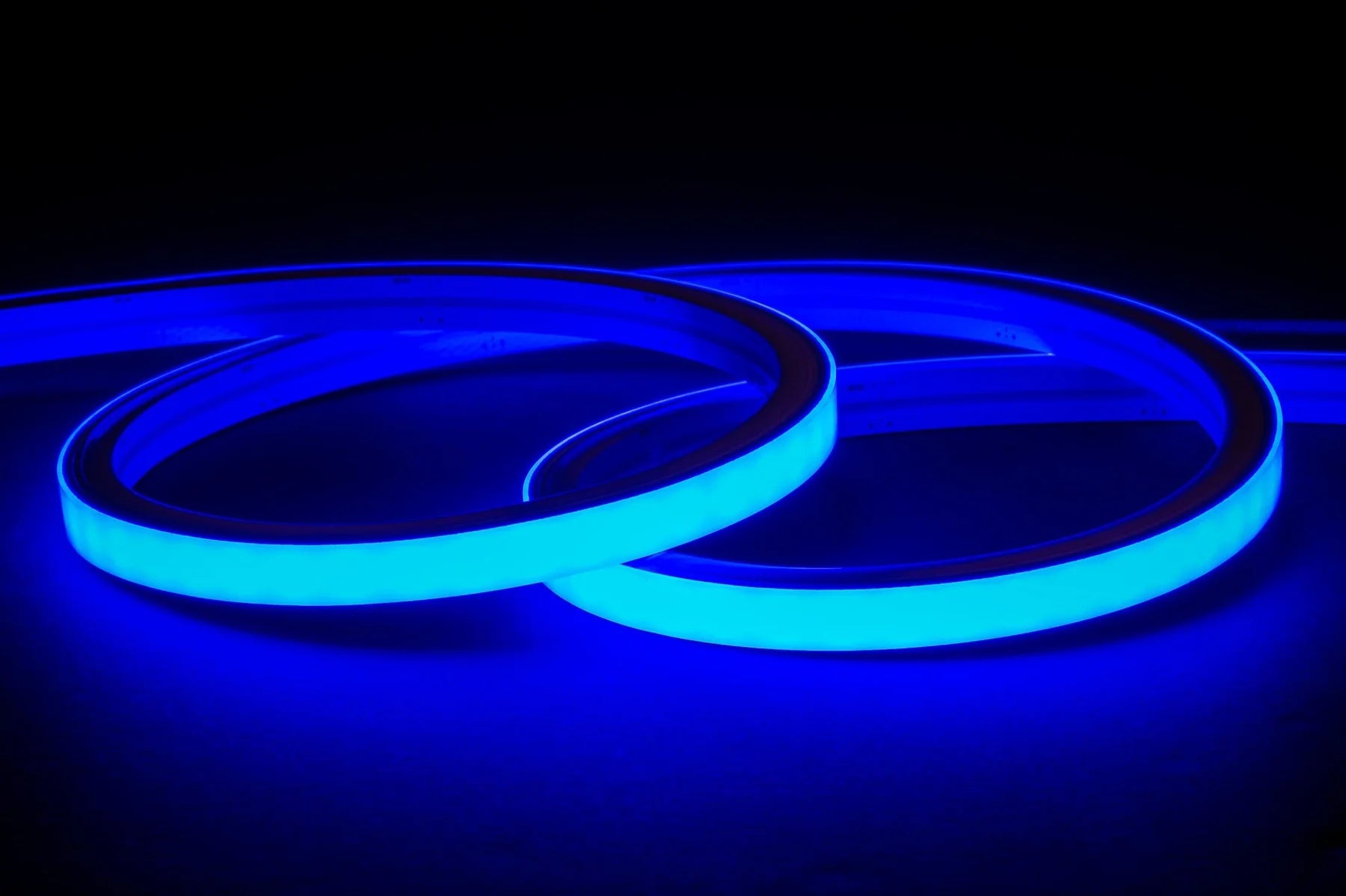

Havit HV9796-IP67-200-RGBW is a 14.4W/m 24V DC IP67 flexible neon strip providing 450lm per metre. Its top-bend profile measures 15mm Wide / 15mm High and delivers RGBW illumination.
Key Features
- 14.4W per metre IP67 flexible neon
- 450 lumens per metre
- RGBW light output
- 24V DC constant-voltage input
- IP67 rated
- 15mm (W) × 15mm (H)
- 62.5mm cutting increments
- Maximum continuous powered run: 5m
- Available per metre or as a 20m supply roll
- 4 mounting clips supplied per metre
- 3-year replacement warranty
Installation note: Use the supplied mounting clips (4 clips per metre) and follow Havit's installation guide; maximum powered length is 5m per run. The 20m roll is supply length for separate powered runs, not one continuous 20m installation. A compatible RGBW 4-channel LED strip controller and a suitable 24V DC driver are required and sold separately.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Havit Lighting |
| Range | Havit Top Bend Neon HV9796 |
| Model | HV9796-IP67-200-RGBW |
| Light source | Integrated LED Flexible Neon |
| Wattage | 14.4W per metre |
| Input voltage | 24V DC |
| Light output | 450lm per metre |
| Colour temperature / style | RGBW |
| Dimensions | 15mm (W) × 15mm (H) |
| Cutting increment | 62.5mm |
| Maximum powered run | 5m |
| IP rating | IP67 |
| Controller | RGBW 4-channel controller required |
| Mounting | 4 mounting clips supplied per metre |
| Supply | Custom cut per metre or 20m roll |
| Warranty | 3-year replacement warranty |
