Description

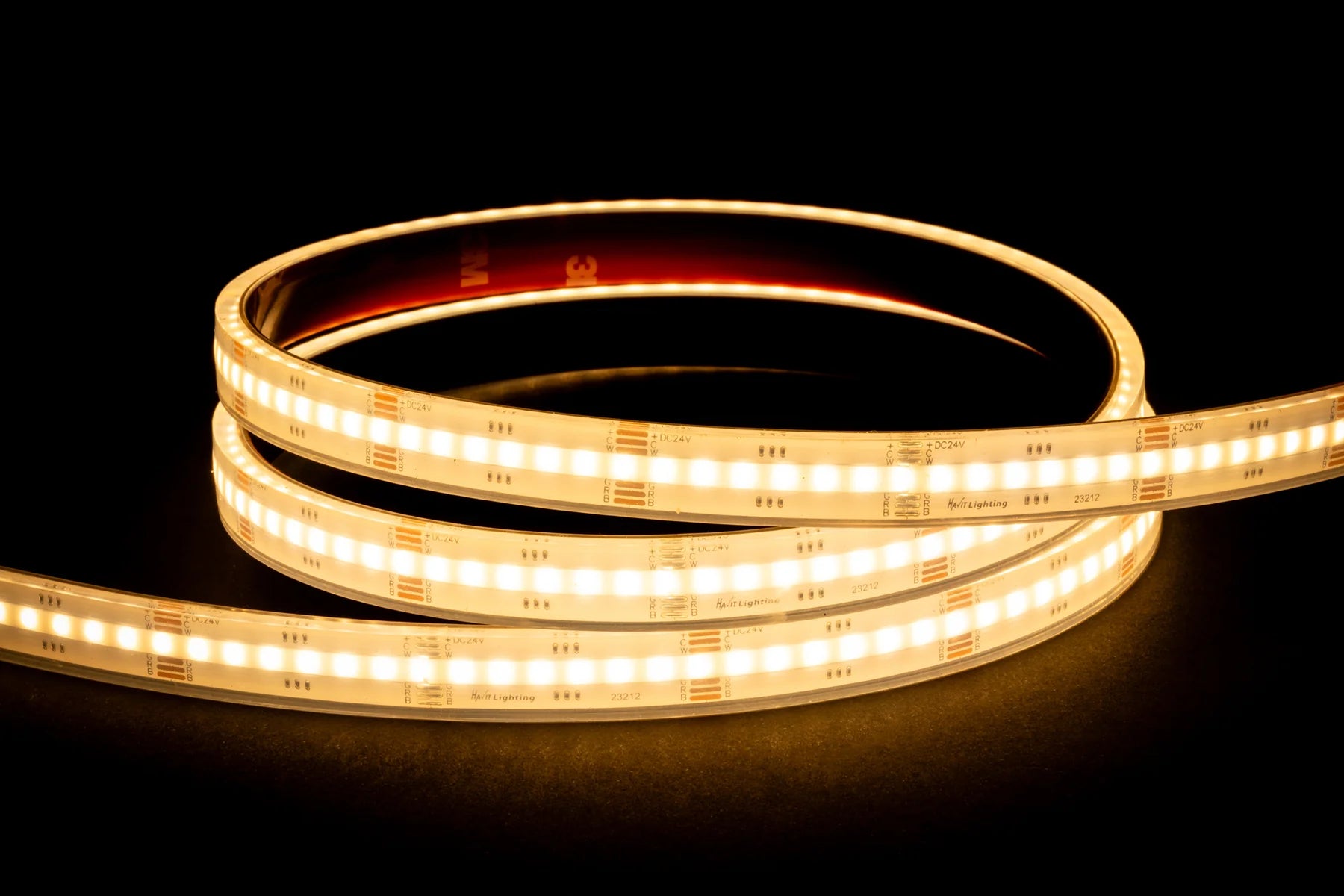

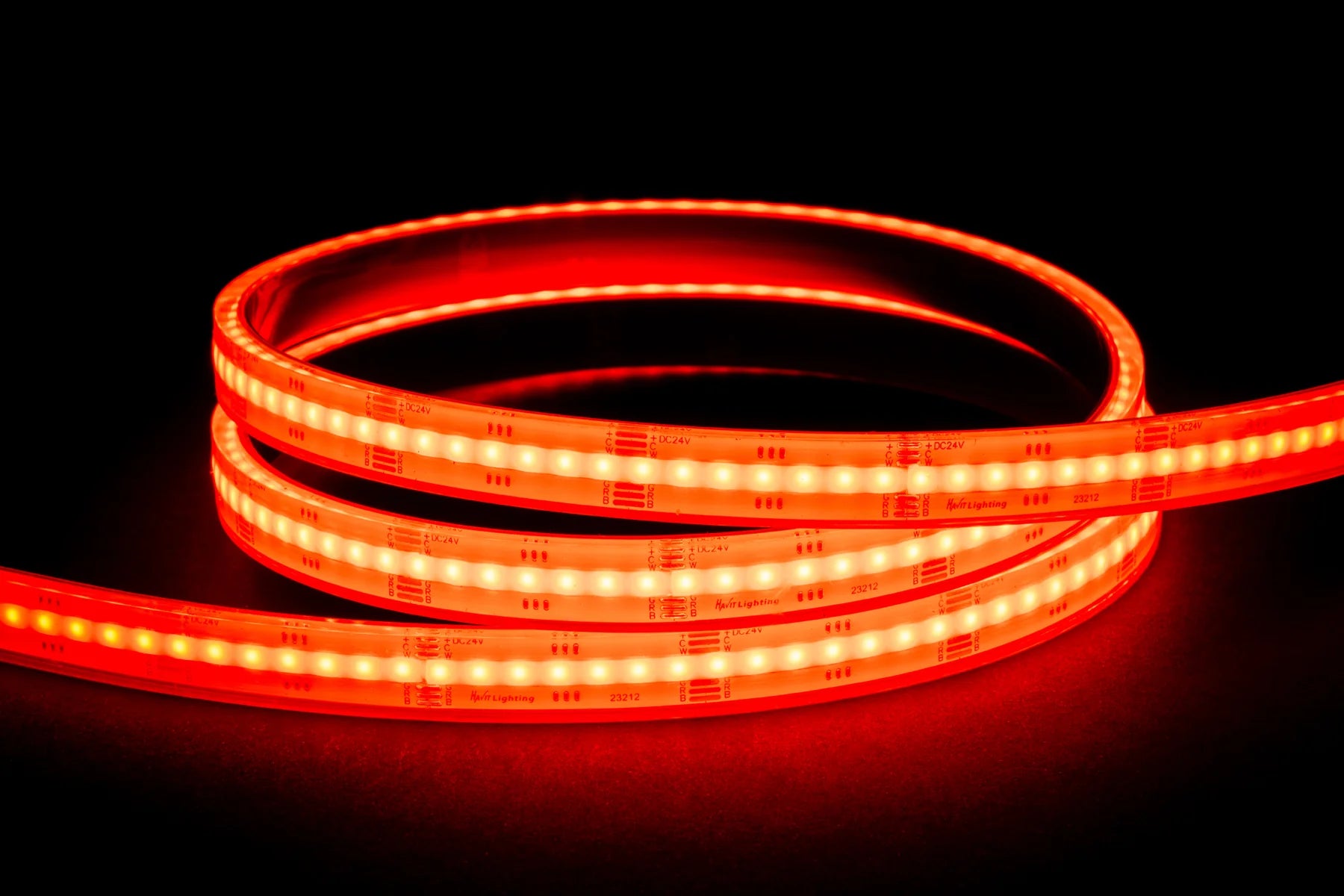

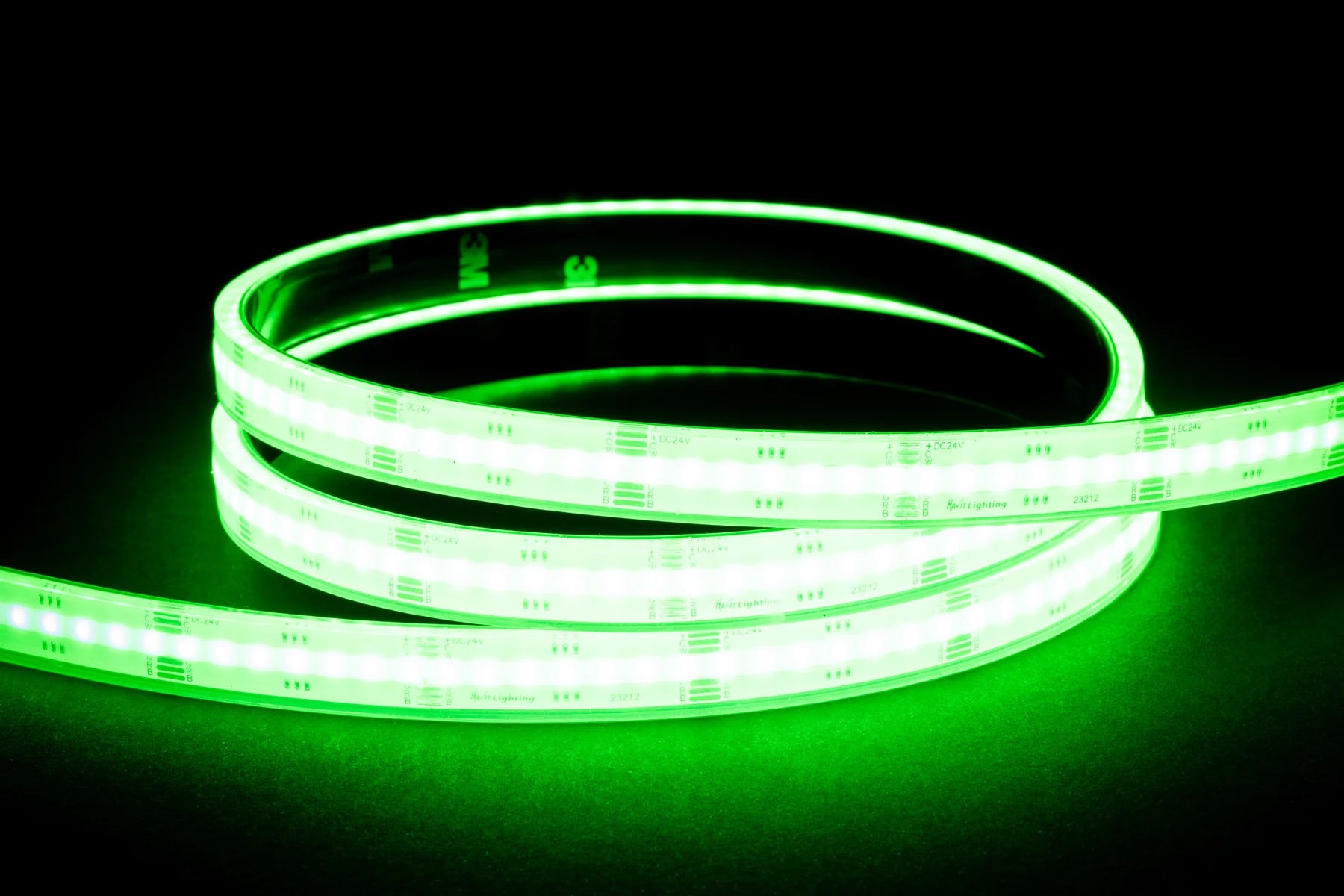

Havit HV9761-IP67-840-RGBCW is a 20W/m, 24V DC IP67 COB LED strip offering RGB + Cool White lighting and 500 lumens per metre. A compatible RGBCW 5-channel controller and a suitable 24V constant-voltage LED driver are required and sold separately.
Key Features
- 20W per metre integrated COB LED strip
- RGB + Cool White output
- 500 lumens per metre
- 24V DC constant-voltage operation
- IP67 rated
- 16mm (W) × 6mm (H)
- 50mm cutting increments
- Maximum powered run: 5m
- 10m supply roll or custom cut per metre
- Compatible RGBCW 5-channel LED strip controller required, sold separately
- 3-year replacement warranty
Installation note: For Havit warranty compliance, install on a suitable aluminium heat-dissipating surface or compatible aluminium LED profile. Maximum powered strip length is 5m per run; the 10m roll is supplied for separate powered runs, not one continuous 10m connection. A RGBCW 5-channel controller is required for colour changing.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Havit Lighting |
| Range | Havit COB RGBCW LED Strip |
| Model | HV9761-IP67-840-RGBCW |
| Light source | Integrated COB LED |
| Wattage | 20W per metre |
| Input voltage | 24V DC |
| Light colour / output style | RGBCW |
| Light output | 500lm per metre |
| Dimensions | 16mm (W) × 6mm (H) |
| Cutting increment | 50mm |
| Maximum powered run | 5m |
| IP rating | IP67 |
| Controller | RGBCW 5-channel compatible controller required |
| Mounting | Aluminium heat-dissipating surface or LED channel required |
| Supply | Custom cut per metre or 10m roll |
| Warranty | 3-year replacement warranty |
