Description

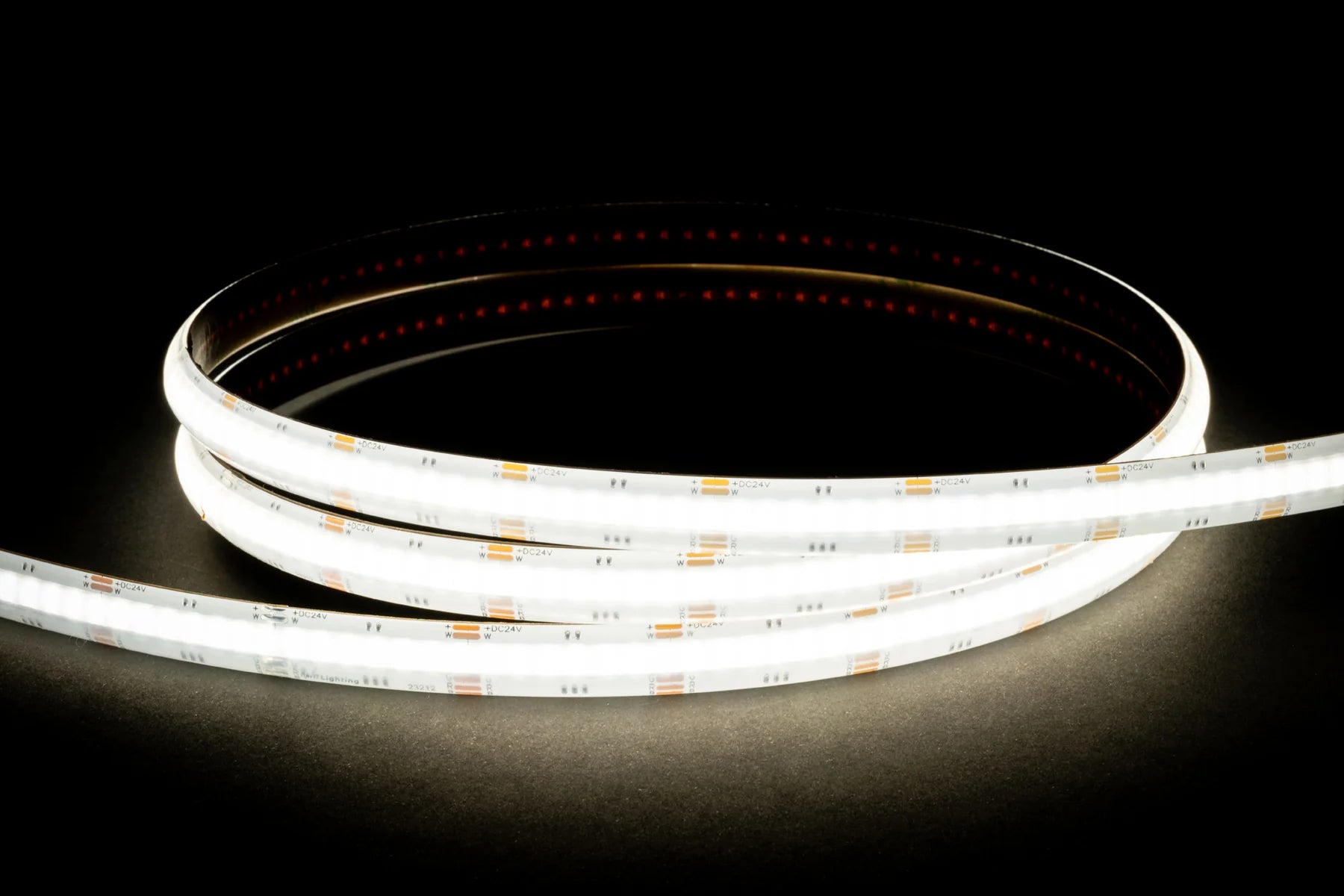

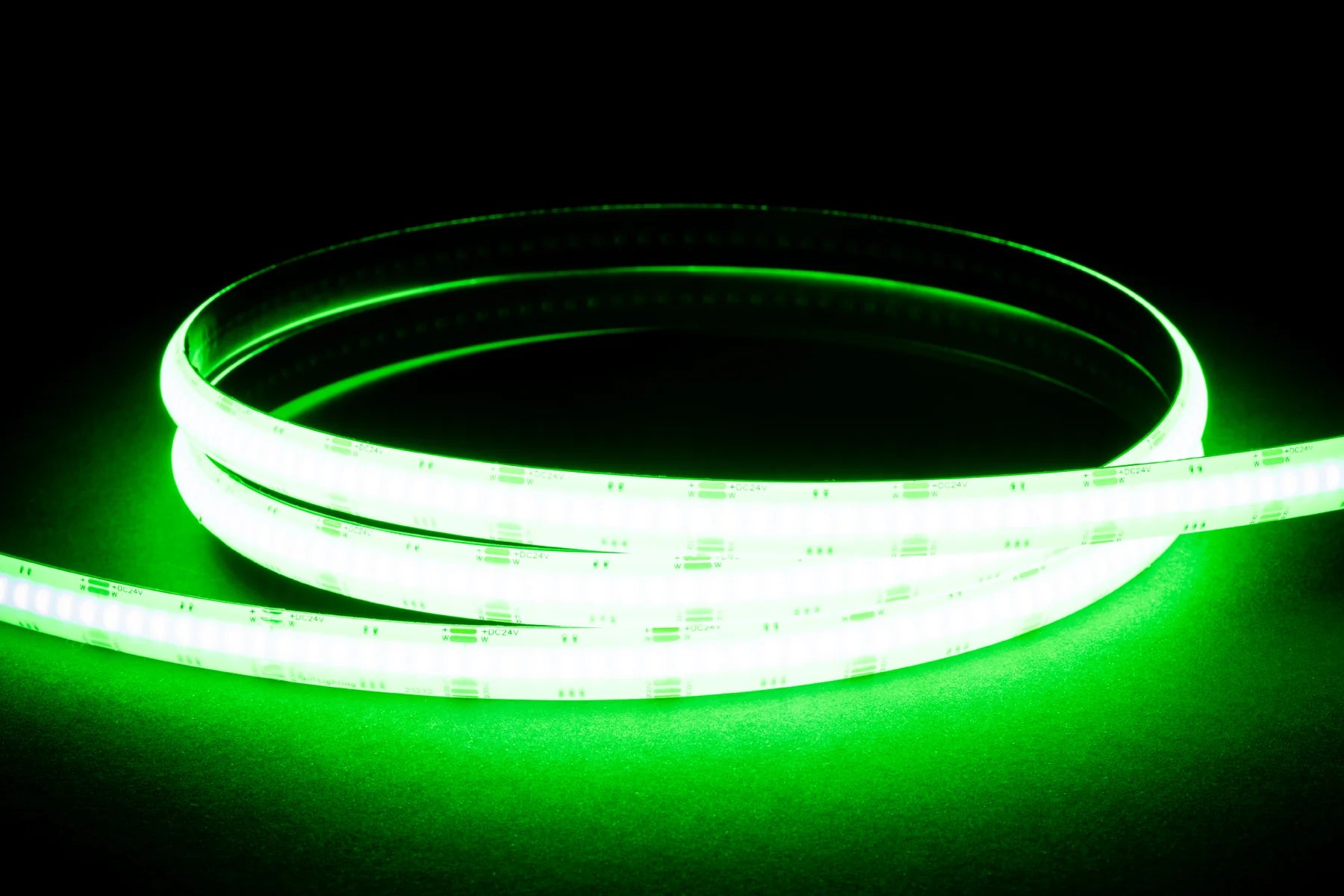

Havit HV9761-IP54-896-RGBC is a 20W/m, 24V DC IP54 COB LED strip offering RGB + Colour lighting and 500 lumens per metre. A compatible RGBW/RGBC 4-channel controller and a suitable 24V constant-voltage LED driver are required and sold separately.
Key Features
- 20W per metre integrated COB LED strip
- RGB + Colour output
- 500 lumens per metre
- 24V DC constant-voltage operation
- IP54 rated
- 12mm (W) × 3mm (H)
- 31.25mm cutting increments
- Maximum powered run: 5m
- 10m supply roll or custom cut per metre
- Compatible RGBW/RGBC 4-channel LED strip controller required, sold separately
- 3-year replacement warranty
Installation note: For Havit warranty compliance, install on a suitable aluminium heat-dissipating surface or compatible aluminium LED profile. Maximum powered strip length is 5m per run; the 10m roll is supplied for separate powered runs, not one continuous 10m connection. A RGBW/RGBC 4-channel controller is required for colour changing.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Havit Lighting |
| Range | Havit COB RGBC/RGBW LED Strip |
| Model | HV9761-IP54-896-RGBC |
| Light source | Integrated COB LED |
| Wattage | 20W per metre |
| Input voltage | 24V DC |
| Light colour / output style | RGBC |
| Light output | 500lm per metre |
| Dimensions | 12mm (W) × 3mm (H) |
| Cutting increment | 31.25mm |
| Maximum powered run | 5m |
| IP rating | IP54 |
| Controller | RGBW/RGBC 4-channel compatible controller required |
| Mounting | Aluminium heat-dissipating surface or LED channel required |
| Supply | Custom cut per metre or 10m roll |
| Warranty | 3-year replacement warranty |
