Description

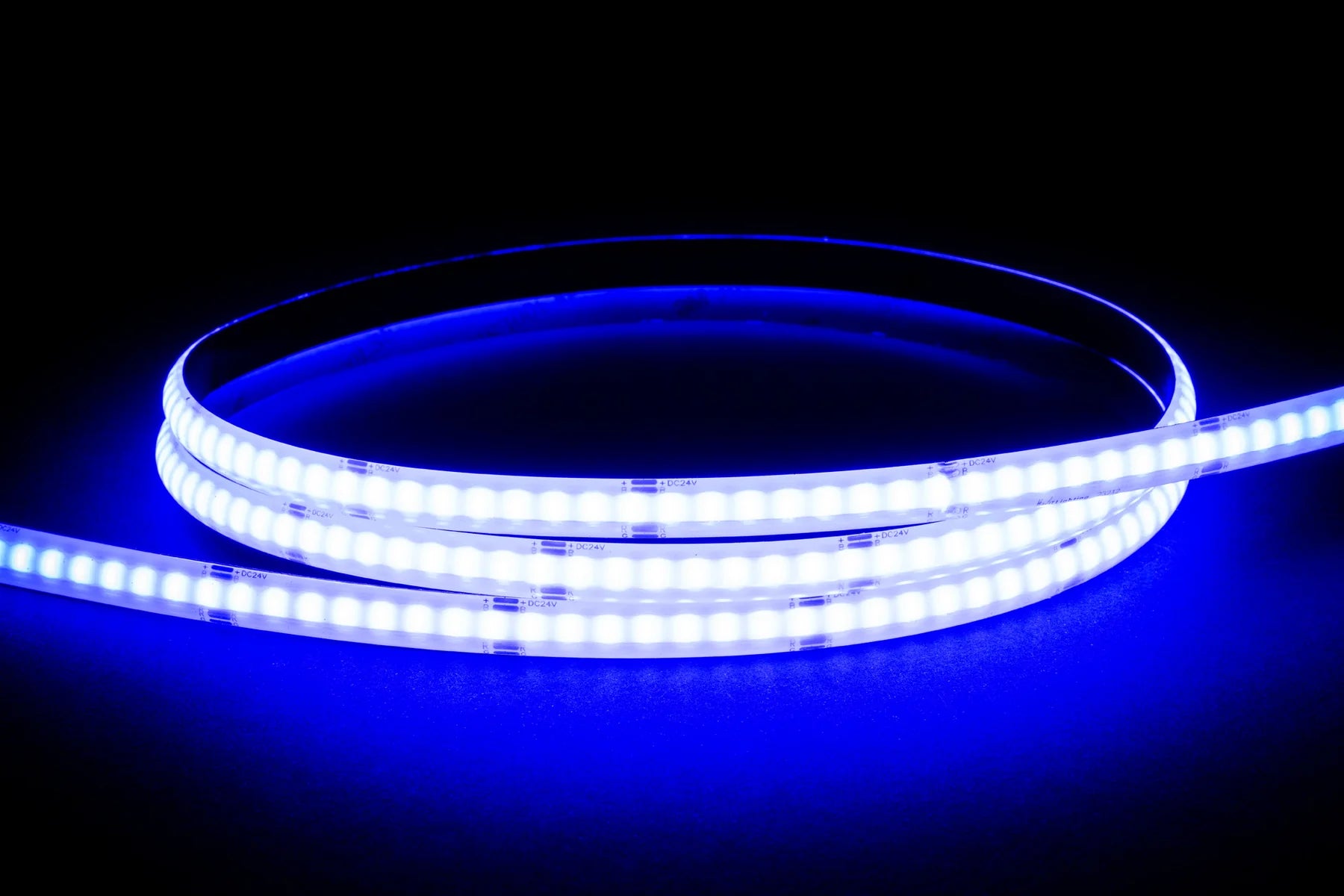

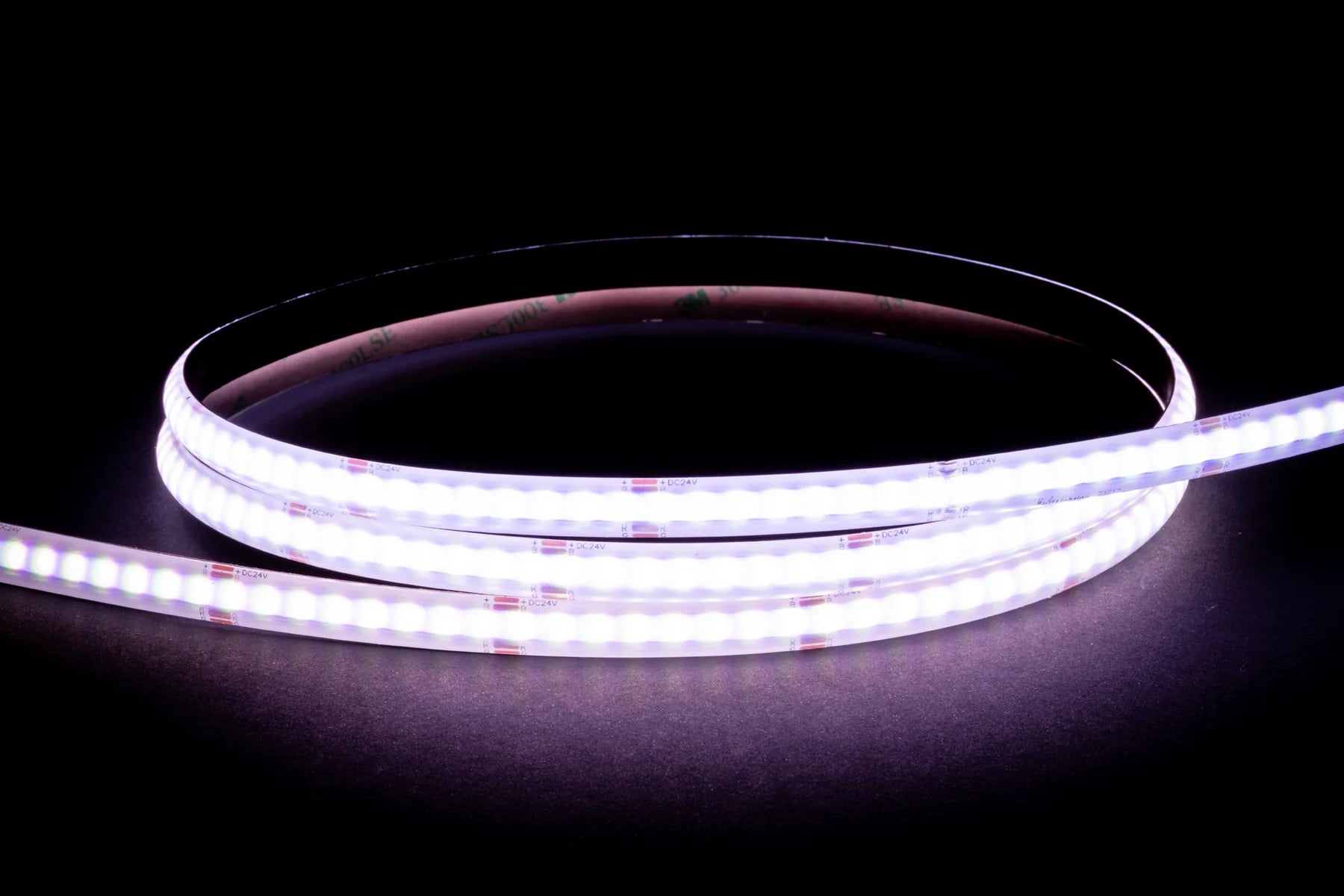

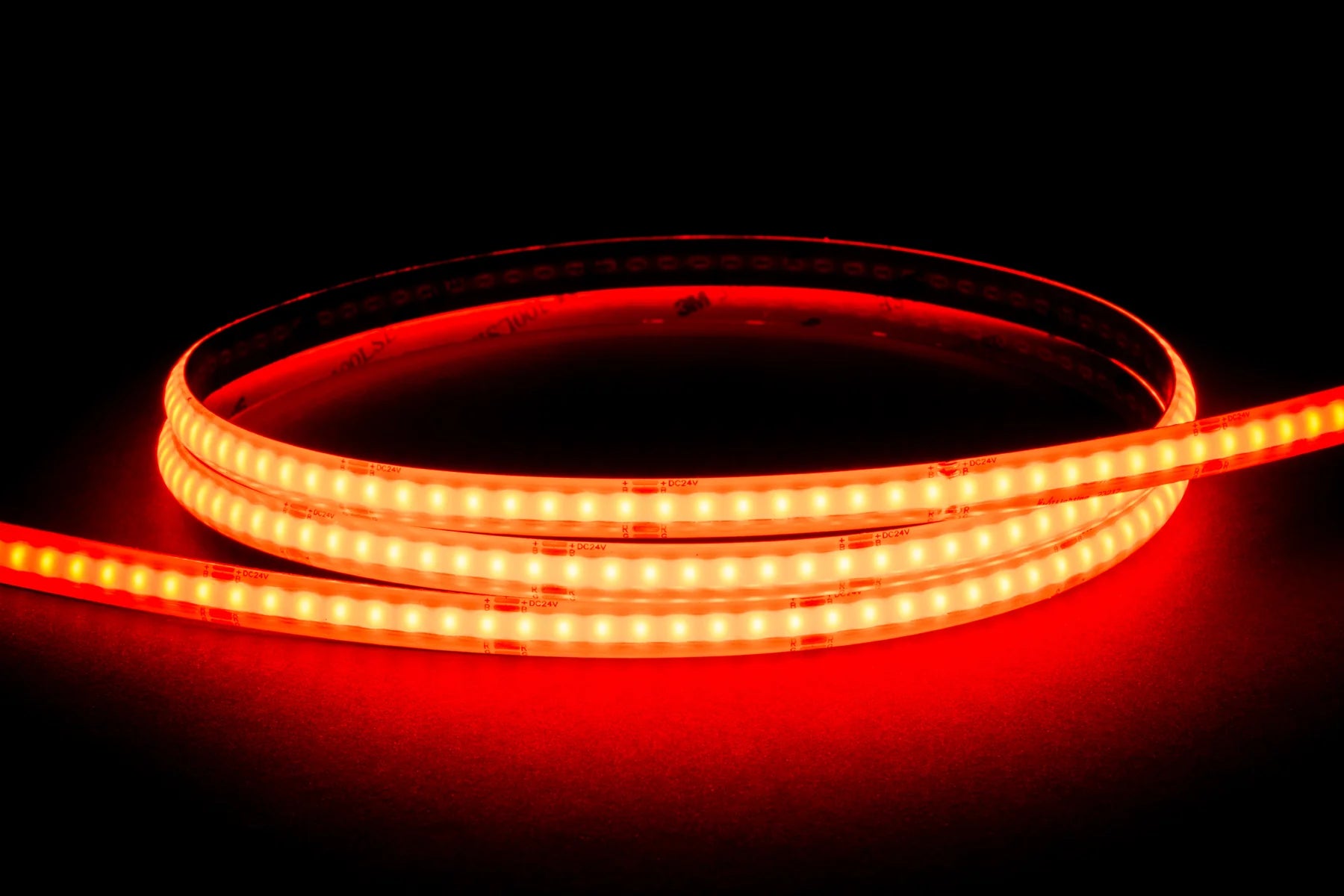

Havit HV9761-IP54-480-RGB is a 15W/m, 24V DC IP54 COB LED strip offering RGB colour-changing lighting and 500 lumens per metre. A compatible RGB control system and suitable 24V DC constant-voltage LED driver are required and sold separately.
Key Features
- 15W per metre integrated COB LED strip
- RGB colour changing output
- 500 lumens per metre
- 24V DC constant-voltage operation
- IP54 rated

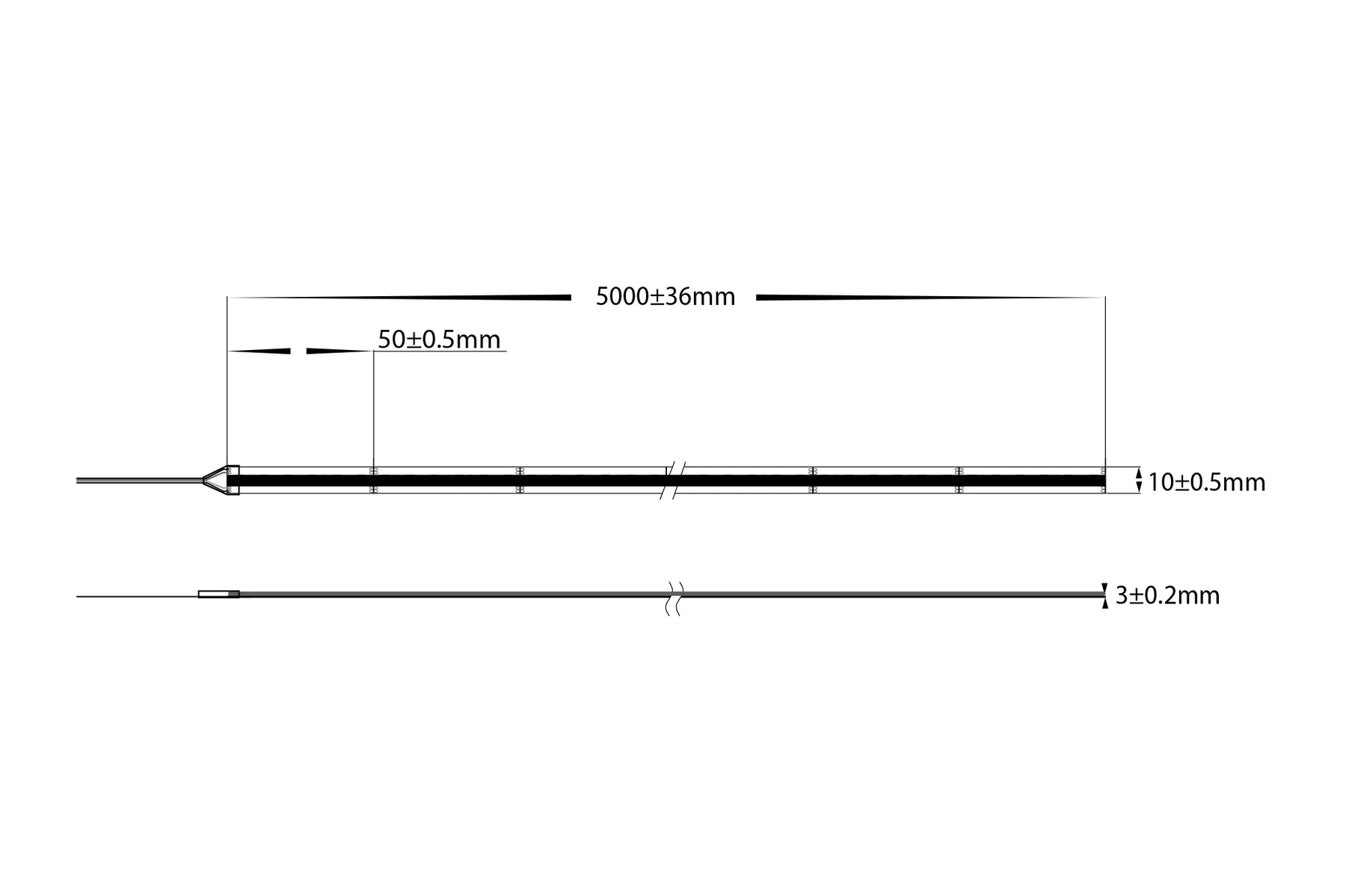

- 10mm (W) × 3mm (H)
- 50mm cutting increments
- Maximum powered run: 5m
- 10m supply roll or custom cut per metre
- Compatible RGB LED strip controller required, sold separately
- 3-year replacement warranty
Installation Requirement: Havit requires this strip to be installed on a suitable aluminium heat-dissipating surface or LED channel for warranty compliance. Maximum continuous powered run is 5m; a 10m roll must be arranged as separate powered runs.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Havit Lighting |
| Range | Havit COB RGB LED Strip |
| Model | HV9761-IP54-480-RGB |
| Light source | Integrated COB LED |
| Wattage | 15W per metre |
| Input voltage | 24V DC |
| Light colour / output style | RGB |
| Light output | 500lm per metre |
| Dimensions | 10mm (W) × 3mm (H) |
| Cutting increment | 50mm |
| Maximum powered run | 5m |
| IP rating | IP54 |
| Controller | RGB compatible controller required |
| Mounting | Aluminium heat-dissipating surface or LED channel required |
| Supply | Custom cut per metre or 10m roll |
| Warranty | 3-year replacement warranty |
