Description

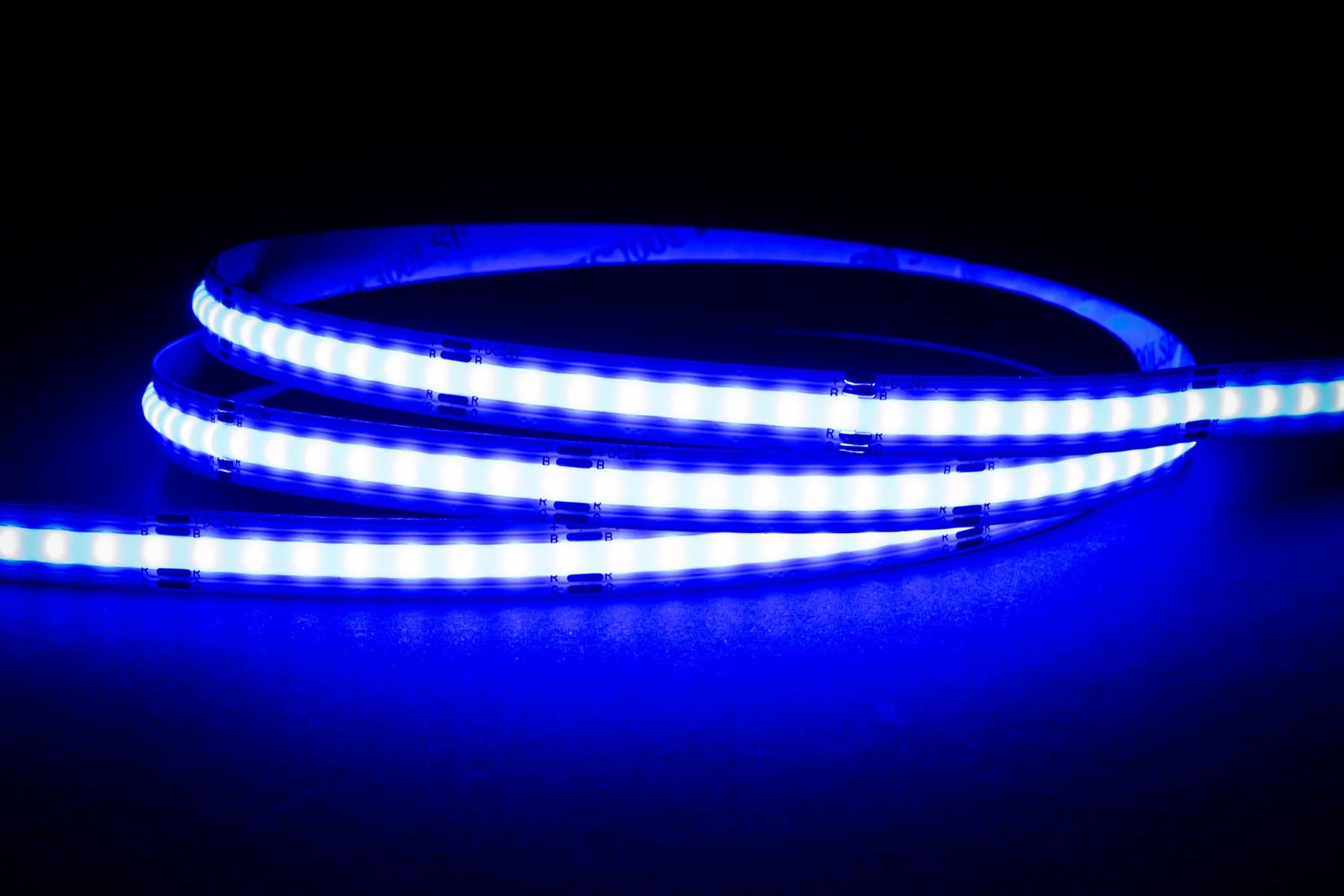

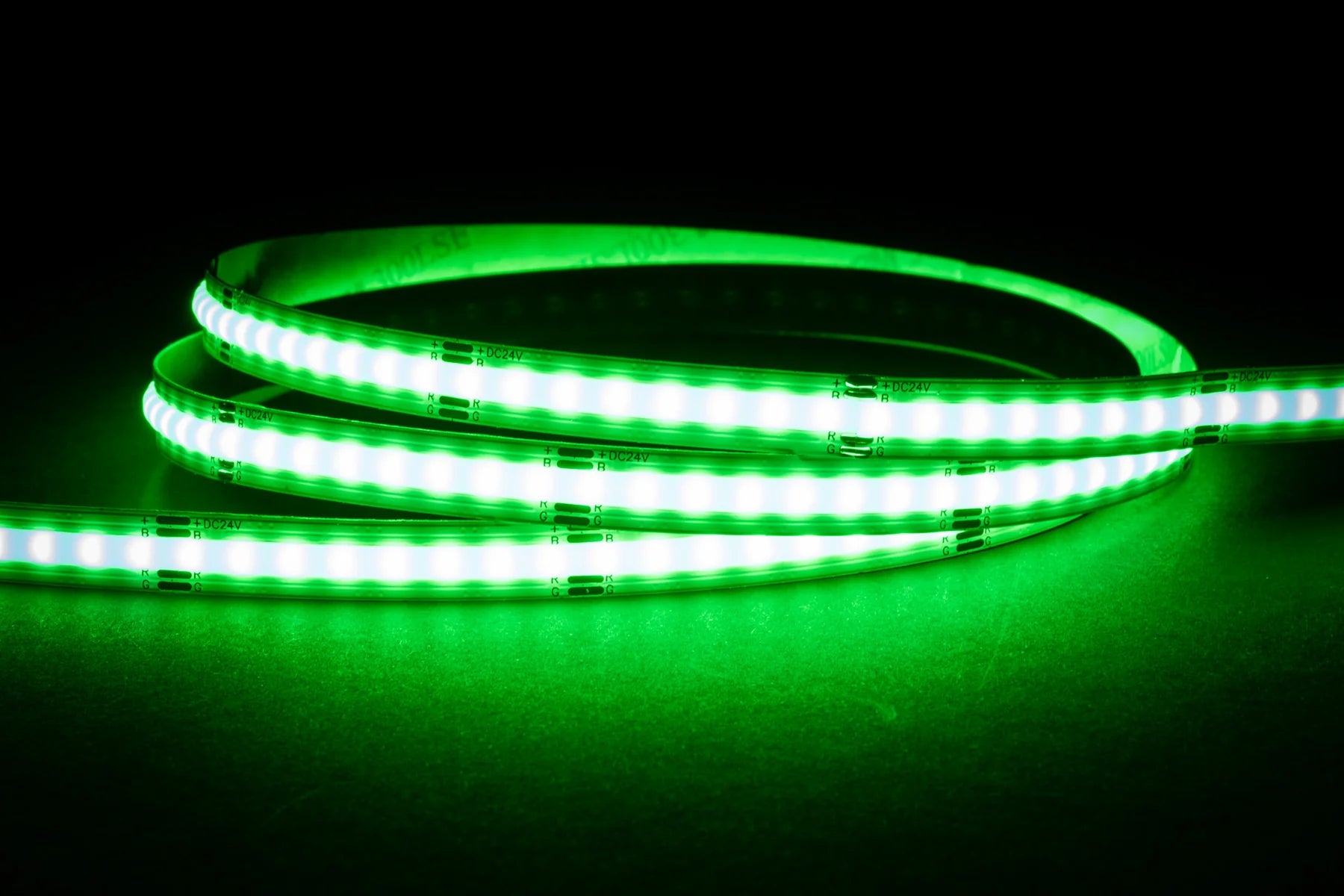

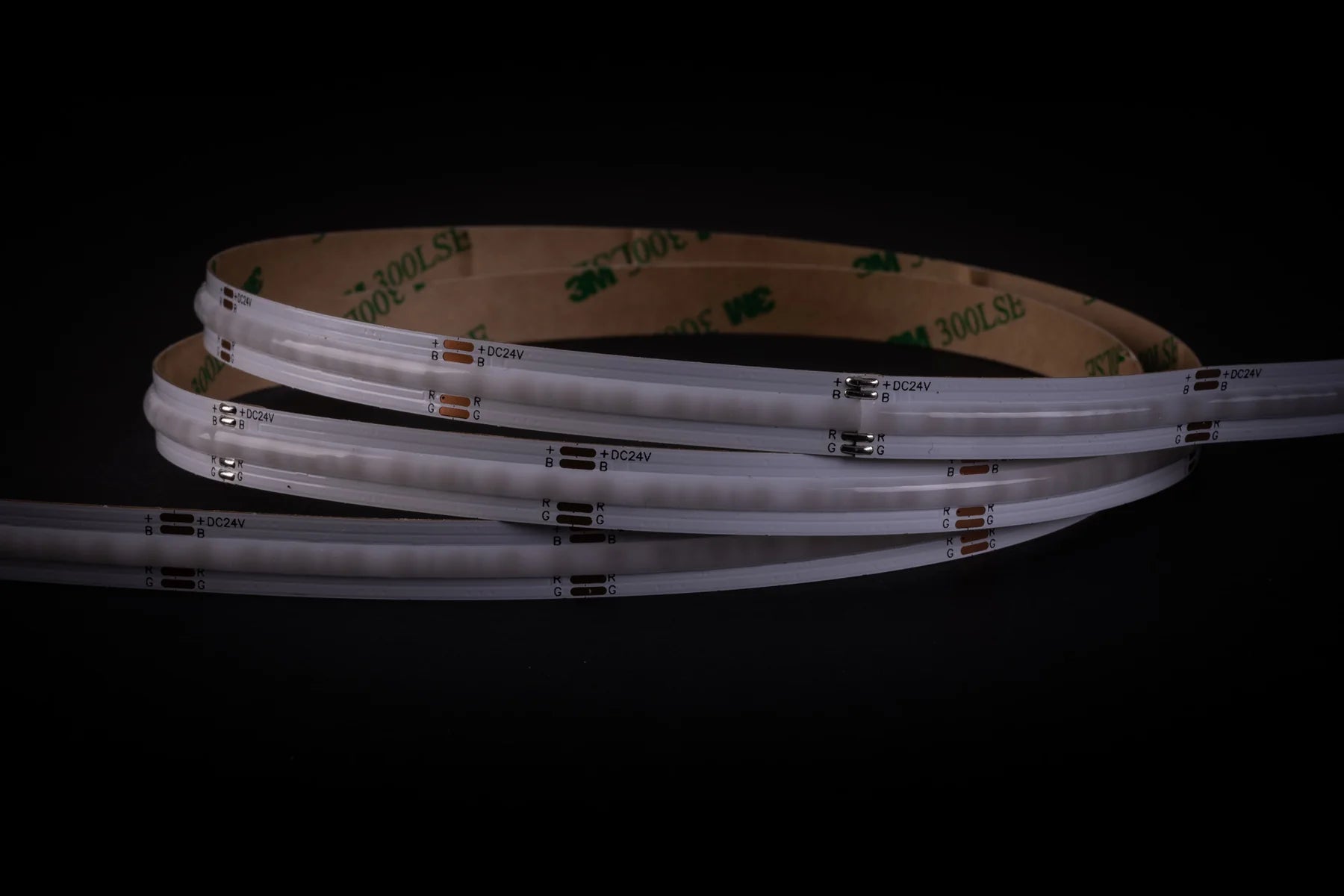

Havit HV9761-IP20-480-RGB is a 15W/m, 24V DC IP20 COB LED strip offering RGB colour changing lighting and 500 lumens per metre. A compatible RGB controller and a suitable 24V constant-voltage LED driver are required and sold separately.
Availability note: Havit lists this product as end of line. Please contact Eco Smart Lighting to confirm stock availability before ordering.
Key Features
- 15W per metre integrated COB LED strip
- RGB colour changing output
- 500 lumens per metre
- 24V DC constant-voltage operation
- IP20 rated
- 10mm (W) × 2mm (H)
- 50mm cutting increments
- Maximum powered run: 5m
- 30m supply roll or custom cut per metre
- Compatible RGB LED strip controller required, sold separately
- 3-year replacement warranty
Installation note: For Havit warranty compliance, install on a suitable aluminium heat-dissipating surface or compatible aluminium LED profile. Maximum powered strip length is 5m per run; the 30m roll is supplied for separate powered runs, not one continuous 30m connection. A RGB controller is required for colour changing.
Technical Specifications
| Specification | Detail |
|---|---|
| Brand | Havit Lighting |
| Range | Havit COB RGB LED Strip |
| Model | HV9761-IP20-480-RGB |
| Light source | Integrated COB LED |
| Wattage | 15W per metre |
| Input voltage | 24V DC |
| Light colour / output style | RGB |
| Light output | 500lm per metre |
| Dimensions | 10mm (W) × 2mm (H) |
| Cutting increment | 50mm |
| Maximum powered run | 5m |
| IP rating | IP20 |
| Controller | RGB compatible controller required |
| Mounting | Aluminium heat-dissipating surface or LED channel required |
| Supply | Custom cut per metre or 30m roll |
| Warranty | 3-year replacement warranty |
Downloads
Explore the Havit COB RGB LED Strip Range
Compare other compatible colours and IP-rated models in the range.
