Description
- Aluminium Profile For LED Strip
- Aluminium Profile, complete with diffuser and end caps
- Black Aluminium Finish
- UV Stabilised PC Diffuser
- IP rating: IP20

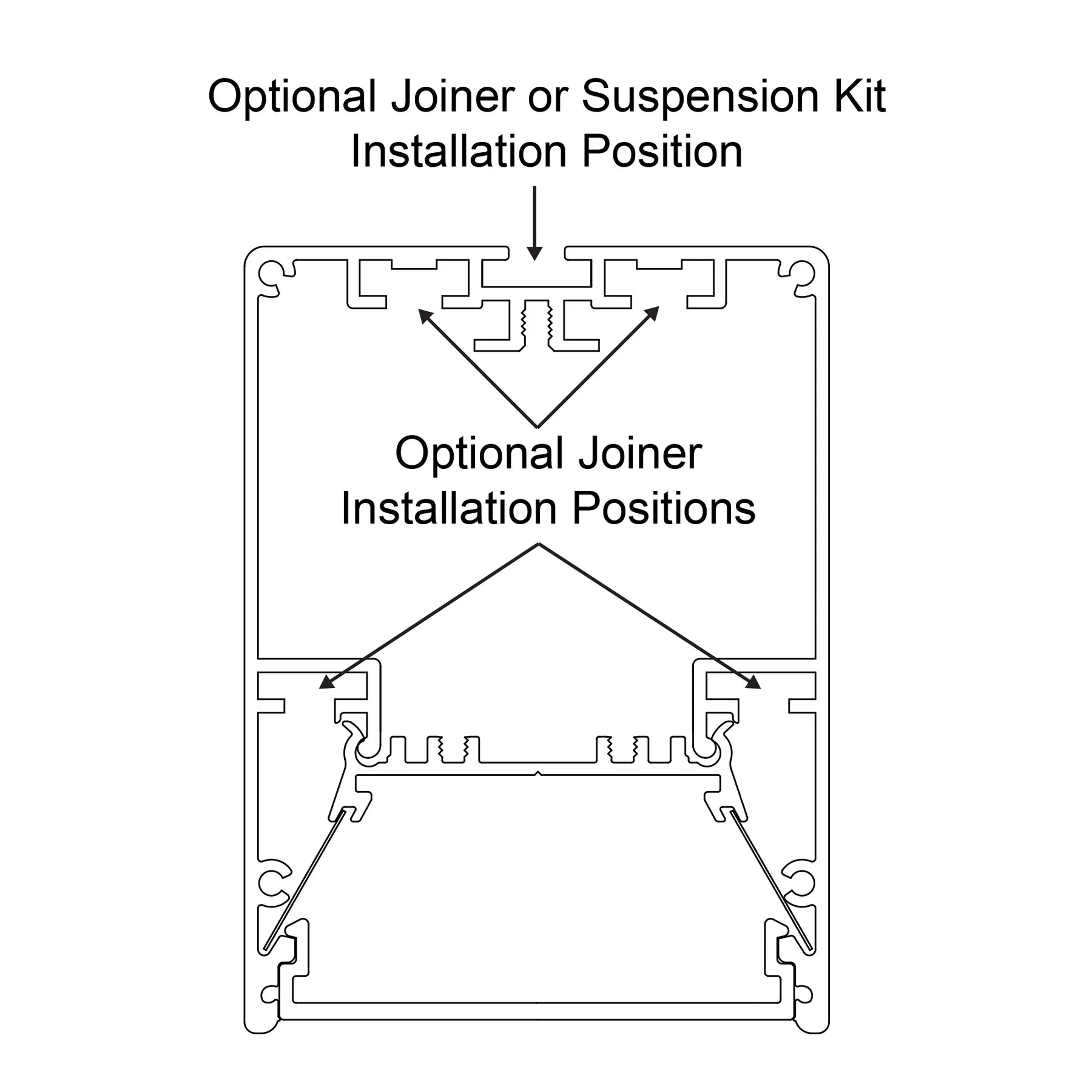

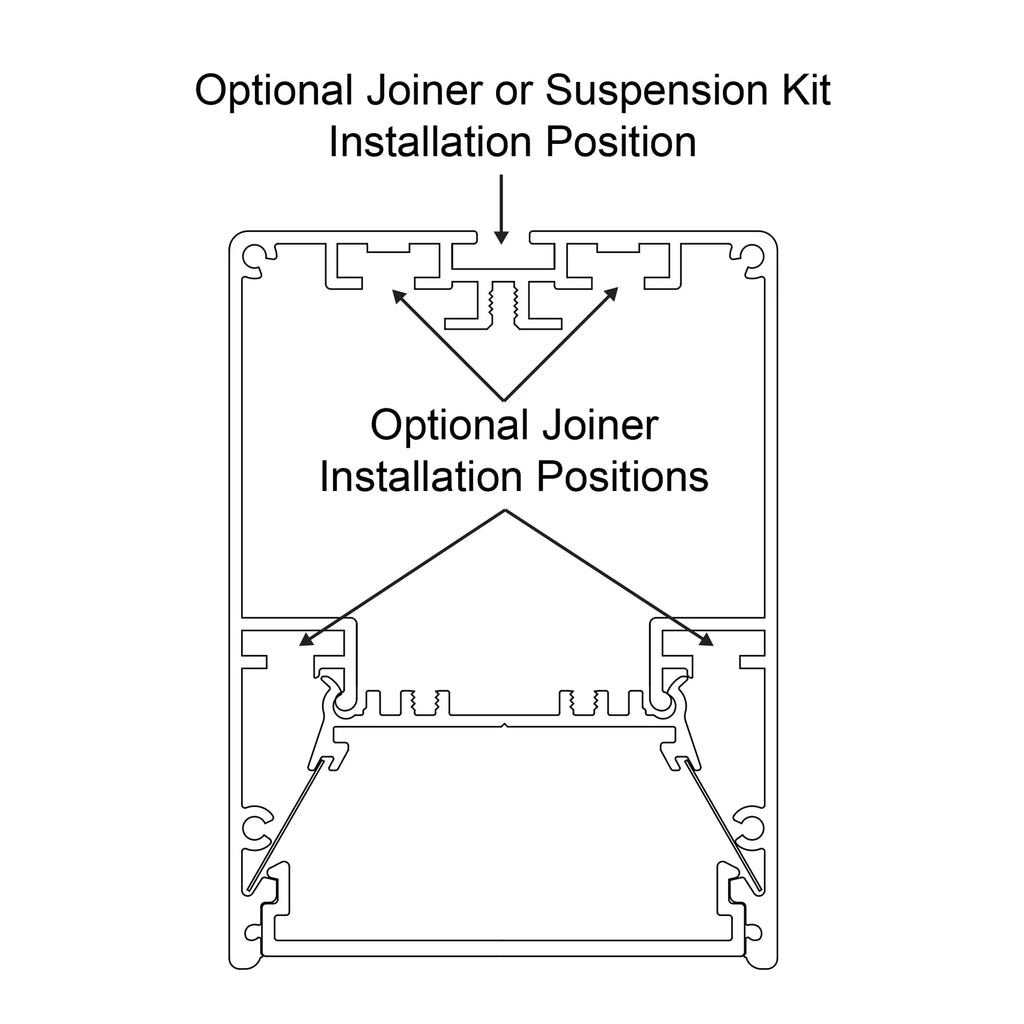

- Can Be Suspended (HV9705-9953)

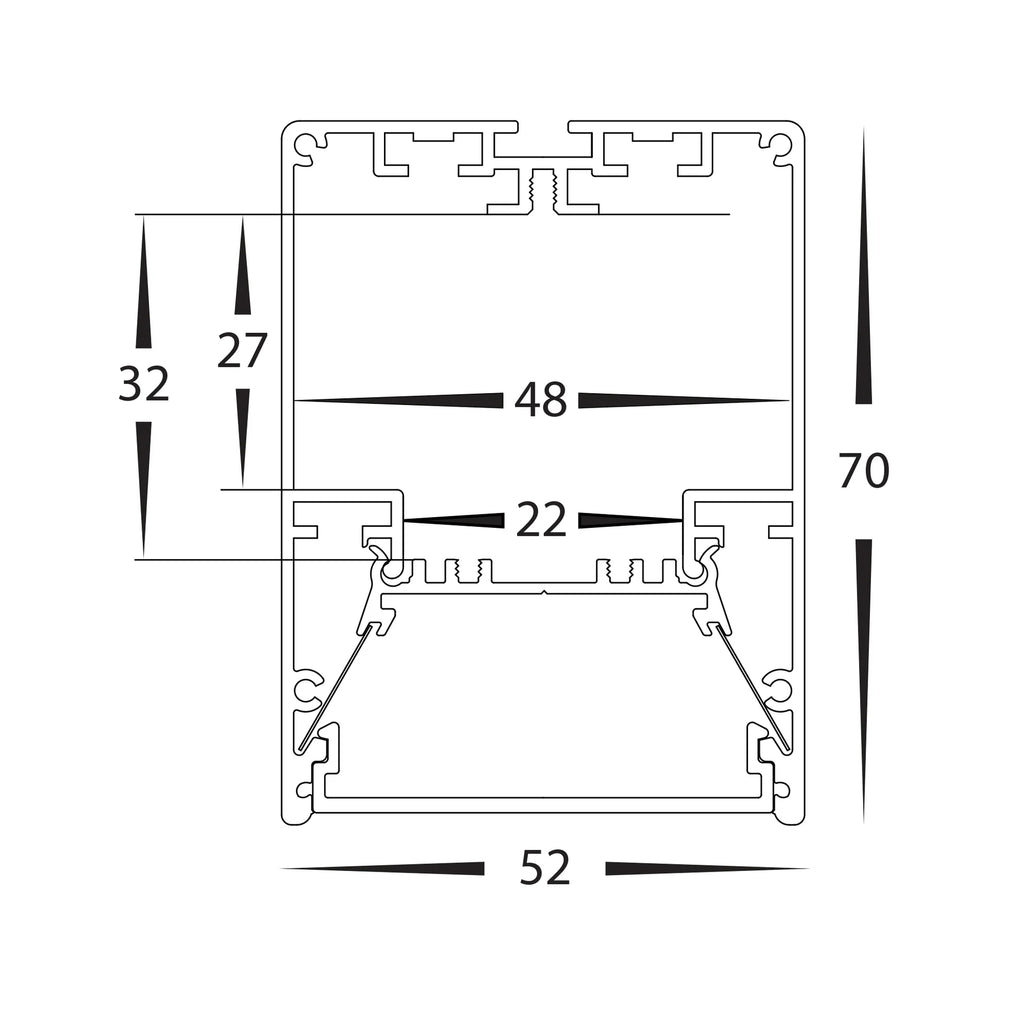

- Size: 52mm x 70mm
- Sold Per Half Metre (Custom Cuts Available)
- Long Run Diffuser available - Max. 20m
- Maximum Length Of 3 Metres
- 3 years replacement warranty (items ordered after 01/01/22)
- Supplied with 2x end caps per length
If you need additional accessories compatible with this profile, please see below:
- Diffuser, visit diffuser product here.
- End caps, visit end cap product here.
- Long Standard Diffuser, visit long standard diffuser product here.
- Black Standard Diffuser, visit black standard diffuser product here.
- Anti Glare film, visit anti glare film product here.
- Reflective Film, visit reflective film product here.
- Black Aluminium Cover, visit black aluminium cover product here
- Joiner, visit joiner product here.
- L Joiner, visit L joiner product here.
- Vertical L Joiner, visit vertical L joiner product here.
- 120° Joiner, visit 120° Joiner product here.
- 150° Joiner, visit 150° Joiner product here.
- 180° Joiner, visit 180° Joiner product here.
- 120° Vertical Joiner, visit 120° Vertical Joiner product here.
- 30° Vertical Joiner, visit 30° Vertical Joiner product here.
- 60° Vertical Joiner, visit 60° Vertical Joiner product here.
- 30° X Shape Joiner, visit 30° X Shape Joiner product here.
- 30° Y Shape Joiner, visit 30° Y Shape Joiner product here.
Please Note: Long Run diffuser will be supplied over 100mm longer than requested length to allow for diffuser to be cut to exact length during installation.
| Part Number | Included |
| HV9693-5270-BLK |
Custom Cut Length: Supplied with 2x End Caps Per Length |
| HV9693-5270-BLK-3M |
3m Length: Supplied with 6x End Caps Per Length |
