Description

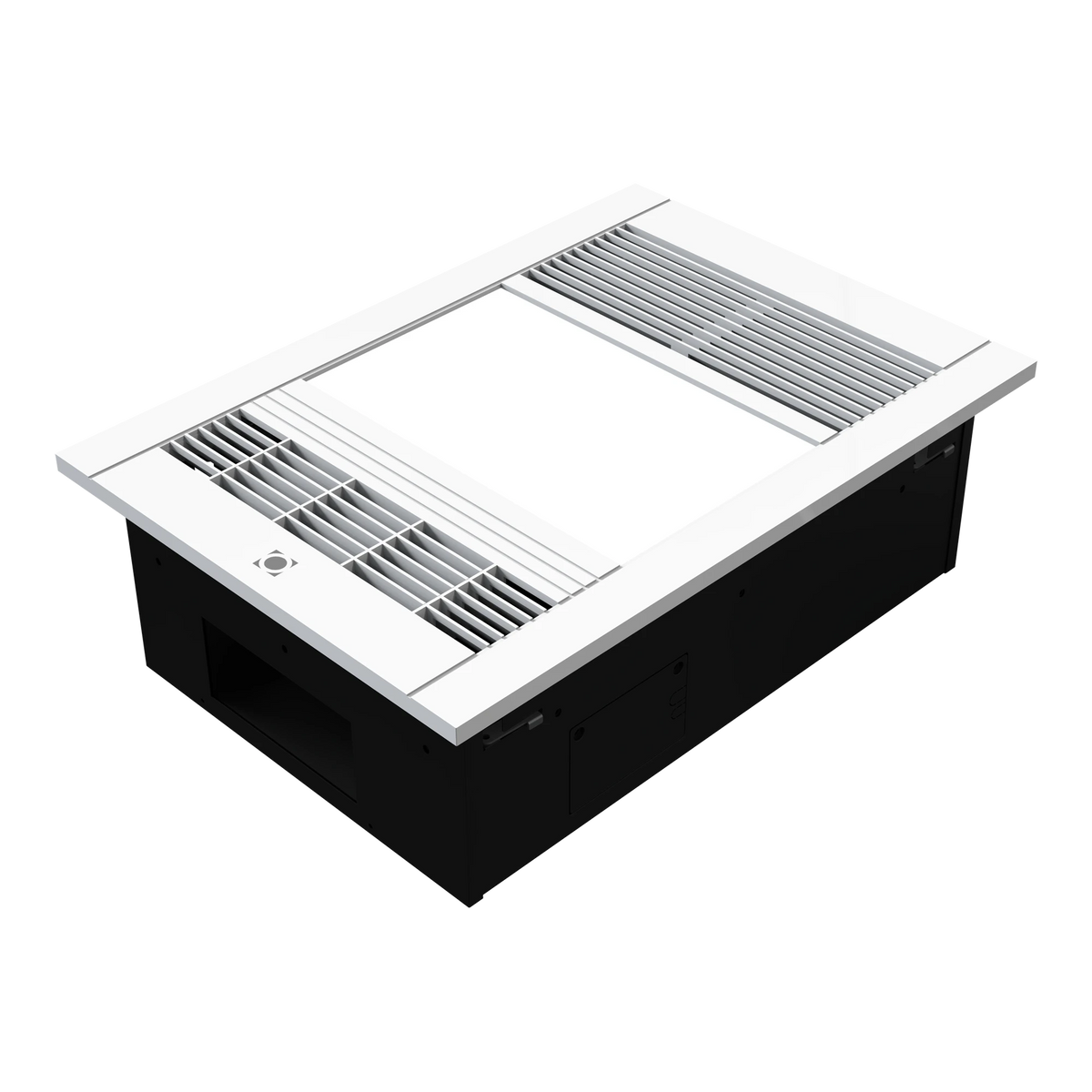

The Domus Elevate combines bathroom heating, ventilation, air circulation and tri-colour lighting in a white ceiling unit. Its larger fascia suits replacement projects where coverage of the existing opening matters. Check the required cut-out and ceiling clearance before ordering.
Key Features
- Four functions controlled from the supplied V1.5 digital wall controller
- Selectable warm, neutral or cool white lighting
- Automatic shut-off after two hours of continuous operation
- Includes 3 m flexible duct, exterior grille and draft stopper
- Includes white horizontal switchplate film cover
Technical Specifications
| Specification | Detail |
|---|---|
| Model / SKU | BH-ELEVATE / 56086 |
| Finish | White |
| Functions | Heating, extraction, air circulation and lighting |
| Rated power / supply | 1650W / 240V AC |
| Heater / motor | 1550W PTC / 60W AC |
| Light source | 12W integrated LED |
| Colour temperature | 3000K / 4000K / 5000K selectable |
| Light output | 780lm / 820lm / 860lm respectively |
| Extraction / noise | 500m³/h / ≤48dB |
| IP rating / CRI | IPX2 / ≥80 |

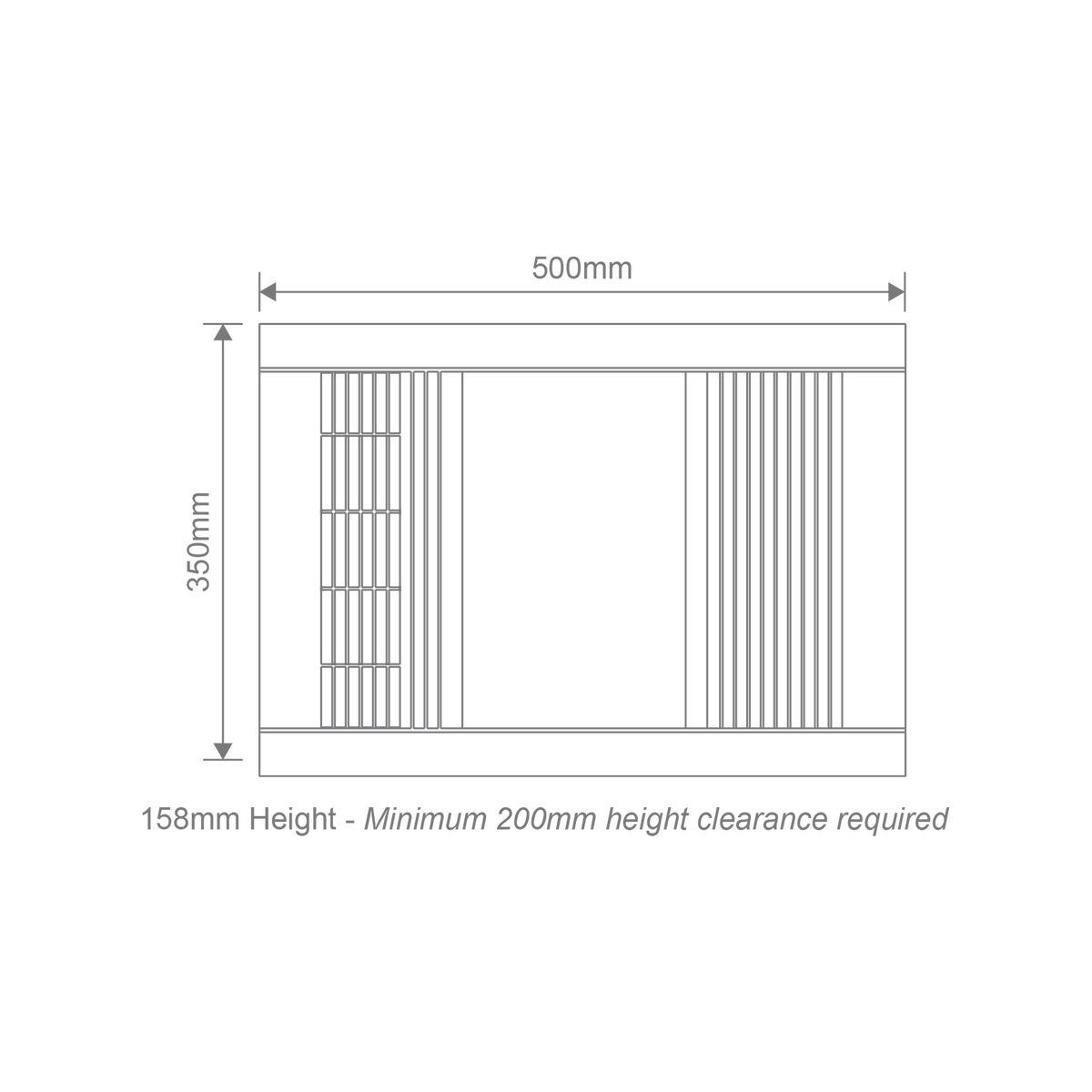

| Ceiling cut-out | 480 × 320 mm |
| Fascia / height | 500 × 350 mm / 158 mm |
| Minimum ceiling clearance | 200 mm |
| Duct diameter | 150 mm |
| Weight | 7.7 kg |
| Warranty | 5-year in-home warranty, subject to Domus terms |
Installation must be completed by a licensed electrician in accordance with the installation guide. Circuit suitability and protective devices must be assessed for the installation.
