Main
| Range |
C-Bus |
| Product brand |
Clipsal |
| Product name |
C-Bus Saturn |
| Product or component type |
Wall plate |
| Device application |
Control |
Complementary
| Colour |
Cover plate: espresso black
Grid: black
Cover plate: pure white
Grid: black
Cover plate: horizon black
Grid: black

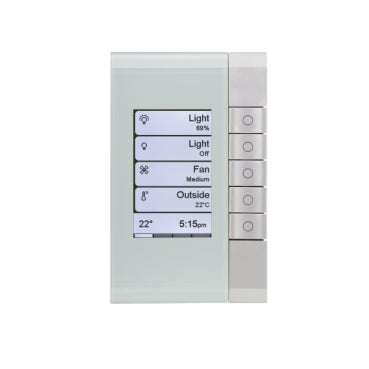

Cover plate: ocean mist
Grid: black

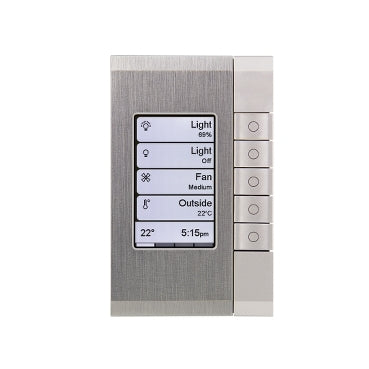

Cover plate: stainless steel
Grid: black
|
| Provided equipment |
Mounting plate
Flying lead |
| Control type |
5 x push-button dual-action |
| Local signalling |
Status: LED (tri-colour) on push-button |
| Switch application |
Lighting
Timer
Audio
Blind control
Fan speed control
Scene control
On/off switching
Shutter control
Dimming up/down control
Page navigation |
| Local display |
Backlit LCD display |
| Display type |
Colour TFT display |
| Display size |
2.8 inch |
| Messages display capacity |
Up to 4 pages |
| Information displayed |
Load type
Temperature
Power
Date
Time
Operating mode |
| Number of outputs |
16 in 4 page option
5 in 1 page option |
| Function of module |
Proximity sensor monitoring wake-up |
| Communication port protocol |
C-Bus - 2 wires |
| [Us] rated supply voltage |
15...36 V: DC |
| Maximum supply current |
32 mA |
| Material |
Glass |
| Connector type |
Mini USB port (rear)
Socket (rear) for C-Bus |
| Function available |
Firmware update by USB |
| User language |
Multi-language |
| Product compatibility |
LAN cable Cat. 5e |
| Electrical connection |
Flying lead |
| Clamping connection capacity |
0.2...1.5 mm² |
| fixing mode |
By screws |
| Mounting support |
Wall |
| Width |
77 mm |
| Height |
123 mm |
| Depth |
35 mm |
| Embedding depth |
23.5 mm |
| Colour code |
EB |
Environment
| IP degree of protection |
IP20 |
| Ambient air temperature for operation |
5…45 °C |
| Product certifications |
CE
RCM |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
8 cm |
| Package 1 Width |
11 cm |
| Package 1 Length |
15.5 cm |
| Package 1 Weight |
306 g |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
8 |
| Package 2 Height |
20.6 cm |
| Package 2 Width |
22.5 cm |
| Package 2 Length |
33 cm |
| Package 2 Weight |
2.903 kg |
| Unit Type of Package 3 |
PAL |
| Number of Units in Package 3 |
240 |
| Package 3 Height |
103 cm |
| Package 3 Width |
66 cm |
| Package 3 Length |
67.5 cm |
| Package 3 Weight |
97.082 kg |
Datasheet pure white:
Datasheet espresso black:
Datasheet horizon black:
Datasheet ocean mist
Datasheet stainless steel
