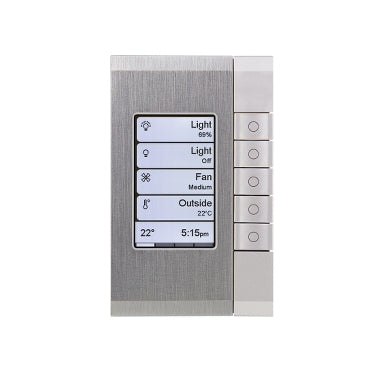

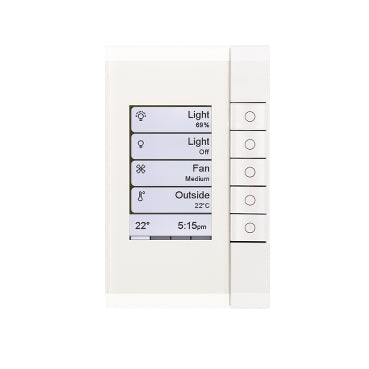

Clipsal Wall Plate, C-Bus, Saturn, EDLT, 5 keys Clipsal Products Espresso Black / Ocean Mist / Horizon Black / Pure White / Stainless Steel 15-36V - 5085EDLW

Save $65.19
ClipsalSKU: 5085EDLW-EB

Colour: Espresso black
$586.71 $651.90

Tax included Shipping calculated at checkout


range C-Bus
product brand Clipsal
product name C-Bus Saturn
product or component type Wall plate
device application Control



Cover plate: espresso black
Grid: white

Cover plate: stainless steel
Grid: white

Cover plate: ocean mist
Grid: white

Cover plate: horizon black
Grid: white

Cover plate: pure white
Grid: white

provided equipment Mounting plate
Flying lead
control type 5 x push-button dual-action
local signalling Status: LED (tri-colour) on push-button
switch application Lighting
Blind control
Fan speed control
Scene control
On/off switching
Shutter control
Dimming up/down control
Page navigation
local display Backlit LCD display
display type Colour TFT display
display size 2.8 inch
messages display capacity Up to 4 pages
information displayed Load type
Operating mode
number of outputs 16 in 4 page option
5 in 1 page option
function of module Proximity sensor monitoring wake-up
communication port protocol C-Bus - 2 wires
[Us] rated supply voltage 15...36 V: DC
maximum supply current 32 mA
material Glass
connector type Mini USB port (rear)
Socket (rear) for C-Bus
function available Firmware update by USB
user language Multi-language
product compatibility LAN cable Cat. 5e
electrical connection Flying lead
clamping connection capacity 0.2...1.5 mm²
fixing mode By screws
mounting support Wall
width 77 mm
height 123 mm
depth 35 mm
embedding depth 23.5 mm
colour code EB


IP degree of protection IP20
ambient air temperature for operation 5…45 °C
product certifications CE


Packing Units
Unit Type of Package 1 PCE
Number of Units in Package 1 1
Package 1 Weight 198.0 g
Package 1 Height 7.8 cm
Package 1 width 11.0 cm
Package 1 Length 16.0 cm
Unit Type of Package 2 PAL
Number of Units in Package 2 240
Package 2 Weight 97.082 kg
Package 2 Height 103.0 cm
Package 2 width 66.0 cm
Package 2 Length 67.5 cm
Unit Type of Package 3 CAR
Number of Units in Package 3 8
Package 3 Weight 2.903 kg
Package 3 Height 20.6 cm
Package 3 width 22.5 cm
Package 3 Length 33.0 cm


Espresso Black:



Ocean Mist:


Horizon Black:

Pure White:


Stainless Steel:
