Description
The Clipsal Solis T Series switched socket is designed to meet the demands of residential, commercial, and hotel applications. This socket outlet is designed to meet Australian/New Zealand standards and has a 2P + E pole configuration. Transform your living space with our smart device, which can be effortlessly managed through the Wiser Home app. The device operates within a 50-meter range using ZigBee, allowing for high scalability in large networks. The rated current is 10A and the rated operational voltage is 230/240VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. This device allows for flush mounting. Screws are available for installation. The socket has a shutter that prevents the insertion of objects other than plugs for safety purposes. It is intended to be installed horizontally only. The dimensions are (W) 148mm x (H) 74mm x (D) 66.9mm, and the embedding depth is 63mm. Discover the perfect fit with a 84mm fixing center and 4.5mm thickness for seamless integration into your projects. The color of the product is platinum. Choose from modern high-end finishes such as ceramic white, living brass, and recycled aluminum in platinum or ebony for contemporary home spaces with the Clipsal Solis T Series range. Create aesthetically pleasing electrical designs that complement your style.
| Range | Clipsal Solis T Series |
|---|---|
| Product or component type | Socket with wiser connected switch |
| Product brand | Clipsal |
| Assembly Type | Complete product |
| Colour tint | Platinum |
| Software name | Wiser Home |
| Protection | Shuttered |
| Memory usage | Backup |
| Main colour tint | Platinum |
| Control type | Rocker |
|---|---|
| Number Of Outlets | 1 |
| Socket-outlet type | Single socket-outlet |
| Mounting Type | Screw |
| Installation Type | Flush |
| Installation Orientation | Horizontal |
| Material | Aluminium |
| [Ue] rated operational voltage | 230/240 V AC |
| Network frequency | 50 Hz |
| [In] rated current | 10 A |

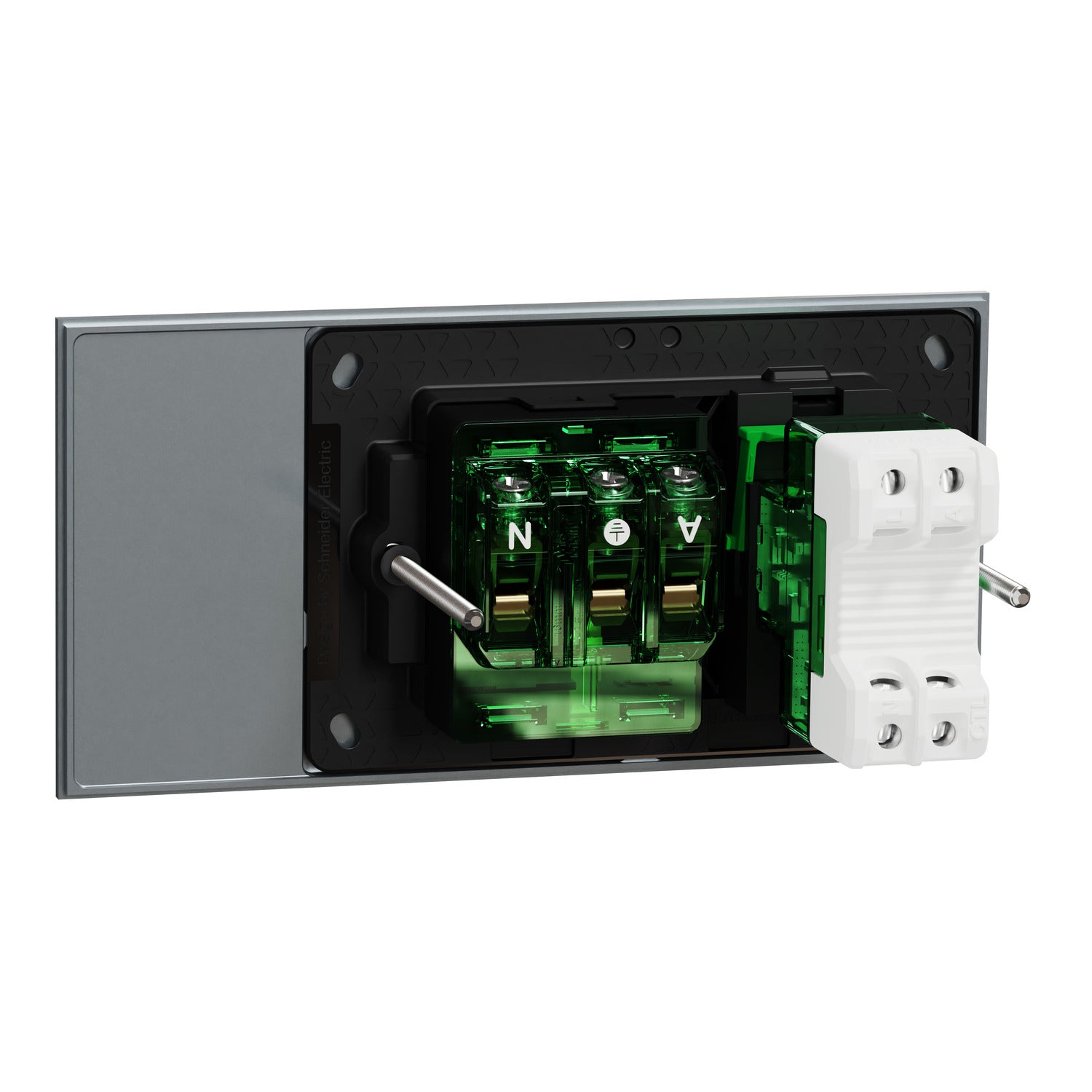

| Connections - terminals | 4 x 2.5 mm² screw terminals 3 x 4 mm² screw terminals |
| Embedding depth | 63 mm |
| Depth | 66.9 mm |
| Height | 74 mm |
| Width | 148 mm |
| Mounting Centers | 84 mm |
| Communication network type | ZigBee 50 m |
| Cut-out dimensions | 93 x 50 mm |
| surface treatment | Metallic |
| Screwdriver shape | Philips No 2 Square drive no 1 (SQ1) |
| Wire stripping length | 16 mm |
| Number of power socket outlets | 1 x 2P + E, Australian/New Zealand |
| Cover Thickness | 3.9 mm |
| Number Of Switches | 1 |
| Product certifications | RCM |
|---|---|
| Standards | AS/NZS 3112 |
| Relative humidity | 10…95 % |
| Ambient air temperature for operation | 0…45 °C |
| Unit Type of Package 1 | PCE |
|---|---|
| Number of Units in Package 1 | 1 |
| Package 1 Height | 15.5 cm |
| Package 1 Width | 8 cm |
| Package 1 Length | 8 cm |
| Package 1 Weight | 214 g |
| Unit Type of Package 2 | CAR |
| Number of Units in Package 2 | 30 |
| Package 2 Height | 32.5 cm |
| Package 2 Width | 25 cm |
| Package 2 Length | 41 cm |
| Package 2 Weight | 6.8 kg |
