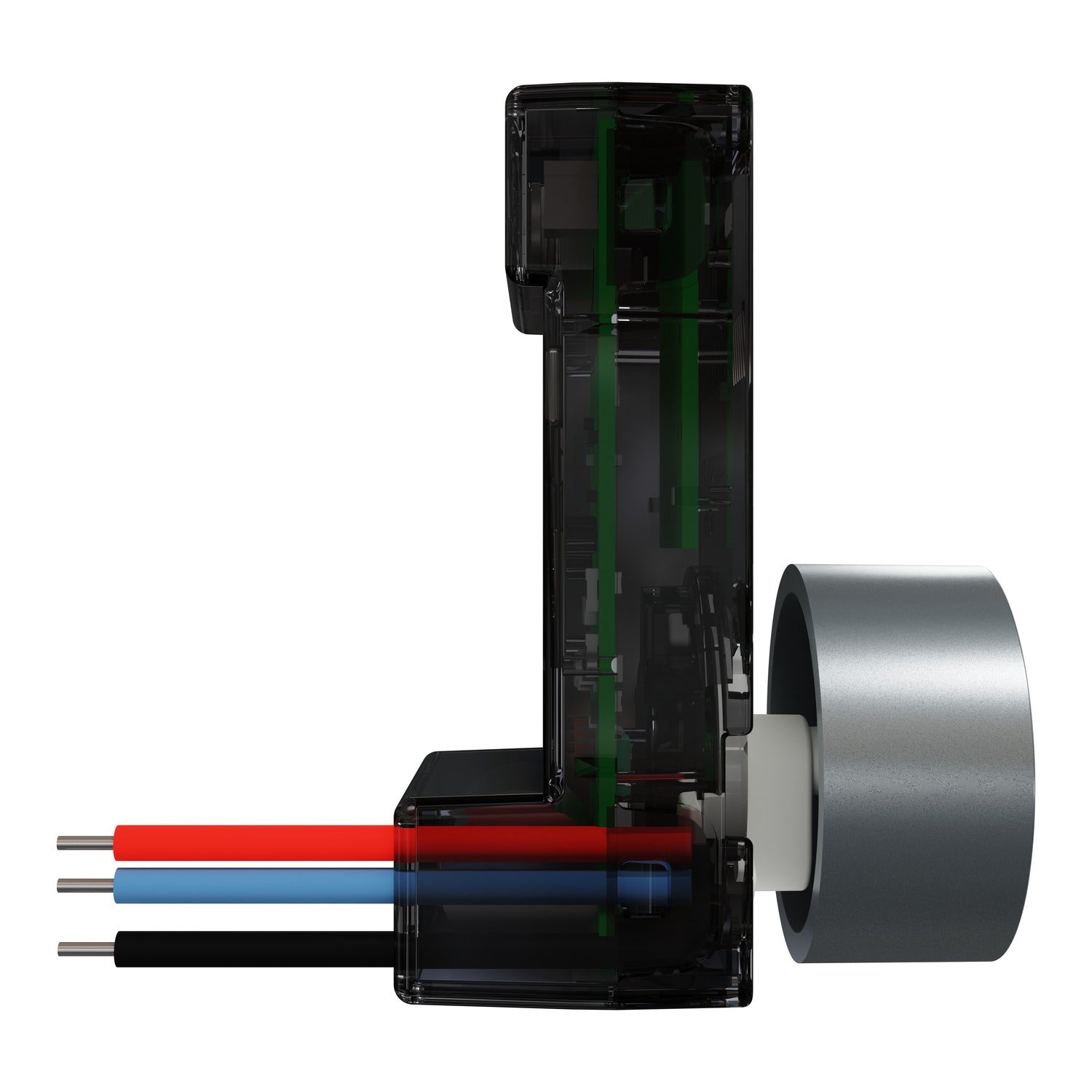

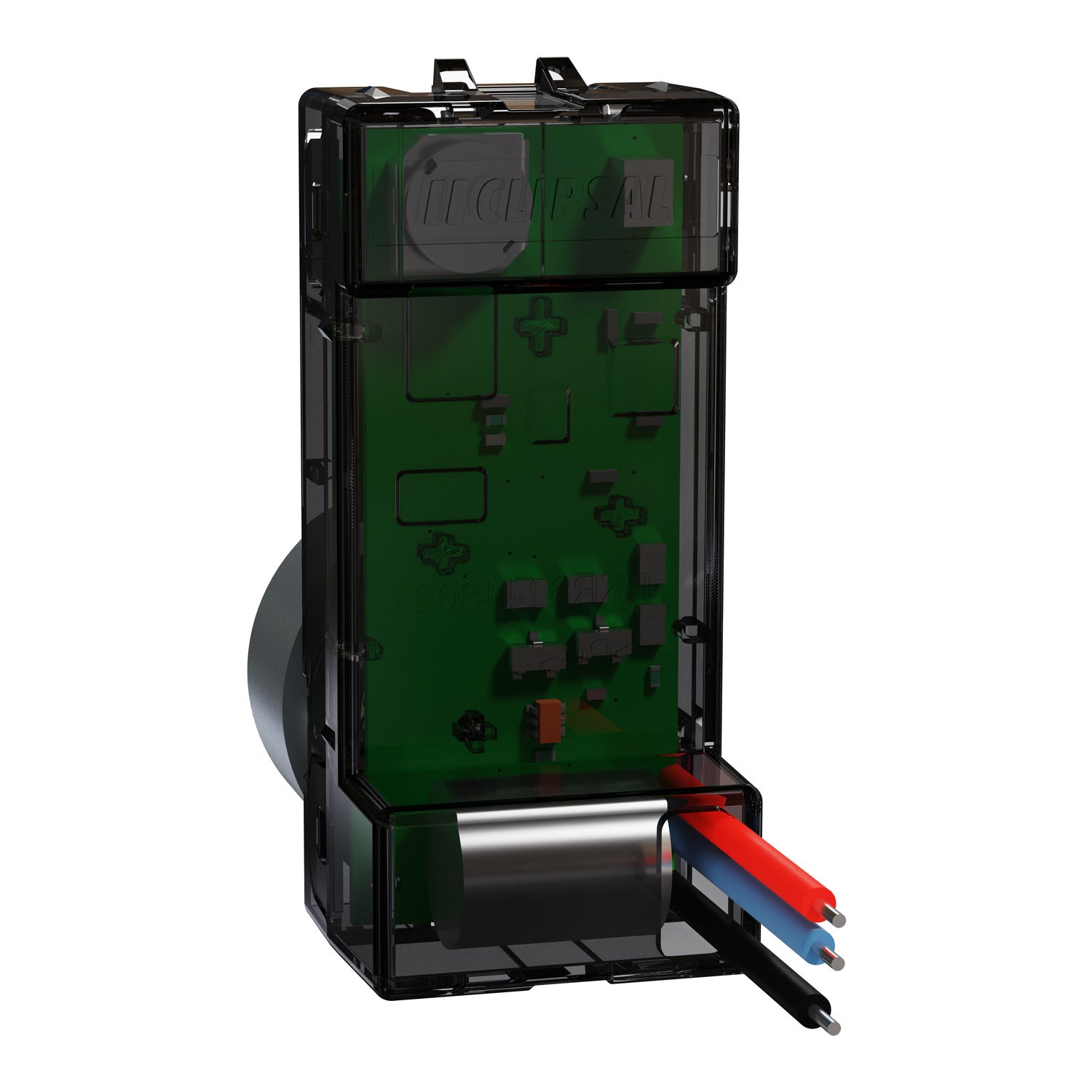

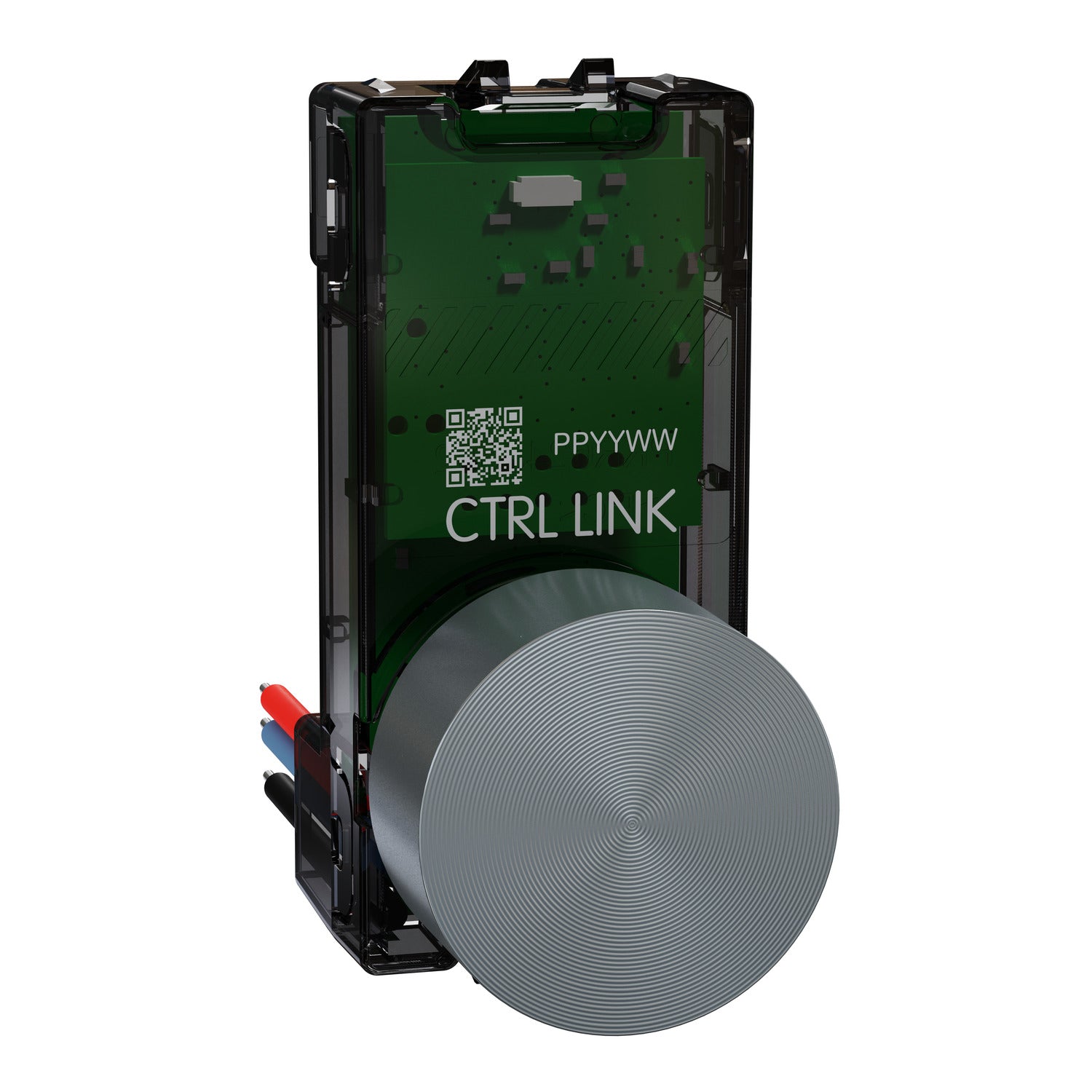

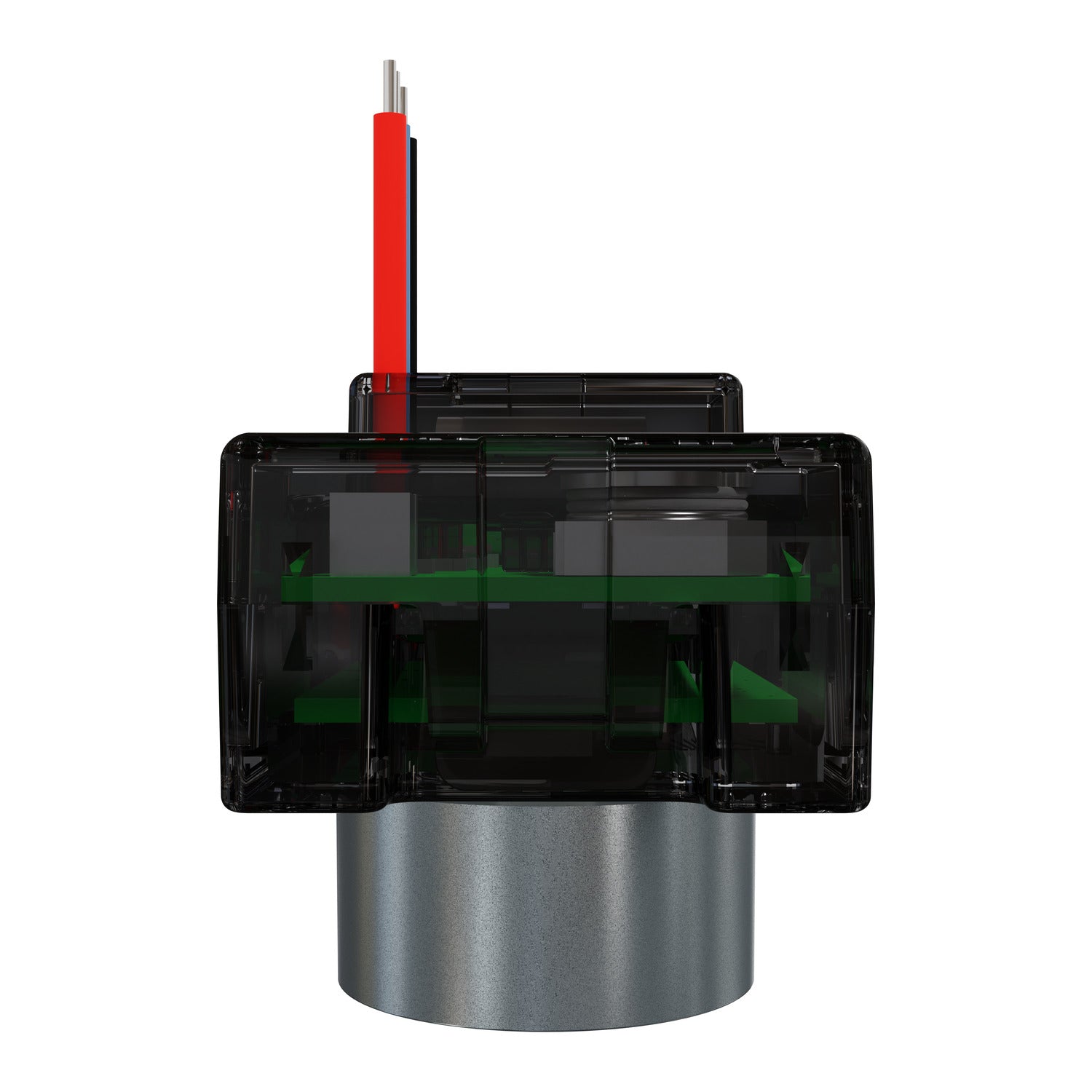

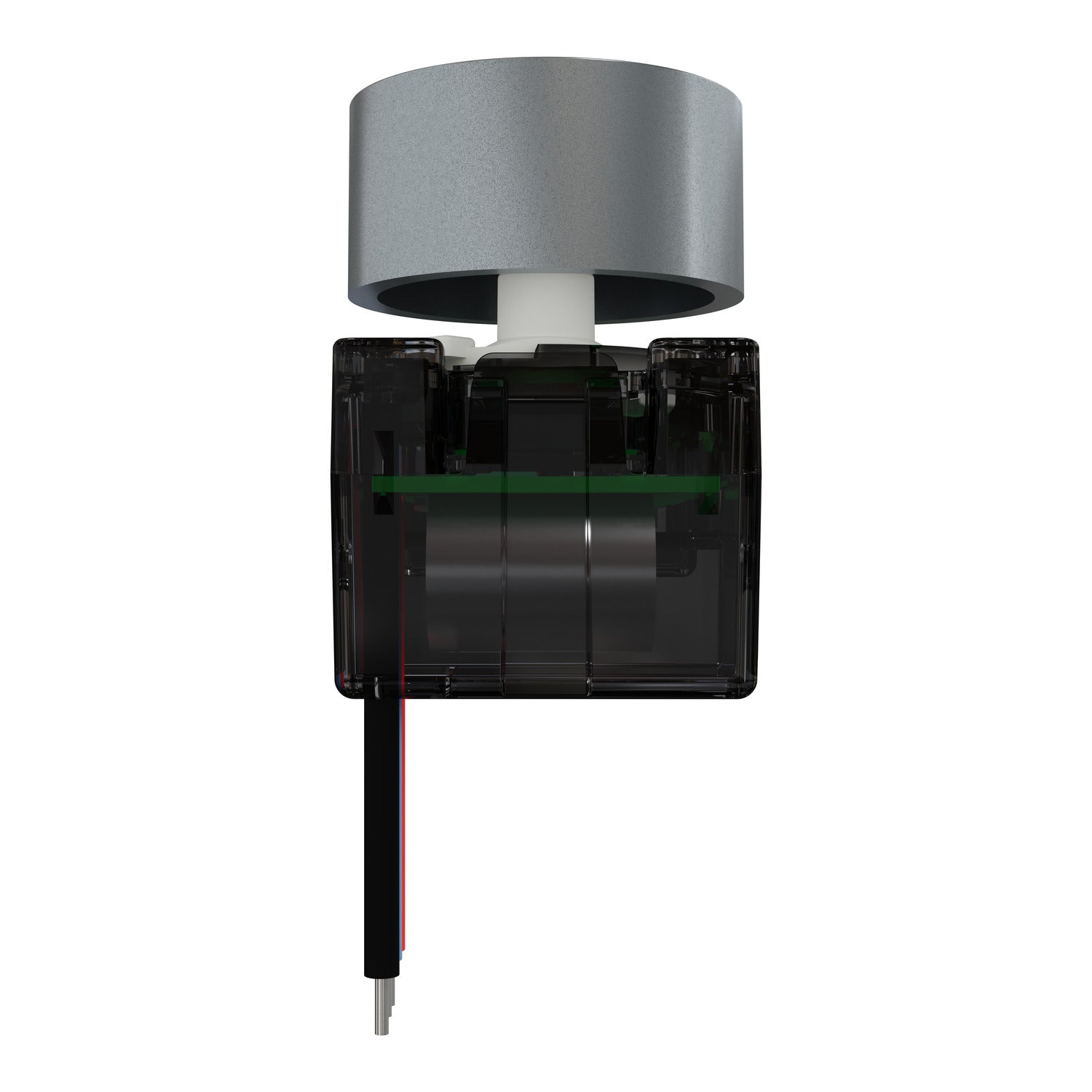

Experience the convenience and versatility of the Clipsal Solis T Series adaptor, meticulously designed for residential, commercial, and hotel use. This adaptor has been specifically designed to fit a rotary wiser dimmer. The installation process has been made easier with the provision of screws. This device allows for flush mounting. It is intended to be installed horizontally only. The dimensions are (W) 22mm x (H) 51mm x (D) 30mm. The color of the product is platinum. The Clipsal Solis T Series grid plate with cover frame from Schneider Electric is ideal for residential, commercial, and hotel environments. This cover frame has been specifically designed to fit a configuration of 1 gang.
Main
| Range |
Clipsal Solis T Series |
| Product or component type |
Adaptor |
| Outlet standard deviation |
Australian/New Zealand |
Complementary
| Device mounting |
Flush |
| Control type |
Push-button |
| fixing mode |
Screw |
| Colour tint |
Platinum |
| Installation direction |
Horizontal |
| Surface finish |
Matt |
| surface treatment |
Painted |
| Number Of Switches |
1 |
| Material |
Aluminium |
| Height |
51 mm |
| Width |
22 mm |
| Depth |
30 mm |
| Product certifications |
RCM |
Environment
| Ambient air temperature for operation |
0…45 °C |
| Relative humidity |
10…95 % |
Packing Units
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
3.5 cm |
| Package 1 Width |
7.5 cm |
| Package 1 Length |
7.5 cm |
| Package 1 Weight |
47 g |
| Unit Type of Package 2 |
BB1 |
| Number of Units in Package 2 |
4 |
| Package 2 Height |
15.5 cm |
| Package 2 Width |
8 cm |
| Package 2 Length |
8 cm |
| Package 2 Weight |
266 g |
| Unit Type of Package 3 |
CAR |
| Number of Units in Package 3 |
120 |
| Package 3 Height |
34 cm |
| Package 3 Width |
36 cm |
| Package 3 Length |
48 cm |
| Package 3 Weight |
5.724 kg |
