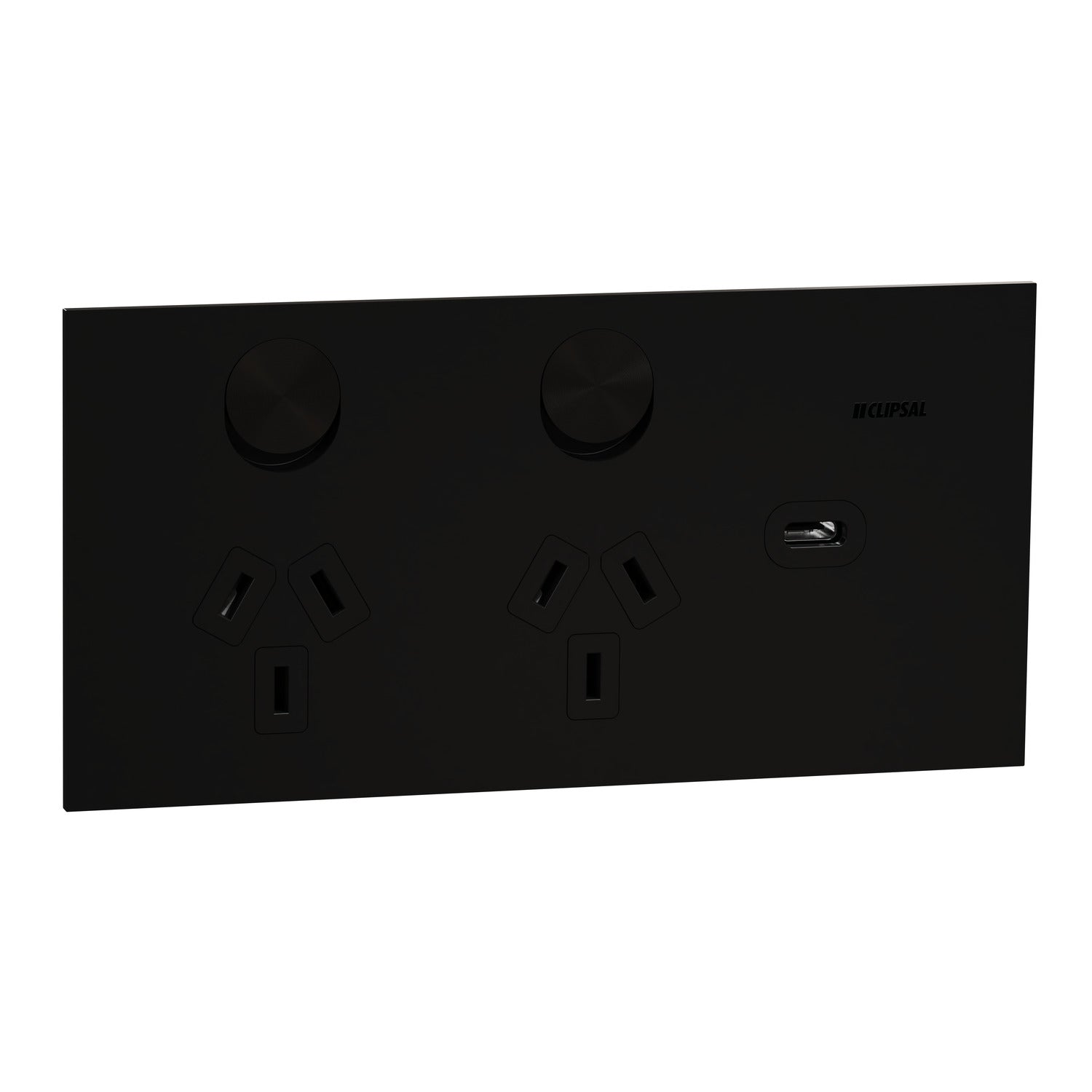

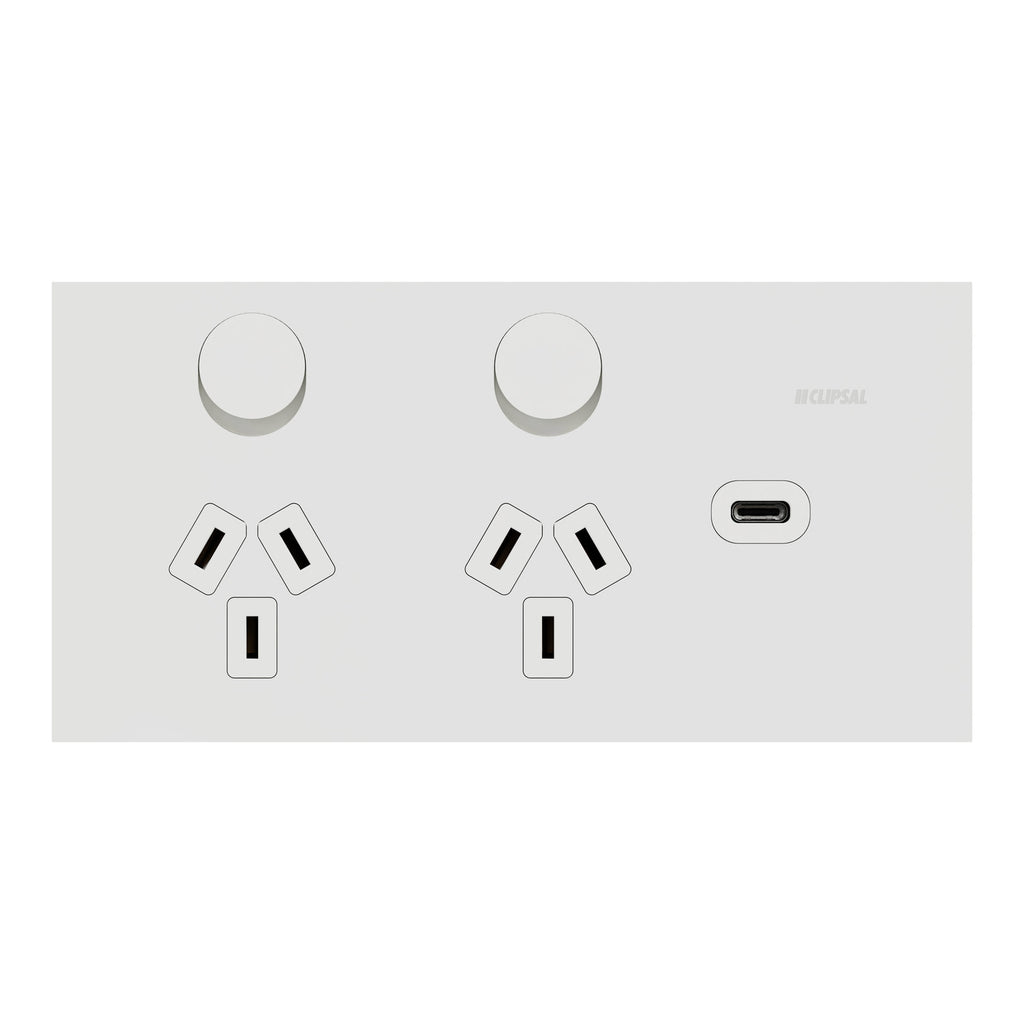

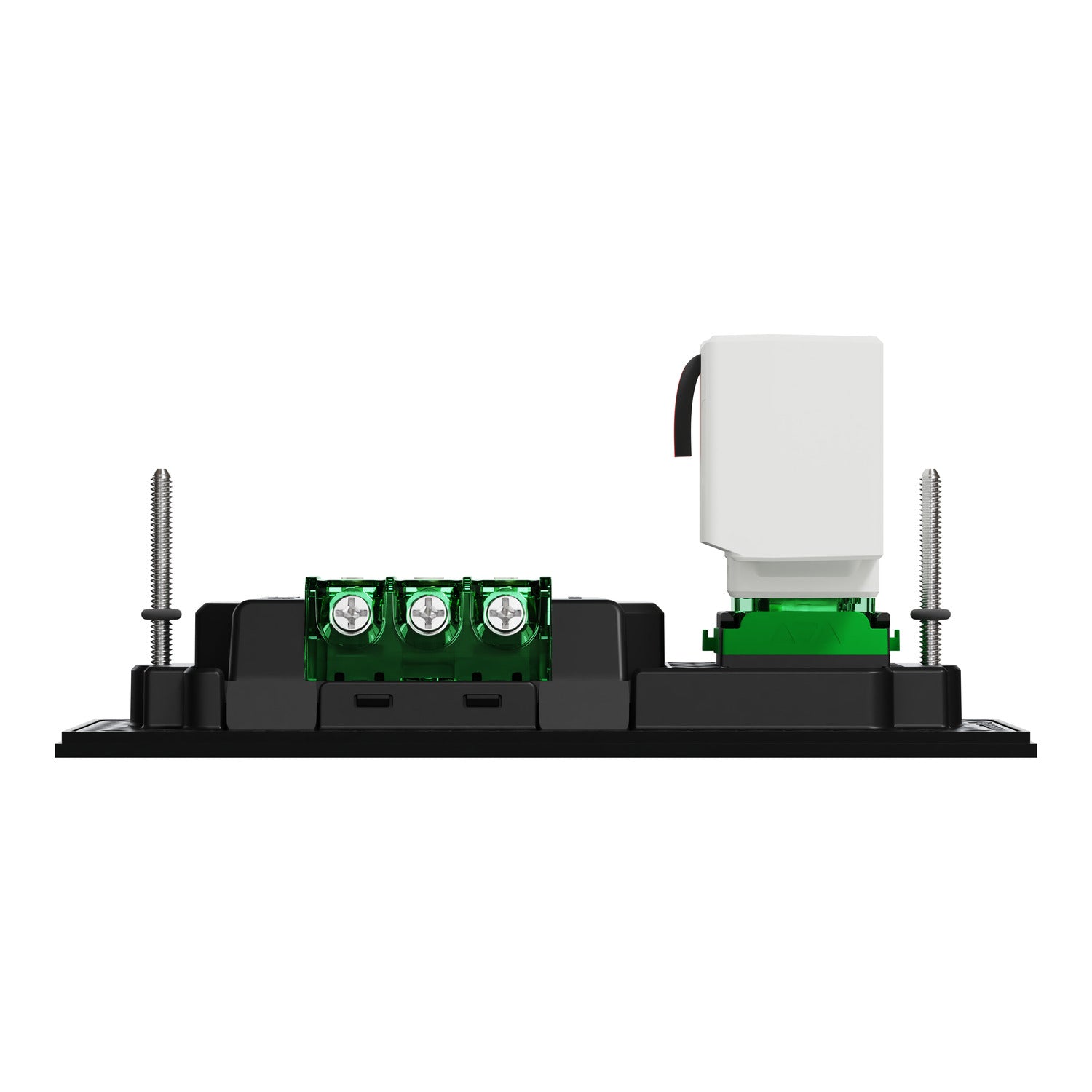

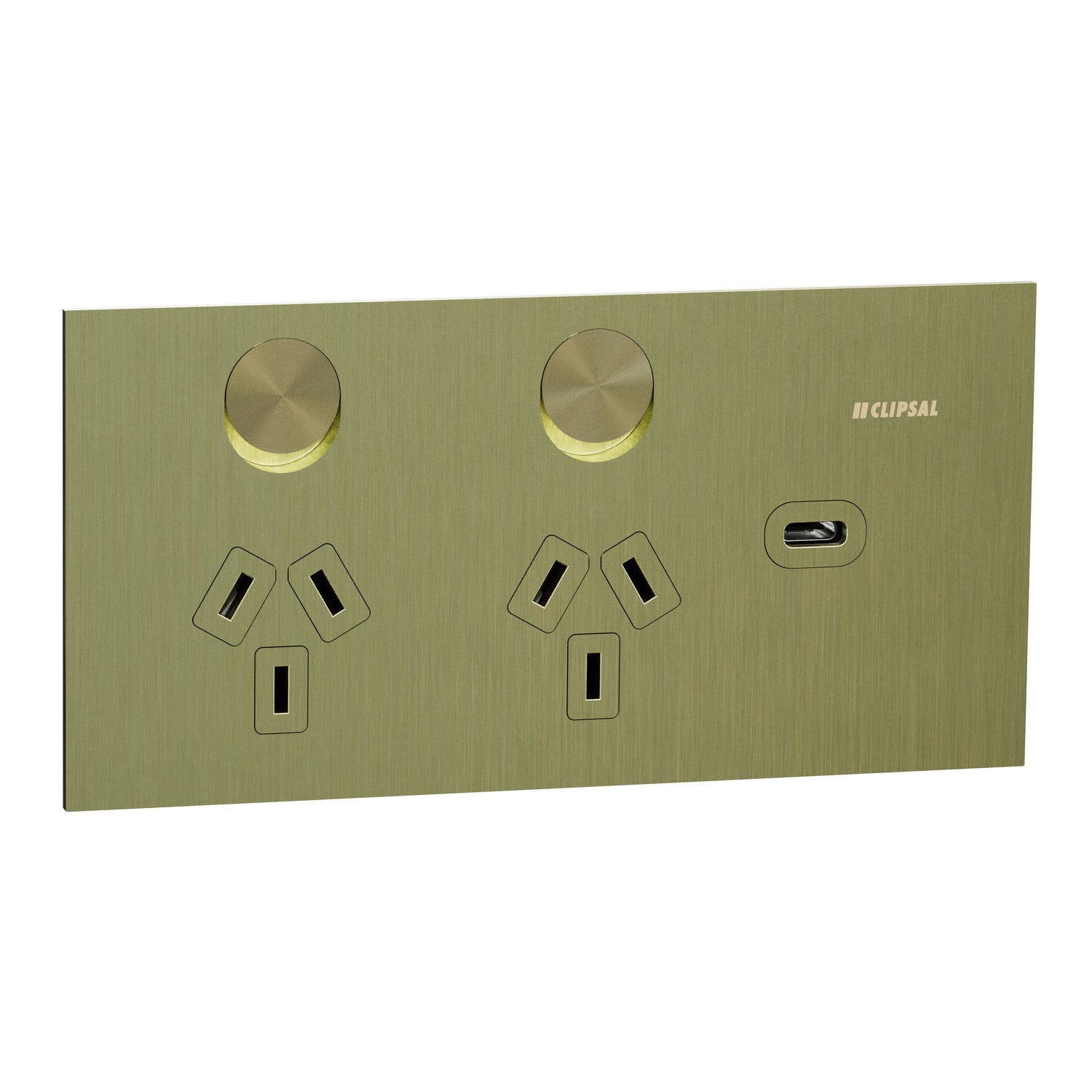

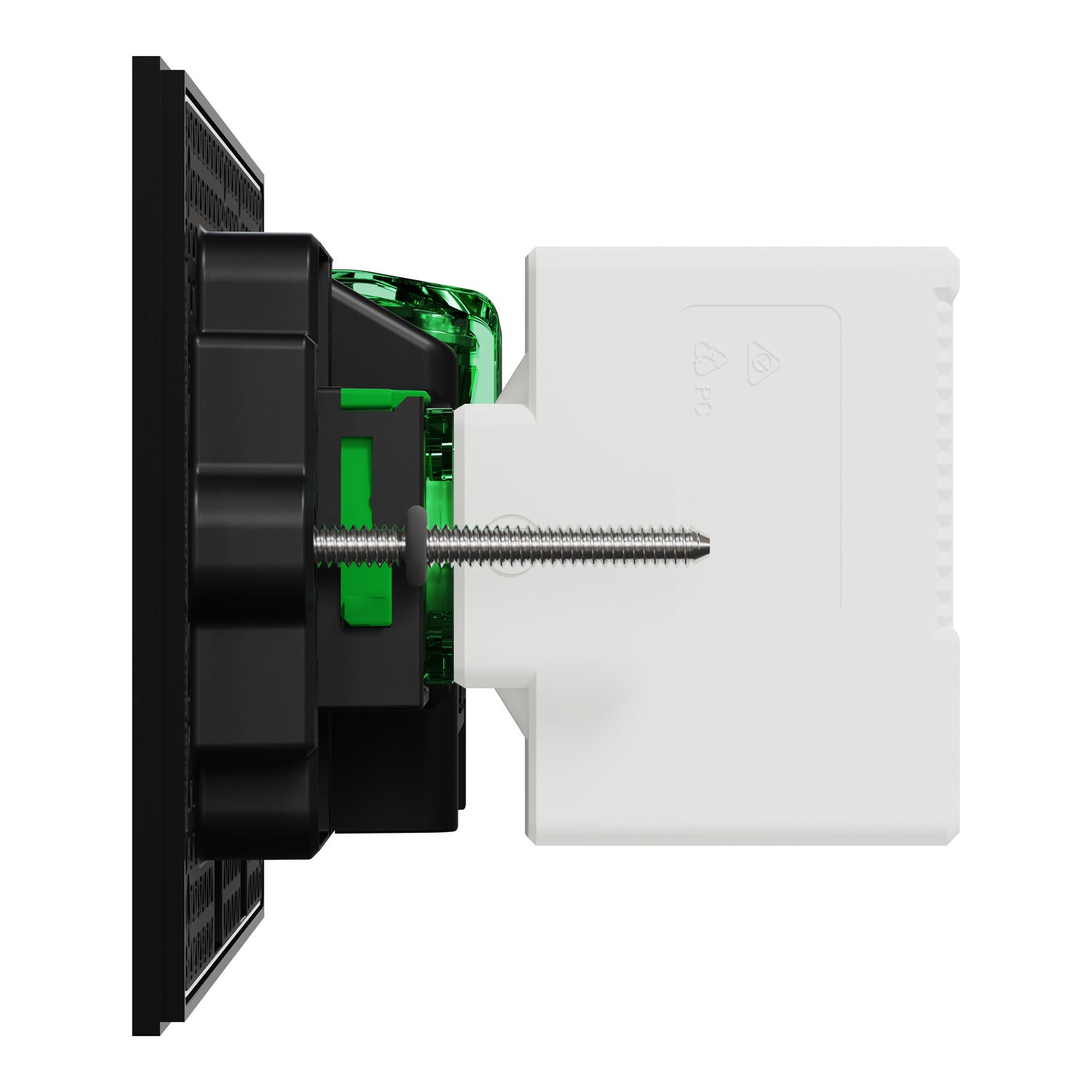

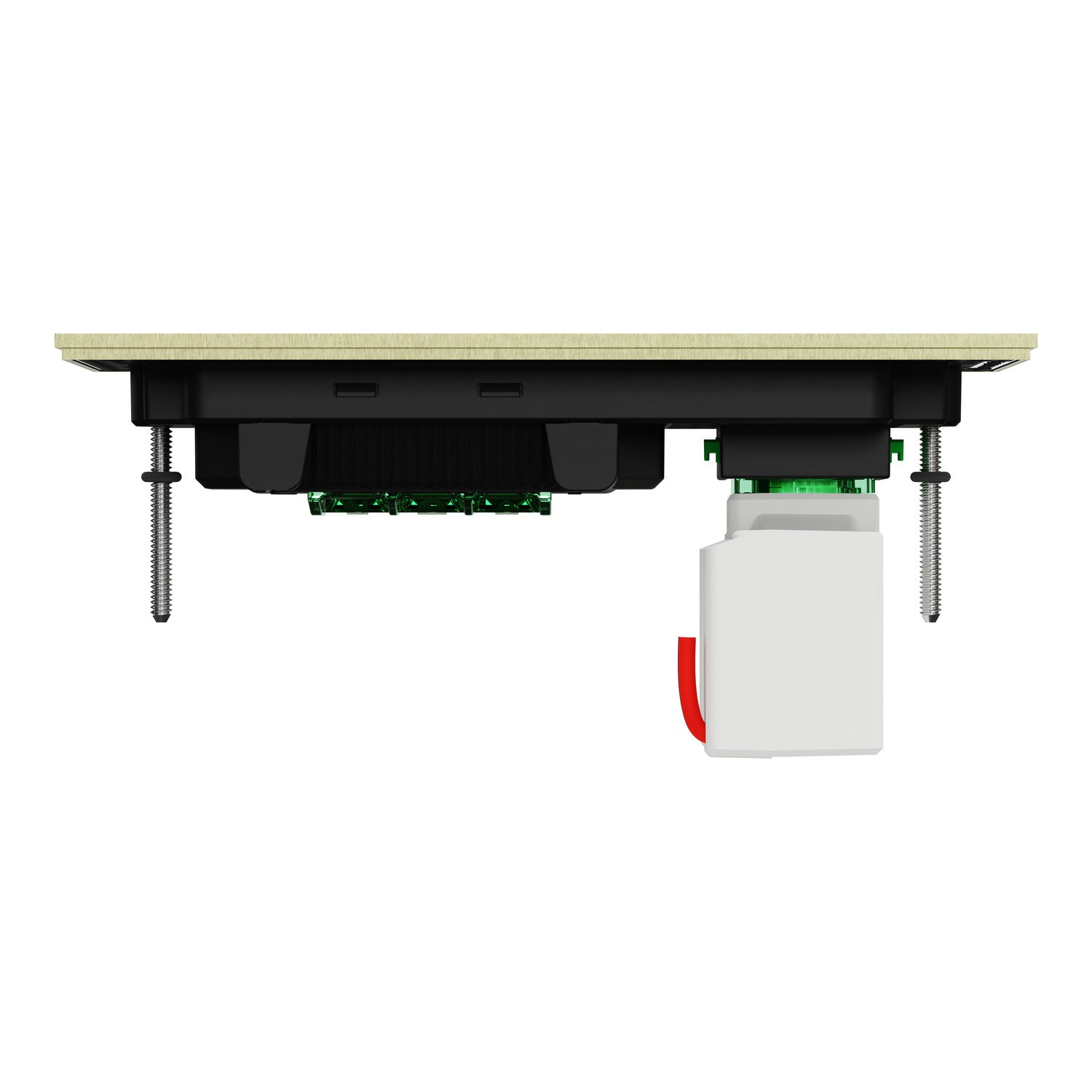

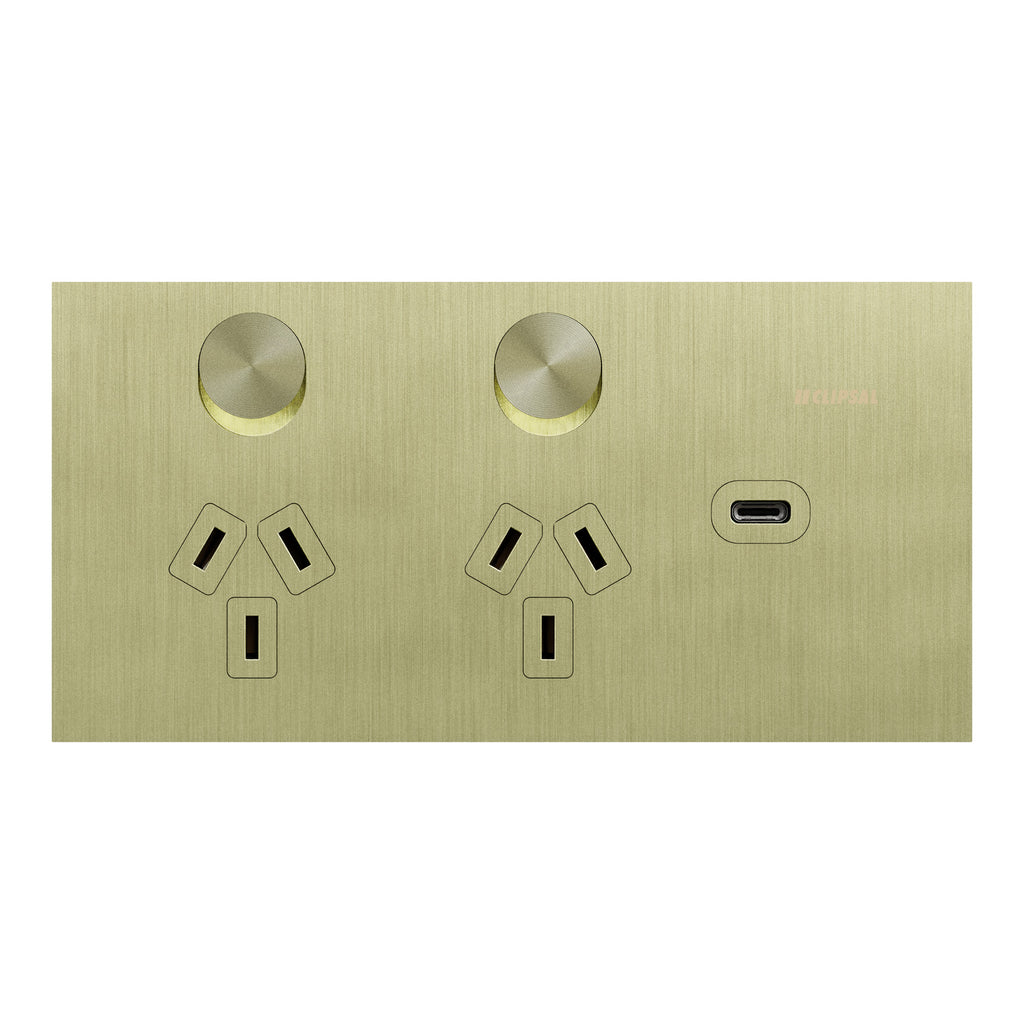

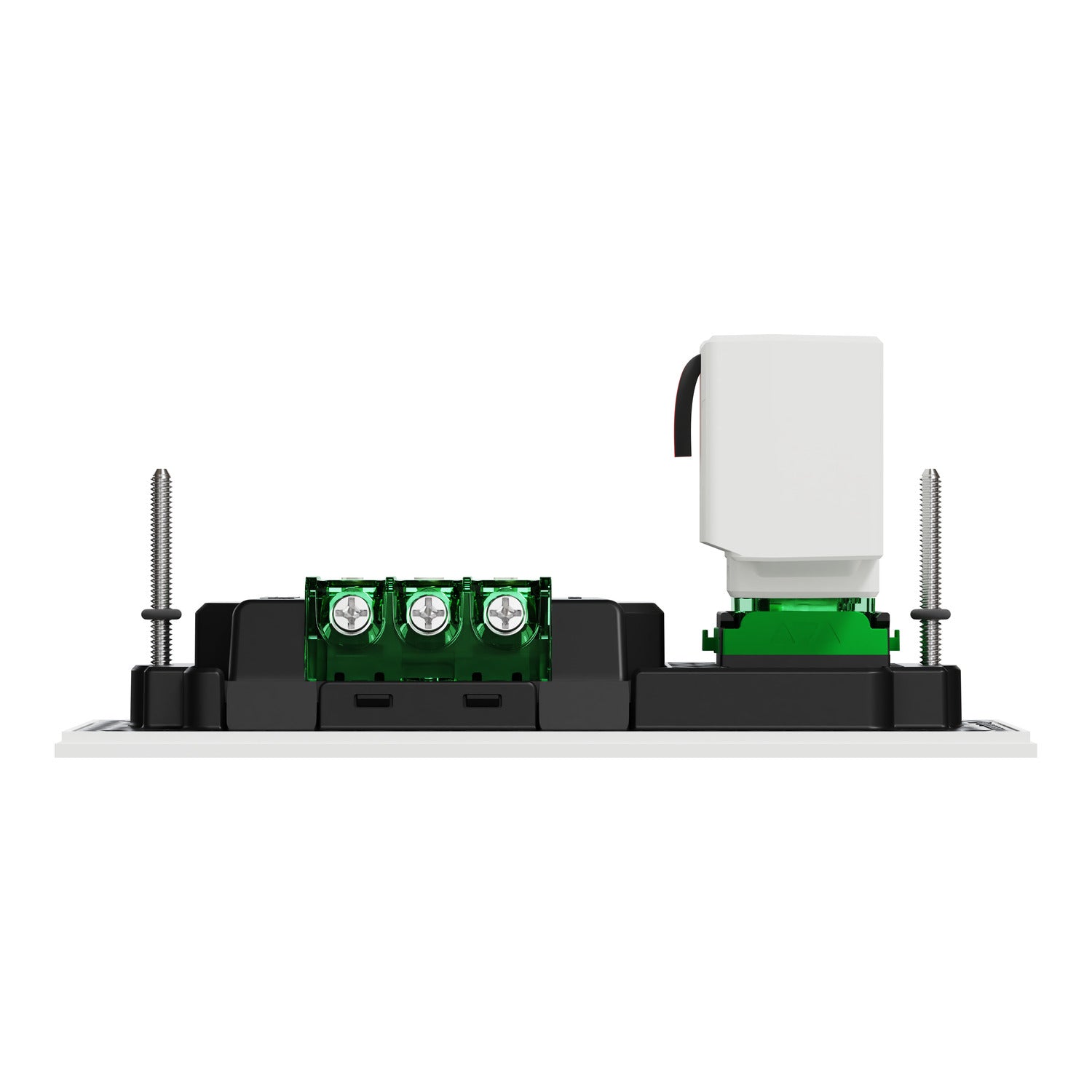

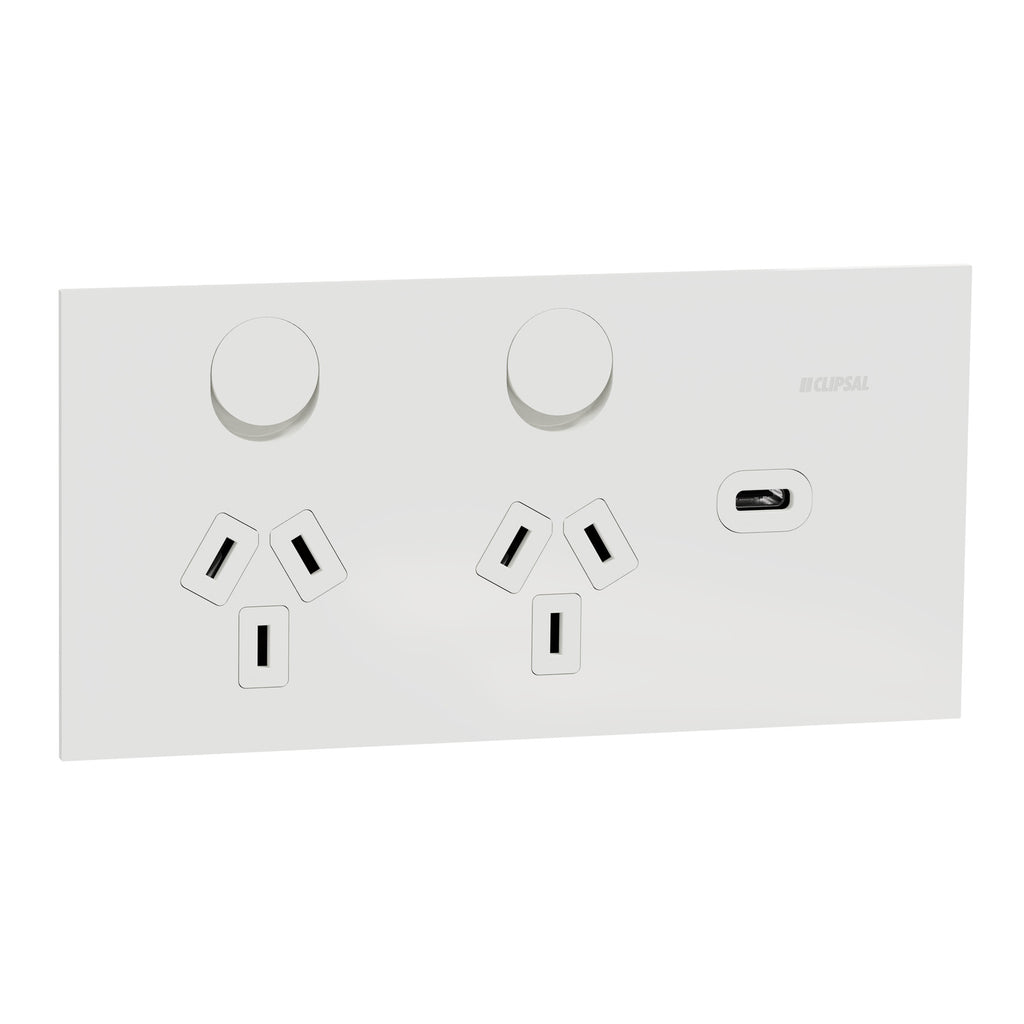

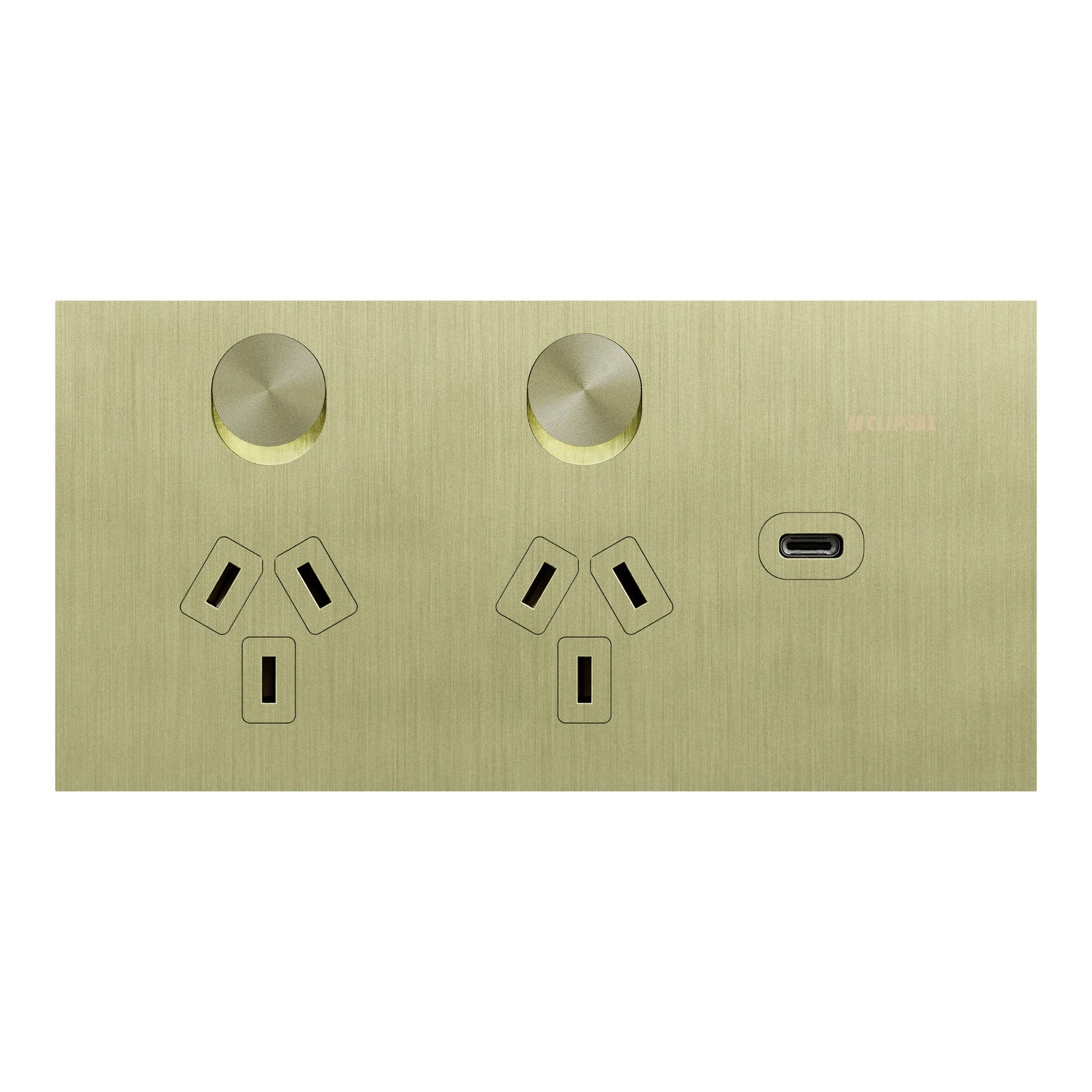

The Clipsal Solis double switched socket + USB charger is designed to meet the demands of residential, commercial, and hotel applications. This socket outlet is designed to meet Australian/New Zealand standards and has a 2P + E pole configuration. The USB C charger can be plugged directly into the wall, eliminating the need for an external charger. The rated current is 10A and the rated operational voltage is 230/240VAC. The device comes with a screw terminal that offers a more secure connection for larger wires, reducing the risk of loose wires caused by external factors. This device allows for flush mounting. Screws are available for installation. The socket has a shutter that prevents the insertion of objects other than plugs for safety purposes. It is intended to be installed horizontally only. The dimensions are (W) 148mm x (H) 74mm x (D) 68.9mm, and the embedding depth is 65mm. Discover the perfect fit with a 120mm fixing center and 3.9mm thickness for seamless integration into your projects. The color of the product is ebony aluminium. Its operating temperature is from 0°C to 45°C. Choose from modern high-end finishes such as ceramic white, living brass, and recycled aluminum in platinum or ebony for contemporary home spaces with the Clipsal Solis T Series range. Create aesthetically pleasing electrical designs that complement your style.
Main
| Product or component type |
Switched socket with USB charger |
| Assembly Type |
Complete product |
| Standards |
AS/NZS 3112 |
| Product certifications |
RCM |
| Main colour tint |
Ebony aluminium/White ceramic |
Complementary
| Range |
Clipsal Solis T Series |
| Number Of Outlets |
2 |
| Device mounting |
Wall mounted 65 mm |
| Cover type |
With shutter |
| Number of power socket outlets |
2 x 2P + E, Australian/New Zealand |
| Rated current |
10 A 230/240 V, AC, 50 Hz |

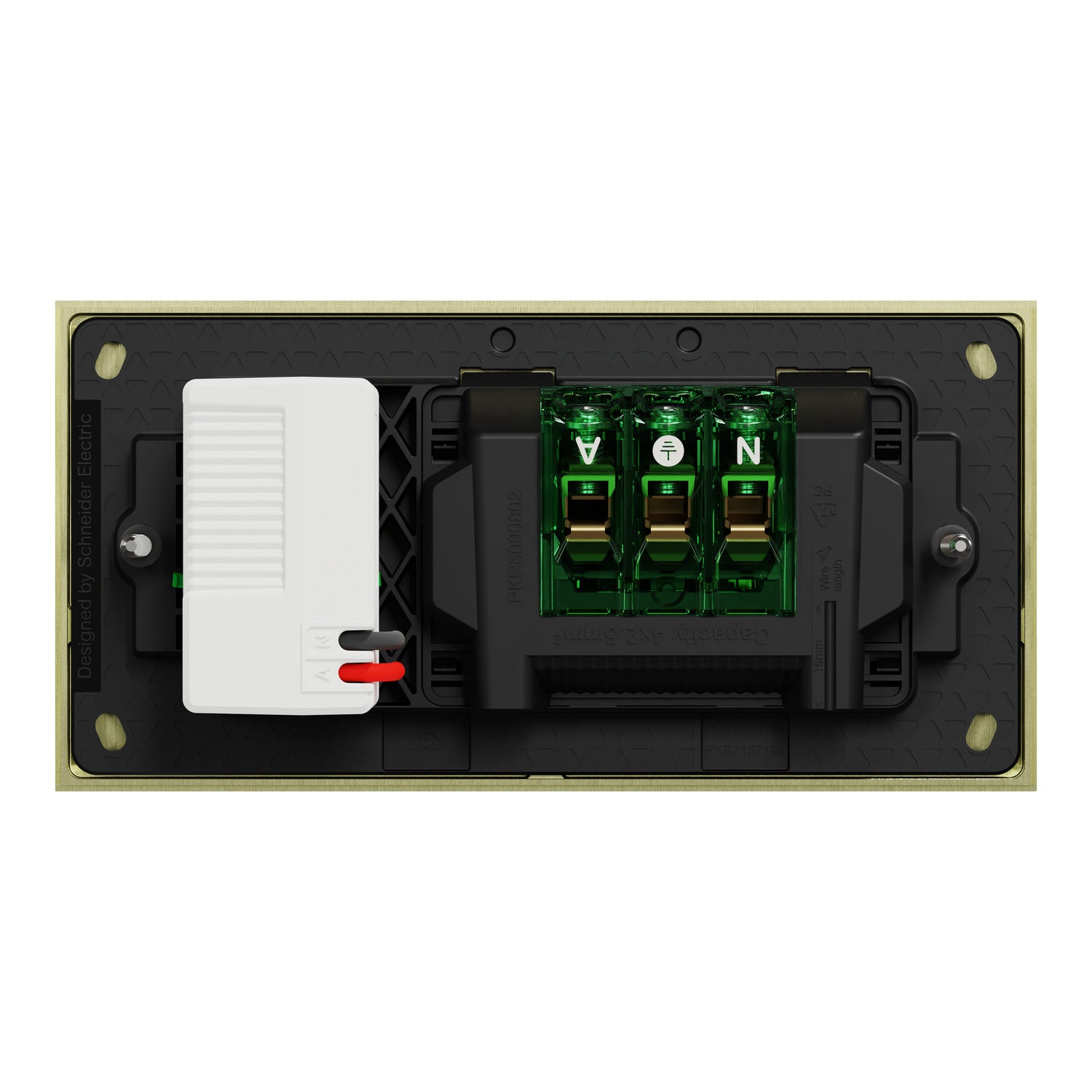

| Connections - terminals |

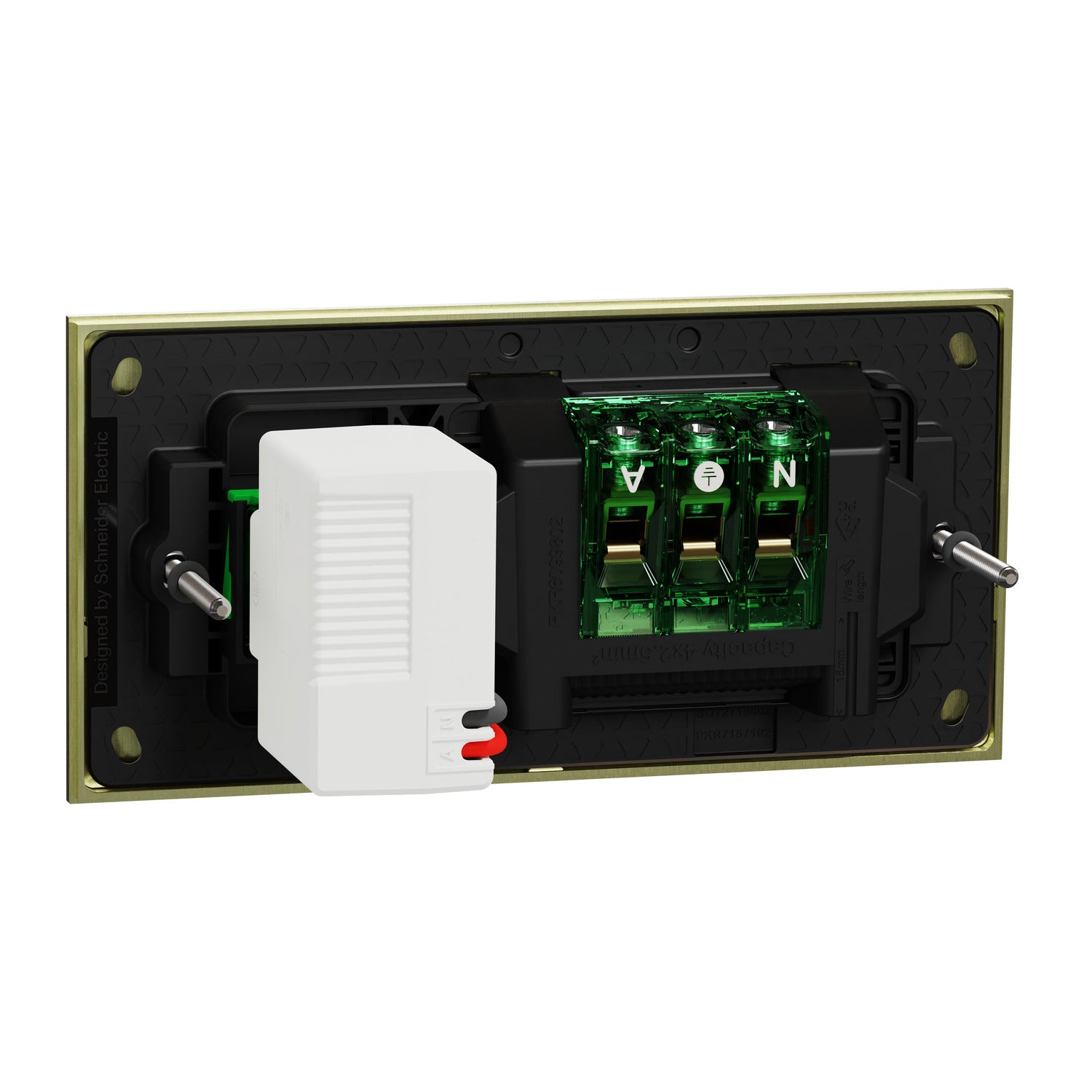

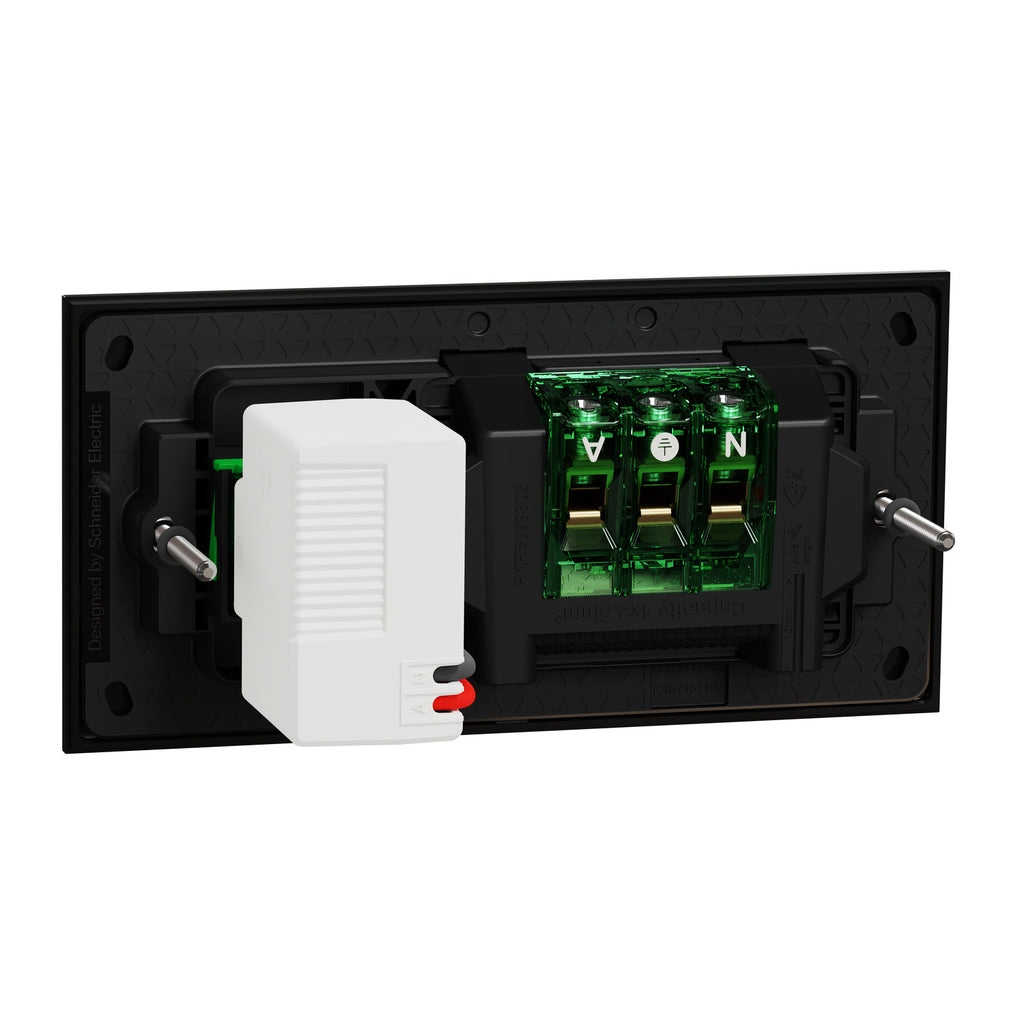

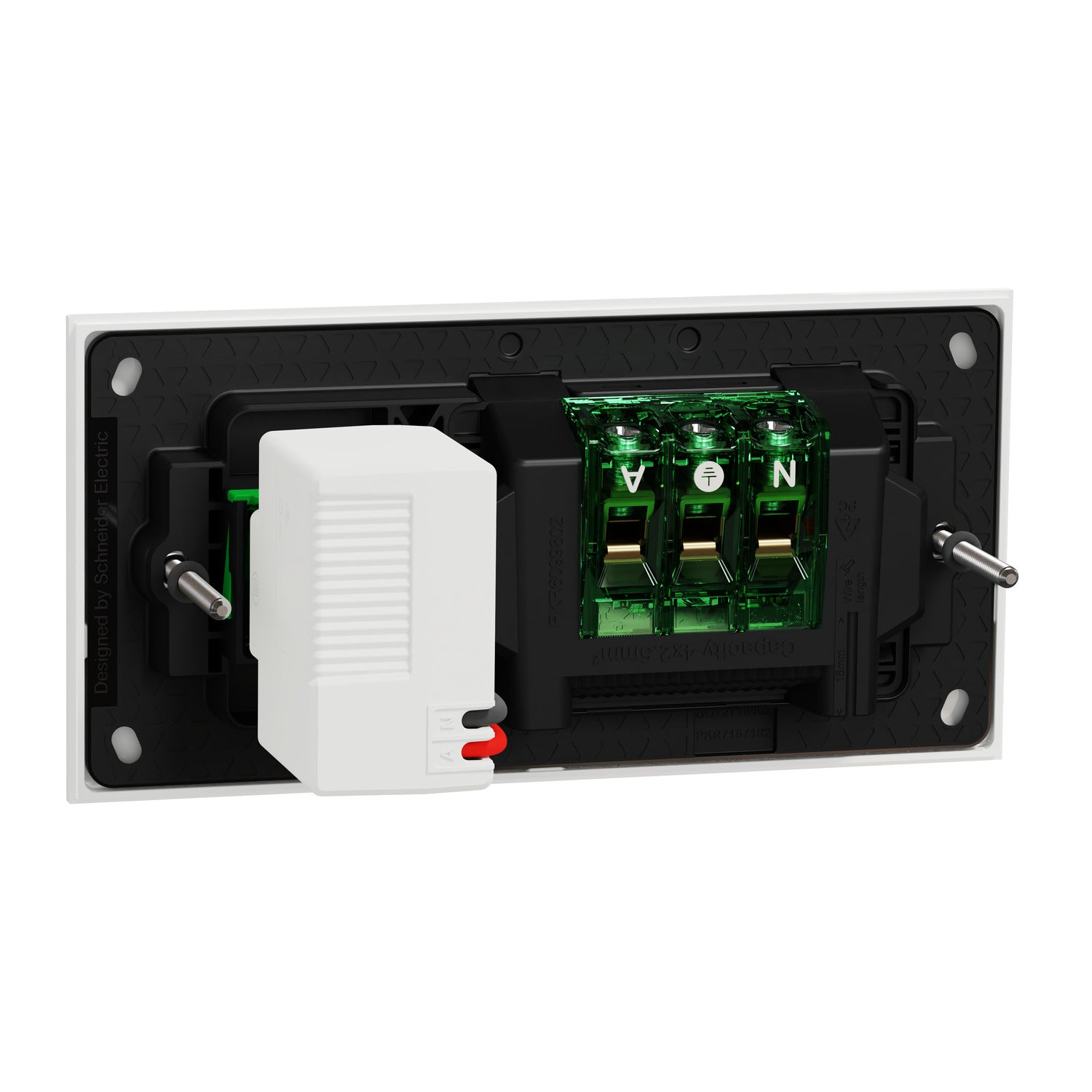

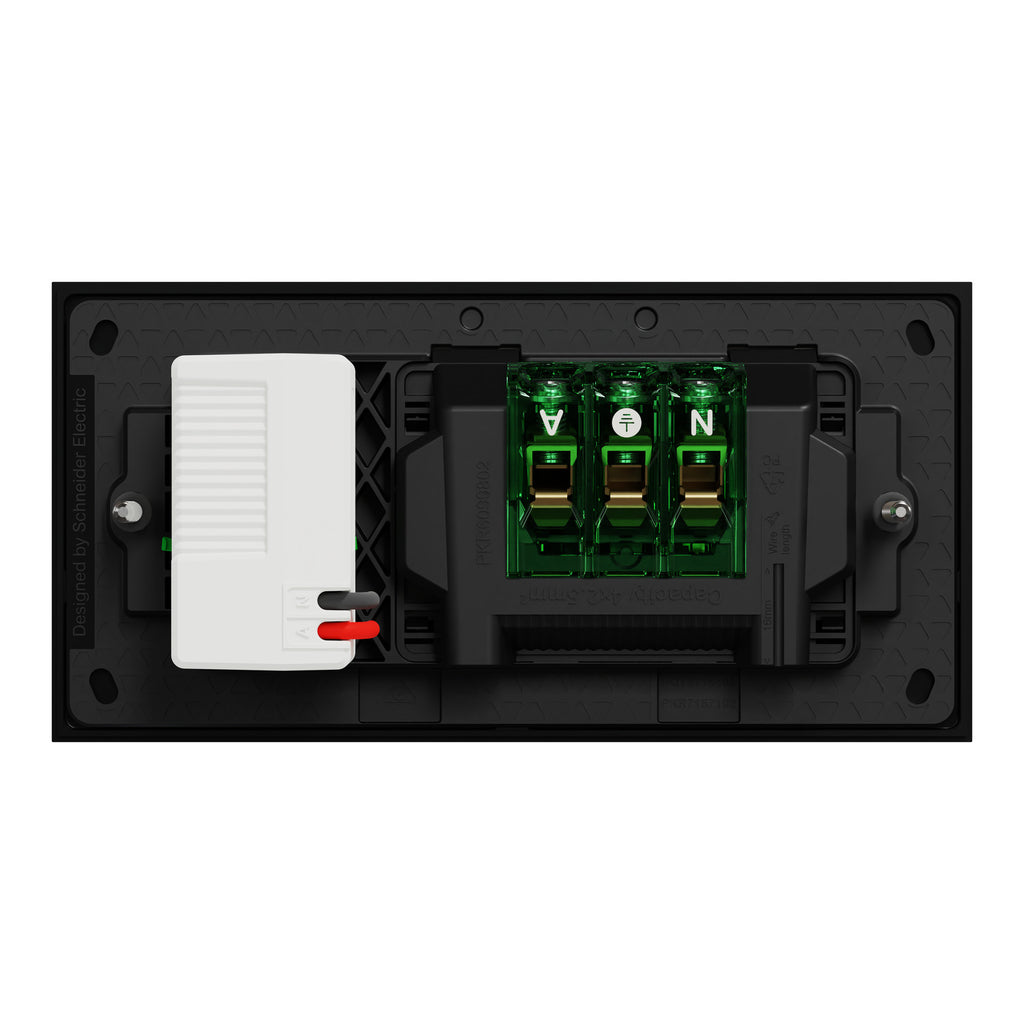

4 x 2.5 mm² screw terminals
3 x 4 mm² screw terminals |
| Colour tint |
Ebony aluminium/ White ceramic |
| Surface finish |
Aluminium/ Polished ceramic |
| surface treatment |
Metallic/ Polished |
| Additional Function |
USB type C |
| Material |
Aluminium/ Ceramic |
| Screwdriver shape |
Philips No 2
Square drive no 1 (SQ1) |
| Wire stripping length |
16 mm |
| Fixing mode |
By screw |
| fixing center |
120 mm |
| Height |
74 mm |
| Width |
148 mm |
| Depth |
68.9 mm |
| Sale per indivisible quantity |
1 |
| Installation Type |
Flush |
| Installation Orientation |
Horizontal |
| Control type |
Rocker |
| Cover Thickness |
3.9 mm |
| Cut-out dimensions |
130 x 50 mm |
| Number Of Switches |
2 |
Environment
| Ambient air temperature for operation |
0…45 °C |
| Relative humidity |
10…95 % |
Packing Units- 1025USBC-EA
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
15.5 cm |
| Package 1 Width |
8 cm |
| Package 1 Length |
8 cm |
| Package 1 Weight |
252 g |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
30 |
| Package 2 Height |
32.5 cm |
| Package 2 Width |
25 cm |
| Package 2 Length |
41 cm |
| Package 2 Weight |
7.94 kg |
Packing Units-1025USBC-WC
| Unit Type of Package 1 |
PCE |
| Number of Units in Package 1 |
1 |
| Package 1 Height |
15.5 cm |
| Package 1 Width |
8 cm |
| Package 1 Length |
8 cm |
| Package 1 Weight |
287 g |
| Unit Type of Package 2 |
CAR |
| Number of Units in Package 2 |
30 |
| Package 2 Height |
32.5 cm |
| Package 2 Width |
25 cm |
| Package 2 Length |
41 cm |
| Package 2 Weight |
8.99 kg |
